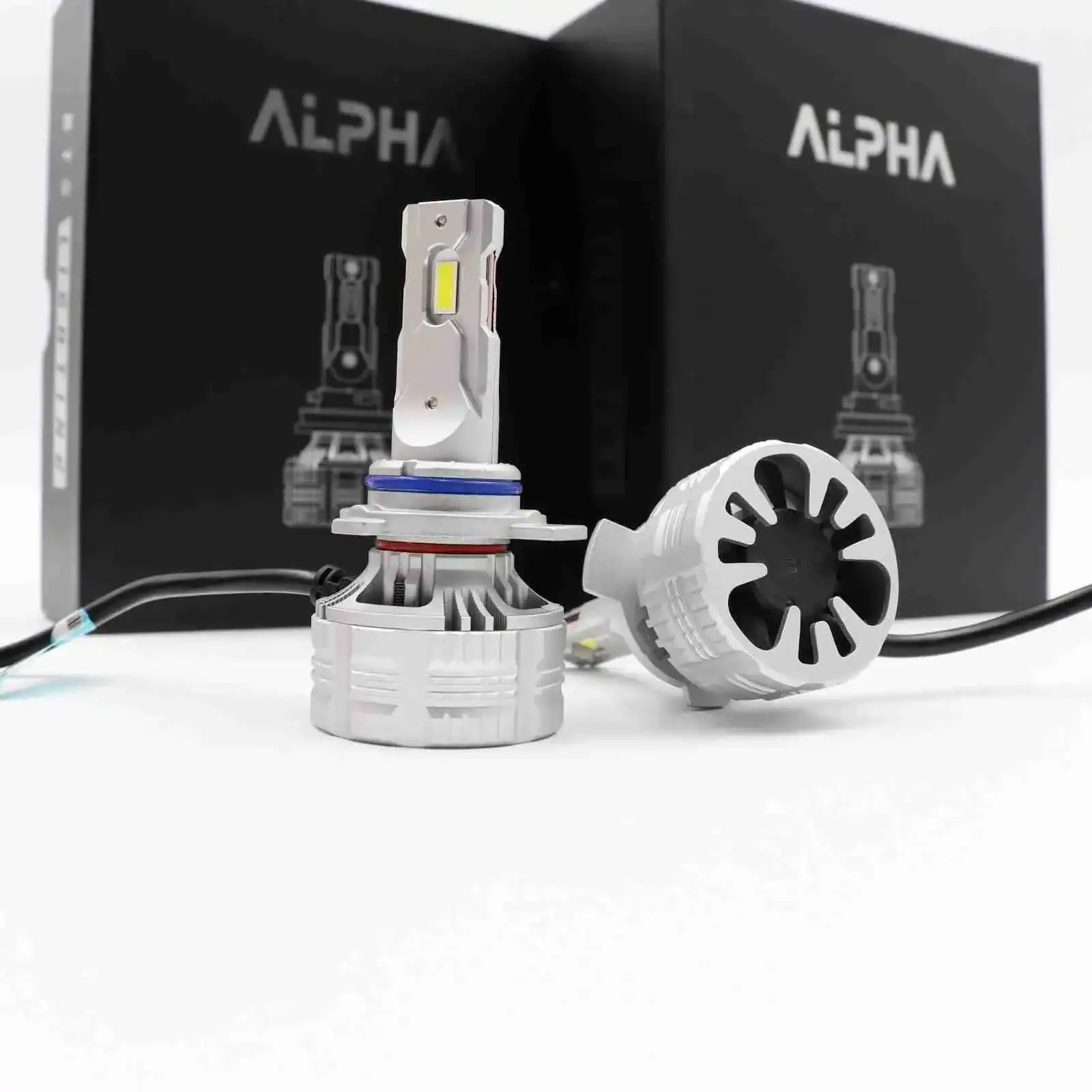

Alpha Series 9012 / HIR2 LED bulbs: match the bulb and housing
SKU A1010 identifies this Alpha Series 9012 / HIR2 LED bulb listing. Its published output is 9,336 lumens per pair with 6500K white light. Compare the installed bulb marking, lamp position, connector and cooling clearance before choosing a replacement.
Read more: specifications and installation checks
- Exact SKU: A1010
- Bulb designation: 9012 / HIR2
- Published light output: 9,336 lumens per pair
- Colour temperature: 6500K white
- Cooling design: Attached I-Drivers, dual red copper heat plates and vacuum-sealed copper tubes
- Warranty: lifetime limited warranty; existing product terms apply

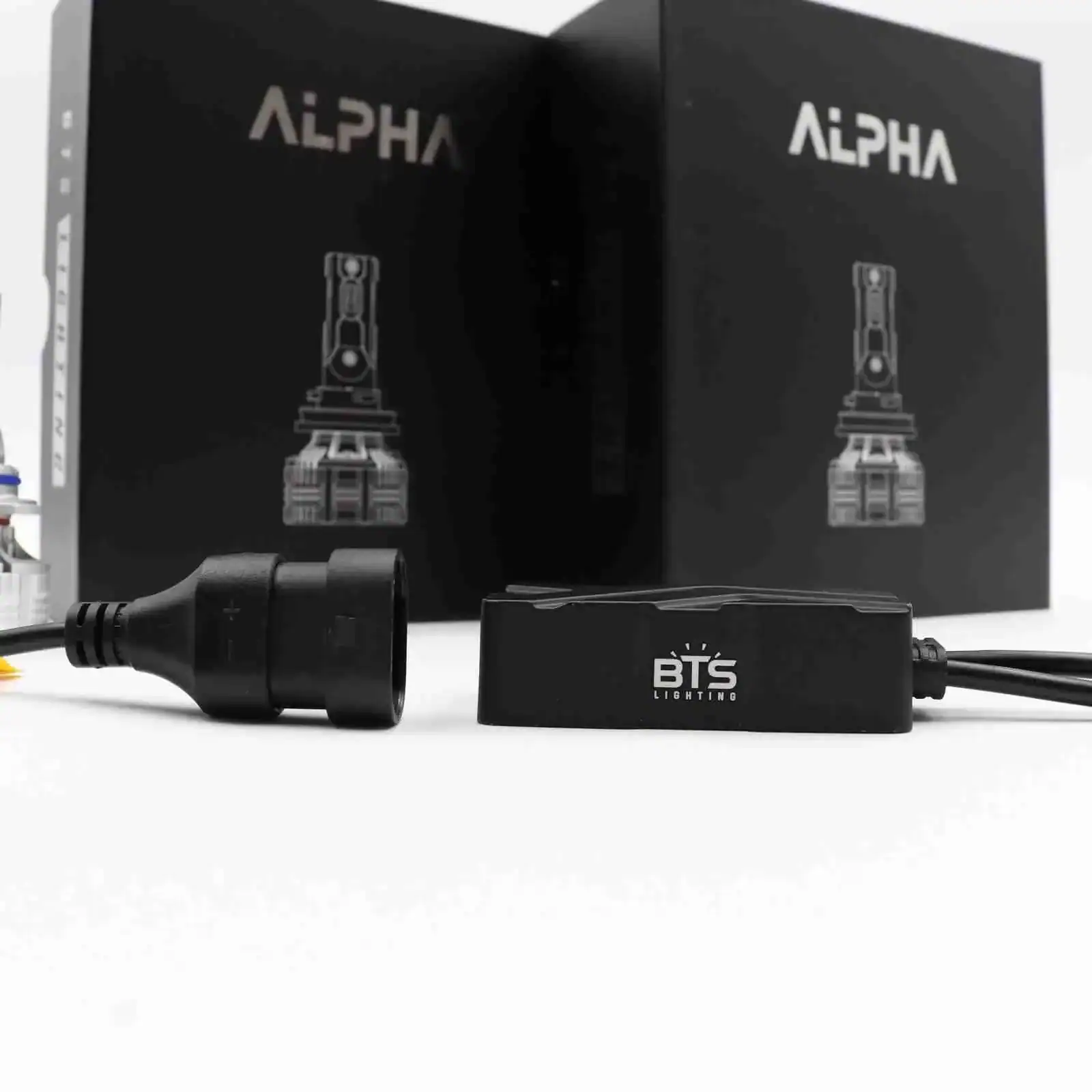

Package contents: two 9012 bulbs, two attached I-Drivers and plug-and-play wiring. The published specifications also identify NLW7535CV3 LED chips, a diecast aluminum body and EMC circuitry. Optional ferrite clamps are a separate accessory.
Before installation, compare the mounting/retainer, connector, available space and dust-cap closure. After installation, check high/low operation where applicable and the final beam aim. A bulb-base match alone does not establish optical performance, approval or compatibility with a complete factory LED housing.
Frequently Asked Questions
Is the 9,336-lumen figure for one bulb?
The published rating for SKU A1010 is 9,336 lumens per pair. Keep that unit with the number when comparing products; it is not a measurement of light delivered to a particular point on the road.
What light colour is this 9012 / HIR2 product?
This exact listing specifies 6500K white light. Match the SKU and product generation when replacing an existing bulb; another Alpha Series bulb can have a different specification.
Are the 9012 I-Drivers included?
Yes. The current package specification lists two 9012 LED bulbs, two attached I-Drivers and plug-and-play wiring. Check space for those attached components and the lamp’s dust-cap closure.
Can I use the voltage rating from another Alpha Series bulb?
No. Match the electrical specification for this exact 9012/I-Driver product. A voltage range listed on another Alpha Series SKU or an older 9012 listing is not confirmation for this one.
Does an LED bulb replace a complete factory LED headlight?
This is a replacement-bulb product for a compatible serviceable lamp. A complete factory LED headlight can use different integrated electronics and light sources; a model name or similar exterior housing is not a bulb-fitment check.
Will built-in electronics prevent every warning or flicker?
Do not assume a universal result. Check the installed bulb type, connections and lighting circuit. Some applications require an appropriate additional module; diagnose the cause before choosing electrical accessories.
What should I check around the 9012 / HIR2 cooling system?
This product lists: attached i-drivers, dual red copper heat plates and vacuum-sealed copper tubes. Check the space available behind the bulb and the way the original dust cap closes. Keep the cooling path and mounting arrangement consistent with the supplied installation instructions.
What warranty applies to this Alpha Series bulb?
The current product carries a lifetime limited warranty. The existing terms and exclusions for the purchased product apply; a warranty does not make an incompatible housing or electrical supply suitable.
