Ford Super Duty bulb sizes
Start with your model year and the lamps fitted to your truck. Factory bulb headlights and factory LED headlights use different replacement parts. Fog lights and rear lamps can have their own equipment options.
2023–2026 · 2022 factory chart · 2020–2021 factory chart · 2019 factory chart · 2017–2022 · 2011–2016

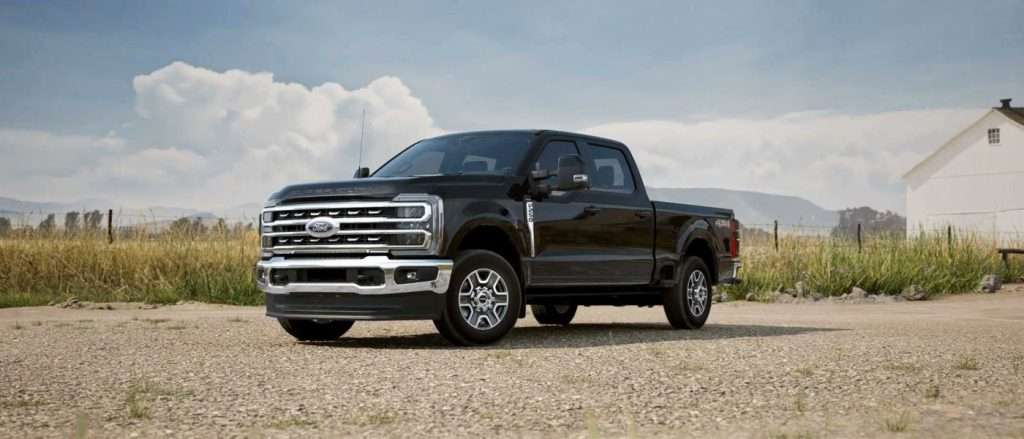

2023–2026 Ford Super Duty bulb sizes
F-250/F-350 with factory halogen headlights: the documented replacement applications use H11 low beam and 9005 high beam. These trucks should not be grouped with the earlier H13 headlight application. Factory LED headlights do not take these replacement bulbs.
Ford records the original bulb headlamp specification as H11L/9005LL. Headlight Revolution documents the separate H11 low-beam and 9005 high-beam replacement applications for stock halogen F-250/F-350 housings.
| Light and equipment | Original bulb | Details |
|---|---|---|
| Headlamp — Low series | H11L/9005LL | Factory bulb headlamps. Low series is Ford’s equipment label, not low beam. |
| Headlamp — Mid/High series | LED | Factory LED headlamps; no replaceable headlight bulb. |
| Front fog lamp — | H11 | Match the original lamp equipment. |
| Front fog lamp — | LED | U.S. and Canada only No replaceable bulb. |
Ford’s Low, Mid and High series labels describe lamp equipment. A headlight choice does not automatically identify the fog lights or rear lamps.
GTR Ultra 3.0 headlights for 2023–2026 F-250/F-350
For original factory halogen headlights, choose the H11 pair for low beam or the 9005 pair for high beam. These are the GTR Ultra 3.0 bulb pairs specified in Headlight Revolution’s vehicle kits. Each product contains two bulbs.
This application covers F-250 and F-350 with their original halogen headlights. Factory LED headlights use a different assembly.
LED fog bulbs for factory halogen fog lights
These Diode Dynamics options are listed for 2023–2026 F-250, F-350, F-450 and F-550 with factory H11 fog bulbs. Each offer contains two bulbs. They do not replace factory LED fog lamps.
HP48: cosmetic upgrade only. The SL2 product offers white and yellow choices.
Choose your fog-light option
Diode Dynamics HP48 Cool White
H11 fog bulbs
Cool white · Pair of bulbs
Cosmetic upgrade only.
View HP48 Cool WhiteFront signals and markers
| Light and equipment | Original bulb | Details |
|---|---|---|
| Front side marker lamp — Low series | W5W | Match the original lamp equipment. |
| Front side marker lamp — Mid/High series | LED | No replaceable bulb. |
| Front turn signal and parking lamp — Low series | 4257NA | Match the original lamp equipment. |
| Front turn signal and parking lamp — Mid/High series | LED | No replaceable bulb. |
Switchback option, 2018–2025: Diode Dynamics lists its 4257 DD0462P pair for factory incandescent front turn signals on F-250/F-350/F-450/F-550. Its instructions specify BCM-controlled operation with resistors. Clear lenses are needed to show the white parking-light output; amber lenses change what you see. Factory LED signals are excluded.
Rear lamps, reverse and licence-plate bulbs
| Light and equipment | Original bulb | Details |
|---|---|---|
| Rear lamp, brake lamp, and rear side marker lamp — Low/Mid series | 3157K | Pickup only. |
| Rear turn signal lamp — Low/Mid series | 3175K | Pickup only. Ford lists 3175K; check the bulb marking before ordering for this rear-turn position. |
| Rear lamp, brake lamp, rear turn signal, rear side marker lamp and reverse lamp — High series | LED | Pickup only. No replaceable bulb. |
| Rear lamp, brake lamp, rear turn signal and rear side marker lamp — | 3157K | Chassis cab only. |
| Reversing lamp — Low series | WT21W | See the reverse socket options below when choosing a replacement LED. |
| License plate lamp — Low series | 168 | Match the original lamp equipment. |
| License plate lamp — High series | LED | No replaceable bulb. |
Pickup rear turn: Ford prints 3175K for the Low/Mid-series rear-turn row, while the neighbouring combined rear/brake/side-marker row is 3157K. Keep these positions distinct and confirm the marking on the rear-turn bulb before choosing its replacement.
Reverse LEDs: choose by the socket ring
Diode Dynamics documents two reverse sockets on 2020-and-newer Super Duty trucks. For its replacement bulbs, Type A with a blue ring uses 7443 (DD0113P); Type B with a red ring uses 3157 (DD0057P) and requires removal of the bulb’s side tabs. This 3157 application is for the identified reverse socket; it does not resolve the pickup rear-turn specification above.
See the socket pictures and reverse-bulb instructions.
Cargo, clearance and identification lights
| Light and equipment | Original bulb | Details |
|---|---|---|
| Central high mounted cargo lamp — | 912 | Cargo/work light; this row does not identify the centre brake light. |
| Central high mounted cargo lamp — | LED | Cargo/work light; this row does not identify the centre brake light. No replaceable bulb. |
| Side turn signal and mirror clearance lamp — | LED | No replaceable bulb. |
| Front clearance lamp — | LED | No replaceable bulb. |
| Rear clearance lamp — | LED | No replaceable bulb. |
| Front identification lamp — | LED | No replaceable bulb. |
| Rear identification lamp — | LED | No replaceable bulb. |
| Under hood lamp — | LED | No replaceable bulb. |
The 912 row is for cargo lighting, not the centre brake lamp. LED positions listed here have no replaceable bulb.
2022 Super Duty factory bulb chart
Match the installed lamps and body configuration before selecting a replacement. Ford lists separate bulb and LED equipment, with pickup-only and chassis-cab-only notes on specific rear-lamp rows. Low/Mid and High series are the manual’s equipment labels; they do not identify a marketing trim.
| Light and equipment | Original specification | Power (W) | Ford footnote |
|---|---|---|---|
| Headlamp. | H13/9008 | 60/55 | — |
| Headlamp. | LED | LED | — |
| Front side marker lamp. | W5W | 5 | — |
| Front fog lamp. | 9140 | 40 | — |
| Front fog lamp. | LED | LED | U.S. and Canada only |
| Front turn signal and parking lamp. | T20/7444NA | 28/8 | — |
| Rear lamp, brake lamp, and rear side marker lamp. Low/Mid series. | 3157K | 27/7 | Pickup only. |
| Rear turn signal lamp. Low/Mid series. | WTY21W | 21 | Pickup only. |
| Rear lamp, brake lamp, rear turn signal, rear side marker lamp and reverse lamp. High series. | LED | LED | Pickup only. |
| Rear lamp, brake lamp, rear turn signal and rear side marker lamp. | 3157K | 27/7 | Chassis cab only. |
| Reversing lamp. Low/Mid series. | WT21W | 21 | — |
| License plate lamp. Low series. | 168 | 5 | — |
| License plate lamp. High series. | LED | LED | — |
| Central high mounted cargo lamp. | 912 | 12.8 | — |
| Central high mounted cargo lamp. | LED | LED | — |
| Side turn signal and mirror clearance lamp. | LED | LED | — |
| Front clearance lamp. | LED | LED | — |
| Rear clearance lamp. | LED | LED | — |
| Front identification lamp. | LED | LED | — |
| Rear identification lamp. | LED | LED | — |
Pickup and chassis cab: Apply each body-style footnote only to its marked row. The LED fog-lamp row is marked for the U.S. and Canada. The H13/9008 and LED headlamp rows, and the 9140 and LED fog rows, do not assign a trim or establish how many bulbs are fitted.
Cargo and third brake light: The chart lists both 912 and LED for the central high-mounted cargo lamp, without identifying which equipment selects each row. The high-mounted stop-lamp service instructions give no bulb code. Do not use the cargo-lamp 912 listing as a third-brake-light specification.
2022 lamp service notes
Ford directs LED lamp failures to an authorized dealer because the lamps are not serviceable. Rear-lamp procedures distinguish trucks with and without a pickup bed, and reversing-lamp procedures distinguish equipment with and without Blind Spot Information System. Use the procedure for the fitted assembly. Low-series license-plate lamps use the listed 168 bulb; High-series lamps are LED.
Source: 2022 Ford Super Duty Owner’s Manual, printed pages 412–413. For North American headlamps, Ford specifies bulbs with the authorized D.O.T. marking.
2020–2021 Super Duty factory bulb chart
Match the installed lamps and body configuration before selecting a replacement. Ford lists separate bulb and LED equipment, with pickup-only and chassis-cab-only notes on specific rear-lamp rows. Low/Mid and High series are the manual’s equipment labels; they do not identify a marketing trim.
| Light and equipment | Original specification | Power (W) | Ford footnote |
|---|---|---|---|
| Headlamp. | H13/9008 | 60/55 | — |
| Headlamp. | LED | LED | — |
| Front side marker lamp. | W5W | 5 | — |
| Front fog lamp. | 9140 | 40 | — |
| Front fog lamp. | LED | LED | U.S. and Canada only |
| Front direction indicator and parking lamp. | T20/7444NA | 28/8 | — |
| Rear lamp, brake lamp, and rear side marker lamp. Low/Mid series. | 3157K | 27/7 | Pickup only. |
| Rear direction indicator lamp. Low/Mid series. | WTY21W | 21 | Pickup only. |
| Rear lamp, brake lamp, rear direction indicator, rear side marker lamp and reverse lamp. High series. | LED | LED | Pickup only. |
| Rear lamp, brake lamp, rear direction indicator and rear side marker lamp. | 3157K | 27/7 | Chassis cab only. |
| Reversing lamp. Low/Mid series. | WT21W | 21 | — |
| License plate lamp. Low series. | 168 | 5 | — |
| License plate lamp. High series. | LED | LED | — |
| Central high mounted cargo lamp. | 912 | 12.8 | — |
| Central high mounted cargo lamp. | LED | LED | — |
| Side direction indicator and mirror clearance lamp. | LED | LED | — |
| Front clearance lamp. | LED | LED | — |
| Rear clearance lamp. | LED | LED | — |
| Front identification lamp. | LED | LED | — |
| Rear identification lamp. | LED | LED | — |
Pickup and chassis cab: Apply each body-style footnote only to its marked row. The LED fog-lamp row is marked for the U.S. and Canada. The H13/9008 and LED headlamp rows, and the 9140 and LED fog rows, do not assign a trim or establish how many bulbs are fitted.
Cargo and third brake light: The chart lists both 912 and LED for the central high-mounted cargo lamp, without identifying which equipment selects each row. The high-mounted stop-lamp service instructions give no bulb code. Do not use the cargo-lamp 912 listing as a third-brake-light specification.
2020–2021 lamp service notes
Ford directs LED lamp failures to an authorized dealer because the lamps are not serviceable. Rear-lamp procedures distinguish pickup trucks with and without Blind Spot Information System from chassis-cab trucks. With-system pickup service removes the module cover; chassis-cab service removes the lens. Use the procedure for the fitted assembly. Low-series license-plate lamps use the listed 168 bulb; High-series lamps are LED.
Source: 2021 Ford Super Duty Owner’s Manual, printed pages 447–448; lamp service, printed pages 383–386. Also see the independently checked 2020 Ford Super Duty Owner’s Manual, printed pages 467–468 (PDF pages 470–471) and 2020 lamp service, printed pages 372–375 (PDF pages 375–378). For North American headlamps, Ford specifies bulbs with the authorized D.O.T. marking.
2019 Super Duty factory bulb chart
Use this separate 2019 chart for the original lamp and body configuration. Its rear-lamp specifications differ from 2020–2021: keep pickup and chassis-cab rows separate, and match Ford’s Low and High series equipment labels to the fitted assembly.
| Light and equipment | Original specification | Power (W) | Ford footnote |
|---|---|---|---|
| Headlamps. | H13/9008 | 60/55 | — |
| Headlamps. | LED | LED | — |
| Front side marker lamps. | W5W | 5 | — |
| Front fog lamps. | 9140 | 40 | — |
| Front fog lamps. | LED | LED | U.S. and Canada only |
| Front direction indicator and parking lamps. | T20/7444NA | 28/8 | — |
| Rear lamps, brake lamps, rear direction indicator and rear side marker lamps. Low series. | 3157 | 27/7 | Pickup only. |
| Rear lamps, brake lamps, rear direction indicator and rear side marker lamps. High series. | LED | LED | Pickup only. |
| Rear lamps, brake lamps, rear direction indicator and rear side marker lamps. | 3157 | 27/7 | Chassis cab only. |
| Reversing lamps. | W21W | 21 | Pickup only. |
| Reversing lamps. | 3157 | 27/7 | Chassis cab only. |
| License plate lamp. Low series. | 168 | 5 | — |
| License plate lamp. High series. | LED | LED | — |
| Central high mounted cargo lamp. | 912 | 12.8 | — |
| Central high mounted cargo lamp. | LED | LED | — |
| Side direction indicator and mirror clearance lamp. | LED | LED | — |
| Front clearance lamp. | LED | LED | — |
| Rear clearance lamp. | LED | LED | — |
| Front identification lamp. | LED | LED | — |
| Rear identification lamp. | LED | LED | — |
The paired specifications H13/9008 and T20/7444NA are printed by Ford. Apply each pickup, chassis-cab or U.S./Canada footnote only to its marked row. Equipment alternatives do not identify a marketing trim or establish vehicle bulb quantities.
Cargo and third brake light: Ford lists 912 and LED alternatives for the central high-mounted cargo lamp. The shared cargo/central brake-lamp service procedure does not provide a separate non-LED stop-lamp code. Do not use the cargo entry as an independently confirmed third-brake-light specification or apply it to every bed lamp.
2019 lamp service notes
Ford directs failures of equipped LED lamps to an authorized dealer. Rear-lamp procedures distinguish pickups with and without Blind Spot Information System and chassis-cab trucks; these procedures do not assign Ford’s Low/High series labels. The chassis-cab lens-removal procedure is separate from pickup lamp removal.
Front bulb access differs by side, with the left-hand washer filler-tube removal applying to diesel vehicles. Keep halogen bulb glass clean. The conventional and configurable DRL operating instructions do not specify another replacement bulb. Mirror spot-lamp and cargo-box operating instructions likewise do not establish a bulb code for every lamp.
Source: 2019 Ford Super Duty Owner’s Manual, exterior chart printed pages 442–443 (PDF pages 445–446); lamp service printed pages 358–361 (PDF pages 361–364); lighting operation printed pages 93–96 (PDF pages 96–99).
2017–2022 F-250/F-350 halogen headlights
The documented stock-halogen headlight application uses H13/9008 for low and high beam. For a full replacement, the vehicle kit supplies four H13 bulbs — two pairs. Each bulb serves both beam functions; do not count separate sets for low and high.
| Light and equipment | Bulb | Replacement detail |
|---|---|---|
| 2017–2022 F-250/F-350 stock halogen headlights | H13 / 9008 | Shared low/high function; four bulbs for the documented full headlight kit. |
| 2018–2022 factory incandescent front turn signals | 4257 replacement application | DD0462P switchback pair; resistor-only BCM setup. Clear lenses show the white parking output. |
The Morimoto HRT0181 application includes four H13 2Stroke 4.0 bulbs and two H13 PWM interface modules. Those modules are part of that specific kit. The Diode Dynamics front-turn application begins in 2018, so the table does not assign it to 2017 trucks.
Factory LED headlamps use different service parts. H13 bulbs apply to the original bulb-style headlamps; an aftermarket assembly may specify a different bulb.
2011–2016 F-250/F-350 bulb reference
The Philips application chart lists these original bulb designations for 2011–2016 F-250/F-350. Use the lamp’s specified bulb type if a replacement housing has been fitted.
| Light | Original bulb |
|---|---|
| Headlight, low or dual beam | H13 (9008) |
| Front parking lamp | 3157NA |
| Front turn signal | 3157NA |
| Fog/driving lamp | 9145 |
| Rear turn signal | 3157 |
| Tail lamp | 3157 |
Philips 2016–2017 catalog, printed page 78 / PDF page 80. Its chart does not state vehicle bulb quantities.
2000–2010 Super Duty bulb sizes
These trucks can have either aerodynamic headlights with removable bulbs or H6054 sealed-beam headlights. Choose the headlight style first. The following original-bulb references come from the individual Ford manuals; pickup and chassis-cab rear lamps are listed separately where Ford distinguishes them.
Headlight bulbs: 9007, H13/9008 or sealed beam
| Model years | Original headlight equipment | Ford bulb designation | Quantity |
|---|---|---|---|
| 2000–2004 | Aerodynamic, removable bulb | 9007 | 2 |
| 2005–2010 | Aerodynamic, removable bulb | H13/9008 | 2 |
| 2000–2010 | Sealed beam | H6054 | 2 sealed-beam units |
The quantities above are Ford’s totals for the headlight configuration. A bulb that provides both low and high beam is counted once.
9007 bulb choices for 2000–2004 aerodynamic headlights
These options are for headlights that take a removable 9007 bulb. Follow the product’s 9007 installation instructions when it also lists 9004. They do not replace an H6054 sealed-beam unit.
Alpha’s double-fan 9007 bulbs are not compatible with standard universal housings; check the product measurements before choosing that option.
H13/9008 bulb choices for 2005–2010 aerodynamic headlights
Compare Alpha Series, GTR and Morimoto options for the original H13/9008 bulb size.
Fog lights
| Model years | Original fog bulb | Ford quantity |
|---|---|---|
| 2000 | Confirm the bulb in the fitted lamp; catalog references list both 9006 and 9145. | Not established |
| 2001–2003 | 899 | 2 |
| 2004–2010 | 9145 | 2 |
Fog-light equipment is separate from the headlight choice. Ford’s 2000 chart does not give a fog-bulb row; the two catalog alternatives are not a universal fitment claim.
Front parking, turn and side-marker lamps
| Model years | Headlight style | Original parking-lamp designation |
|---|---|---|
| 2000–2003 | Both styles | 3157 |
| 2004 | Both styles | 3157 AK |
| 2005–2007 | Aerodynamic | 3157AK or 3157A |
| 2008–2010 | Aerodynamic | 3157A or 3157AK |
| 2005–2008 | Sealed beam | 4157K/3157 |
| 2009–2010 | Sealed beam | 3157 |
Ford labels the 2000–2004 rows Park/turn and the 2005–2010 rows Park lamp. Each listed configuration uses two bulbs, alongside a separate two 194 side-marker bulbs. Original 3157 and 4157 designations remain useful for identifying the lamp; compatible LED products commonly share the 3157/4157 shopping family.
Rear brake, tail, turn, side marker and reverse lamps
| Model years / body | Combined tail/stop/turn/side-marker bulb | Reverse bulb |
|---|---|---|
| 2000–2004 | 3157 K | 3156K |
| 2005–2007 | 4157K/3157 | 3156K or 3156 |
| 2008 pickup | 4157K or 3157 | 3156 or 3156K |
| 2008 chassis cab, where fitted | 3157 | 3157 |
| 2009–2010 pickup | 3157 | 921 |
| 2009–2010 chassis cab, where fitted | 3157 | 3157 |
Ford lists two bulbs for the combined rear-lamp function and two separate reverse bulbs. Do not order four sets for the four functions in the combined row.
Third brake light, license plate and other markers
| Position / years | Original bulb | Ford quantity |
|---|---|---|
| High-mount stop lamp, 2000–2003 | 921 | 1 |
| High-mount stop lamp, 2004–2010 | 922 | 1 |
| License plate, 2000–2003 | 168 | 2 |
| License plate, 2004–2010 | 194 | 2 |
| Cargo lamps, 2000–2010 | 906 | 2 |
| Roof markers, 2000–2005 | 194 | 5 |
| Front clearance and identification, 2006–2010 | 194 | 2 clearance + 3 identification |
| Rear identification, where fitted, 2000–2010 | 194 | 3 |
| Rear fender clearance, where fitted, 2000–2004 | Complete lamp assembly; bulb not serviceable | 4 lamp assemblies |
| Rear fender clearance, where fitted, 2005–2008 | W5W | 4 |
| Rear fender clearance, where fitted, 2009–2010 | 194 | 4 |
| Mirror turn signal, 2008–2010 | 2825 | 2 |
| Mirror clearance lamps, 2008–2010 | 2825 | 2 |
Use the rows for lamps actually fitted to the truck. The rear-clearance notes cover dual-rear-wheel or optional equipment; a chassis-cab body may have separately supplied lamps.
Quick headlight recap
- 2023–2026 F-250/F-350 factory halogen: H11 low-beam and 9005 high-beam replacement applications. Ford’s original combined designation is H11L/9005LL.
- 2017–2022 F-250/F-350 stock halogen: shared low/high H13/9008, four bulbs in the documented full replacement kit.
- 2011–2016 F-250/F-350: Philips lists H13 (9008) in its low-or-dual-beam column.
- 2000–2004 aerodynamic headlights: 9007, two bulbs. 2005–2010 aerodynamic headlights: H13/9008, two bulbs. H6054 sealed-beam headlights are a separate two-unit option throughout 2000–2010.
- Factory LED or aftermarket headlamps: use the service parts specified for that assembly.
Reference sources
Ford 2000–2010 bulb charts: 2000 · 2001 · 2002 · 2003 · 2004 · 2005 · 2006 · 2007 · 2008 · 2009 · 2010.
Original bulb charts: Ford 2023 manual · Ford 2024 manual · Ford 2025 manual · Ford 2026 manual · Philips historical application chart, page 78.
Replacement applications: Headlight Revolution HRT0714 low beam, HRT0713 high beam and HRT0181 shared-beam kit; Diode Dynamics fog application, front-turn application and reverse socket instructions.
Ford Super Duty
If a full LED headlight assembly is what you’re after, here are some of the industries best plug n play headlights available for Ford Super Duty.
Shop Now
