Choose your Alpha 360 watermelon lights, then plan the controls. These real-glass lights offer steady, rotating-simulation and strobe modes. Start with a single colour or a Duo combination, then choose suitable switching and mounting parts for your installation.
Plan the mounting location with our watermelon-light bracket selection. Match the exact Alpha 360 housing, fixing pattern and clearance; a category link does not confirm fit.
Designed for off-road and display use. Alpha 360 is not DOT approved or a Class 1 warning light.
Sorting applies within each section. Control panels are shown Alpha Six first, then D-Switch.
Single colour
One colour, three modes. Choose Amber, Blue, Red or White; each keeps its colour in steady, rotating-simulation and strobe modes. Sequenced LEDs create the rotating effect without a motor.
Dual colour
A primary steady colour with two-colour rotating-simulation and strobe modes. Amber/White shines amber in steady mode. Red/White and Red/Blue shine red in steady mode; their action modes alternate the listed colours.
Original price was: US$100.00.US$140.00Current price is: US$140.00.
Control your Alpha 360
Each light has a shared ground and three separate mode power leads. A switch panel controls the circuits you wire; the light creates its own steady, rotating-simulation and strobe patterns. These two optional panels have different supply and circuit limits.
US$250.00
Alpha Six Switch
Six accessory-control circuits with an RF remote for nominal 12V or 24V installations. The remote is wireless; the relay box still needs wired vehicle power and connections to the light’s mode leads. Match every load to the panel’s channel and system requirements.
View Alpha Six Switch
US$599.95
Diode Dynamics D-Switch
Eight main accessory channels for a 9–16V supply. Suitable for a compatible 12V-class installation; it is not a 24V panel. Plan channel loads, total load, fuse protection and wiring using the D-Switch instructions.
View D-SwitchMounting and accessories
Plan the bracket, wiring route and rear clearance before ordering. The Universal Watermelon Light Bracket is offered as an optional companion to Alpha 360 lights. Match the mount and fastener positions to the exact light and installation.
For installation planning, see the watermelon light mounting and wiring guide.
BACKORDER
US$20.00
Other items in this category
These items remain available to browse, but are not confirmed Alpha 360-fit accessories. Check the exact product and installation before ordering.
BACKORDER
US$20.00
Compare the attachment holes, centre mount and rear clearance.
US$10.00
Match the exact light housing and generation; Alpha 360 interchange is unconfirmed.
US$5.00
Confirm suitability for the exact housing and installation; this is not a leak-repair guarantee.
ON REAL BUILDS

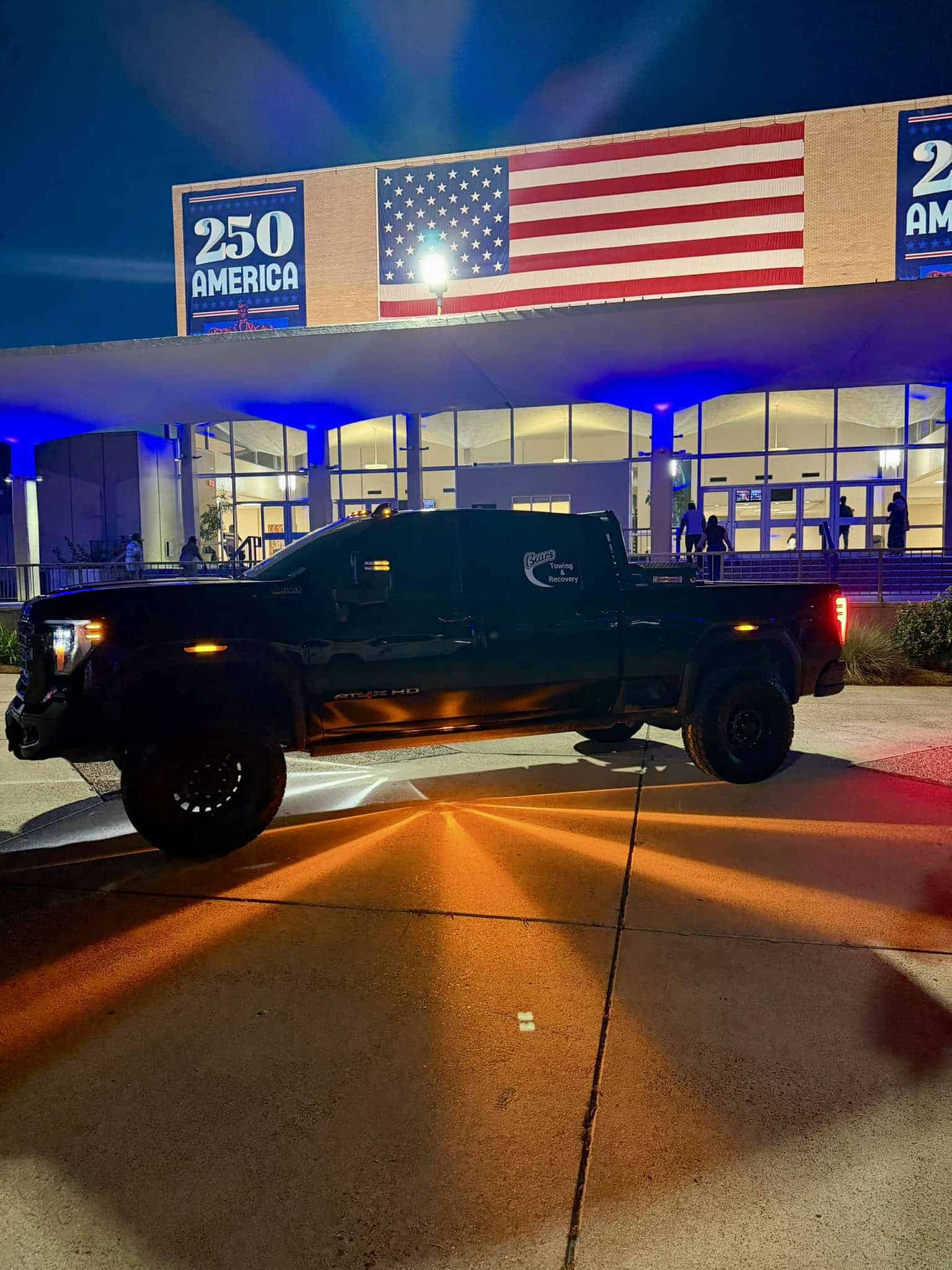

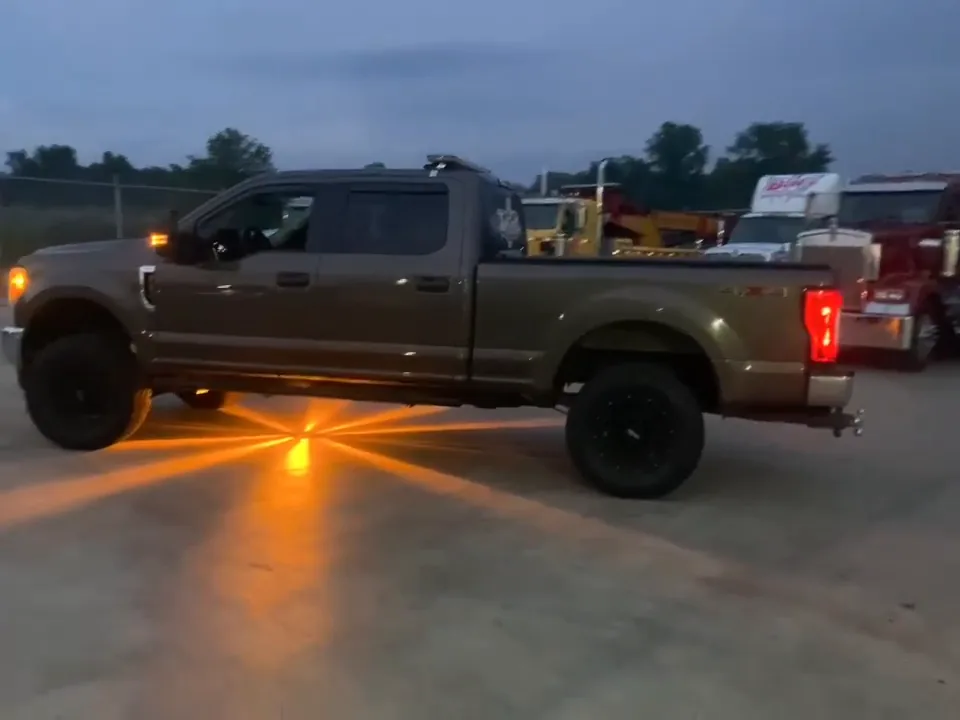

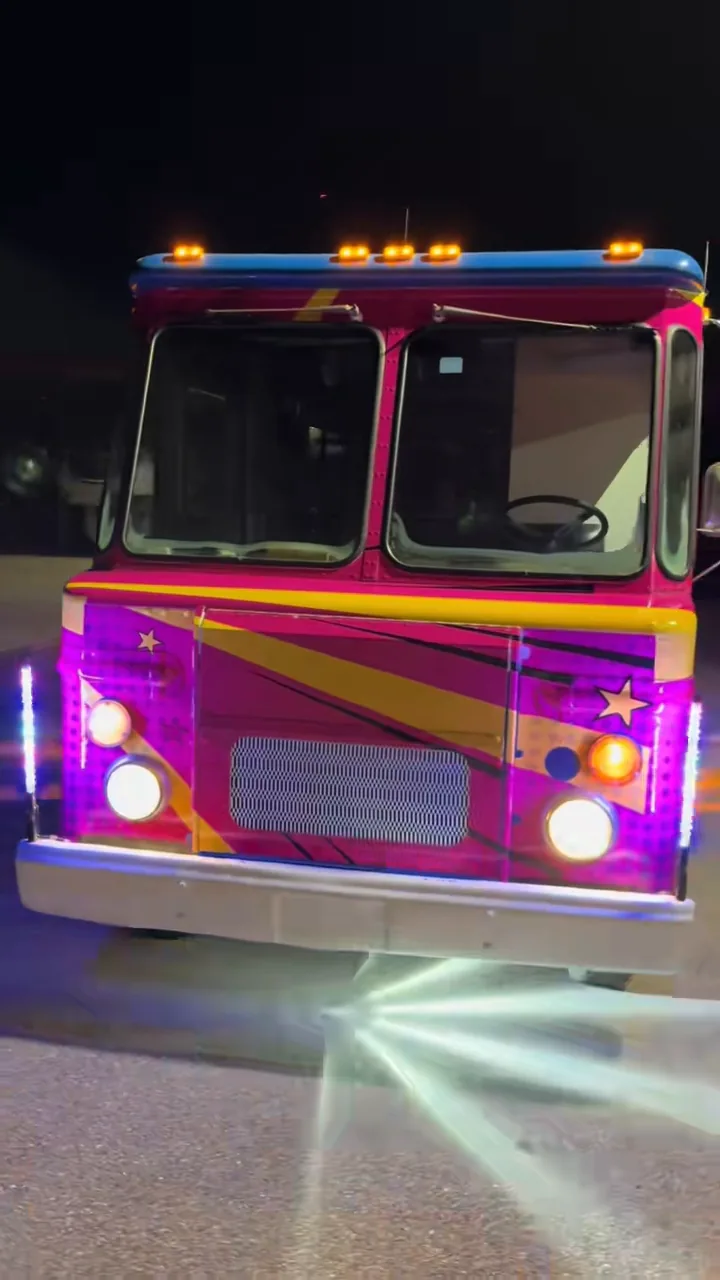

Customer installations
BEFORE YOU BUILD
Alpha 360 questions
What is the difference between single-colour and Duo Alpha 360 lights?
Single-colour versions keep one colour through steady, rotating-simulation and strobe modes. Duo versions alternate their listed colours in the action modes. Amber/White has amber steady output; Red/White and Red/Blue have red steady output.
Do Alpha 360 lights physically rotate?
No. LEDs illuminate in sequence to simulate rotation; there is no mechanically rotating light source.
Do I need one of these switch panels?
The panels are optional control choices. Each light uses three separate mode power leads and a shared ground, so the installation needs suitable switching, wiring and protection. Follow the light instructions and the requirements of whichever controls you choose.
Can I use either panel on a 24V truck?
No. The Alpha Six Switch is listed for nominal 12V and 24V installations. The D-Switch is rated for 9–16V. Match the complete circuit to the vehicle supply; the light's 12V/24V rating does not extend that rating to every accessory.
What happens if more than one Alpha 360 mode is powered?
The documented mode priority is strobe, then rotating simulation, then steady. Follow the supplied wire identification and installation instructions rather than guessing wire colours.
Are a switch panel and mounting bracket included?
The panels and bracket shown here are optional separate purchases. Check the exact selected product's included-parts list and any optional add-ons before ordering.
Can Alpha 360 be used as an approved road warning light?
Alpha 360 is not DOT approved or a Class 1 warning light. It is intended for appropriate off-road and display use. Check local requirements for the intended colour, placement and use.
Is Alpha 360 the same as Glass Is Class Gen 2 AlphaFit?
No. Alpha 360 is the three-mode watermelon-light family shown here. Glass Is Class Gen 2 and AlphaFit are separate products with their own operating and wiring specifications. Read the Alpha 360 versus Glass Is Class Gen 2 comparison or browse the Glass Is Class Gen 2 range.
