Alpha 360 Duo glass light
Amber/White watermelon light with three selectable modes

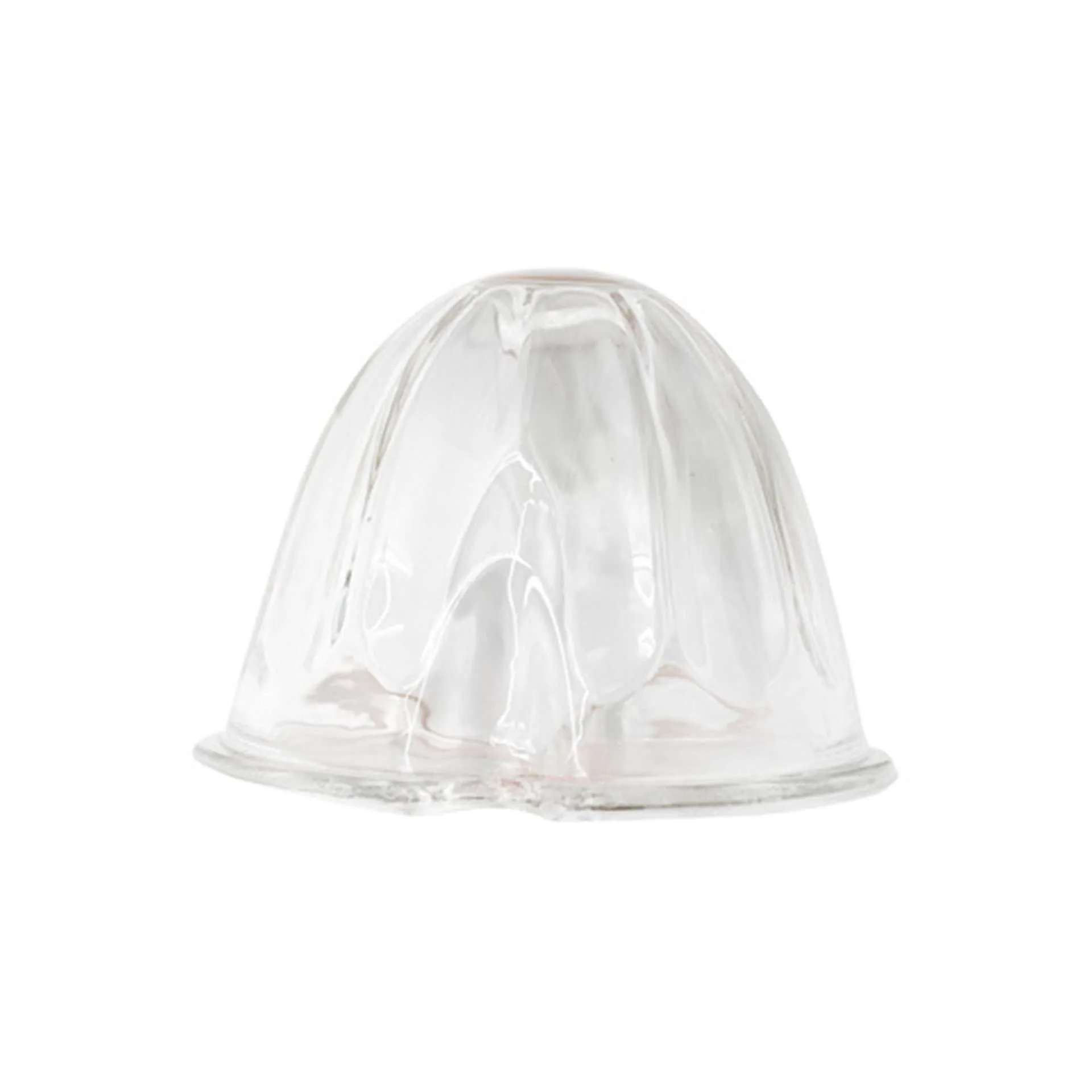

The Alpha 360 Duo Amber/White pairs a clear faceted glass lens with amber steady output and two automatically alternating amber/white action modes. Choose the mode through its own power lead; the leads do not select individual colours.
For permitted off-road and display use. Not DOT approved; not for public-road use where prohibited.
Mode selection
Steady, rotating simulation or strobe
White cannot be selected as a separate steady output on this four-wire Duo version.
Amber steady burn
A continuous amber output selected by the steady-mode lead.
Amber/White rotating simulation
Alternating colours and sequential LEDs create the rotating effect. No motor or mechanically rotating light source is used.
Amber/White strobe
The light automatically alternates amber and white in its strobe pattern.
Mounting and wiring
Plan the flange mount and four-wire circuit

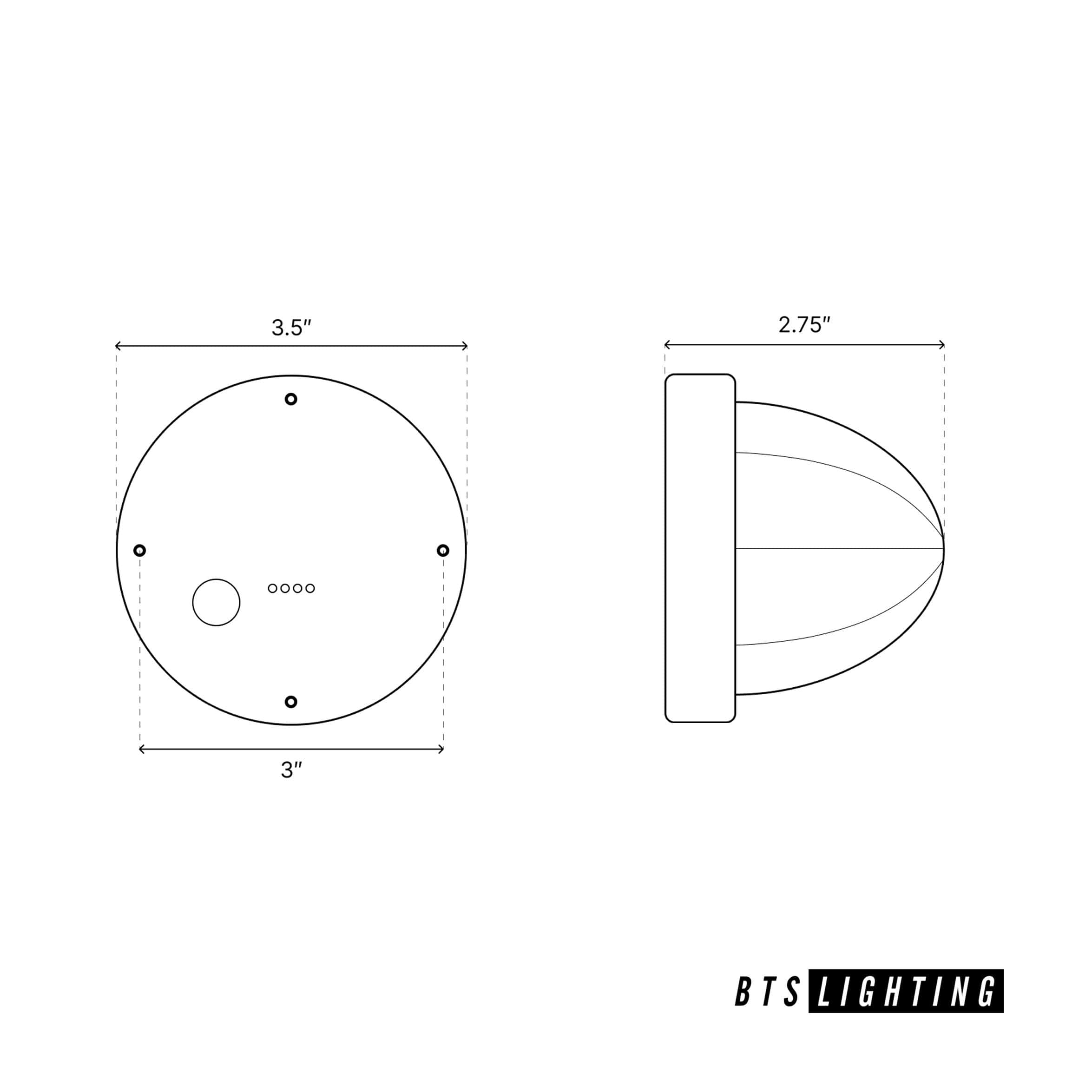

Watermelon styling does not establish factory cab-light fitment. Compare the actual mounting location, flange, rear clearance and wiring route before ordering.

Three mode leads, one shared ground
Each mode has a separate power lead. If more than one mode receives power, strobe overrides rotating simulation, and rotating simulation overrides steady. Follow the wire identification supplied with the light; do not assume insulation colours. Choose circuit protection, wiring and controls for the full installation. Read the watermelon light mounting and wiring guide.
Product specifications
Amber/White specifications
Check the instructions supplied with your light when planning the installation. Lamp voltage capability does not establish controller or harness compatibility, and the listed ingress rating does not establish the protection of an entire installed wiring system.
What you are buying
One light; installation parts are separate
Included in the base price
One Alpha 360 Duo Amber/White glass watermelon light with its mode leads. This is a complete Alpha 360 lamp, not a Gen 2 replacement bulb or a pair of lights.
Choose optional parts separately
A mounting bracket, external installation wiring, switch panel and controller are not included in the base lamp. The grease, enamel pin and bracket offered in the purchase area are optional and separately priced.
Controls and accessories
Choose parts for the voltage and installation
Alpha Six Switch
An optional switching choice for nominal 12V or 24V installations. Follow both the panel and lamp instructions, and wire/protect the separate mode circuits appropriately. The light generates its own patterns.
Diode Dynamics D-Switch
An optional control choice for a compatible 12V-class circuit. Its 9–16V range means it is not a 24V controller. Check channel ratings, total load, fuse and wiring limits.
Universal Watermelon Light Bracket
A separately priced mounting option. Compare the lamp flange, bracket opening, mounting hardware and installation clearance; the name does not establish universal vehicle fitment.
Product questions
Amber/White questions answered
Can I select white as a steady light?
No. Steady mode is amber only. The rotating-simulation and strobe modes automatically alternate amber and white. The three trigger leads select modes, not individual colours.
Does rotation require an external controller or motor?
The lamp generates its rotating-simulation pattern with sequential LEDs and has no mechanically rotating light source. External switching selects the mode; follow the supplied wiring instructions.
What happens if two mode leads receive power?
Strobe takes priority over rotating simulation, which takes priority over steady. This priority does not turn the mode leads into separate colour inputs.
Can I use it on a 24V system?
The lamp is listed for 12V and 24V DC. Every separately selected controller, harness and other electrical component must also suit the installation. The D-Switch linked above is rated 9–16V and must not be used as a 24V controller.
Is this a direct replacement for a factory cab marker?
No factory replacement fitment is established by the watermelon shape. Check the two-bolt flange and clearance. This product is not DOT approved and is not for public-road use where prohibited.
How does Alpha 360 differ from Glass Is Class Gen 2?
Alpha 360 is a complete three-mode lamp. Glass Is Class Gen 2 uses a separate glass housing and matching bulb; its single-colour and Duo functions differ. Compare Alpha 360 with Glass Is Class Gen 2 before choosing the system.
Choose the right version
Compare colours, then plan the installation
Browse all Alpha 360 colours to compare single-colour and Duo outputs. Review the mounting and wiring guide before selecting installation parts.
Warranty: six-month limited coverage, subject to the applicable BTS terms and conditions. Keep your order information and contact BTS with the SKU and photographs for product or installation questions. Do not use light colour, brightness or the word “emergency” as proof of permission to use it in a particular location.
