D-Switch 8-Channel Switch Panel by Diode Dynamics
Take full command of your vehicle’s electrical system with the Diode Dynamics D-Switch 8-Channel Switch Panel—an intelligent, solid-state controller built for precision, flexibility, and rugged performance. Whether you’re running multiple light zones, air systems, or powered accessories, the D-Switch gives you total control through a fully customizable interface that combines power with simplicity.
Designed, engineered, and assembled in the USA, this switch panel delivers unmatched reliability, intuitive app integration, and seamless OEM signal compatibility—putting your entire build at your fingertips.
Key Features & Benefits
8 Programmable Channels + Backlight Bus
Control up to 8 high-power outputs and an additional 9th channel for accent/backlight control—without sacrificing any main outputs.
Dynamic Grouping
Customize each button to control one or multiple channels. Run lights, strobe patterns, or accessories in sync or individually—all from one touch.
Four High-Power & Four Medium Outputs
Four 30A and four 15A outputs offer high-current capabilities for serious builds, from heavy-duty lighting to powered gear.
Dedicated Backlight Control
A unique 9th button powers a secondary bus for accent lighting—perfect for coordinating halos, backlit pods, or ambient glows with a single press.
Fast, Lag-Free Bluetooth App

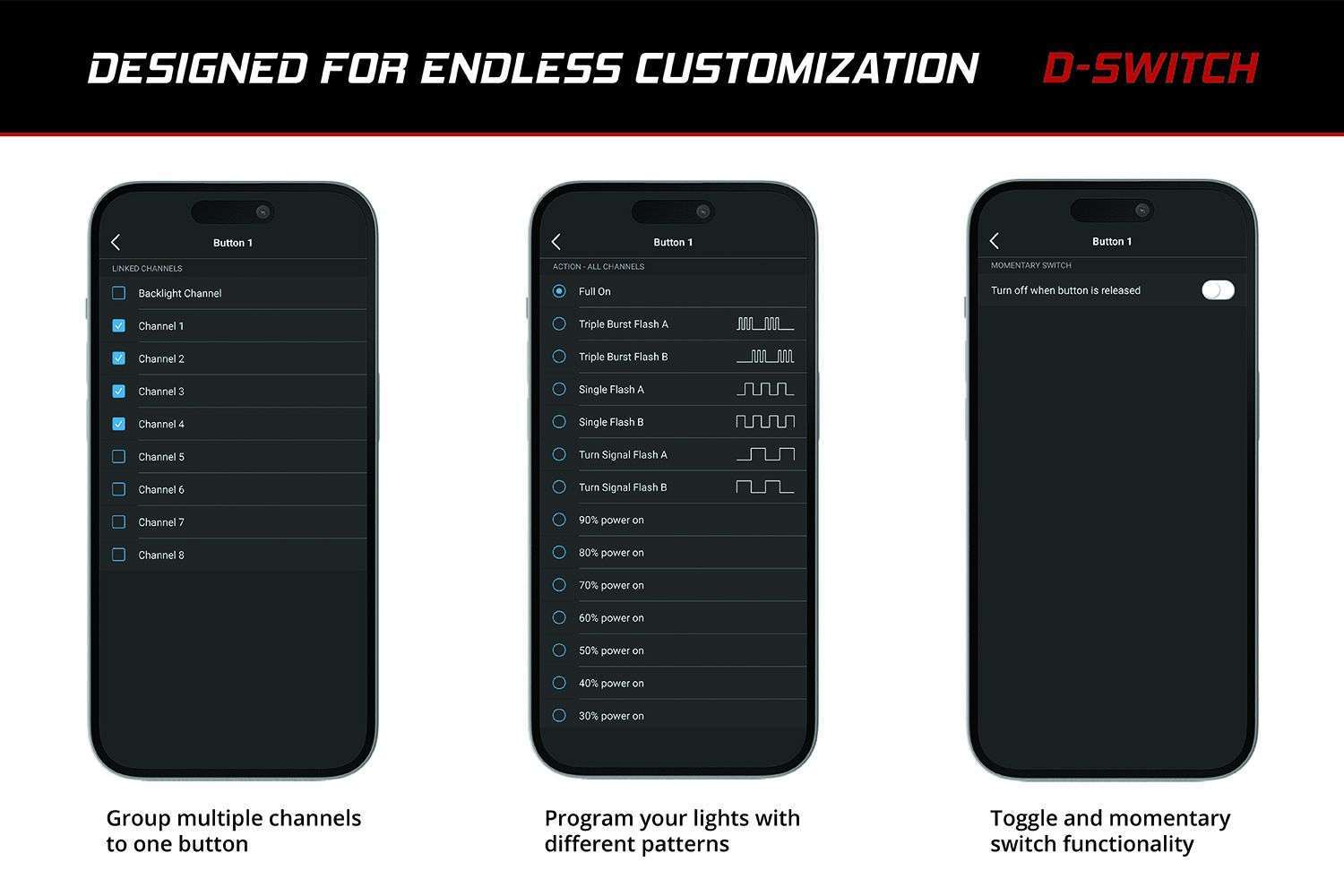

Program and control your setup with Diode Dynamics’ lightning-fast app—no lag, no loading screens, just instant response on both iOS and Android.
OEM Signal Integration
Three trigger wires + one ignition wire allow full integration with factory signals like high beams, reverse lights, and fogs—automate your system without extra switches.
Night Mode Ready
Automatically dim lights or adjust panel brightness using the Night Mode input for safer nighttime operation.
Rugged, Solid-State Build
No relays. No fuses. No moving parts. Just a solid-state, fully sealed module with IP67 weather resistance and integrated aluminum heatsinks for long-term durability.
Optimize Your Vehicle’s Command Center
The D-Switch isn’t just a switch panel—it’s a fully customizable control hub for your entire 12V setup. Whether you’re outfitting an overland rig, chase truck, work truck, or off-road build, the D-Switch provides clean, professional control in a compact footprint.
Eliminate switch clutter. Gain advanced functionality. And do it all with the backing of Diode Dynamics’ trusted engineering and rock-solid warranty.
Vehicle Compatibility
The D-Switch 8-Channel Panel is universally compatible with 12V automotive systems and is ideal for:
-
Off-road and overland rigs
-
Work trucks and fleet vehicles
-
Show builds and SEMA setups
-
UTV/ATV, RV, and marine applications
-
Any project needing simplified control for lights and accessories
Technical Specifications
Output Channels: 4x 30A, 4x 15A
Backlight Bus Outputs: 8
Trigger Wires: 3 trigger inputs + 1 ignition + 1 night mode

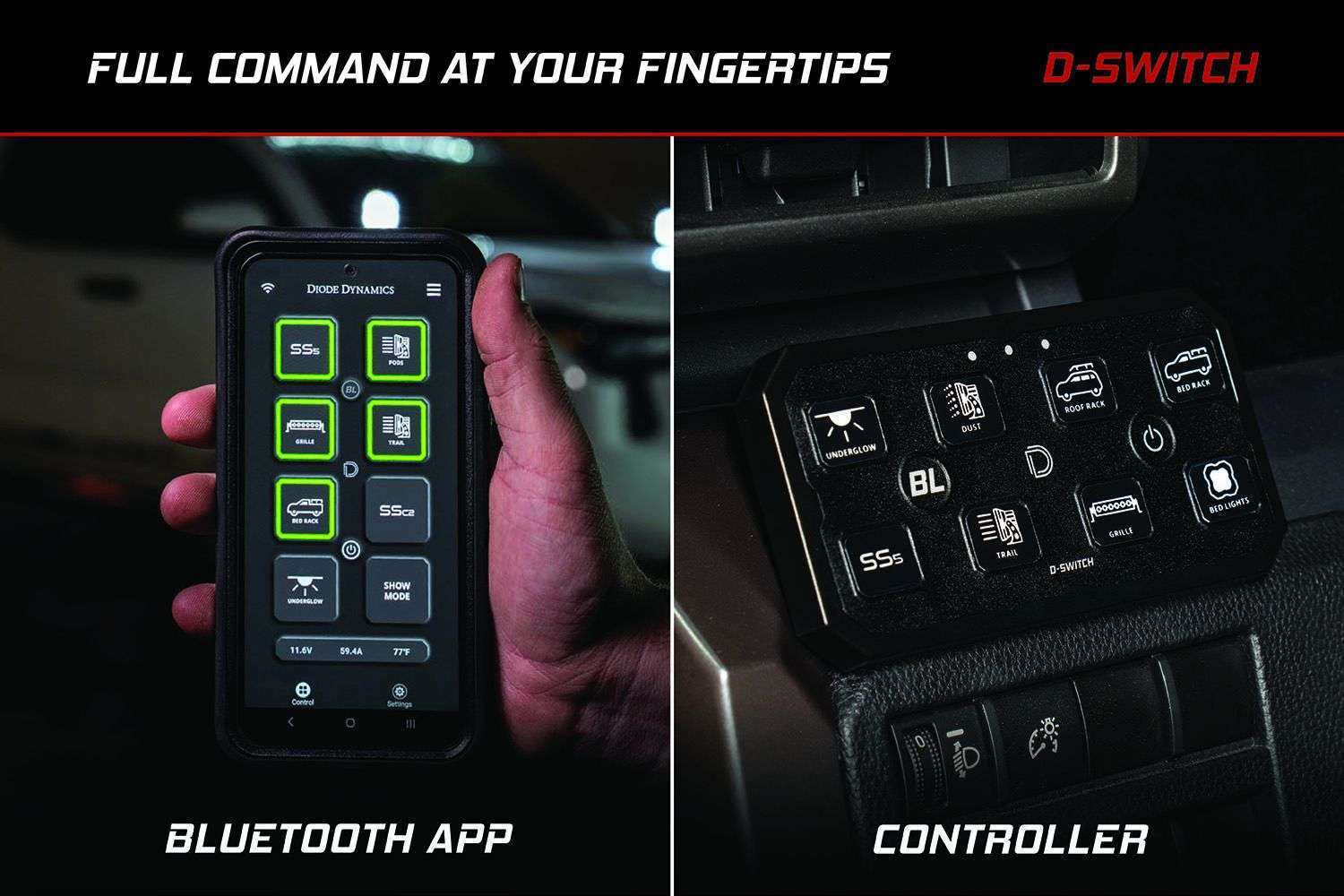

Controller Connectivity: Bluetooth + physical controller
Ingress Rating: IP67 (Hub & Controller)
Design: Solid-state, relay-less
Construction: Aluminum heatsink, fully encapsulated electronics
Compatibility: 12V systems
What’s Included
-
(1) D-Switch Hub
-
(1) Switch Panel Controller
-

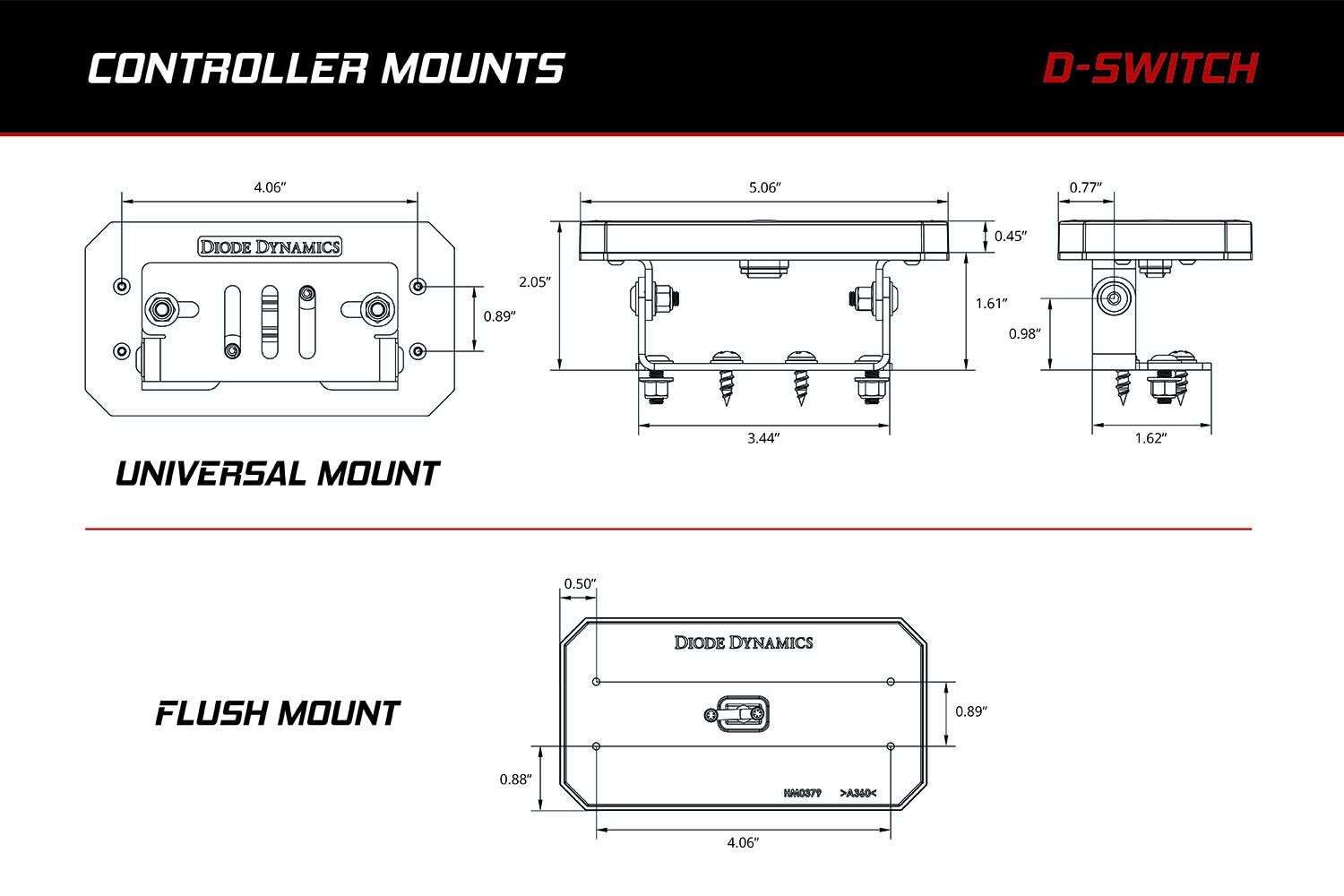

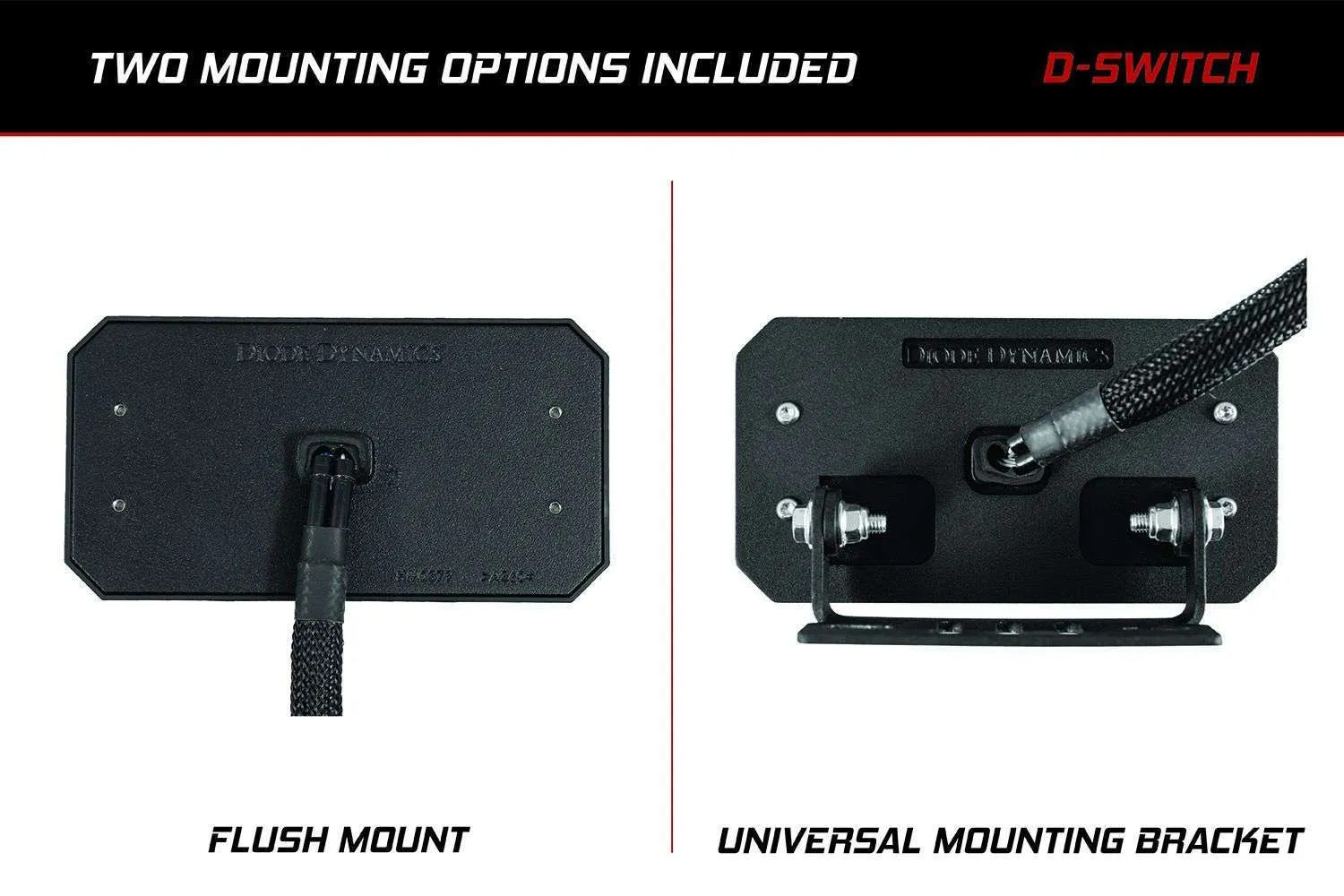

(1) Controller Universal Mounting Bracket
-
(1) 10-foot Controller Wiring Harness
-
(1) Trigger/Night Mode Harness
-
(1) 3-ft 4AWG Battery Cable
-
(1) 3-ft 4AWG Ground Cable
-
(2) Button Label Sticker Sheets
-
(5) T-taps
-
(6) Zip Ties
-
Double-sided tape
-
Installation Hardware & Guide
Quantity: One (1)
Warranty: 3-Year Limited Warranty
Return Policy: 30-Day Return, No Restocking Fee
Satisfaction: 100% Guaranteed
Total Control. Zero Compromise.
Whether you’re controlling a simple lighting system or a fully loaded off-road rig, the Diode Dynamics D-Switch 8-Channel Panel delivers streamlined power management, cutting-edge customization, and bulletproof reliability—all from a single point of control.
Take charge of your build. Switch smarter with D-Switch.
