Diode Dynamics at BTS Lighting
Stage Series LED pods
Choose the size that fits your installation, then match the mounting style and beam to the job. Compare the four pod families below or start with a vehicle-specific kit.

Diode Dynamics · Stage Series
Start with your pod size.
Choose a family, then compare mounting styles and the beam you need.

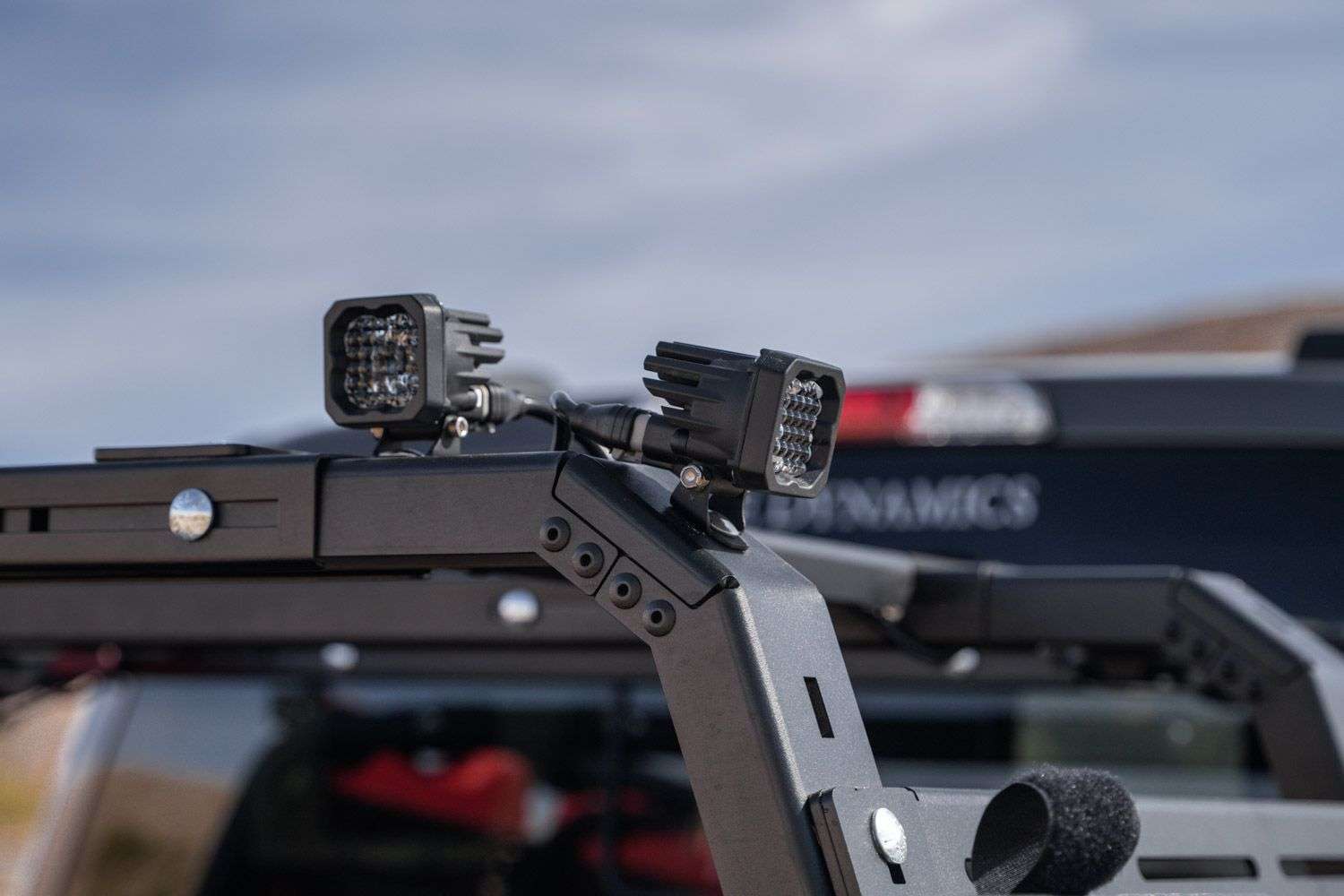

SSC1
Compact lighting for tight mounting spaces.
Explore SSC1
SSC2 / C2
Compare C2 generations, mounts and beams.
Explore C2

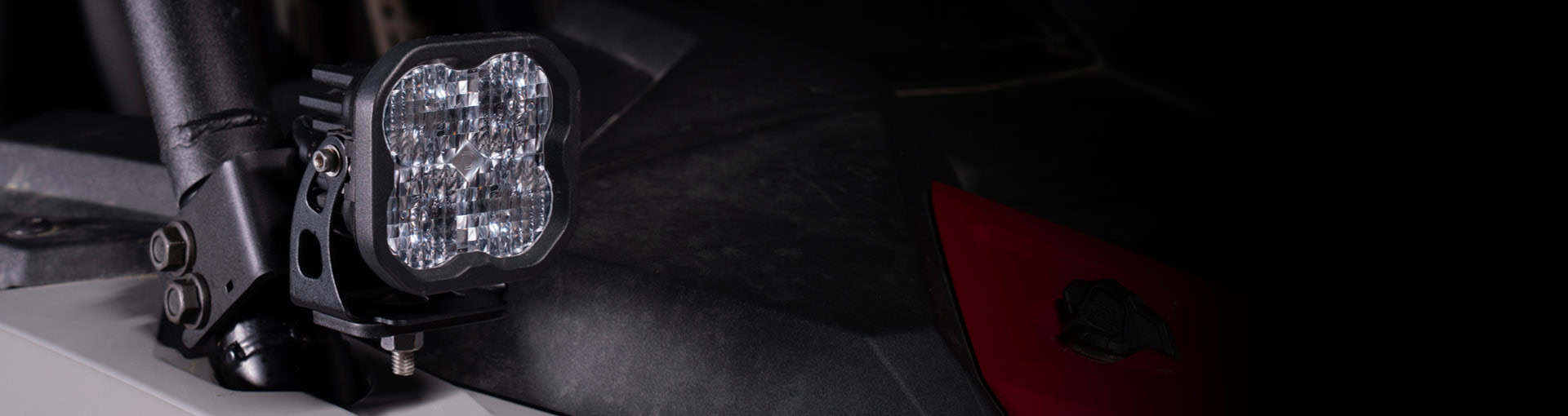

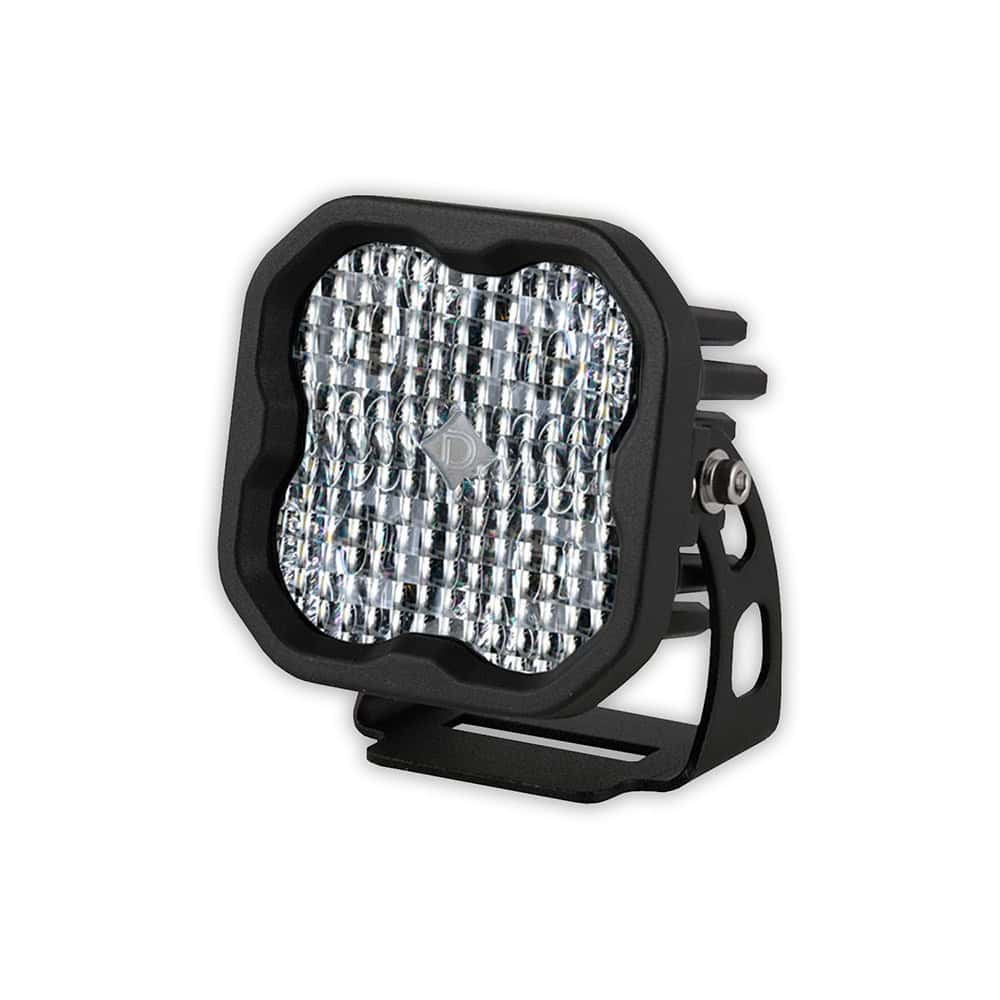

SS3
Standard and flush options for your setup.
Explore SS3

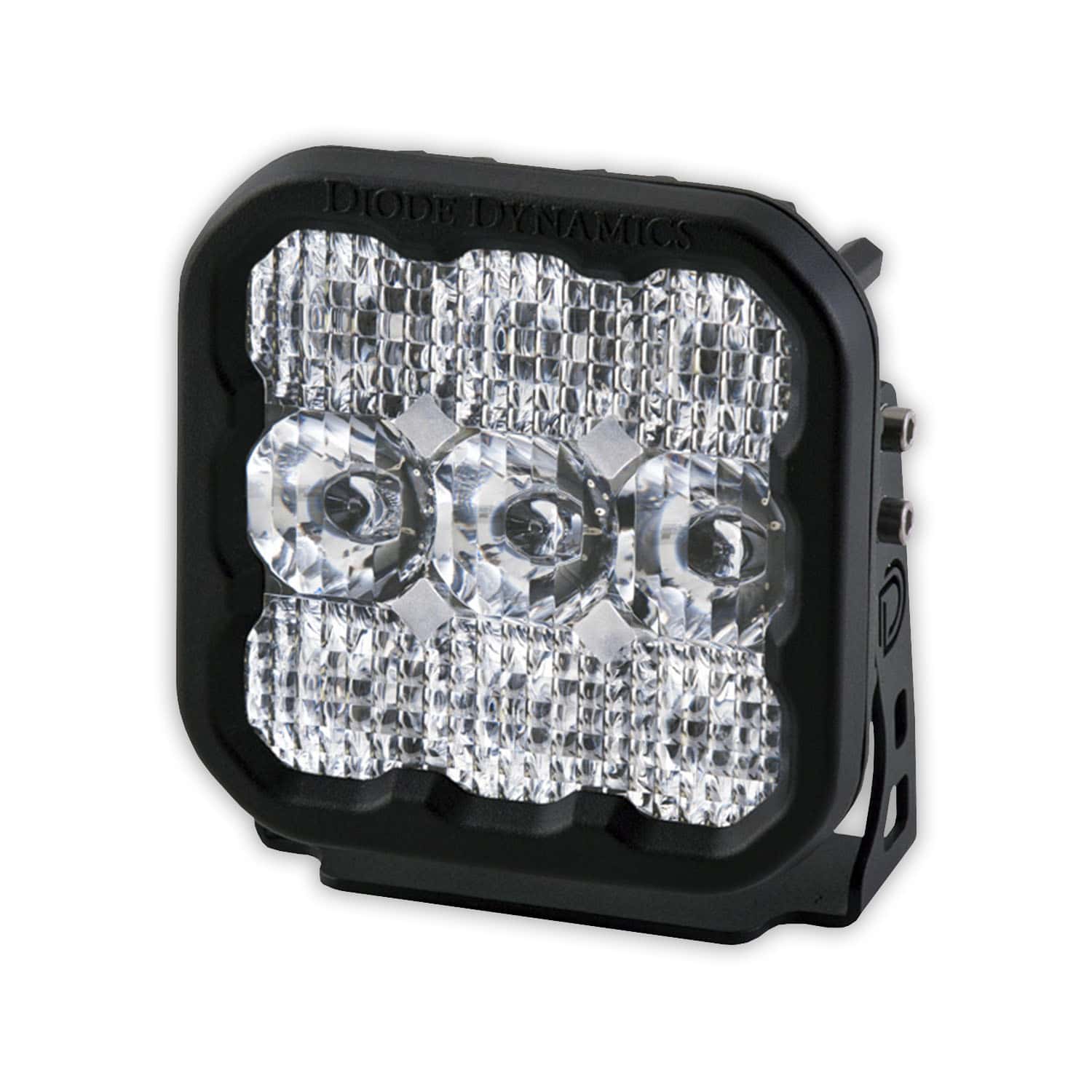

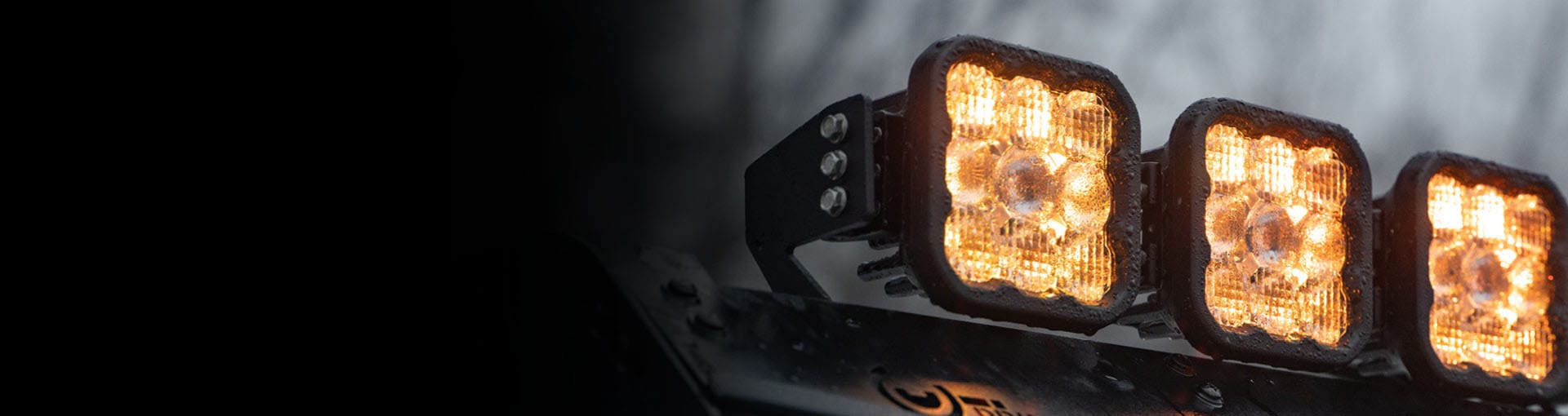

SS5
Large pods with a linkable light-bar option.
Explore SS5Family sizes are nominal. Check the exact dimensions, generation, mounting hardware and package contents on the product page.
Compare the Stage Series families
Nominal size helps narrow the range; it is not an installation measurement or a promise of fit. Check the exact lamp drawing and package before ordering.
| Family | Nominal size | First shopping decision | Check carefully |
|---|---|---|---|
| SSC1 | 1 inch | Standard or flush mount | Beam, backlight and included mounting parts |
| SSC2 / C2 | 2 inches | Generation, then standard or flush | C2 1.0 versus C2 2.0; generation-specific accessories |
| SS3 | 3 inches | Mounting style and exact light configuration | Fixed-colour versus dual-colour; available power and beam options |
| SS5 | 5 inches | Individual light, pair or a separate linked-bar system | Mounting clearance and CrossLink package contents |
Choose coverage before choosing output

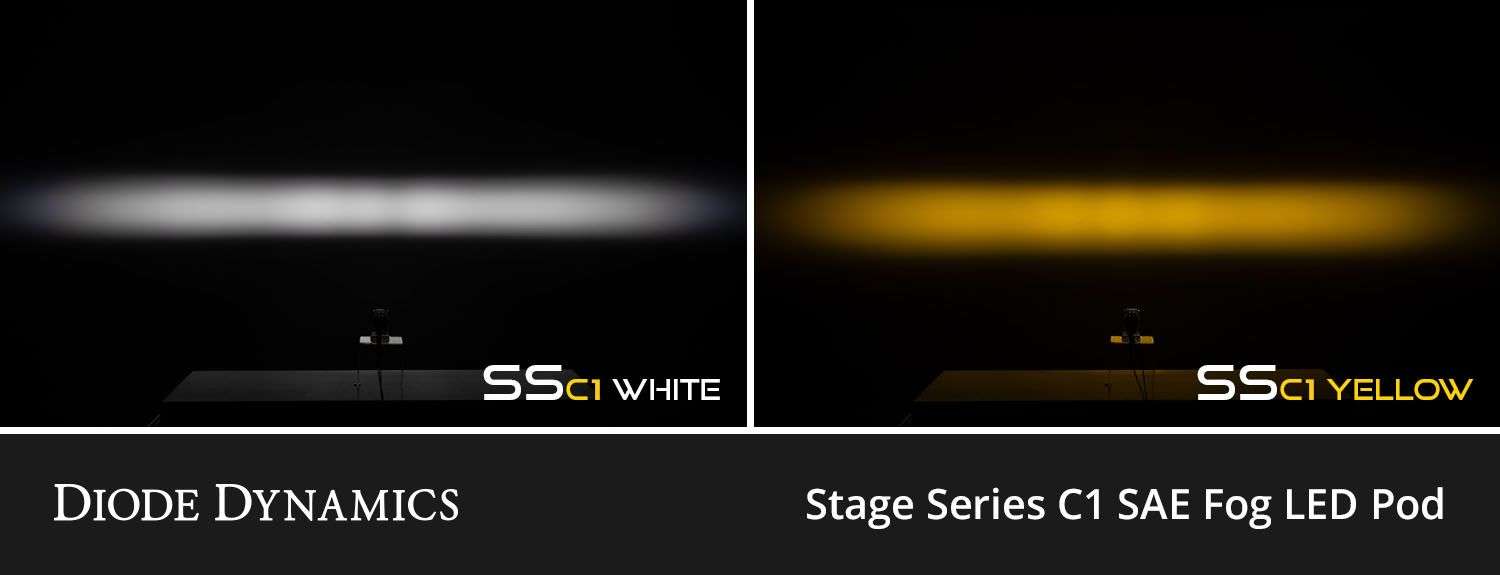

A concentrated spot and a broad flood serve different purposes. Driving, combo and fog patterns also have specific coverage characteristics. Start with the position and area you need to illuminate, then compare the beam diagrams and specifications for the exact product. A larger housing or higher tier does not automatically provide the right beam for a close-range task.
Main light and backlight are separate choices
Main-beam colour describes useful illumination from the primary optics. A backlight is a separate accent function. An amber backlight on a white Flood pod does not turn the Flood beam amber. Available combinations vary across families and generations.
Standard mount, flush mount or vehicle kit?
A standard pod mounts to a suitable bracket. A flush-mount pod sits at a prepared panel opening and needs clearance behind it. A vehicle-specific kit can add brackets or wiring for a stated application. Check whether the listing includes lights or only mounting parts.
A real custom-install example
Dustin selected the SSC2 / C2 1.0 Sport white Flood flush-mount pair with amber backlight for the Brock family’s Discovery 2 build. The fender installation required a custom opening. It shows how a compact pod can be used in a fabricated installation; it is not a Diode Dynamics vehicle-specific Discovery kit.
Stage Series buying questions
Are all Stage Series pods suitable for road use?
No blanket approval applies to every beam and installation. Select the exact product specified for the intended function and verify its application requirements. A flood or spot option should not be assumed equivalent to a fog lamp.
Do the lights come with the wiring I need?
Some packages include pigtails or mounting hardware; a complete harness, switch, vehicle bracket or adapter may be separate. The selected listing’s included-parts section is the source for that package.
Are C2 1.0 and C2 2.0 parts interchangeable?
Do not assume so. Match accessories and installation requirements to the exact generation and part number.
What warranty applies?
Diode Dynamics lists a limited lifetime warranty for eligible Stage Series pod purchases from April 15, 2025, subject to its terms. Its policy limits otherwise lifetime-eligible commercial or industrial use to eight years. Accessories can have different coverage; review the exact product and manufacturer warranty terms.
Where should I start if I already know my vehicle?
Use the vehicle-specific kit finder, then check trim, factory equipment and package notes. Universal pods remain available for custom installations.
For a step-by-step comparison, read our pod size, beam and mounting guide. To compare other brands, return to all pod lights.
