Build the connection around the light
Start with the exact light, connector and required functions. Then choose the main harness, any extensions or splitters, and the correct switch or controller.

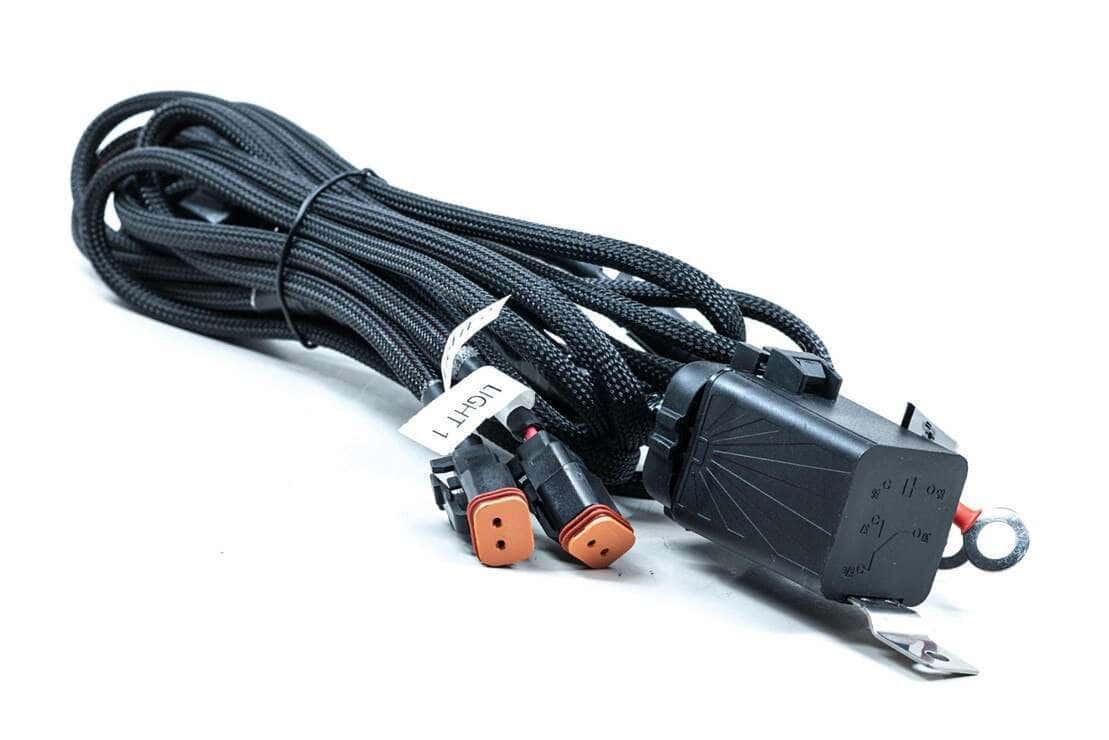

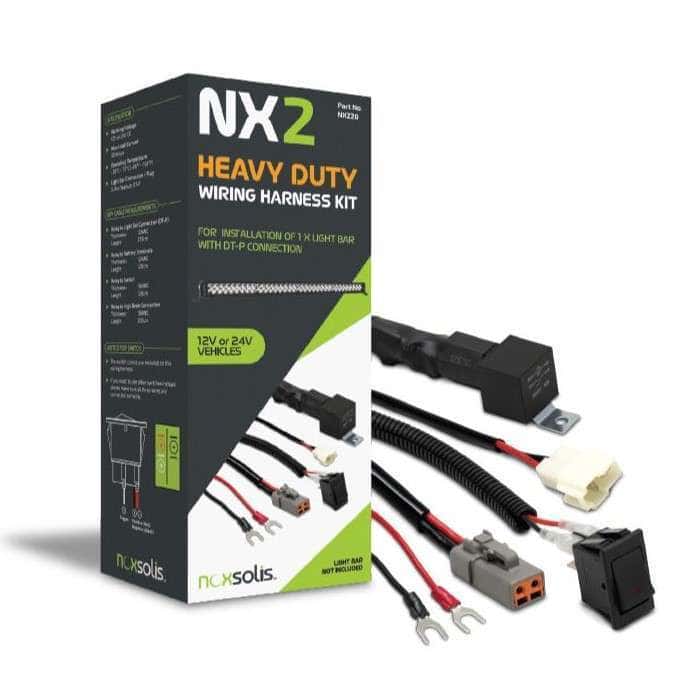

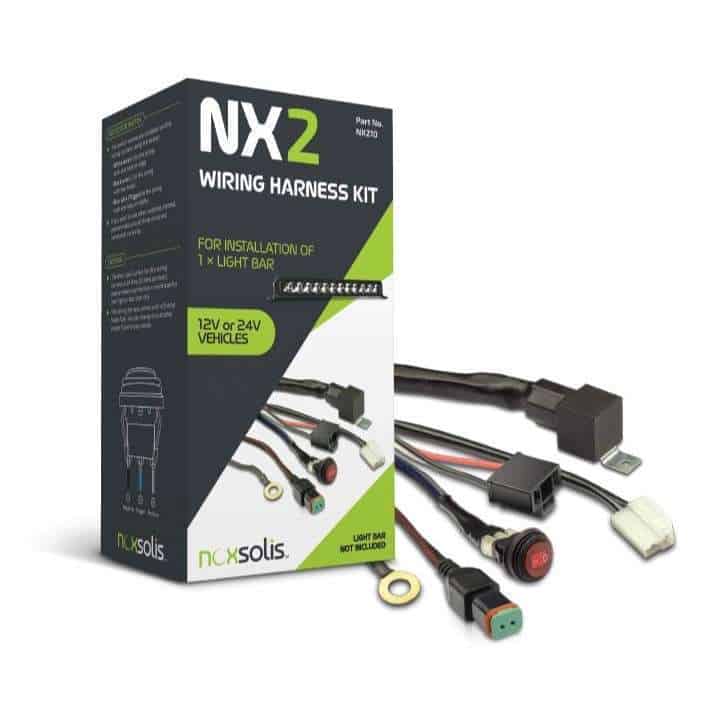

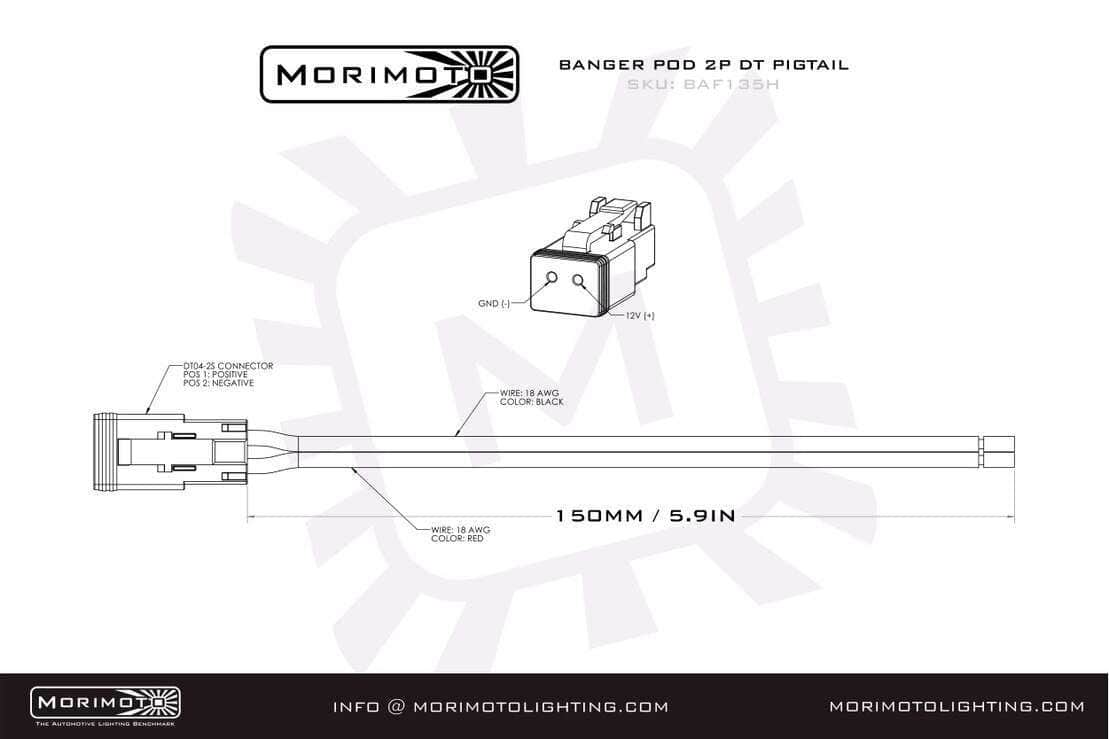

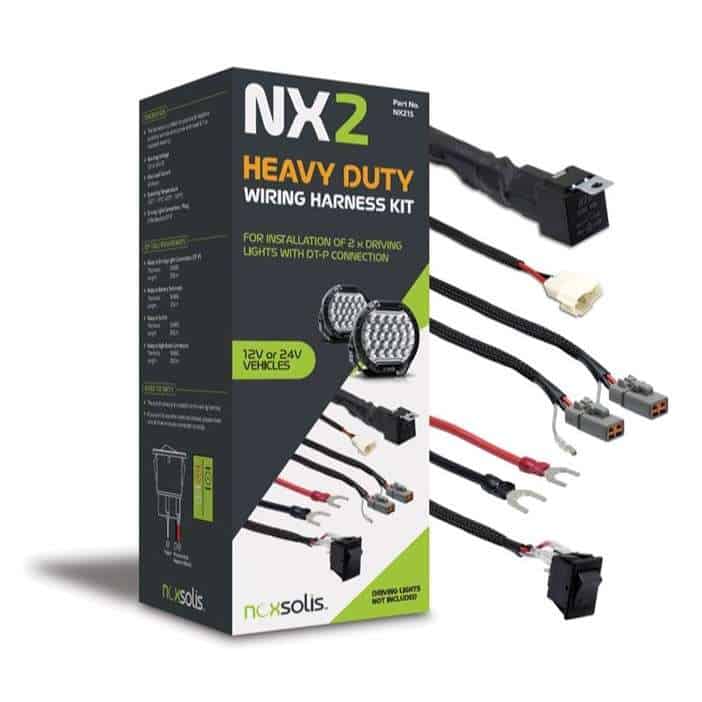

2-pin harness example
For the listed compatible lights; check current rating and outputs.
View options

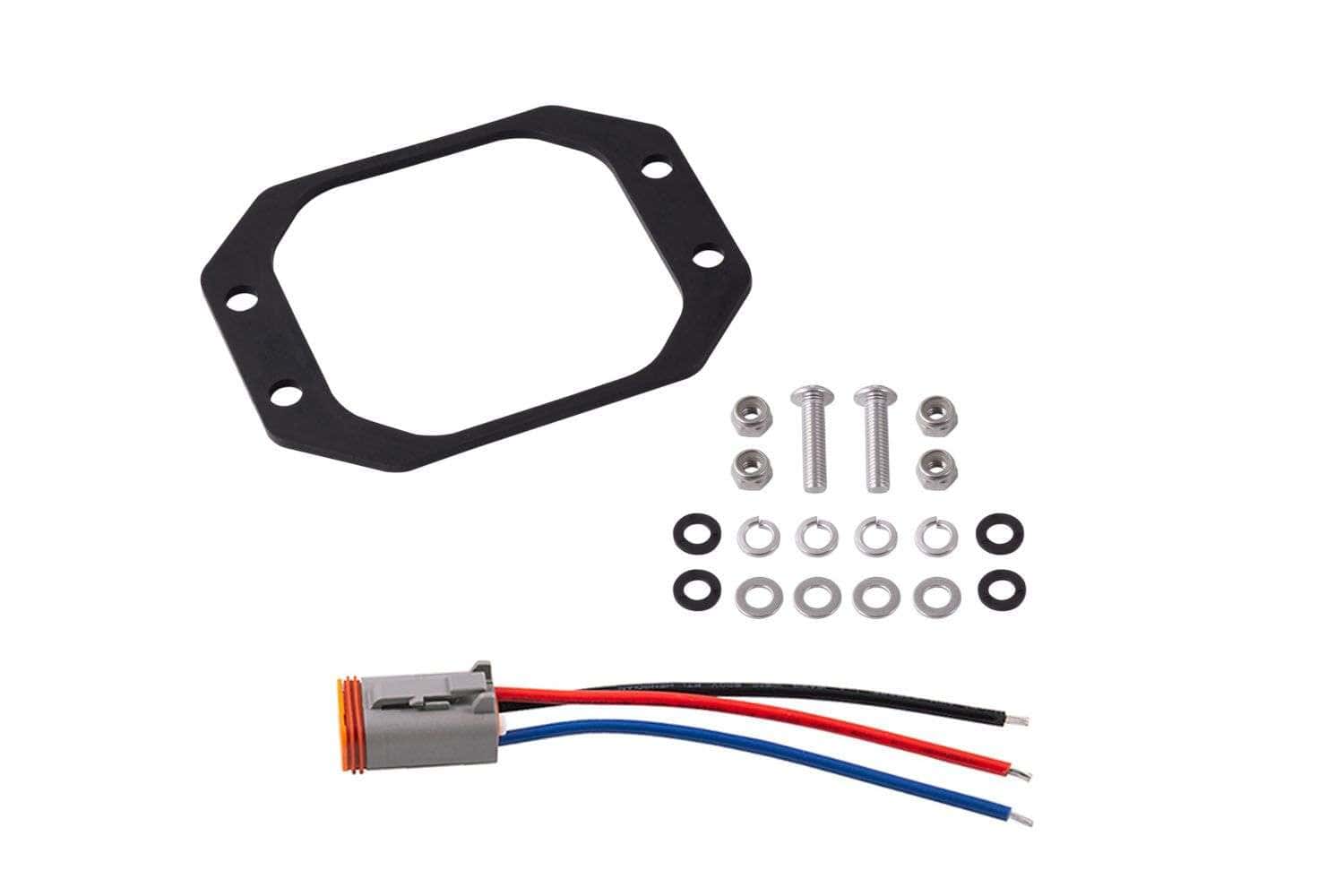

4-pin power & backlight
Check the light’s main-power and backlight wiring requirements.
View options

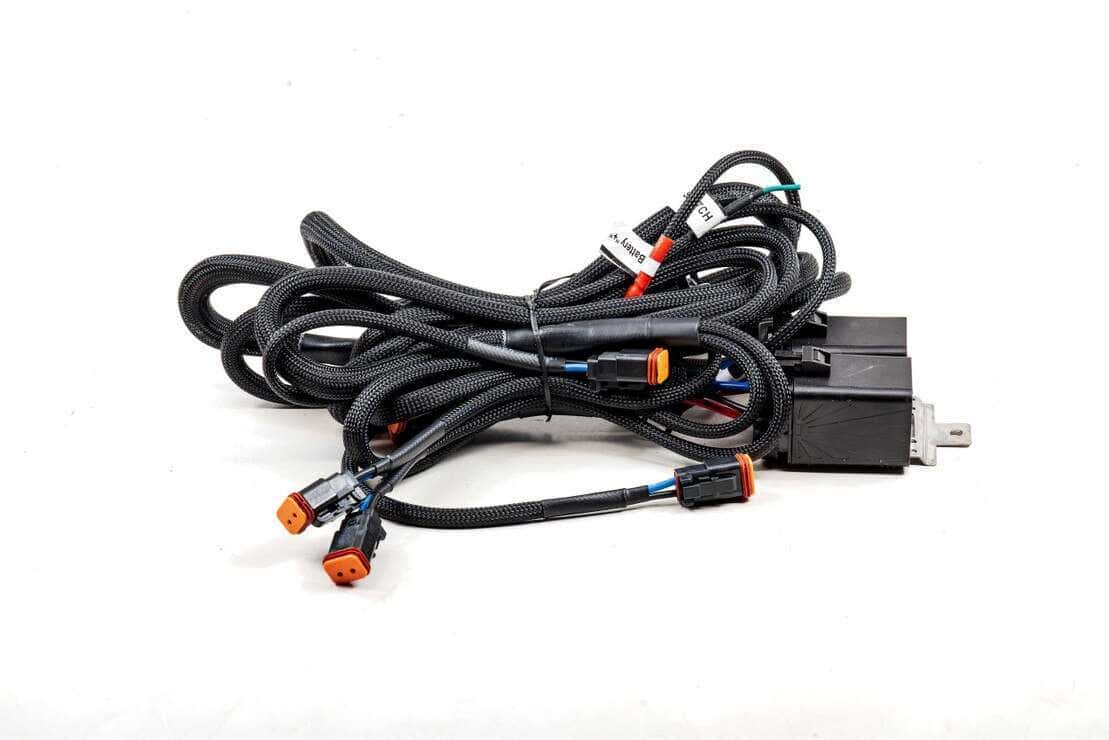

Extensions & splitters
Match the connector family and total electrical load.
View options

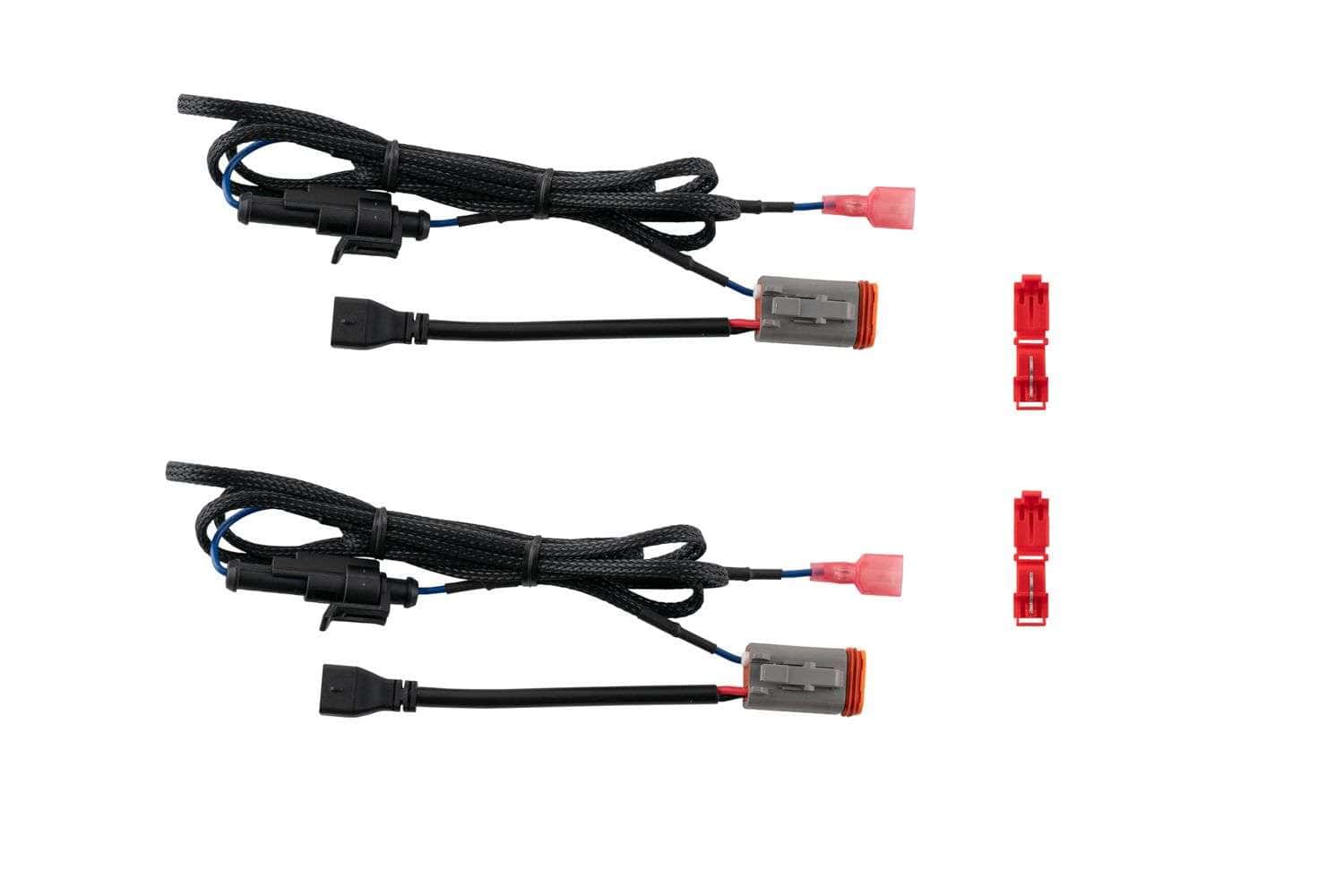

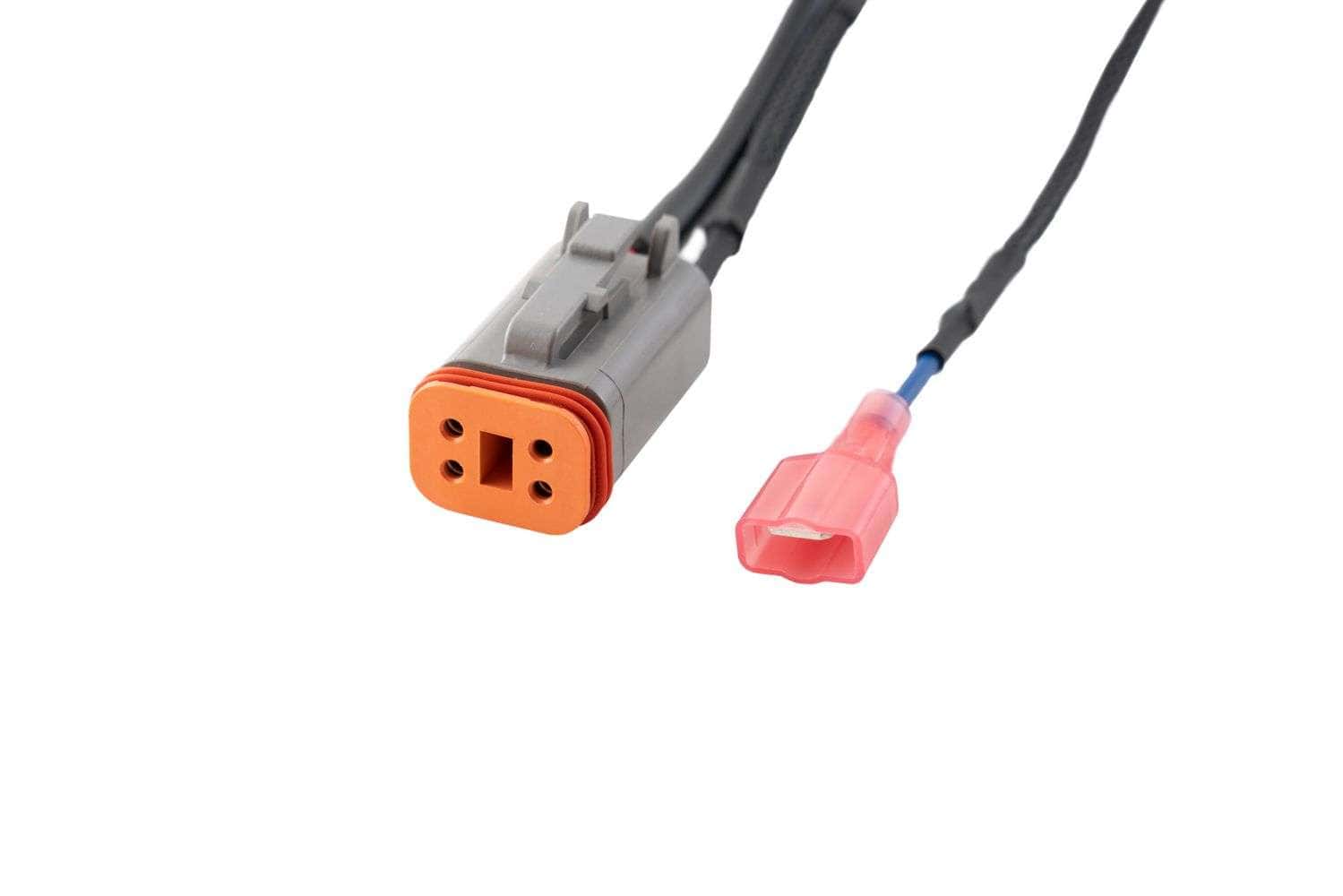

Backlight tap wiring
A backlight connection serves a different job from the main power harness.
View optionsChoose wiring as a complete system
Match the connector, number of outputs, functions and current rating before choosing a harness. A light’s voltage and current requirements determine the electrical setup; a familiar-looking connector alone is not a compatibility check.
Off-road wiring questions
Should I choose two-pin or four-pin wiring?
For the compatible Diode Dynamics Stage Series products, two-pin harnesses serve main light power without backlight control, while the specified four-pin harnesses support lights with backlight functions. Confirm the exact light, harness and pinout rather than applying that rule to every brand.
Is a splitter a complete power harness?
No. A splitter divides a compatible connection; an extension adds reach. Check the source harness, fuse/current rating and combined load of the connected lights.

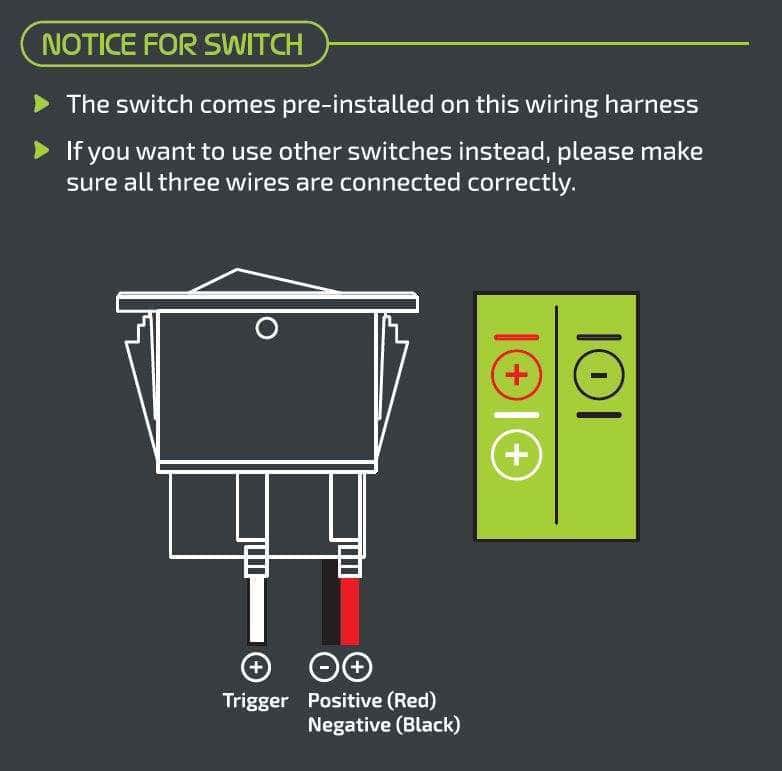

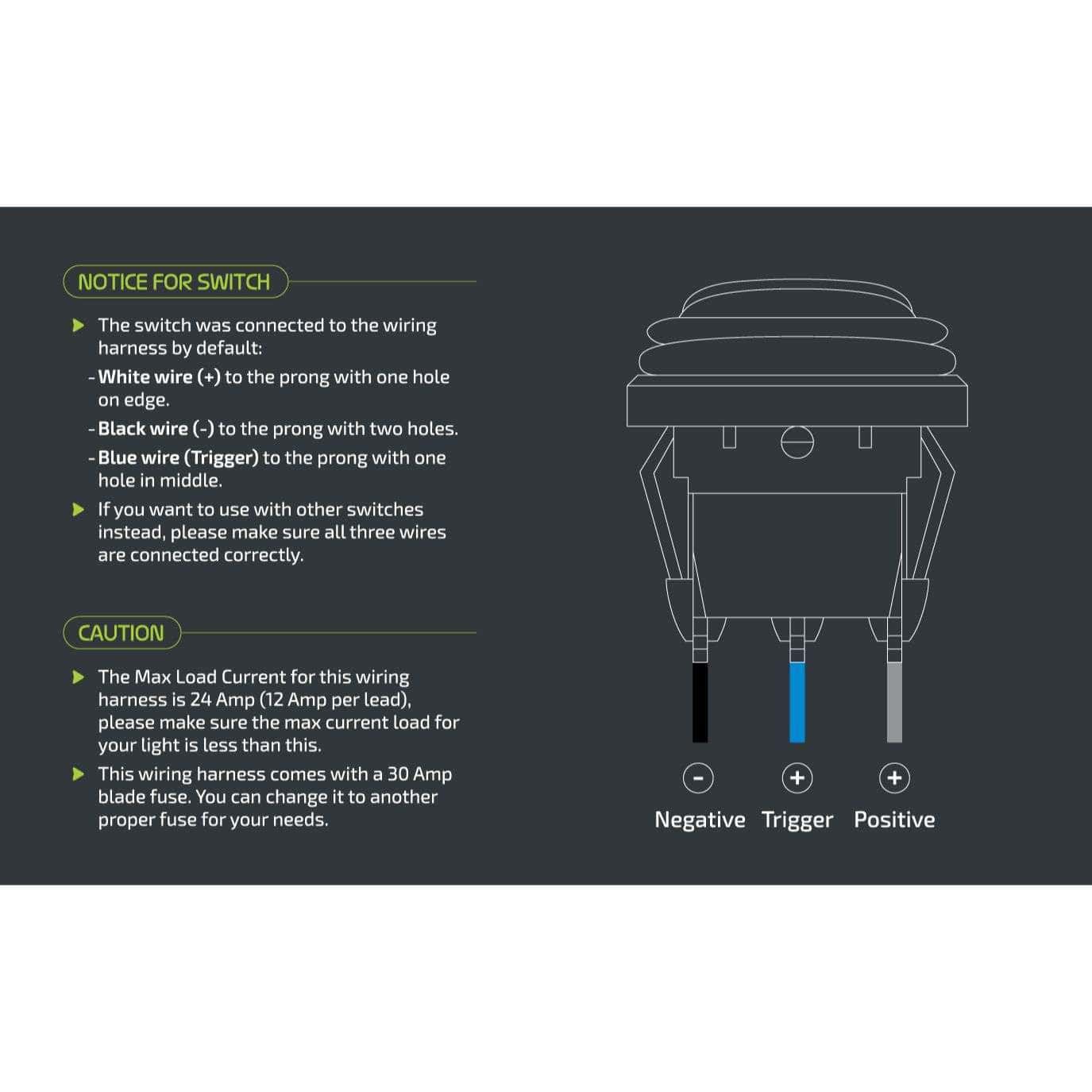

Can a switch panel replace an RGBW controller?
A switch panel controls circuits. An RGBW controller provides the colour-channel functions for a compatible RGBW system. Confirm which device your selected lights require.
Are all trailer and HitchMount harnesses interchangeable?
No. The collection contains different pin counts, outputs and vehicle-specific harnesses. Match the exact light model, trailer connector and vehicle application, including any brake or reverse-light function.
What should I measure before ordering extensions?
Measure the actual route from the power source or controller to each light, including safe routing around heat and moving components. Select the correct connector family and extension length for that route.
