Product Overview

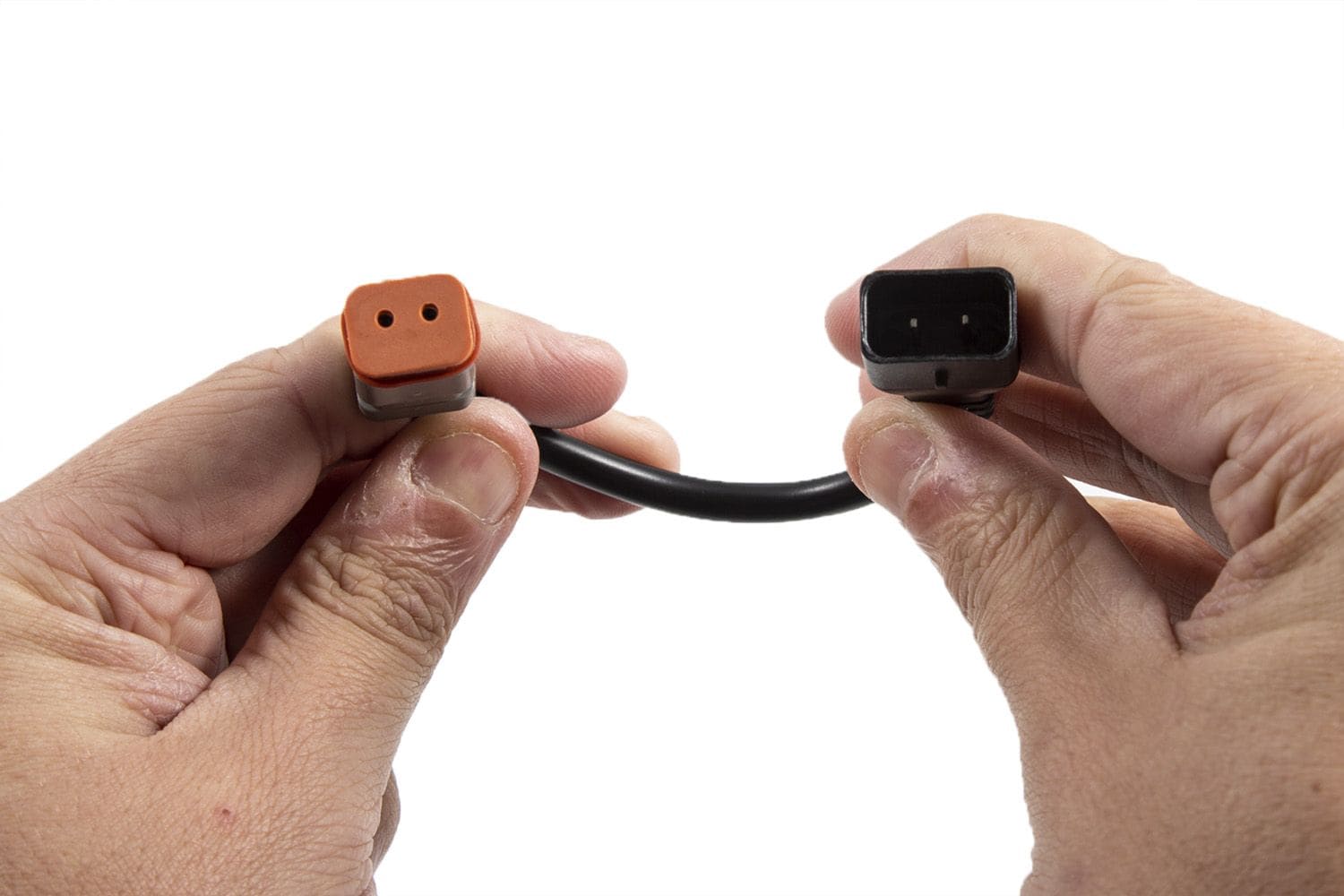

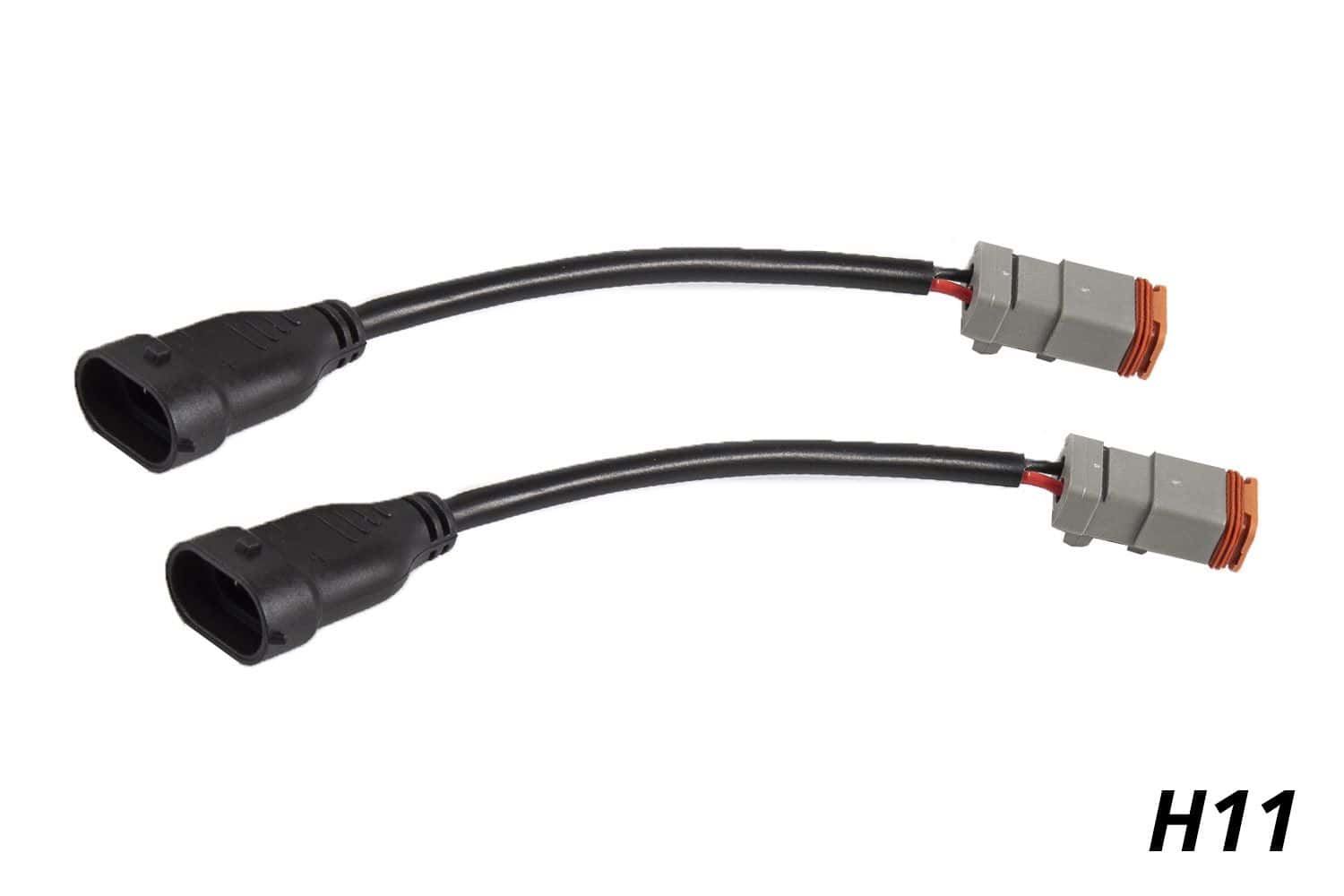

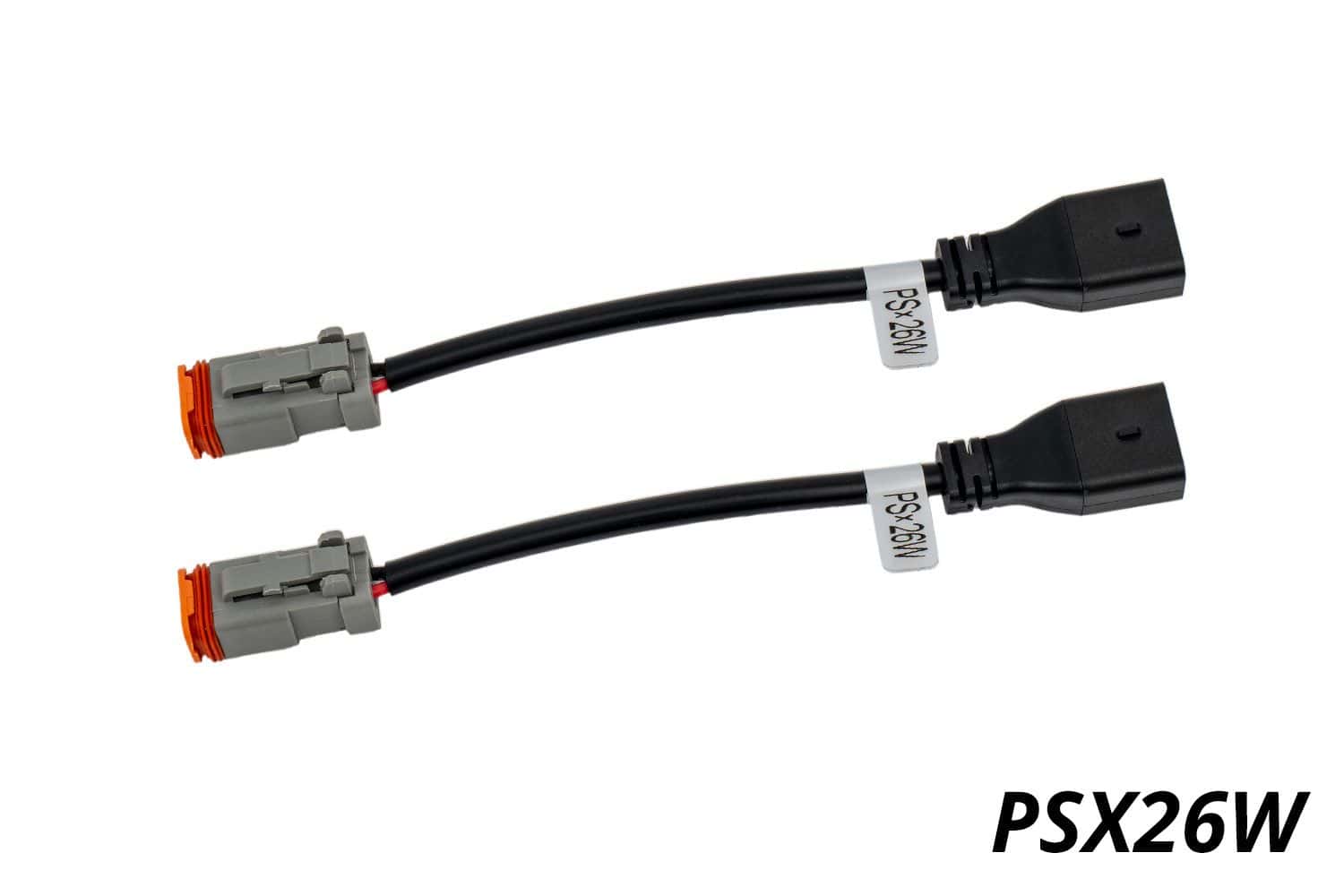

Complete a compatible Diode Dynamics SS3 Fog Light Kit installation with these Deutsch DT 2-Pin Adapter Wires. They convert a Deutsch DT-style connection to the selected H11, 9006, 5202, or PSX26W-size factory connector.
Each adapter uses high-capacity 18AWG wiring protected by a black insulation sleeve. The pair allows the left and right SS3 fog lights to connect to compatible factory bulb sockets without constructing custom adapter wiring.
Key Features & Benefits
Connects SS3 Fog Lights to Factory Wiring
These adapter wires connect the Deutsch DT-style plugs used with compatible SS3 lighting to supported factory fog-light connectors.

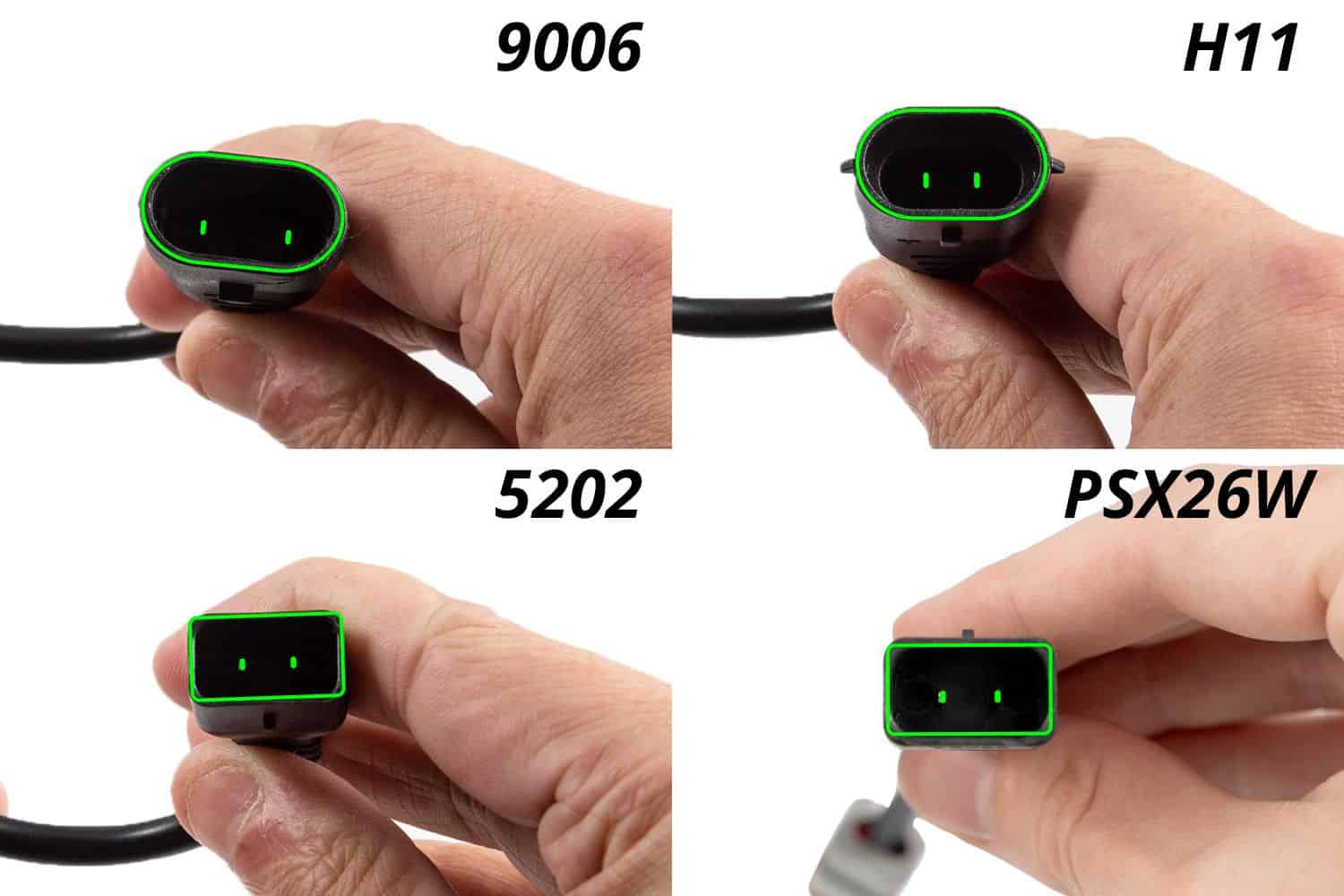

Available connector applications include:
- H11
- 9006
- 5202
- PSX26W
Choose the connector option that matches the vehicle’s factory fog-light socket.
Plug-and-Play Connector Design
The adapters provide a preassembled connection between compatible factory wiring and Deutsch DT-equipped lights.
For compatible SS3 Fog Light Kit applications, the adapters eliminate the need to cut factory fog-light wiring or assemble a custom connector conversion.
Compatible With SS3 Fog Light Kits
These adapter wires are intended for use with compatible Diode Dynamics SS3 Fog Light Kits.
They can be used when installing a new SS3 kit or replacing lost or damaged adapter wires from an existing compatible installation.
High-Capacity 18AWG Wiring
Each adapter is constructed with 18AWG wiring to support the electrical connection between the factory fog-light socket and the SS3 light.
The wire gauge provides a purpose-built alternative to creating an adapter from smaller, mismatched, or unidentified wiring.
Protective Black Insulation Sleeve
A black insulation sleeve surrounds and protects the adapter wiring.
The sleeve also keeps the short wire assembly contained for a cleaner installation near the fog-light housing.
Supplied as a Pair
Each package contains two adapter wires.
The pair provides one adapter for each side of a typical left-and-right fog-light installation.
Three-Year Warranty
Diode Dynamics Deutsch DT Adapter Wires include a three-year warranty.
Compatibility & Use Cases
These adapter wires are intended to connect compatible Diode Dynamics SS3 Fog Light Kits to factory fog-light sockets using one of the supported connector sizes.
Supported connector applications include H11, 9006, 5202, and PSX26W. The correct option depends on the factory connector installed on the vehicle and the wiring configuration required by the selected SS3 kit.
Common uses include:
- Installing a compatible SS3 Fog Light Kit
- Connecting DT-equipped lights to supported factory fog-light sockets
- Replacing missing or damaged SS3 adapter wires
- Avoiding a custom-built connector conversion
- Retaining the factory-side fog-light connector
These adapters do not establish vehicle fitment by themselves. Confirm the vehicle’s original bulb connector, SS3 kit requirements, connector polarity, and DT configuration before ordering.
Installation, Fitment & Technical Details
Installation consists of connecting the compatible factory fog-light socket to one end of the adapter and the Deutsch DT-style plug to the other.
Basic installation steps:
- Identify the vehicle’s factory fog-light connector.
- Select the matching H11, 9006, 5202, or PSX26W adapter option.
- Disconnect the factory fog light.
- Connect the adapter to the compatible factory socket.
- Connect the Deutsch DT end to the SS3 light or compatible harness.
- Secure the wiring away from heat, sharp edges, and moving components.
- Test the fog lights before completing reassembly.
Do not force connectors together. If the plugs do not align and latch correctly, verify the selected connector option and application before proceeding.
Technical Specifications
- Product Type: Fog-light connector adapter wires
- Manufacturer: Diode Dynamics
- Light-Side Connector: Deutsch DT-style 2-pin
- Factory-Side Connector Options: H11, 9006, 5202, or PSX26W size
- Wire Gauge: 18AWG
- Wire Protection: Black insulation sleeve
- Intended Application: Compatible Diode Dynamics SS3 Fog Light Kits
- Installation Type: Plug-and-play on verified compatible applications
- Package Quantity: 2 adapter wires
- Warranty: 3 years
- Return Policy: 30-day returns with no restocking fee
- Guarantee: 100% satisfaction guarantee
Build Quality & Warranty
Diode Dynamics uses 18AWG wiring and a protective black insulation sleeve to create a compact adapter suitable for compatible automotive lighting installations.
The adapters are backed by a three-year warranty. The supplied return policy provides 30-day returns without a restocking fee and a 100% satisfaction guarantee, subject to the complete store return-policy requirements.
What’s Included
- 2x Diode Dynamics Deutsch DT 2-Pin Adapter Wires
- Selected H11, 9006, 5202, or PSX26W-size connector configuration
Complete Your SS3 Fog Light Installation
Connect compatible SS3 fog lights to supported factory bulb sockets without building custom adapter wiring. Choose the connector option that matches the vehicle’s H11, 9006, 5202, or PSX26W-size factory connection before ordering.
Frequently Asked Questions About Deutsch DT 2-Pin Adapter Wires
These wires adapt a Deutsch DT-style 2-pin plug to a compatible H11, 9006, 5202, or PSX26W-size factory connector. They are intended primarily for compatible Diode Dynamics SS3 Fog Light Kits.
Yes. These adapter wires are designed for use with compatible Diode Dynamics SS3 Fog Light Kits, allowing the lights to connect to supported factory fog-light sockets.
Available configurations convert a Deutsch DT-style plug to an H11, 9006, 5202, or PSX26W-size connector. Select the option matching the vehicle’s factory fog-light socket.
No. The supplied information indicates that the adapter is available for H11, 9006, 5202, or PSX26W-size connectors. Select the required connector configuration when ordering.
Each package includes two adapter wires, providing one for each side of a typical two-light fog-light installation.
The Diode Dynamics DT adapter wires use high-capacity 18AWG wiring.
No cutting is required when the adapter is used with a verified compatible factory connector and SS3 Fog Light Kit. The preassembled plugs connect between the factory socket and the Deutsch DT connection.
Yes, they may replace lost or damaged adapter wires when the SS3 kit and vehicle use the same connector configuration. Confirm both connector ends before ordering.
Not necessarily. A matching bulb designation alone does not guarantee complete compatibility. Confirm the factory connector shape, polarity, wiring configuration, and SS3 kit requirements.
Diode Dynamics Deutsch DT 2-Pin Adapter Wires include a three-year warranty.
