Classic Style, Emergency-Ready Performance
Love the timeless look of watermelon glass lenses? The Alpha 360 Duo™ Red/White Emergency Watermelon Light takes that same vintage starburst glow and reimagines it for modern emergency use. With dual-color output and three selectable modes, this beacon brings both style and authority to your rig.
Perfect for emergency vehicles, parade rigs, off-road response builds, and display setups, the Alpha 360 Duo is designed to stand out with commanding visibility.
Three Dynamic Modes
-
Steady Burn (Red): Clean, solid glow in the primary red color.
-
Rotating Simulation (Red/White): Alternating LEDs create a spinning effect, shifting between red and white for a classic rotating look — no moving parts required.
-
Strobe Flash (Red/White): Rapid alternating bursts of red and white for maximum attention-grabbing impact.
Each mode uses its own dedicated power wire plus a shared ground. Built-in logic ensures the most eye-catching mode always takes priority (strobe beats spin, spin beats steady).
Built to Withstand the Call
-
Premium Glass Lens: Authentic faceted “watermelon” glass for crisp, star-patterned light output.
-
Dual-Color Brilliance: Red primary with alternating red/white in action modes.
-
Weather-Resistant: Fully sealed electronics with an IP67 rating.
-
Efficient Performance: Low draw (~12W) makes it easy to run continuously.
-
12V & 24V Compatible: Ready for a variety of emergency vehicle setups.
Where the Alpha 360 Duo Excels
-
Emergency and response vehicles
-
Parade and demo units
-
Off-road utility builds
-
Classic fire, police, and rescue vehicle restorations (display use)
Quick Specs
-
Modes: Steady (Red), Rotating (Red/White), Strobe (Red/White)
-
Power: ~12W
-
Voltage: 12V & 24V DC
-
Lens: Clear glass “watermelon” style
-

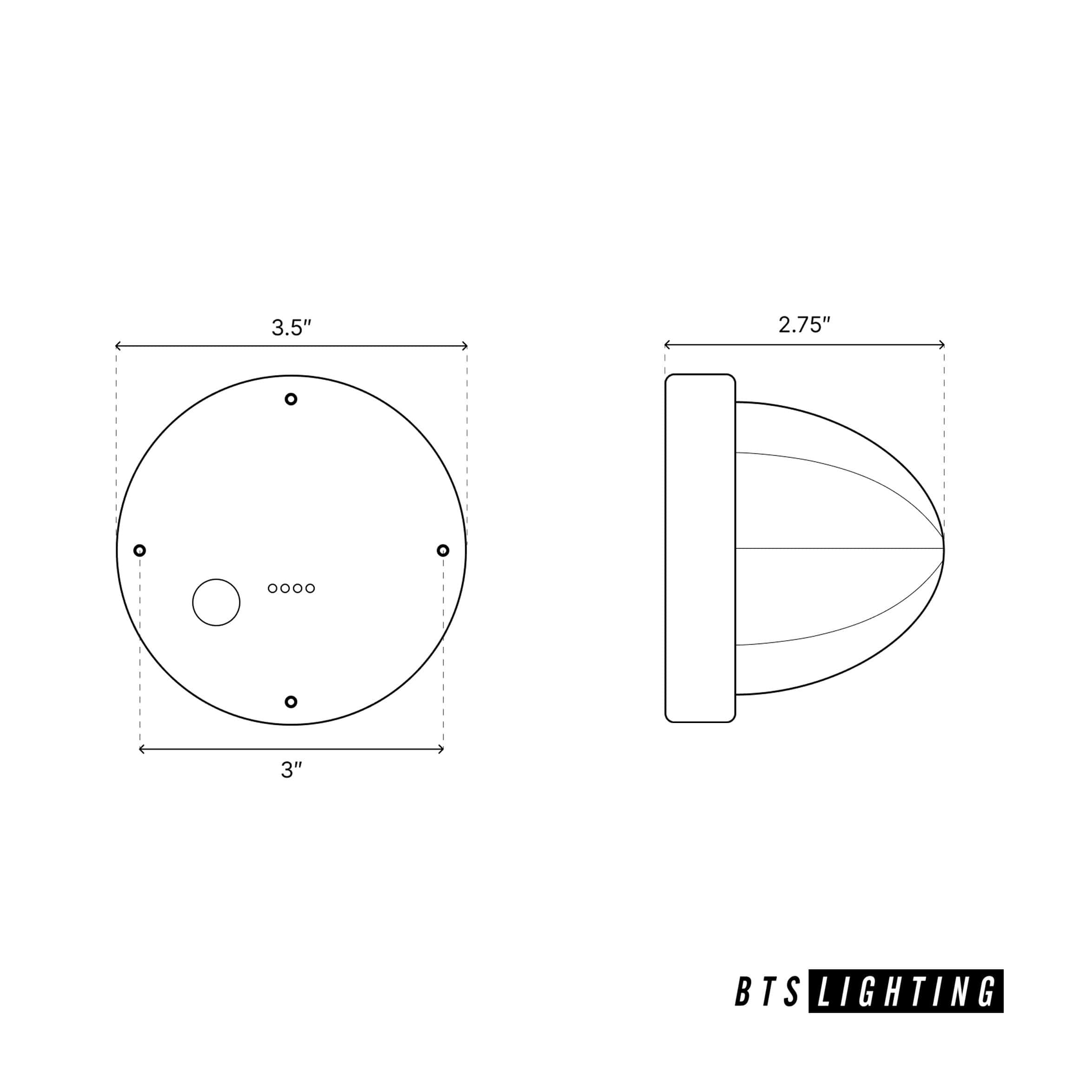

Mounting: 2-bolt flange M4x 8mm
-
Wiring: 4-wire (1 ground, 3 power leads)
-
Water Resistance: IP67
⚠ For off-road, emergency, and display use only. Not DOT approved. Not for use on public roads where prohibited.
Compare Red/White with the other single-colour and Duo Alpha 360 watermelon lights. The optional Alpha Six Switch provides accessory switching for nominal 12V or 24V installations; wire and protect the light’s separate mode circuits to the light and panel instructions.
Frequently Asked Questions
Does the Alpha 360 Duo Red/White show white in steady mode?
Its steady mode is red. The rotating-simulation and strobe modes alternate red and white; choose this Red/White model when those are the two colors needed for the application.
How are the three modes controlled?
The light uses four wires: one shared ground and three separate power leads, one for each mode. If more than one mode is powered, strobe takes priority over rotating simulation, which takes priority over steady burn.
Does the rotating mode use a motor or moving reflector?
No. Alternating LEDs create the rotating effect without moving parts. The red/white strobe is a separate mode from the rotating simulation.
Can this Alpha 360 Duo operate on 12V and 24V systems?
Yes. This model is specified for both 12V and 24V DC installations. Its three modes share a common ground.
Is a mounting bracket included with the Red/White light?
A mounting bracket is an optional, separately priced choice on this page. The light uses a two-bolt flange mount; check the bracket’s mounting pattern and clearance before choosing the installation location. See the watermelon mounting and wiring guide for planning help.
Compare watermelon-light brackets against this light’s two-bolt flange, fastener requirements and installation clearance. The collection includes different mounting designs; confirm the exact bracket and light combination before ordering.
