Upgrade your Gleaner combine’s lighting with a direct‑fit LED kit designed for the R72 and compatible R‑series models. Built around high‑output LED modules that replace the factory 4×6 sealed‑beam headlights (OEM part 71374174), this kit turns darkness into daylight and installs in under one hour with zero cutting or splicing.
✅ Why This Kit?
-
Designed for the R72 & More: Fits Gleaner R72, plus R70, R60, R62 (S/N 63001‑HL62999), R52 (S/N 53001‑9999), R42 (S/N 43001‑9999), R40, R50, and C62 combines. Also confirmed for Massey Ferguson 8680.
-
Exact OEM Replacement: Directly replaces AGCO part number 71374174 without modifications. Plug‑and‑play adapters connect to existing harnesses.
-
Supercharged Brightness: Each LED pod produces ~3,500 lumens in both high and low beam (Sport version). Upgrade to Pro for even higher output.
-
Rugged Construction: IP69K‑rated aluminum housing, polycarbonate lens, and stainless steel hardware ensure long‑term durability in harsh farm conditions.
-
Made in North America: LED assemblies are built in the USA; mounting brackets are fabricated from Canadian stainless steel.
-
Complete Hardware: Includes six LED modules, stainless brackets, H11‑to‑Deutsch adapters and other necessary connectors. Optional amber accent lighting lets you wire marker lights or daytime running lights.
📦 What’s Included
-

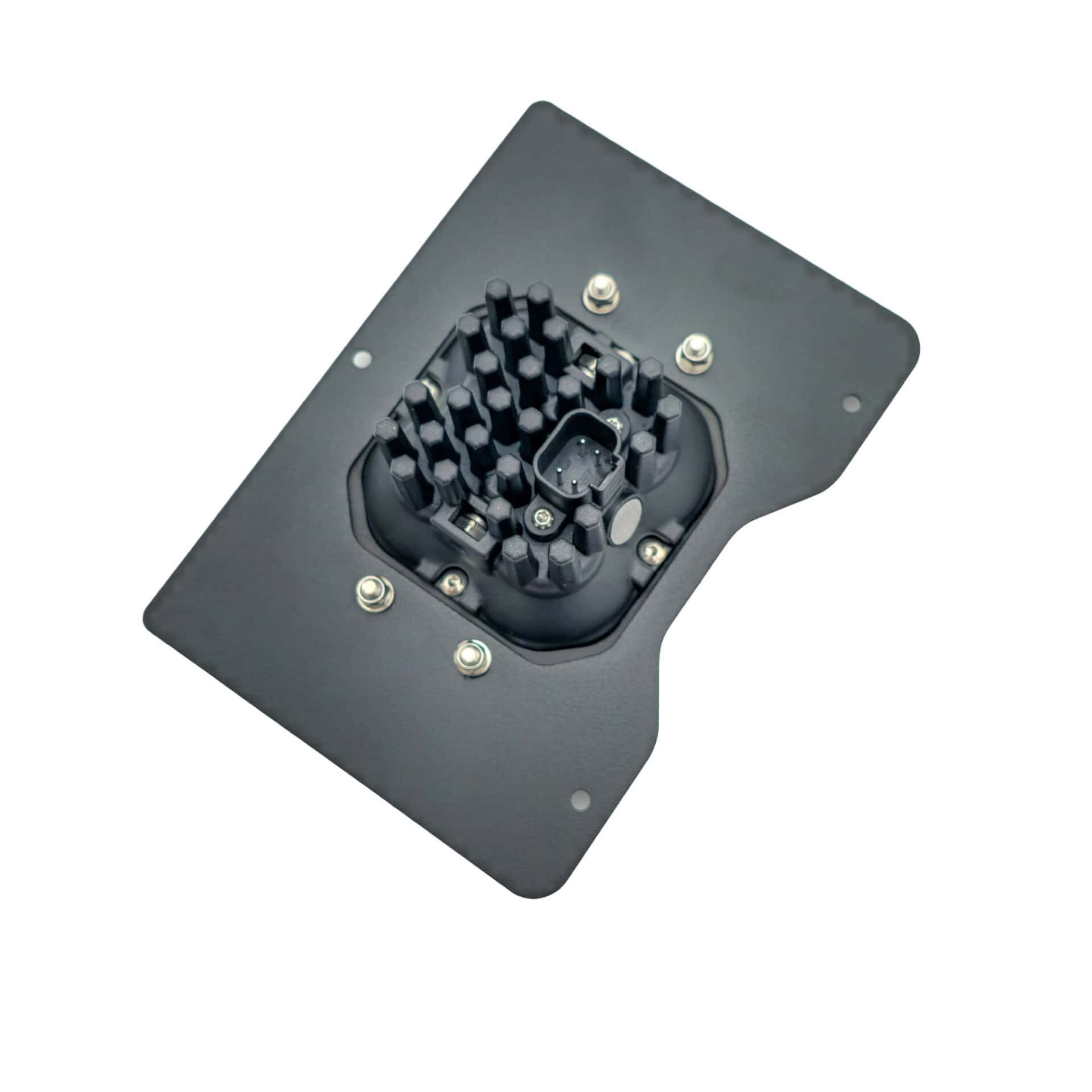

6× 4″×6″ LED Headlight Modules (Sport or Pro brightness levels)
-
6× Mounting Brackets & Bezels – powder‑coated stainless steel
-
Plug‑and‑Play Wiring Harnesses: H11 (880/881) and 2‑pin Deutsch adapters
-
Optional Amber Backlight Leads for marker/courtesy lights
-
Installation Guide – bolt‑on upgrade in under 1 hour
🚜 Compatible Models (Confirmed)
-
Gleaner Combines: C62, R40, R42 (S/N 43001‑9999), R50, R52 (S/N 53001‑9999), R60, R62 (S/N 63001‑HL62999), R70 and R72 (S/N 76001‑HL72999).
-
Massey Ferguson: Combine model 8680 (upper cab light).
-
Note: Fits all R72 variants (1992‑2002) regardless of engine type (Deutz or Cummins).
🧰 Technical Specs
-
Lumens: ~3,500 lm per pod (Sport) / up to ~5,000 lm (Pro)
-
Voltage: 9–32 V DC (12 V & 24 V systems)
-
Current Draw: ~4.5 A at 12 V (per pod)
-
Beam Pattern: High/Low flood/spot with optional amber backlight
-
IP Rating: IP69K (dustproof and withstands power washing)
-
Housing: Black powder‑coated aluminum with integrated heatsink
-
Lens: Hard‑coated polycarbonate
-
Warranty: 8‑year limited warranty on LED modules
💬 Frequently Asked Questions
Q: Do I need to cut or drill my R72?
A: No. This kit uses factory mounting points and plugs directly into your wiring harness. Remove the old sealed beams and bolt in the LEDs using supplied brackets.
Q: Will this fit older R‑series combines?
A: Yes! R40, R42, R50, R52, R60, R62, R70 and C62 models share the same headlight part number (71374174) as the R72, so the kit fits those combines as well.
Q: Can I buy single lights instead of the full kit?
A: Absolutely. Individual LED modules are available for replacing just one or two lights, or for adding a 7th or 8th light on custom setups.
