A 13-LED amber marker with defined mounting accessories

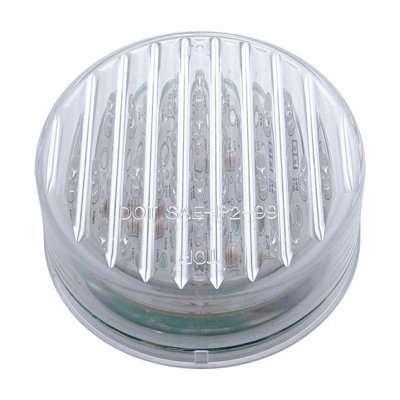

The United Pacific 38364 is a nominal 2.5-inch round clearance/marker light with thirteen amber LEDs behind a clear lens. Its mounting and connector recommendations help you match the replacement to the actual installation.
Product details
- 13 amber LEDs with a clear polycarbonate lens.
- Single-function round clearance/marker light.
- Sonically sealed lens and sealed plastic rear housing.
- 12V operation with two female bullet connectors.
- Manufacturer recommends grommet 31503 and male pigtail 34210P; one light per card.
Start with grommet 31503
Compare the recommended grommet with the mounting panel, then check its required opening and the space behind the light. The nominal 2.5-inch format does not establish the cutout. Match the two female bullet connections to the recommended male pigtail.
Check the light colour and circuit
This part emits amber light through a clear lens. Confirm the required colour, clearance/marker function and 12V supply at the intended mounting position before choosing the replacement.
- 10-Year Warranty – Superior quality for long-lasting performance! 💡
Frequently Asked Questions
What colour does 38364 emit?
Amber. It has thirteen amber LEDs behind a clear lens.
Which grommet is recommended?
United Pacific names grommet 31503. Compare that grommet’s mounting dimensions with the panel before making or enlarging an opening.
Which electrical pigtail is recommended?
The manufacturer names male pigtail 34210P. The lamp has two female bullet connectors.
What voltage is specified?
The light is listed for 12V operation. Check the supply circuit at the installation point.

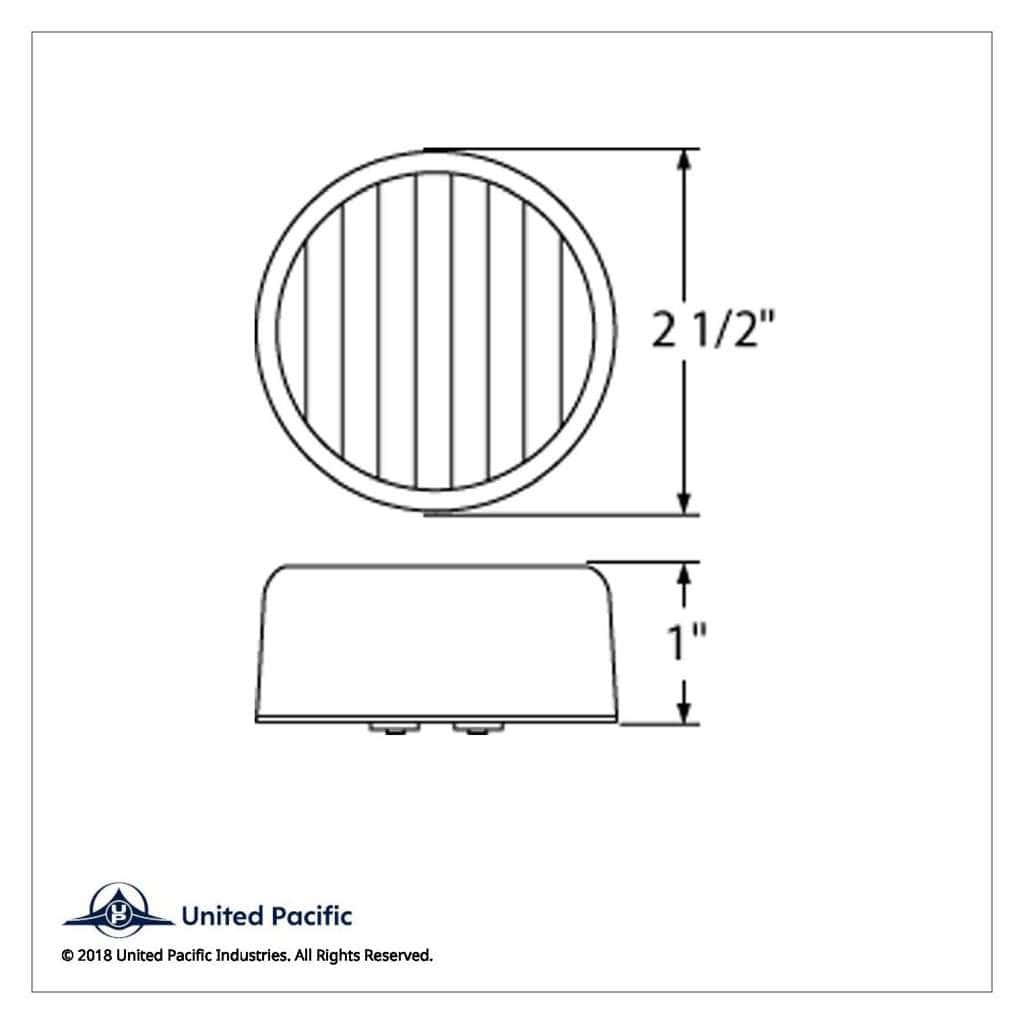

Can I use the lamp’s 2.5-inch size as the cutout dimension?
Use the selected grommet’s mounting dimensions instead. The nominal 2.5-inch light format and the required panel opening are separate measurements.
