Key Features & Benefits
Low Profile Build:
Measuring only 1/2″ thick, this slim light bar fits tight spaces while still packing a powerful punch.
Multi-Function Output:
Features 11 red dual-function SMD LEDs for stop, turn, and tail lights, plus 16 white SMD LEDs for intense back-up illumination.
Clear or Red/Clear Lens Options:
Choose from a fully clear lens for a modern aesthetic or a red/clear combo for classic truck style—both made from tough polycarbonate.
Easy Installation:
4-wire setup for intuitive wiring and 16-1/8″ center-to-center mounting hole spacing for a universal fit.
Built for the Long Haul:
Injection molded polycarbonate lens and IP67-rated moisture resistance mean this light bar can take on harsh road conditions with ease.
DOT/SAE Compliant:
Fully meets FMVSS 108 standards for legal and safe road use.
Technical Specifications
-
LED Count: 27 (11 Red SMD + 16 White SMD)
-
Functions: Stop, Turn, Tail, Backup
-
Lens Material: Injection Molded Polycarbonate
-
Profile Thickness: 1/2″
-

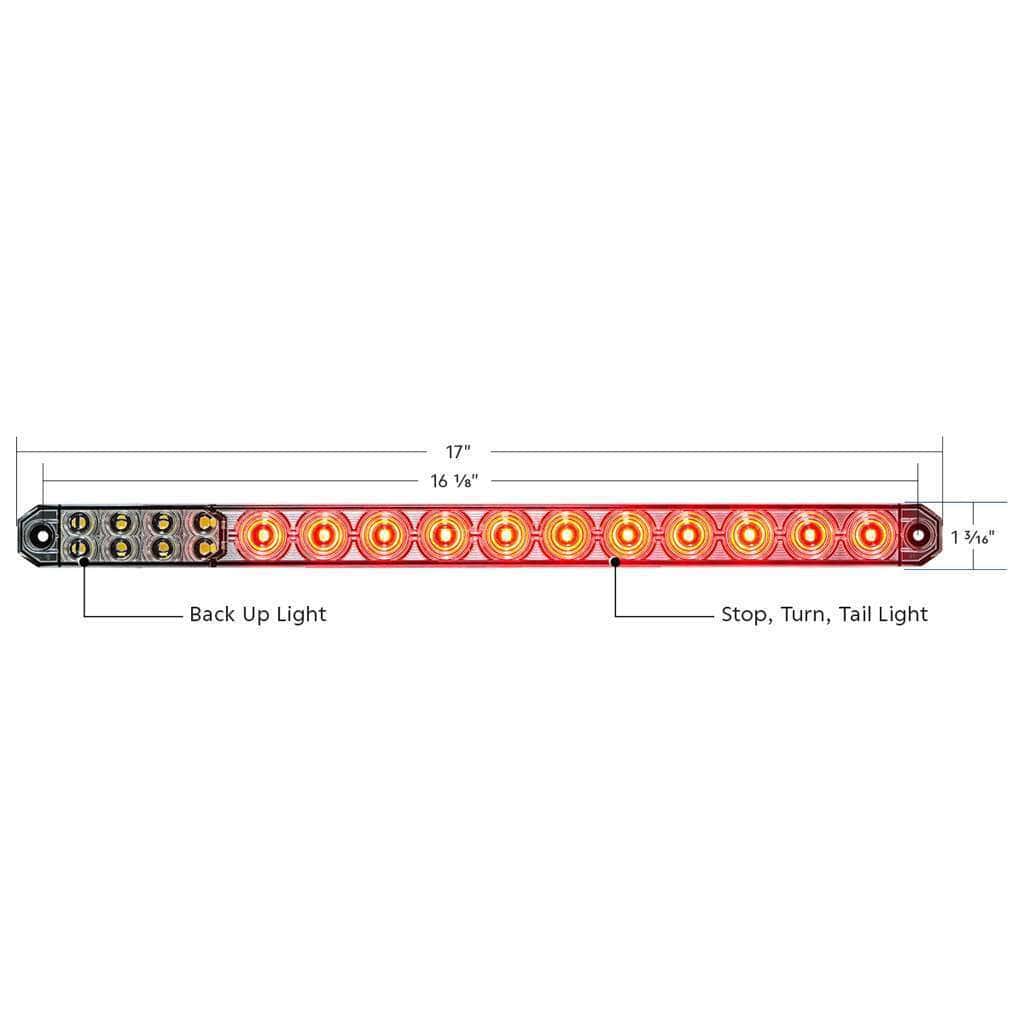

Mounting Hole Spacing: 16-1/8″ (center to center)
-
Wiring: 4-Wire Lead
-
White = Ground (-)
-
Black = S/T/T Low (+)
-
Red = S/T/T High (+)
-
Yellow = Back-Up (+)
-
-
Compliance: DOT/SAE, FMVSS 108
-
Lens Options: All Clear, or Red & Clear
-
Water Resistance: IP67 Rated
-
Warranty: 10 Years
What’s Included
-
1x 17″ 27 LED Low Profile Light Bar (Stop/Turn/Tail/Back-Up)
