Product Overview
Watermelon lights are a signature element of classic truck lighting. The 19 LED Crystal Watermelon Light Kit combines that timeless appearance with modern LED technology and a crystal-style lens.
With 19 high-output LEDs and reflective inner housing, this light produces strong illumination while maintaining the traditional watermelon look truck owners appreciate.
Perfect for trucks and trailers that require dependable marker lighting with premium styling.
Ideal for:
-
Semi trucks
-
Trailers
-
Tow trucks
-
RVs
-
Custom truck builds
Key Features & Benefits
Dual-Function LED Lighting
Dual-function operation allows the light to run at low and high intensity, supporting marker and signal lighting depending on wiring configuration.
19 High-Output LEDs
Nineteen LEDs provide powerful red illumination and excellent visibility.
Crystal-Style Polycarbonate Lens
Faceted crystal-style lens diffuses LED light and adds a high-end appearance.
Reflective Inner Housing
Reflective housing enhances brightness and improves light projection.
Epoxy-Sealed Electronics
Sealed electronics help protect against moisture, corrosion, and vibration.
IP67 Weather Protection
IP67-rated construction protects the light from dust, water, and harsh environmental conditions.
Chrome Bezel Installation Kit
Includes chrome plastic bezel and foam gasket for secure mounting and a polished appearance.
Performance / Compatibility / Use-Case
-
Voltage: 12V DC
-
LED Count: 19 LEDs
-
LED Color: Red
-
Lens Color: Red
-
Mount Type: Watermelon-style lamp mount
-
Wiring: Hardwired 3-wire connection
Wire Color Code
White = Ground
Black = Low Function
Red = High Function
Common uses include:
-
Marker lights
-
Clearance lights
-
Tail lights
-
Custom truck lighting
Installation / Fitment / Technical Details
This light installs using a watermelon-style lamp mount.
Included chrome bezel and foam gasket allow secure installation and sealing.

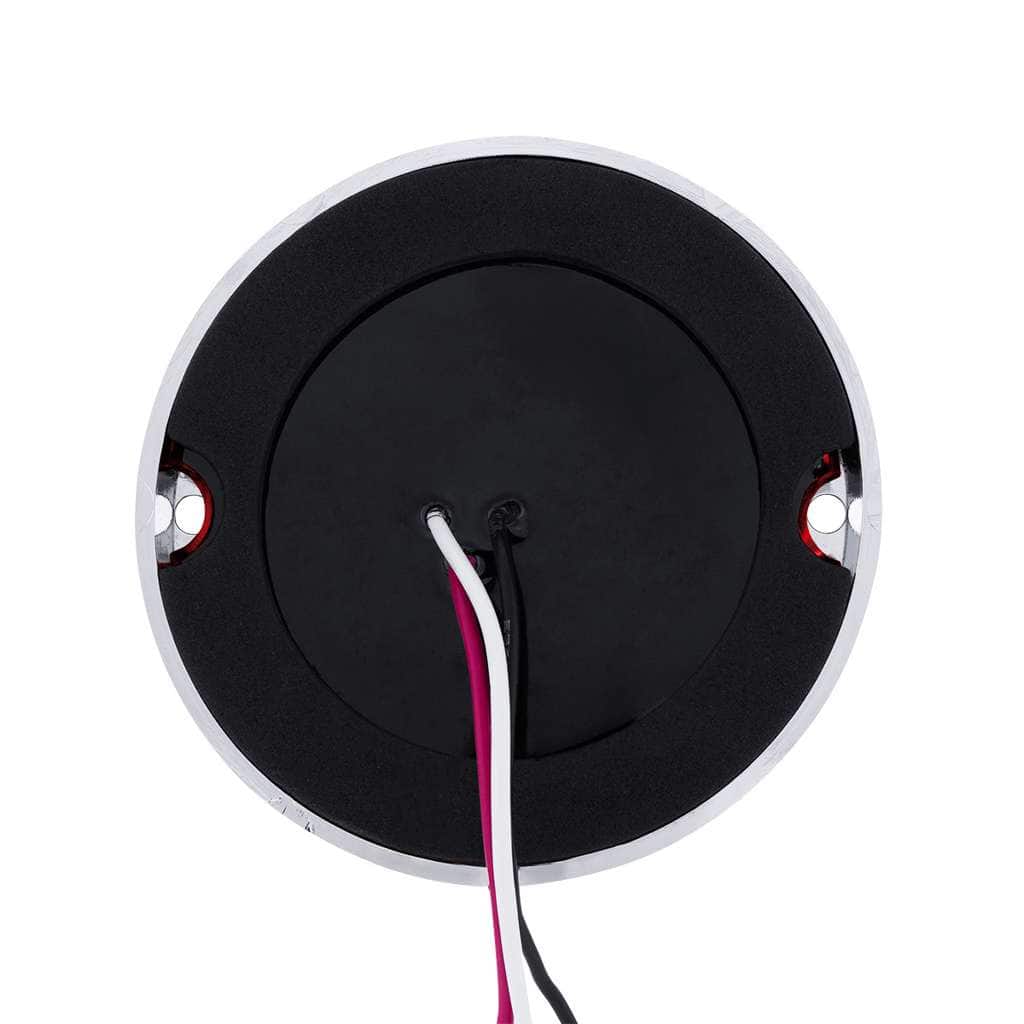

The 3-wire harness with bullet connectors simplifies electrical connection.
Professional installation is recommended if unfamiliar with vehicle wiring systems.
Build Quality / Warranty
Constructed with:
-
Polycarbonate crystal-style lens
-
Chrome plastic bezel
-
Reflective inner housing
-
Epoxy-sealed electronics
Designed for durability in demanding truck environments.
Warranty: 3-year manufacturer warranty.
What’s Included
-

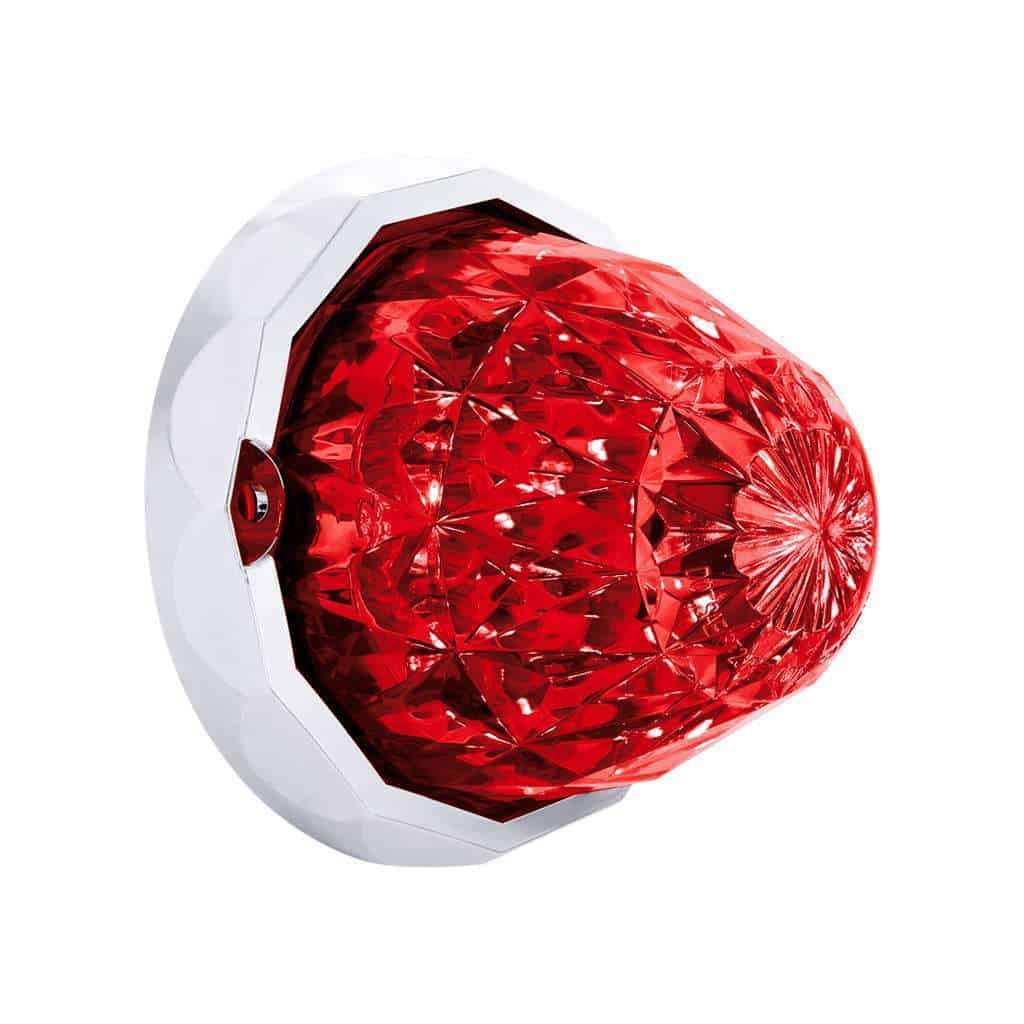

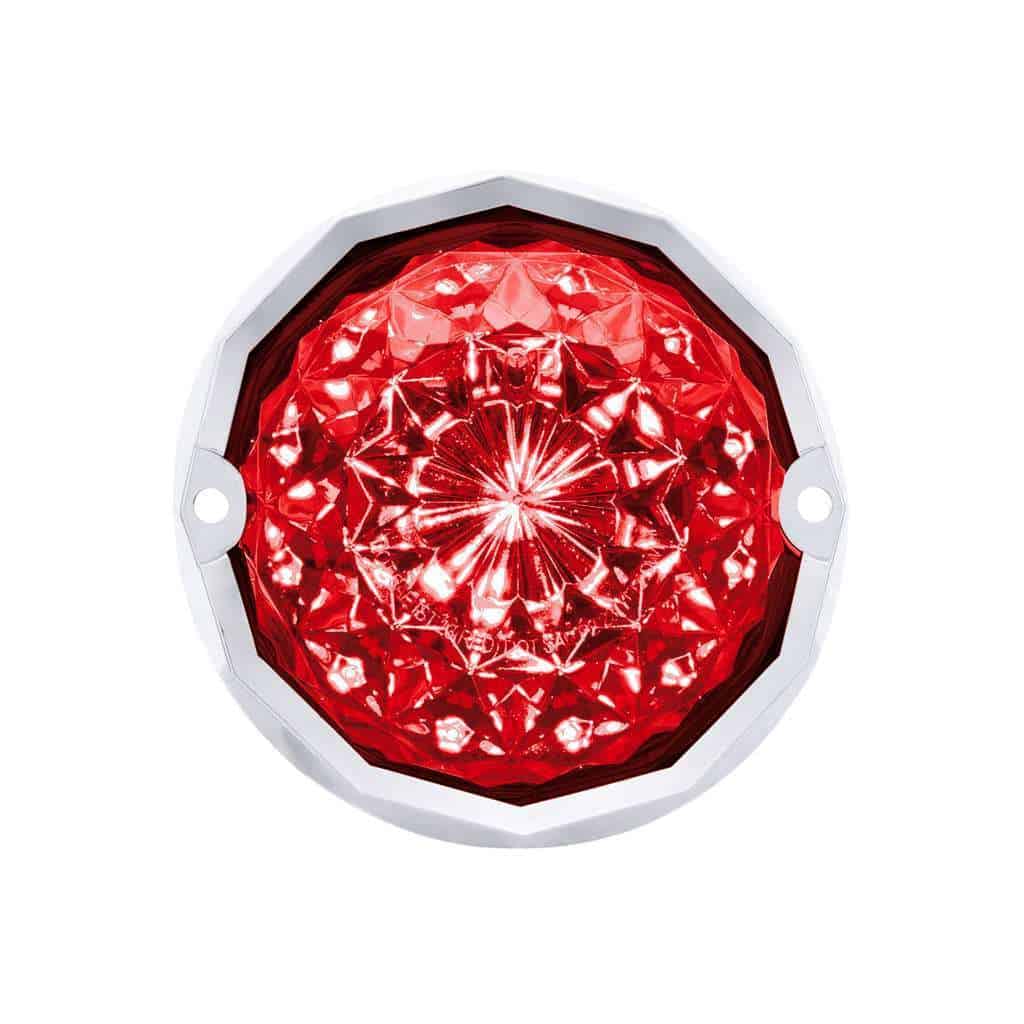

1 × 19 LED Crystal Watermelon Light – Red LED / Red Lens
-
1 × Chrome Plastic Bezel
-

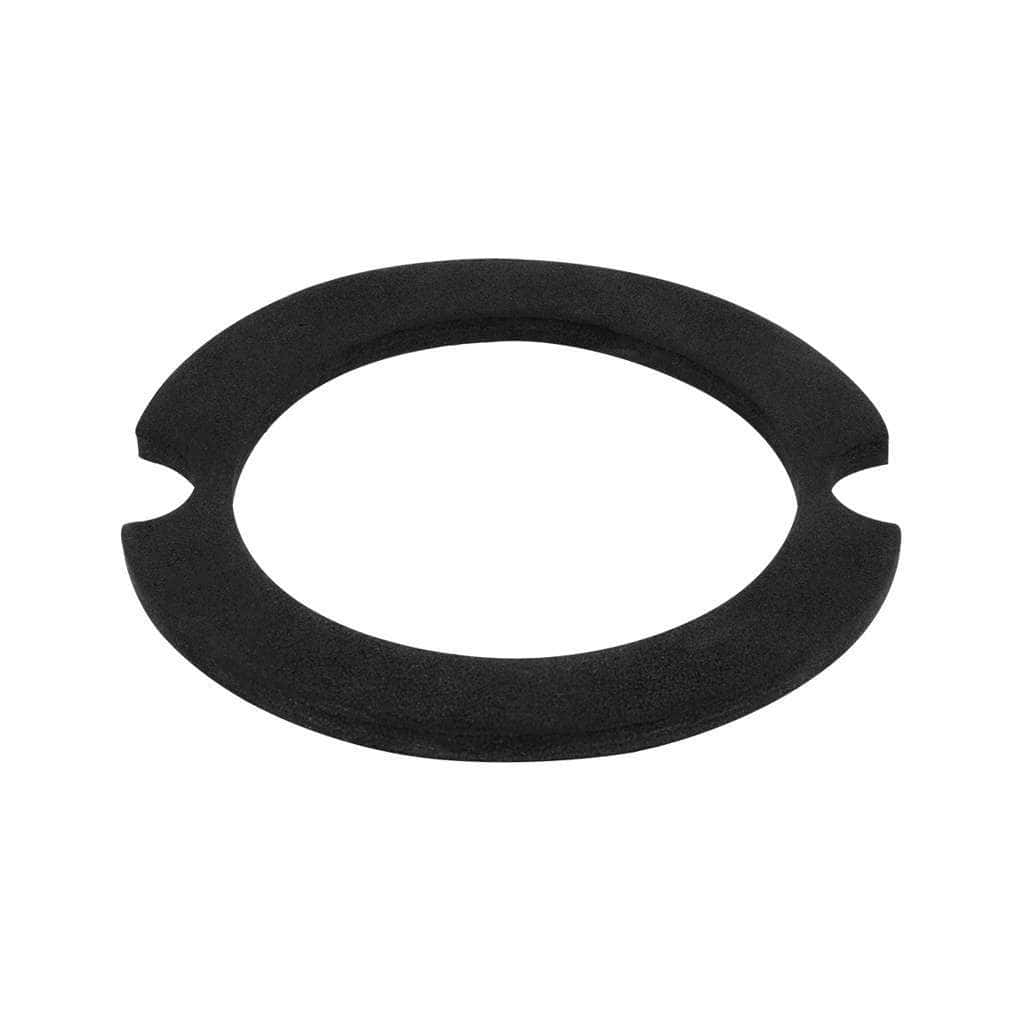

1 × Foam Gasket
-

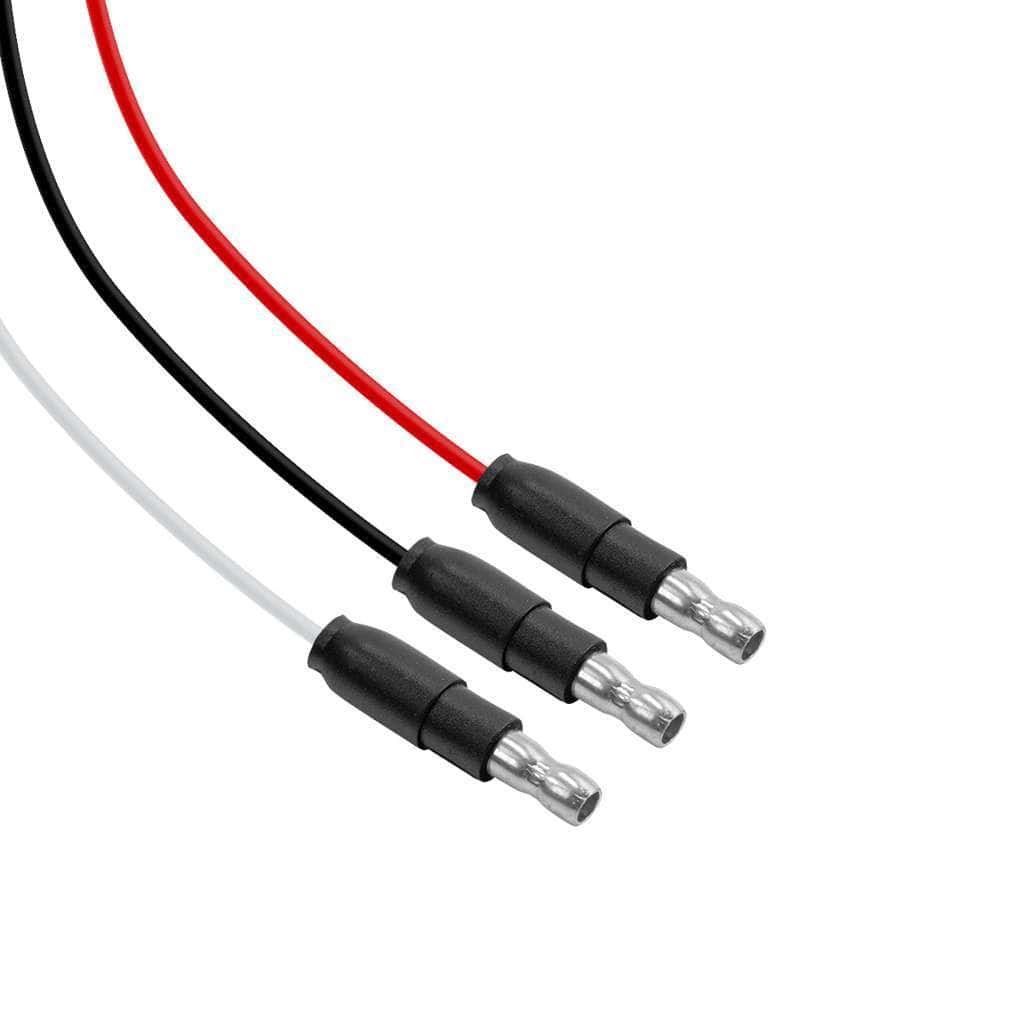

Pre-wired 3-wire leads with bullet connectors
Frequently Asked Questions
What is a watermelon truck light?
A watermelon light is a dome-style truck marker light commonly used on trucks and trailers for visibility and classic styling.
What does dual-function lighting mean?
Dual-function lighting allows the light to operate at two brightness levels, commonly used for marker and signal lighting.
What voltage does this light operate on?
This light operates on 12V DC vehicle electrical systems.
Is this light waterproof?
It carries an IP67 water resistance rating, helping protect against dust and moisture.
Where can this light be installed?
It can be installed on semi trucks, trailers, RVs, and custom vehicles using watermelon-style lighting mounts.
What warranty is included?
This product includes a 3-year manufacturer warranty.
