Product Overview

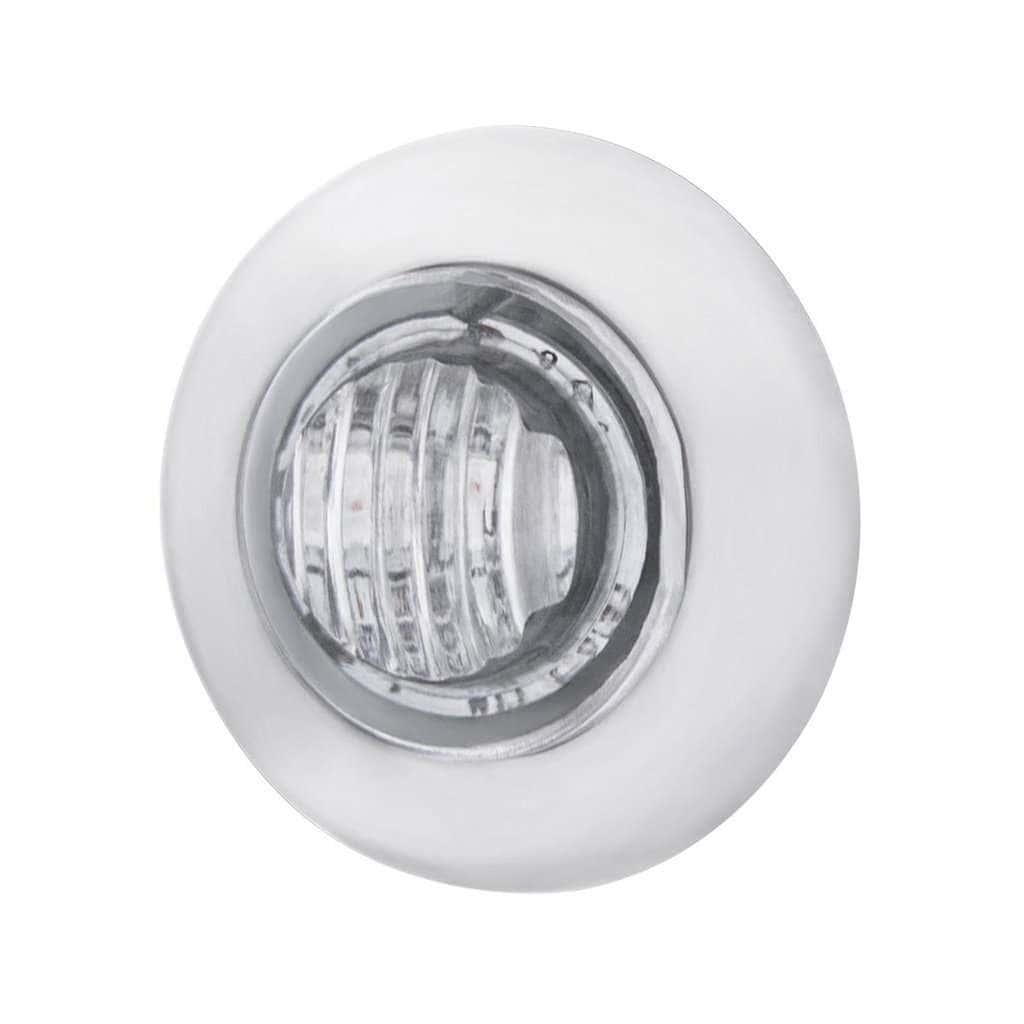

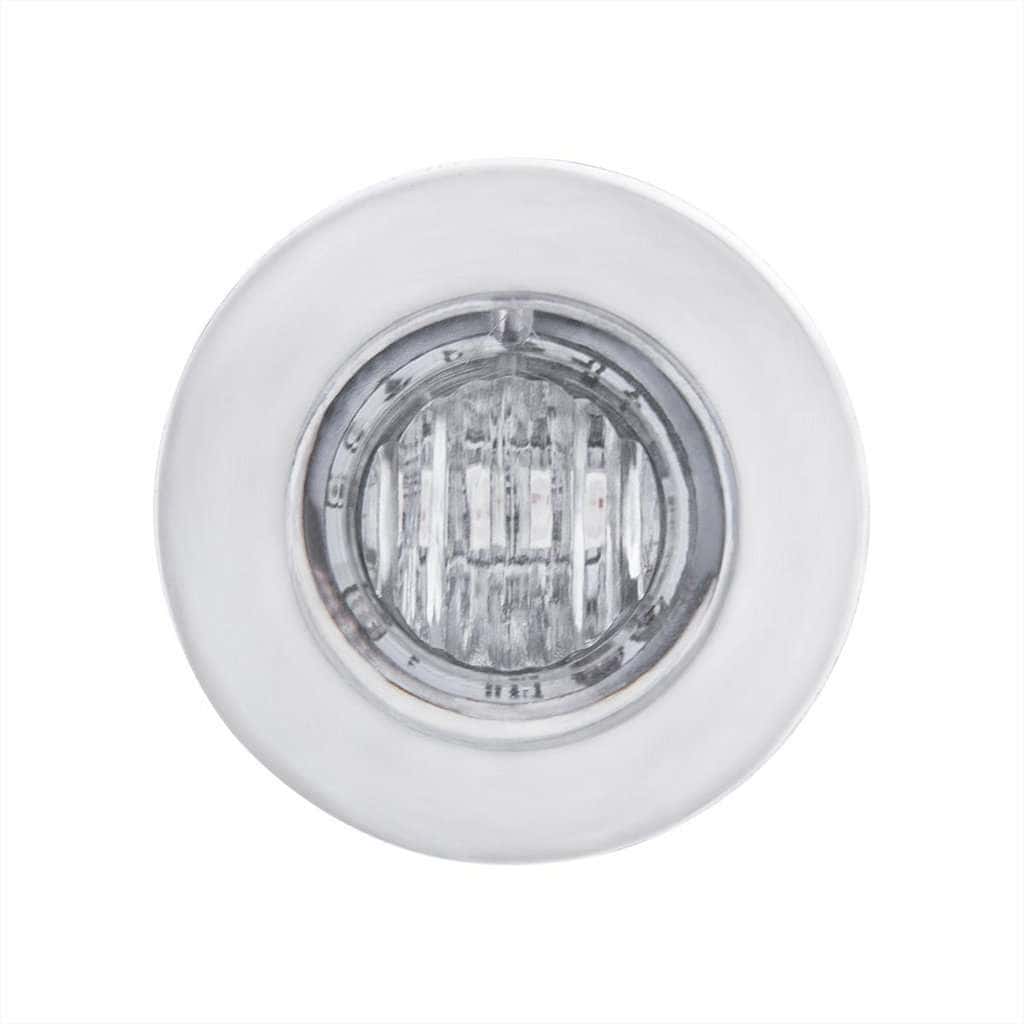

If you want compliant rear marker lighting plus bold custom styling in one compact housing, the 2 LED 3/4″ Mini Dual Function Double Fury Light delivers both.
Unlike single-color mini lights, this model offers:
-
Primary red LED for legal clearance/marker use
-
Secondary purple LED for show or off-road applications
-
Dual high/low brightness control on the red circuit
-
Compact 3/4″ flush-mount installation
-
IP67 weather protection
If you’re searching for dual revolution penny lights, red and purple LED marker lights, or compact 3/4 dual function clearance lights, this Double Fury configuration gives you flexibility and durability in one clean install.
Key Features & Benefits
Dual-Color LED Functionality (Red & Purple)
Two LEDs are integrated into one housing:
-
Red (Primary) – Clearance/marker function
-

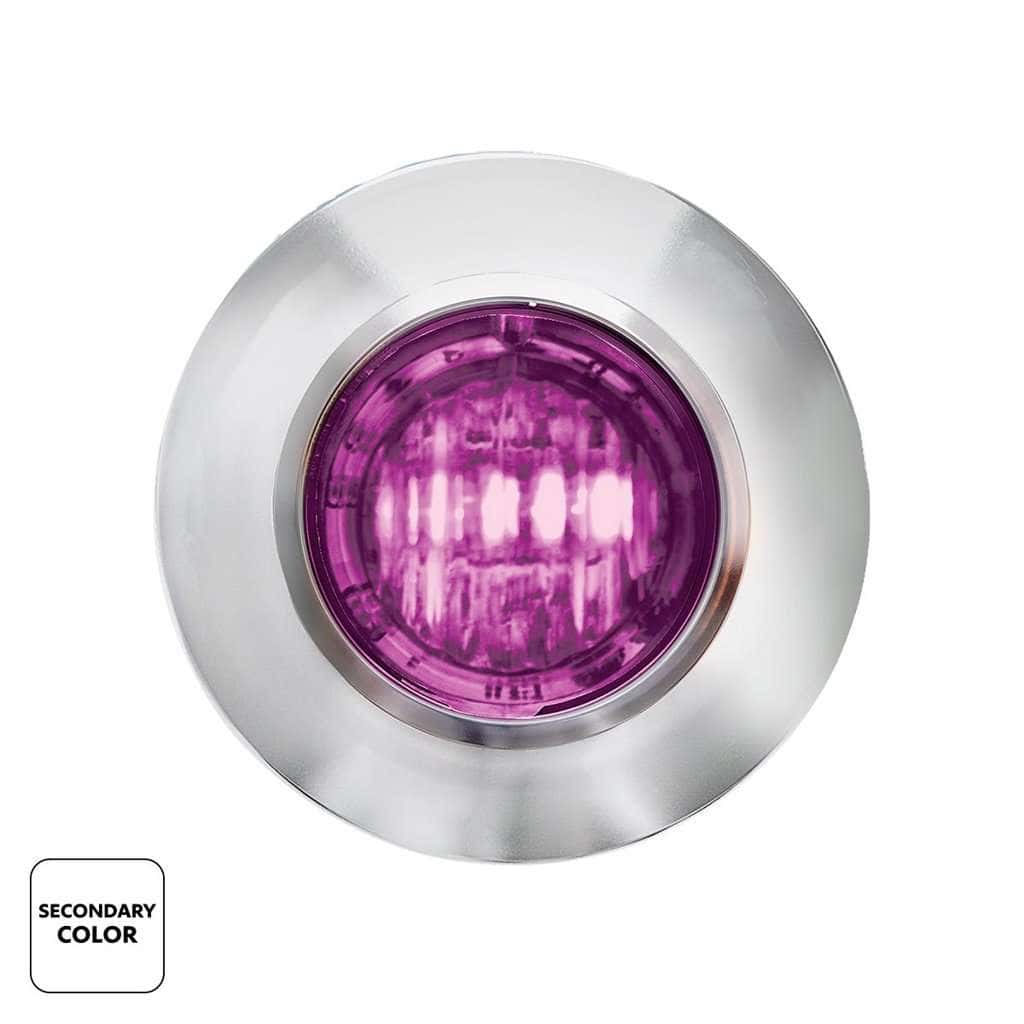

Purple (Secondary) – Auxiliary/custom function
-
Purple overrides red when activated
Ideal for drivers who want compliance on the road and custom lighting when parked or off-road.
Dual High / Low Red Output
The primary red LED features two brightness settings:
-

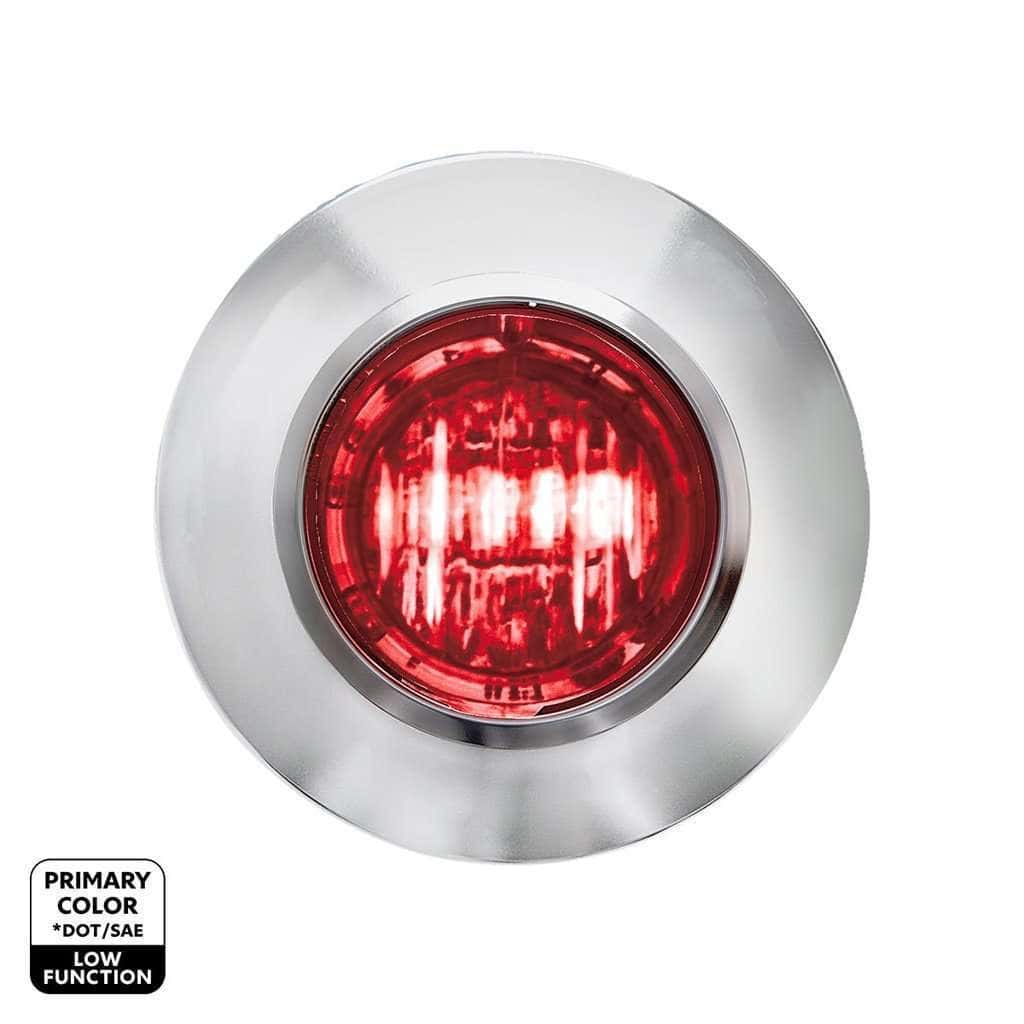

Low mode – Standard marker function
-

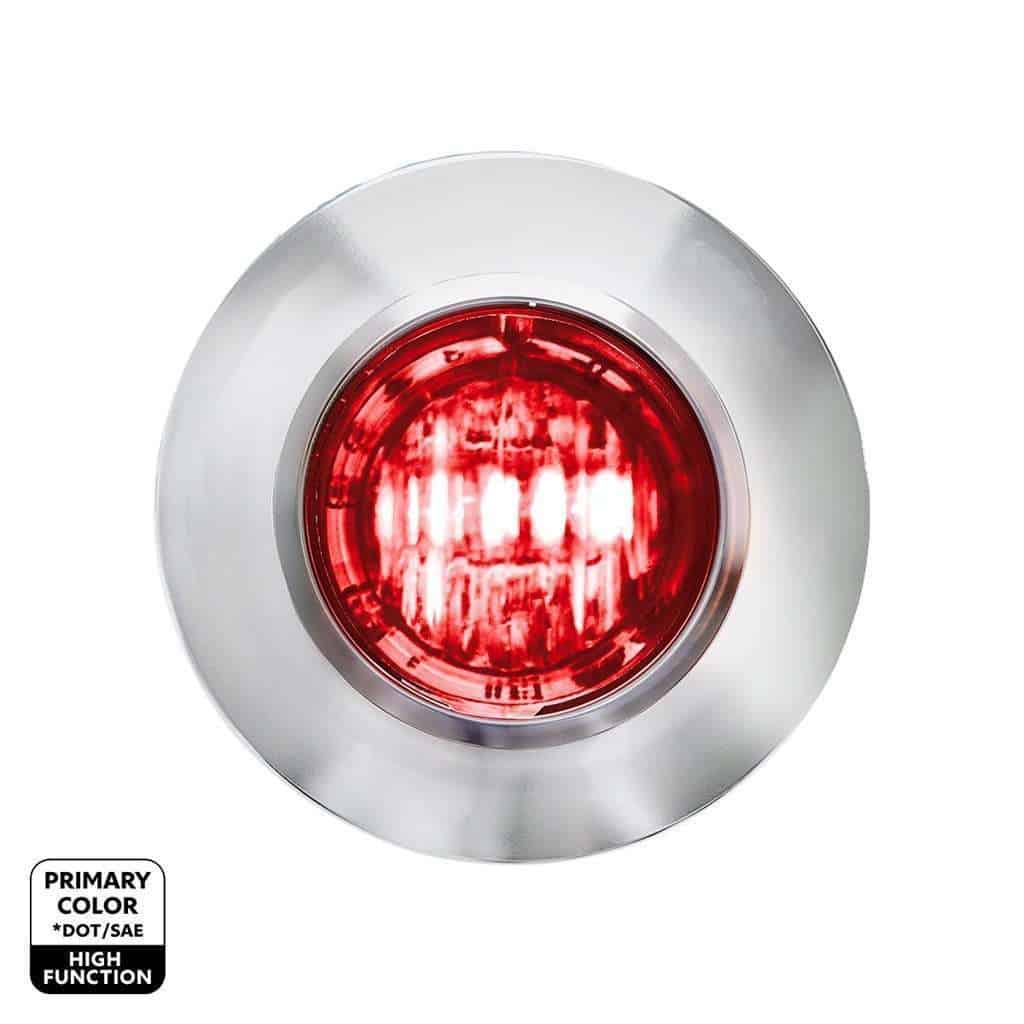

High mode – Increased rear visibility
Perfect for enhanced presence without adding additional fixtures.
180° Wide Light Spread
The specially engineered lens projects light broadly to improve visibility from multiple angles.
180°lightspread180° light spread
This wide projection enhances side visibility compared to narrow-beam marker lights.
Durable & Weatherproof Construction
Engineered for harsh trucking environments:
-
Clear polycarbonate lens
-
Resin-sealed electronics
-
IP67 water-resistant rating
-
Resistant to dust, moisture, and vibration
Built for long-term reliability.
Polished Stainless Steel Bezel
The stainless steel bezel provides:
-
Corrosion resistance
-
Structural reinforcement
-
Clean, modern appearance
Perfect for both working rigs and custom builds.
Performance / Compatibility / Use-Case
DOT / SAE Certified (Primary Color)
-
Meets FMVSS 108 and DOT/SAE standards when wired correctly
-
Red primary circuit is compliant for rear clearance/marker use
-
Purple LED is intended for auxiliary/off-road use only
Always confirm local lighting regulations before installation.
12V System Compatible
-
Designed for 12V DC systems
-

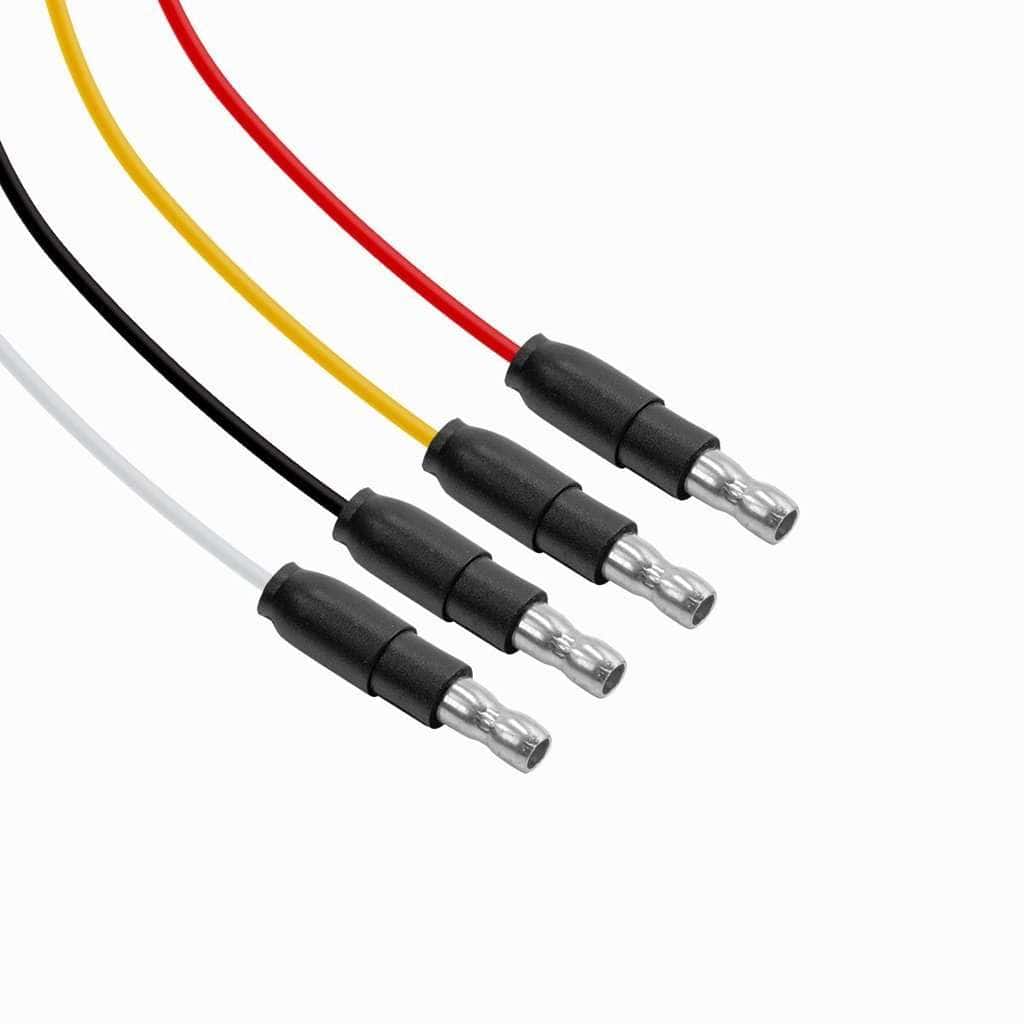

3-wire hookup with 0.180″ bullet plugs
-
Compatible with semi-trucks, trailers, RVs, motorcycles, and utility vehicles
Installation / Fitment / Technical Details

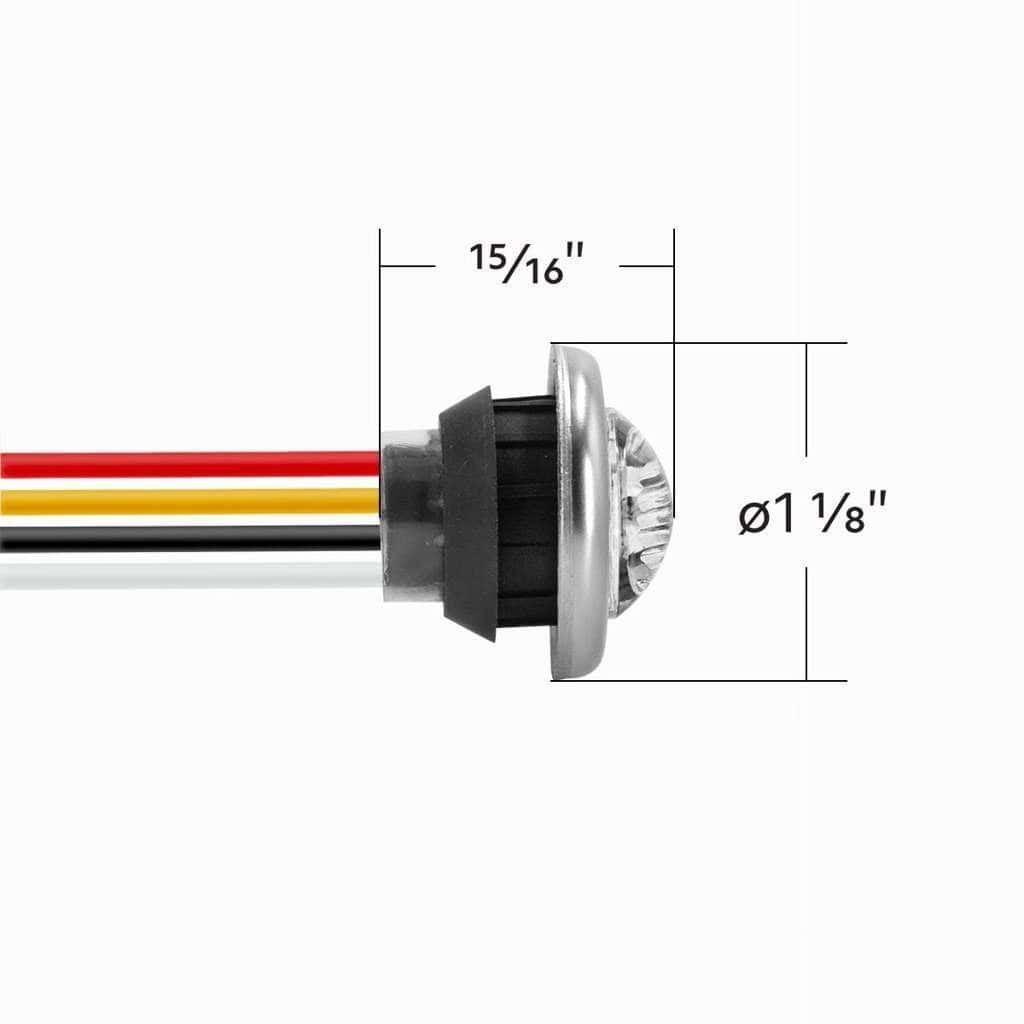

Mounting
-
Requires 3/4″ diameter mounting hole
-
Includes rubber grommet for secure flush fit
Wiring Configuration
-
White = Ground
-
Black = Low Function (Primary Red LED)
-
Red = High Function (Primary Red LED)
-
Yellow = Secondary Color (Purple LED)
Straightforward integration into marker and auxiliary circuits.
Build Quality / Warranty
-
2 LED dual-color configuration
-
Clear polycarbonate lens
-
Stainless steel bezel
-
IP67 water resistant
-
12V DC compatible
Designed for dependable performance and modern styling.
Warranty: 3-year manufacturer warranty.
What’s Included
-
1 x 2 LED 3/4″ Mini Dual Function Double Fury Light – Red & Purple
-
1 x Stainless Steel Bezel
-
1 x Rubber Grommet
-
3-wire leads with 0.180″ bullet plugs
Frequently Asked Questions
What happens when both red and purple are powered?
The purple LED overrides the red primary LED when both circuits are energized.
Is this light legal for highway use?
Yes. The red primary circuit meets DOT/SAE and FMVSS 108 requirements when installed correctly. The purple LED is for auxiliary or off-road use only.
Will this fit a standard 3/4″ hole?
Yes. It is designed specifically for standard 3/4″ grommet-mount openings.
Is this light waterproof?
Yes. It features resin-sealed electronics and carries an IP67 water-resistant rating.
Can this be installed on trailers?
Absolutely. It is compatible with semi-trucks, trailers, and any 12V DC system requiring compact dual-function lighting.
