Product Overview
If you want more visual impact than a standard marker light, this 6-LED spike light delivers aggressive styling with dependable dual-intensity performance.
The 1-1/4″ spike lens creates a distinctive illuminated profile, while the dual-function circuitry supports separate low and high brightness operation.
Ideal for:
-
Semi trucks
-
Custom pickups
-
Show builds
-
Trailers
-
Sleeper panels
-
Bumpers and fairings
Key Features & Benefits
Spike-Style Polycarbonate Lens
Durable polycarbonate lens with bold spike design, epoxy sealed to help prevent moisture intrusion.
6 Super Bright Dual-Function LEDs
Six high-output LEDs support both low and high intensity operation for flexible lighting applications.
Dual Function Operation
3-wire configuration allows independent low and high brightness functions (e.g., running + turn or running + brake, depending on wiring).
Polished Stainless Steel Bezel
Corrosion-resistant stainless bezel adds a premium finish that complements chrome and stainless truck accessories.
IP67 Water Resistant
Rated IP67 for protection against dust and water exposure in exterior applications.
Epoxy-Sealed Electronics
Fully sealed internal components help protect against vibration and environmental exposure.
Performance / Compatibility / Use Case
-
Voltage: 12V DC
-
LED Count: 6 LEDs
-
LED Color: Amber
-
Lens Color: Amber
-
Mounting: Rubber grommet mount
-
Required Hole Size: 3/4″ diameter
-

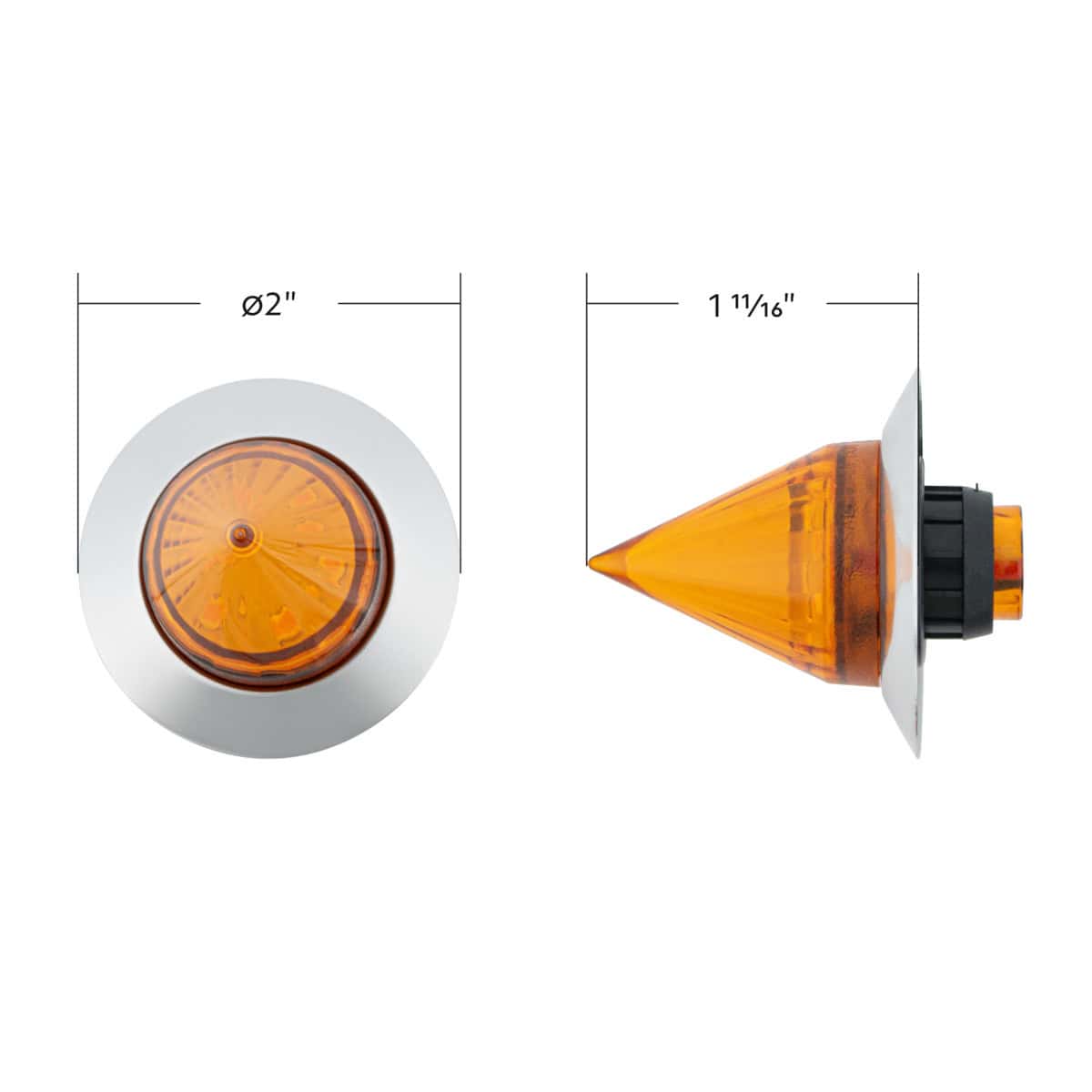

Overall Profile: 1-1/4″
-
Wiring: 3-wire with 0.180″ bullet connectors
-
IP Rating: IP67

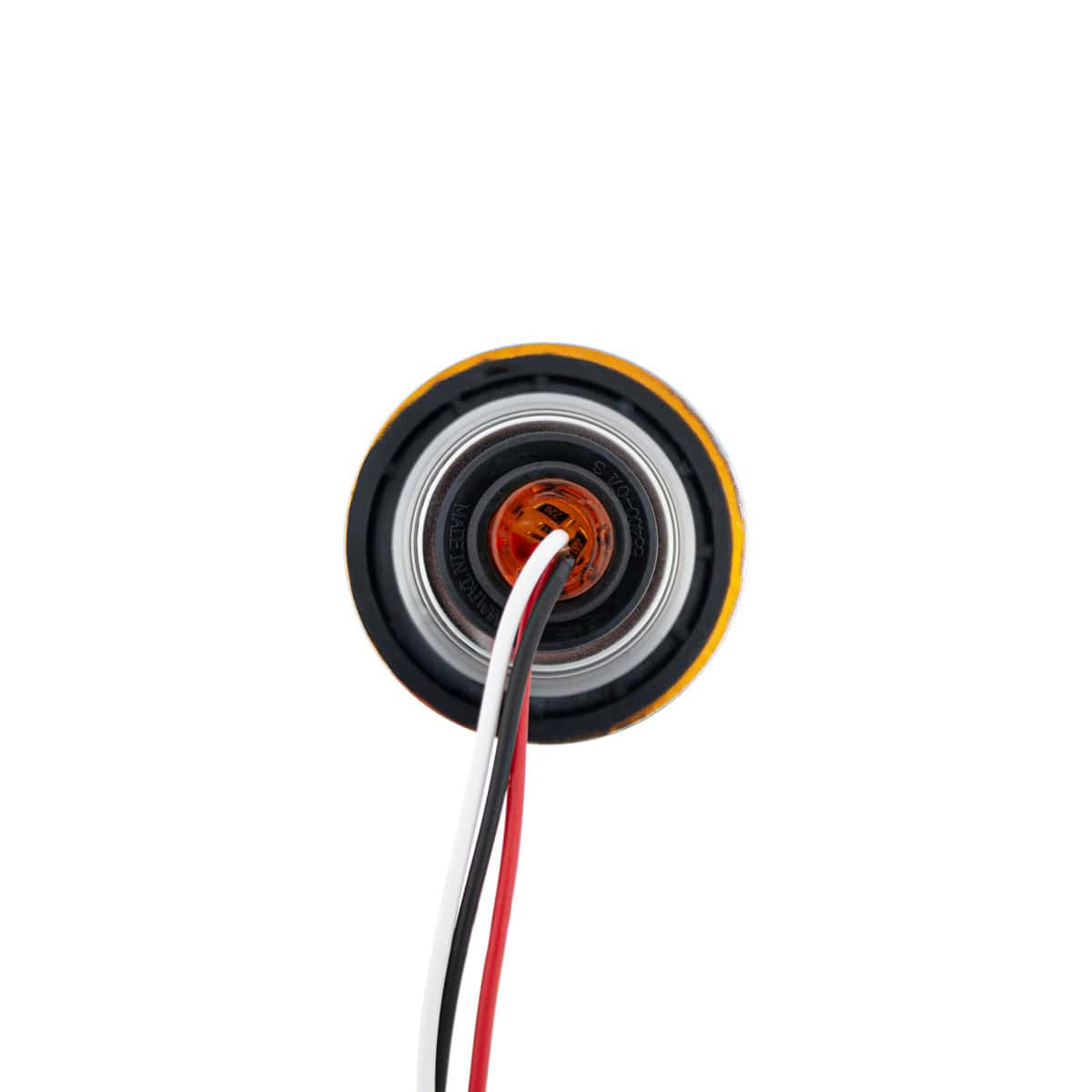

Wiring Color Code:
-
White – Ground
-
Black – Low function
-
Red – High function
Designed strictly for 12V DC systems.
Lighting color placement must comply with local regulations. Confirm proper installation location for your vehicle.
Installation / Fitment / Technical Details
Installs using the included rubber grommet for a secure, vibration-resistant fit in a standard 3/4″ hole.
The 3-wire hookup allows:
-
Ground connection
-
Low-intensity function
-
High-intensity function
Professional installation is recommended if unfamiliar with vehicle electrical systems.
Build Quality / Warranty
Constructed with:
-
Spike-style polycarbonate lens
-
Polished stainless steel bezel
-
Epoxy-sealed electronics
-
Rubber mounting grommet
Engineered for long-term exterior performance in demanding truck environments.
Warranty: 3-year manufacturer warranty.
What’s Included
-
(1) 6 LED 1-1/4″ Dual Function Spike Light – Amber LED / Amber Lens
-
(1) Rubber Mounting Grommet
Frequently Asked Questions
What size hole is required for installation?
A 3/4″ diameter mounting hole is required.
Is this a dual-function light?
Yes. It supports both low and high intensity functions using the 3-wire setup.
What voltage does it operate on?
It is designed for 12V DC systems.
Is it waterproof?
Yes. It carries an IP67 water resistance rating and features epoxy-sealed electronics.
What material is the bezel made from?
The bezel is made from polished stainless steel.
What warranty is included?
This product includes a 3-year manufacturer warranty.
