United Pacific · 36066 / 36067

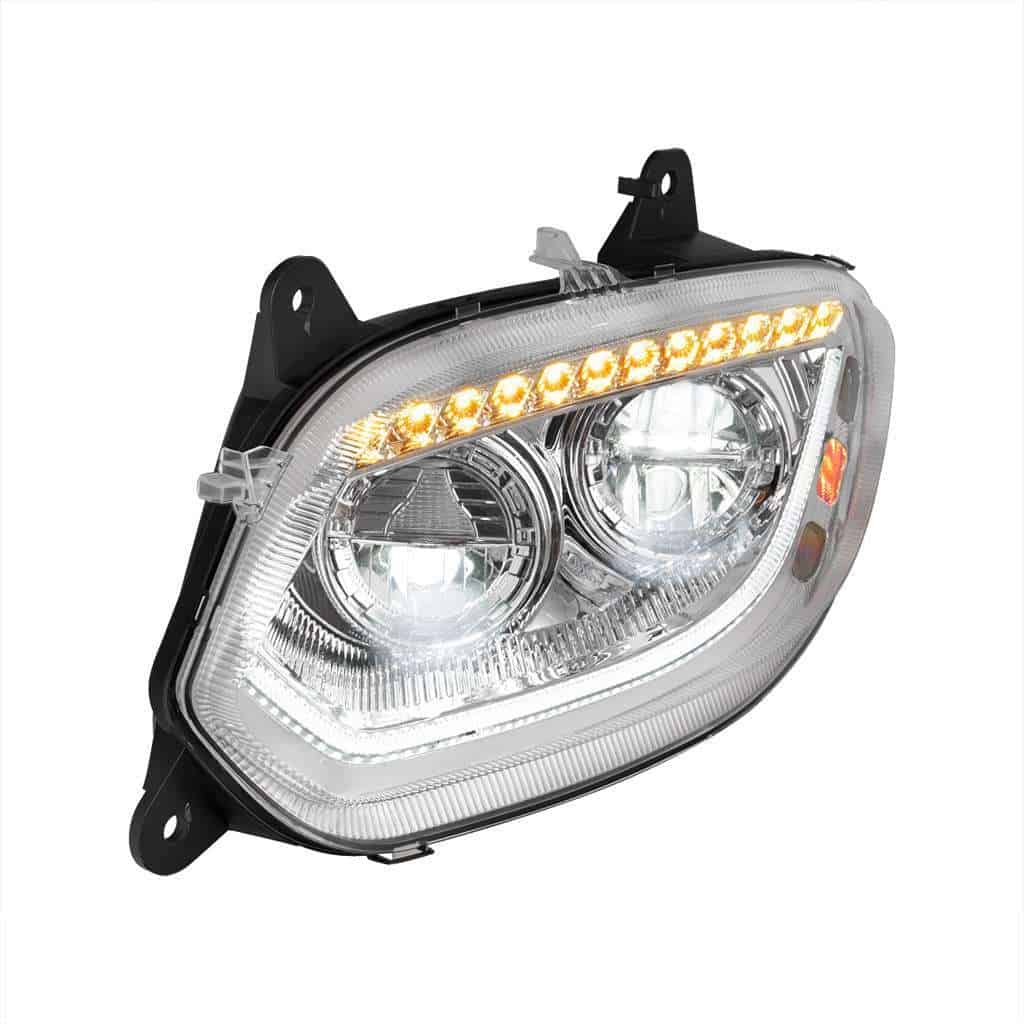

Chrome 86-LED headlight assembly

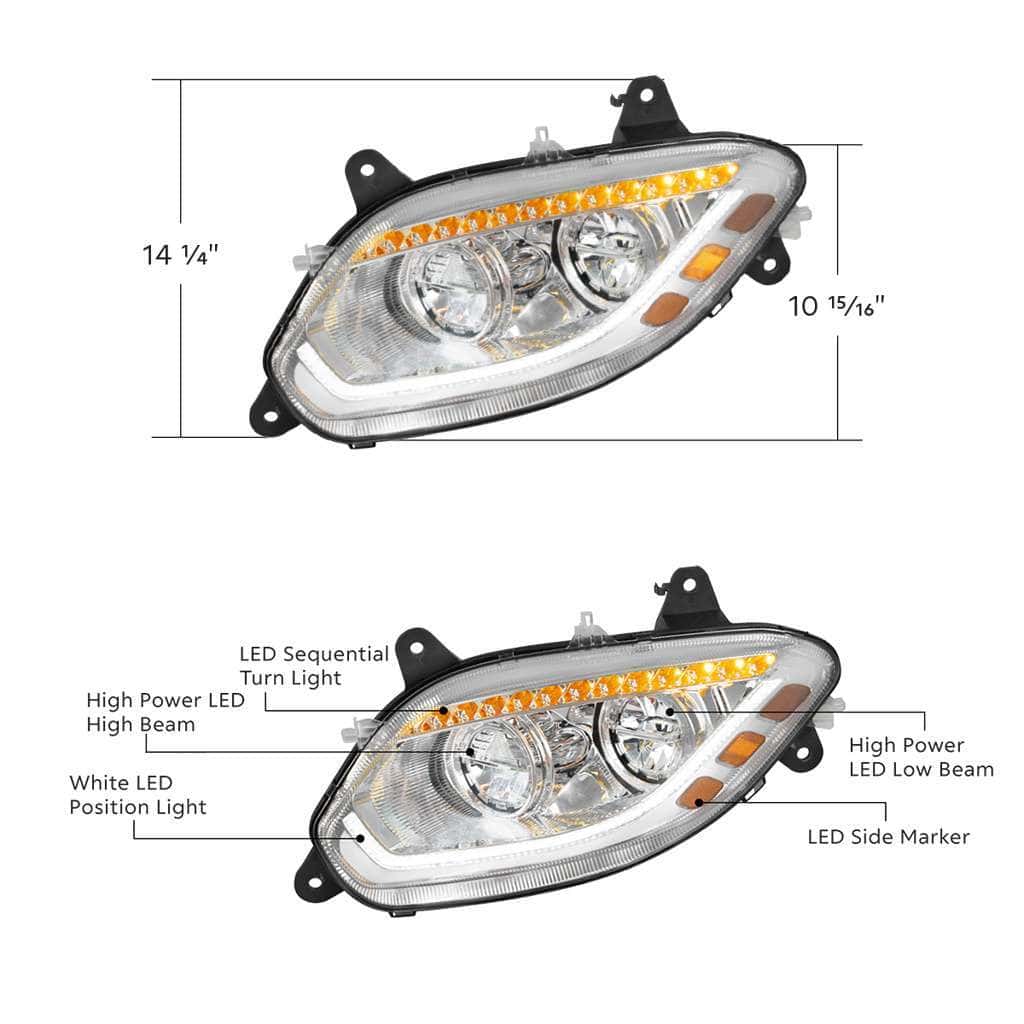

A 12V LED headlight for the International LT, combining 5500K low and high beams with white daytime running lights and amber turn signals. Its ratings differ from the LT halo and 13-LED headlight options.
5500K LED beams
The low and high beams are each rated at 1,500 lumens, with separate current ratings.
White DRL array
Seventy-two white LEDs provide the daytime running light.
Amber LED signal
Twelve amber LEDs handle the turn-signal function.

Fitment & selection
Match the assembly to your truck

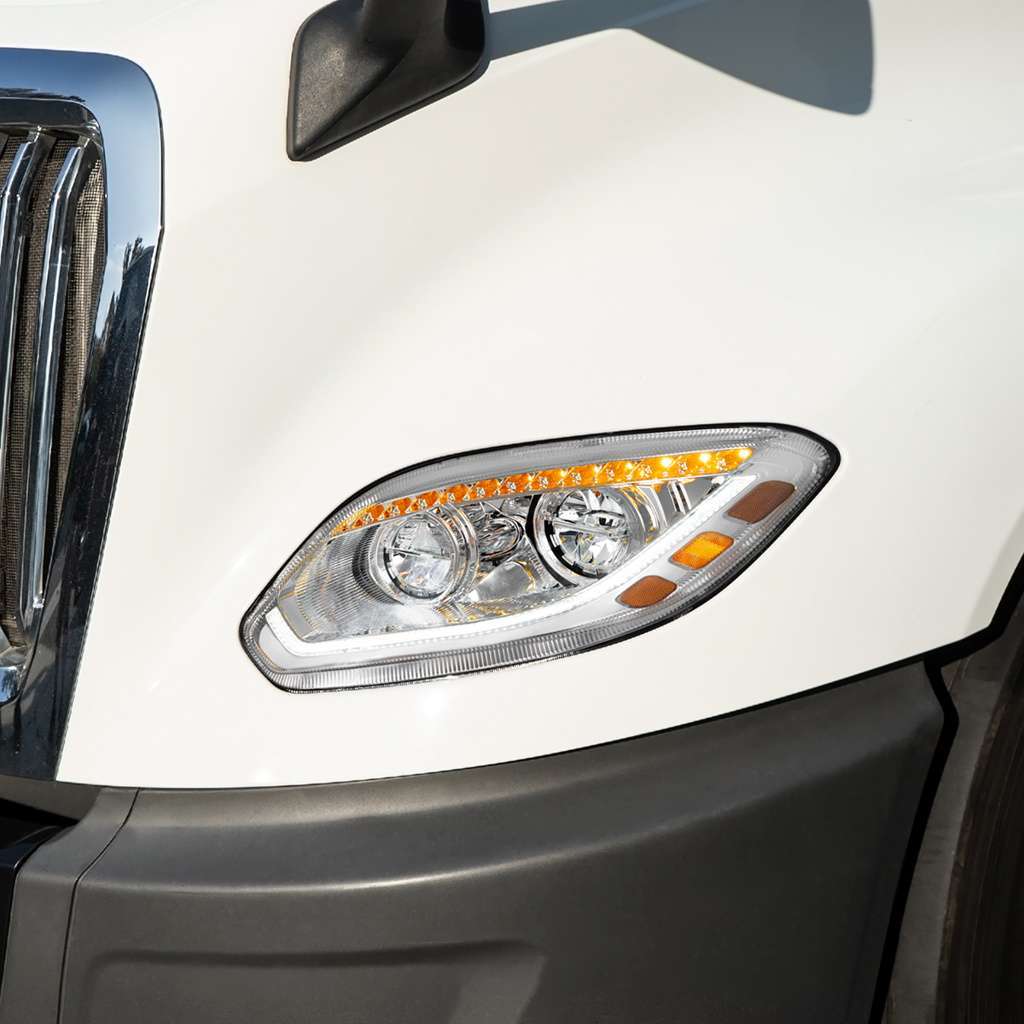

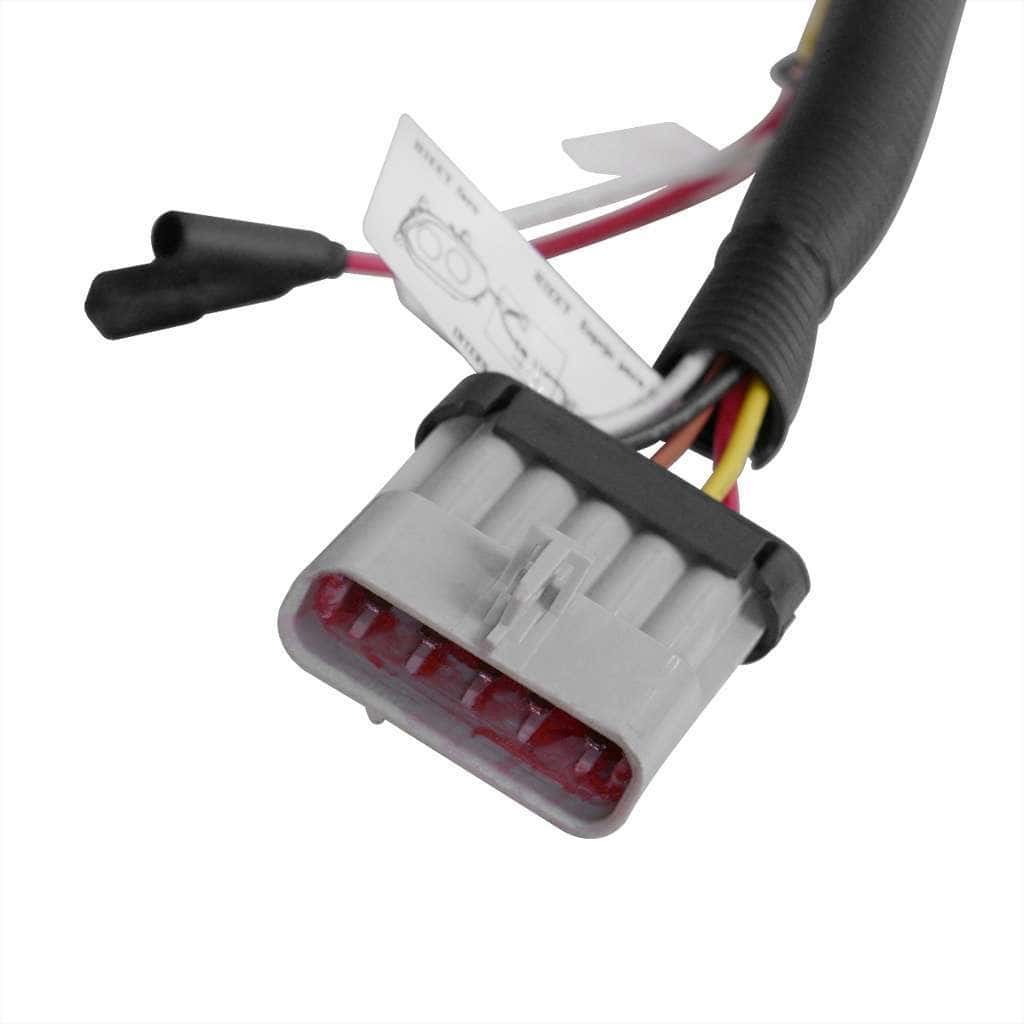

For 2018–2026 International LT trucks. Compare the original headlight connector, mounting points and selected side.
Each option is one headlight assembly. Select driver or passenger side; order both side options if you need a pair.
| Driver | 36066 — one assembly |
|---|---|
| Passenger | 36067 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 1,500 lumens · 5500K · 2.8A at 12V DC |
|---|---|
| High beam | 1,500 lumens · 5500K · 2.6A at 12V DC |
| Daytime running lights | 72 white LEDs |
| Turn signal | 12 amber LEDs |
| Operating voltage | 12V DC |
| Finish | Chrome Inner Housing |
| Package | One selected-side assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

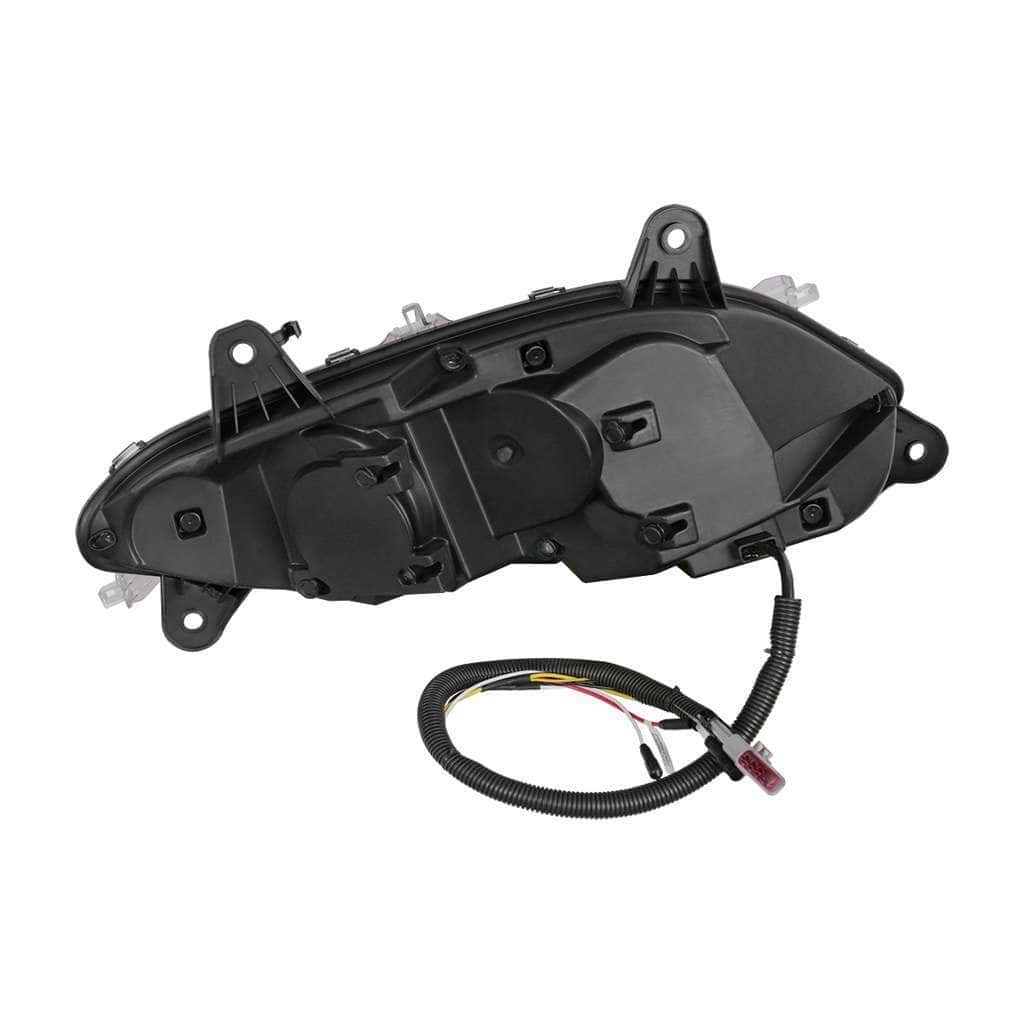

Connect to the existing wiring harness after checking the connector and mounting points. Contact BTS for installation details for these part numbers; an exact manufacturer PDF is not currently available. Test all light functions and have the beam aim checked before road use.
Product questions
Before you order
Is this the same as the LT halo headlight?
No. This 86-LED family has 5500K beams, 72 white DRL LEDs and 12 amber signal LEDs. The halo family has different output and voltage specifications.
Does it support 24V?
The published ratings for this family specify 12V DC. Do not transfer the 12–24V rating from a different LT headlight.
Does the selected option include both sides?
No. Each option is one assembly for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
