Alpha Series 9007 LED bulbs: match the bulb and housing

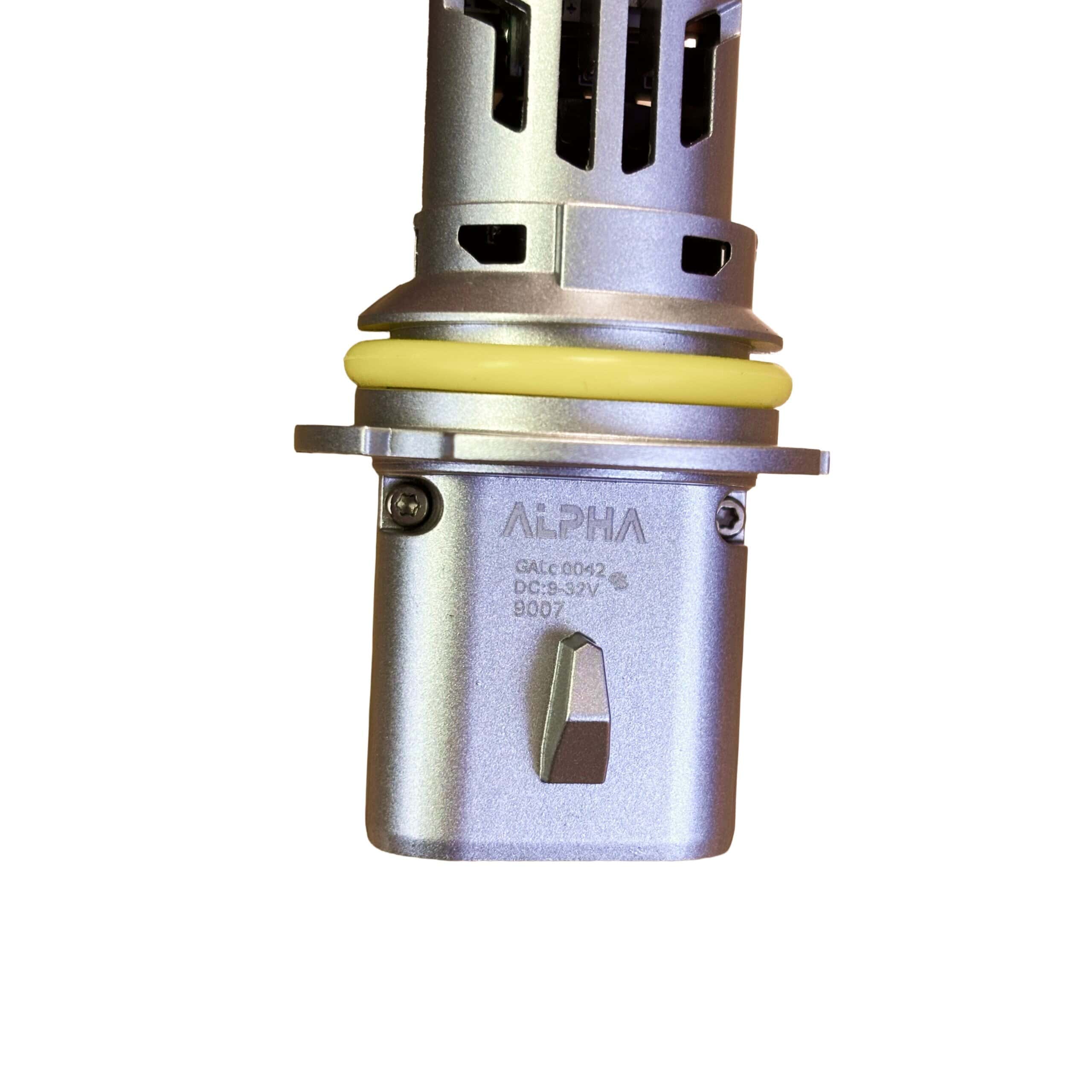

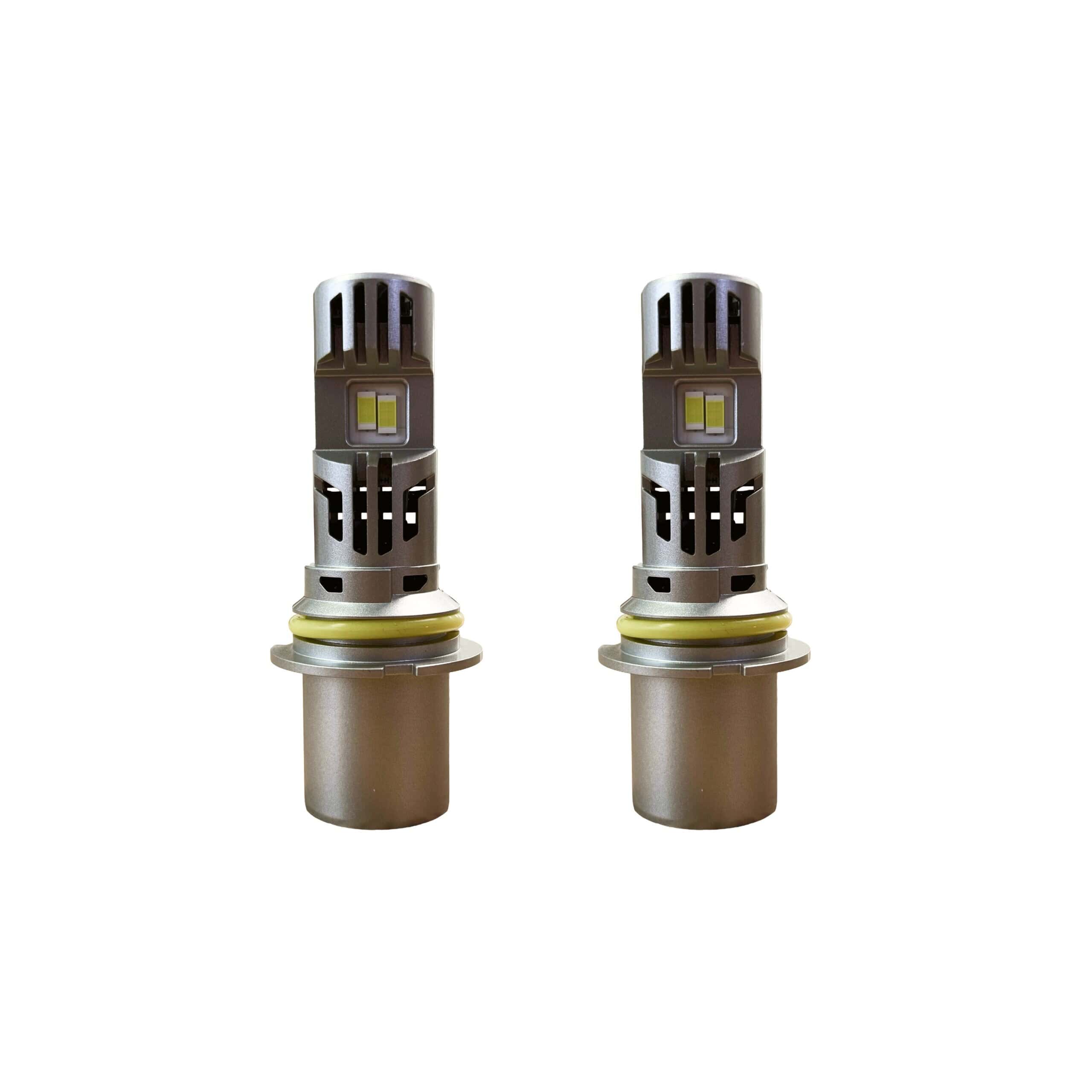

SKU A1006 identifies this Alpha Series 9007 LED bulb listing. Its published output is 5,000 lumens per bulb with 6500K white light. Compare the installed bulb marking, lamp position, connector and cooling clearance before choosing a replacement.
Housing restriction: the double-fan design is not compatible with standard universal housings. Check the measurements before purchasing.
- Exact SKU: A1006
- Bulb designation: 9007
- Published light output: 5,000 lumens per bulb
- Colour temperature: 6500K white
- Listed supply range: 9–32V DC
- Cooling design: Double-fan design; measure the housing and rear clearance
- Warranty: lifetime limited warranty; existing product terms apply

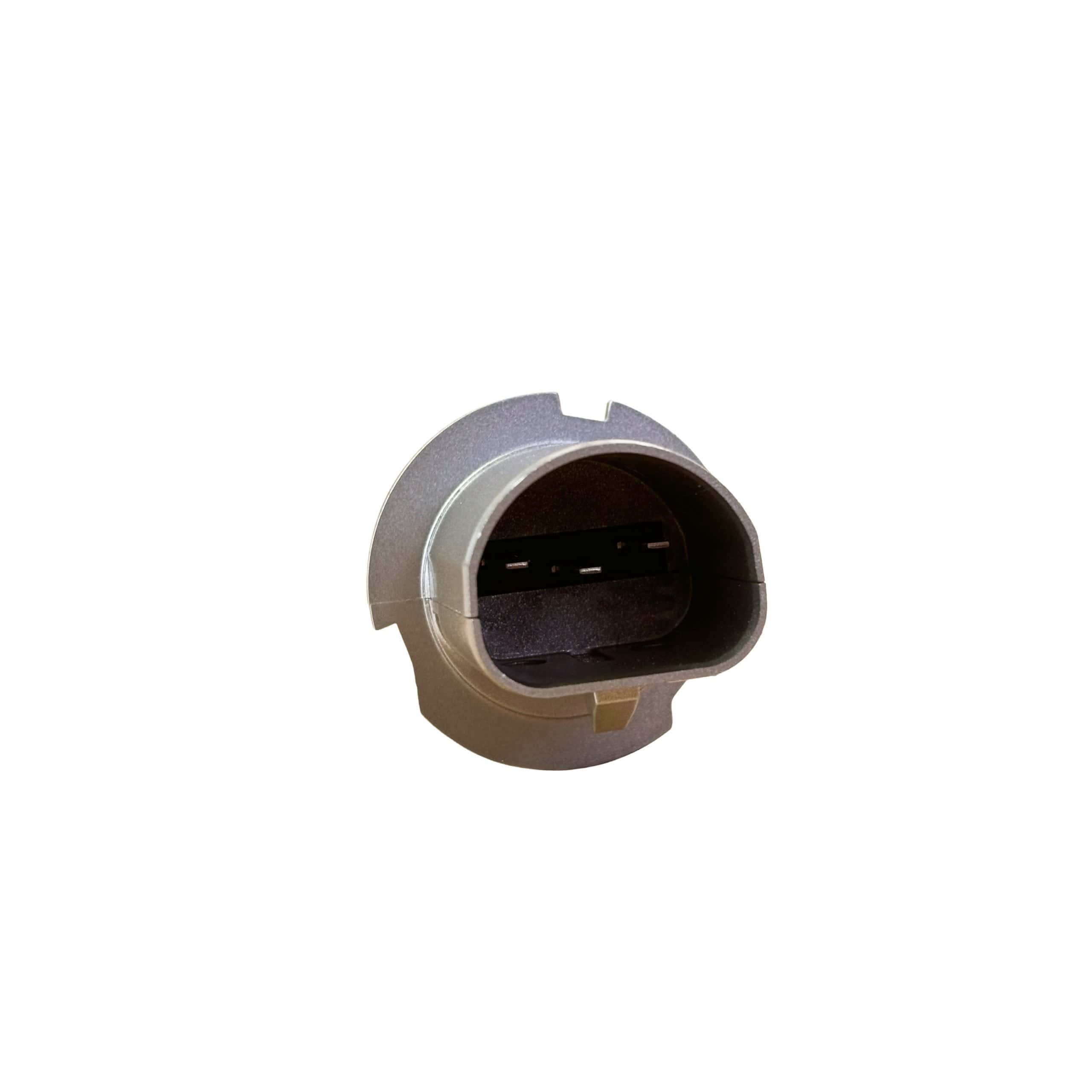

Before installation, compare the mounting/retainer, connector, available space and dust-cap closure. After installation, check high/low operation where applicable and the final beam aim. A bulb-base match alone does not establish optical performance, approval or compatibility with a complete factory LED housing.
Frequently Asked Questions
Is the 5,000-lumen figure for one bulb?
The published rating for SKU A1006 is 5,000 lumens per bulb. Keep that unit with the number when comparing products; it is not a measurement of light delivered to a particular point on the road.
What light colour is this 9007 product?
This exact listing specifies 6500K white light. Match the SKU and product generation when replacing an existing bulb; another Alpha Series bulb can have a different specification.
Will these 9007 bulbs fit a standard universal housing?
The existing product notice says they are not compatible with standard universal housings because of their double-fan design. Check the measurements before purchasing; a matching 9007 bulb designation does not override that physical restriction.
What voltage range is listed for A1006?
This exact product lists a 9–32V DC input range. Check the actual lighting-circuit supply and connector against that range.
Does an LED bulb replace a complete factory LED headlight?
This is a replacement-bulb product for a compatible serviceable lamp. A complete factory LED headlight can use different integrated electronics and light sources; a model name or similar exterior housing is not a bulb-fitment check.
Will built-in electronics prevent every warning or flicker?
Do not assume a universal result. Check the installed bulb type, connections and lighting circuit. Some applications require an appropriate additional module; diagnose the cause before choosing electrical accessories.
What should I check around the 9007 cooling system?
This product lists: double-fan design; measure the housing and rear clearance. Check the space available behind the bulb and the way the original dust cap closes. Keep the cooling path and mounting arrangement consistent with the supplied installation instructions.
What warranty applies to this Alpha Series bulb?
The current product carries a lifetime limited warranty. The existing terms and exclusions for the purchased product apply; a warranty does not make an incompatible housing or electrical supply suitable.
