United Pacific | 35755 / 35756
Replacement for the original factory LED system

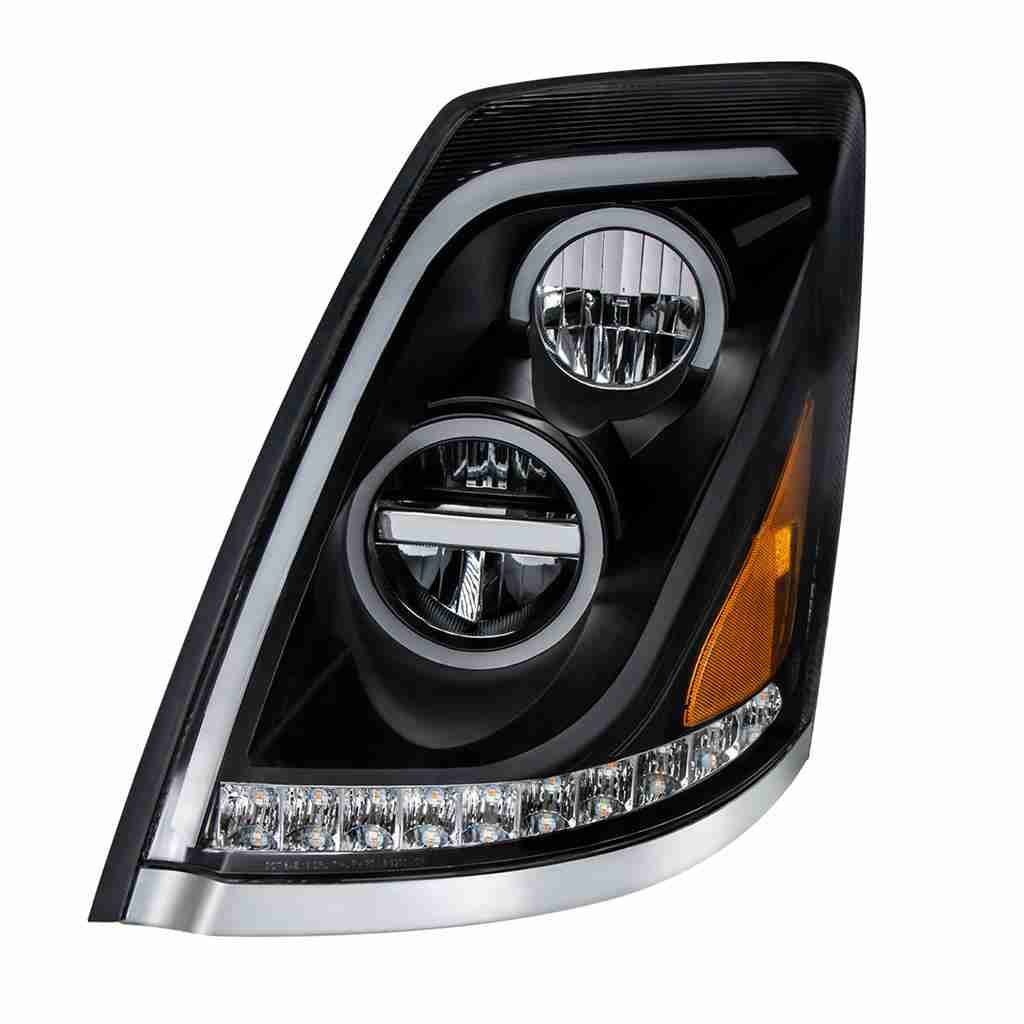

This black full-LED assembly is specifically for 2013-2017 Volvo VN/VNL trucks originally equipped with factory LED headlights. Its dual-color light bar changes from white DRL/position lighting to amber when the turn signal operates.
Factory LED trucks only
Match the original factory LED headlight system. This listing is not a halogen-to-LED conversion.
Integrated main beams
United Pacific specifies 1,100 lumens low beam and 2,500 lumens high beam, per assembly.

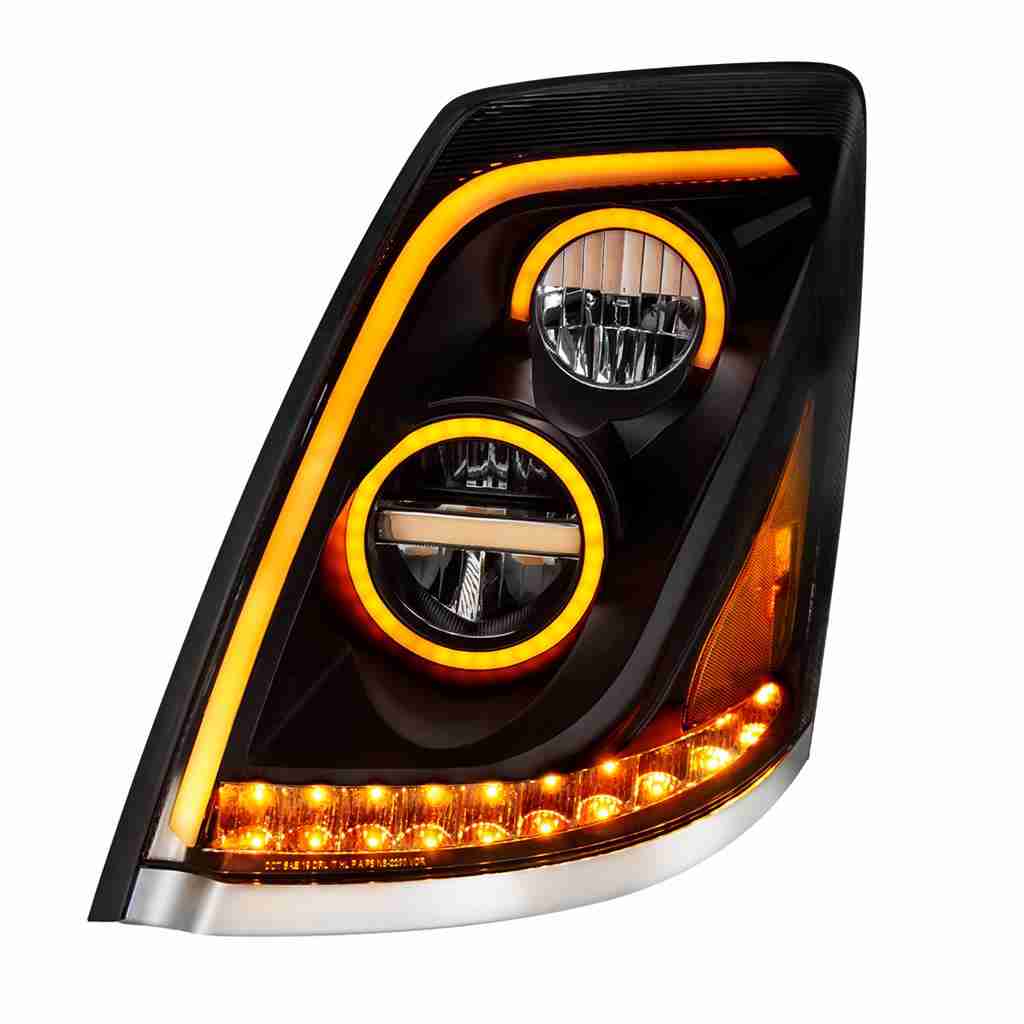

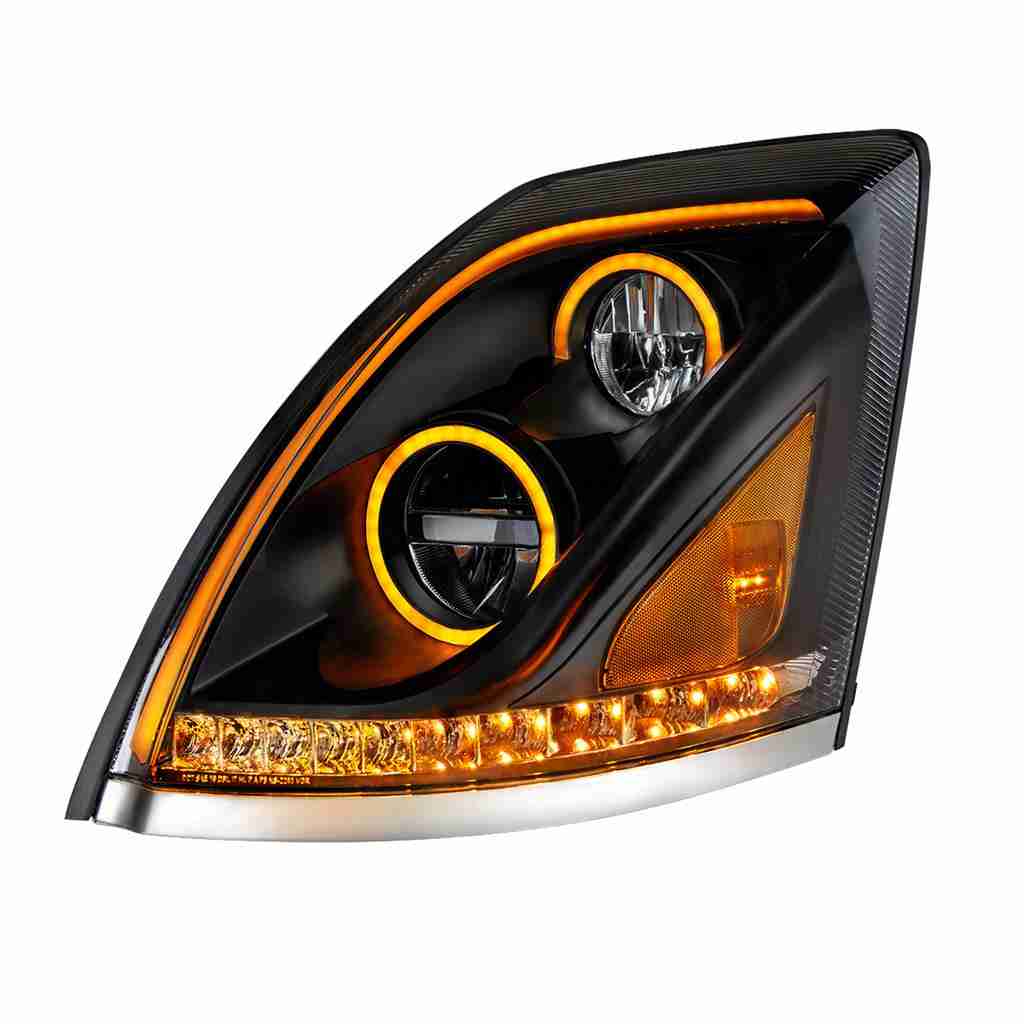

White-to-amber light bar
The DRL/position-light bar changes to amber for the turn signal.

Fitment & selection
Match your Volvo and original equipment
- 2013-2017 Volvo VN
- 2013-2017 Volvo VNL
Match the original housing, mounting points and electrical connector before ordering.
Only for trucks originally equipped with factory LED headlights. Not for original halogen equipment.
| Driver | 35755 | one assembly |
|---|---|
| Passenger | 35756 | one assembly |
Lighting details
Specifications for this assembly
| Low beam | 1,100 lumens; 1.35A at 12V |
|---|---|
| High beam | 2,500 lumens; 2.7A at 12V |
| Required original equipment | Factory-installed LED headlights |
| Light bar | White DRL/position; amber turn signal |
| Finish | Black Inner Housing |
| Package | One assembly for the selected side |
| Manufacturer standards listing | DOT/SAE; FMVSS 108. Correct application and beam aim are required. |
Installation & aiming
Use the instructions for your part numbers
Retain the original wiring and mounting hardware until installation is complete. Match the connections, check all lighting functions and have the beam aim checked before road use. Follow the connector and adjuster diagram for these exact part numbers where provided.
Product questions
Before you order
Will it replace a factory halogen headlight?
No. These exact part numbers are specified for trucks originally equipped with factory-installed LED headlights.
Is the price for a pair?
No. Each selection supplies one assembly for the driver or passenger side. Order both sides separately if you need a pair.
Product support
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
