United Pacific | 35895 / 35896
Full LED beams with dual-color light bars

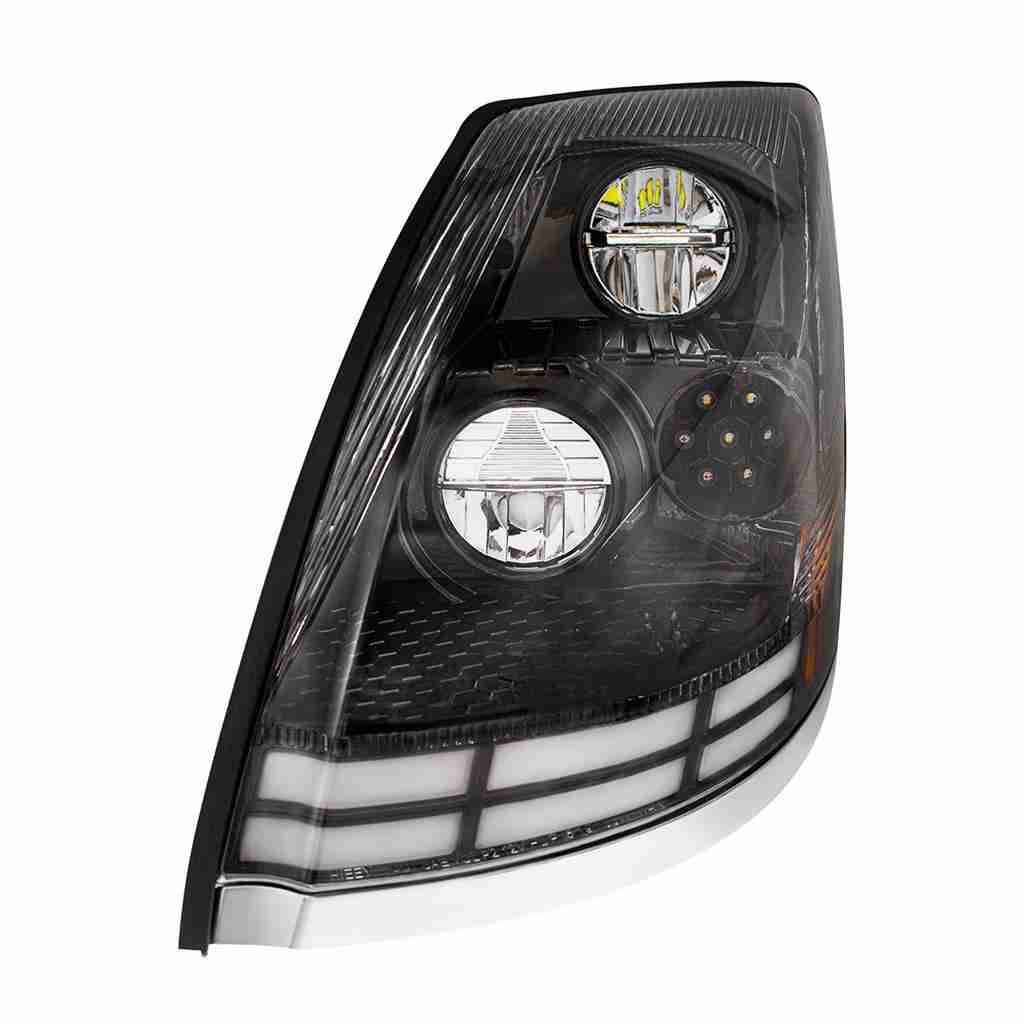

This black 2003-2017 Volvo VN/VNL headlight combines integrated LED main beams with 66 dual-color light-bar LEDs. White daytime-running lights change to amber for the turn signal, with seven additional forward-facing amber LEDs.
LED low and high beams
Both beam functions are listed at 1,200 lumens per assembly and operate at 12V.
White DRL / amber signal
Dual-color bars automatically switch from white DRL lighting to amber turn indication.
Retain the original hardware
OE-thread mounting inserts reuse the original screws; screws are not included. Halogen trucks may need an LCM reflash.

Fitment & selection
Match your Volvo and original equipment
- 2003-2017 Volvo VN
- 2003-2017 Volvo VNL
Match the original housing, mounting points and electrical connector before ordering.
Trucks originally equipped with halogen headlights may require the light-control module (LCM) to be reflashed for proper operation.
| Driver | 35895 | one assembly |
|---|---|
| Passenger | 35896 | one assembly |
Lighting details
Specifications for this assembly
| Low beam | 1,200 lumens; 1.75A at 12V |
|---|---|
| High beam | 1,200 lumens; 1.75A at 12V |
| Light bars | 66 dual-color LEDs; white DRL / amber turn |
| Additional turn signal | Seven forward-facing amber LEDs |
| Construction | Polycarbonate front lens; ABS rear housing |
| Finish | Black Inner Housing |
| Package | One assembly for the selected side |
| Manufacturer standards listing | DOT/SAE; FMVSS 108. Correct application and beam aim are required. |
Installation & aiming
Use the instructions for your part numbers

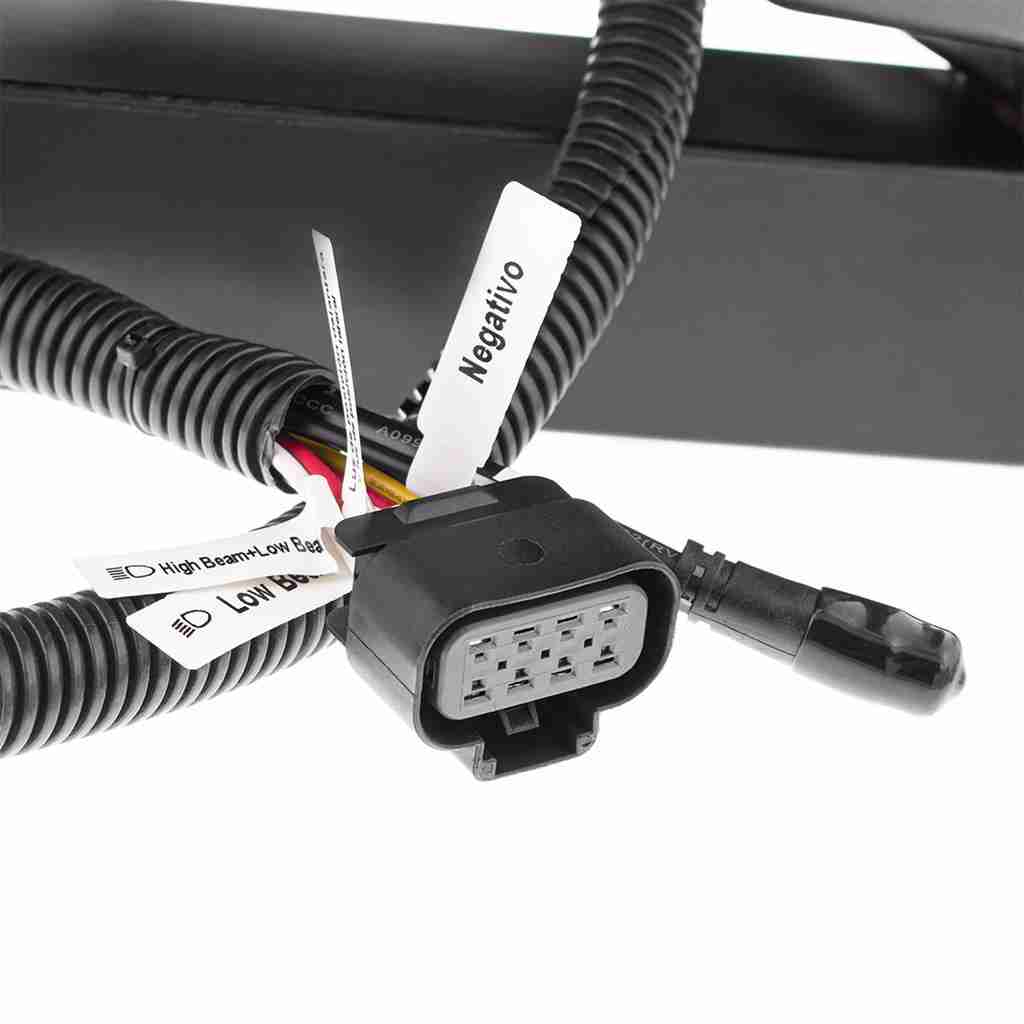

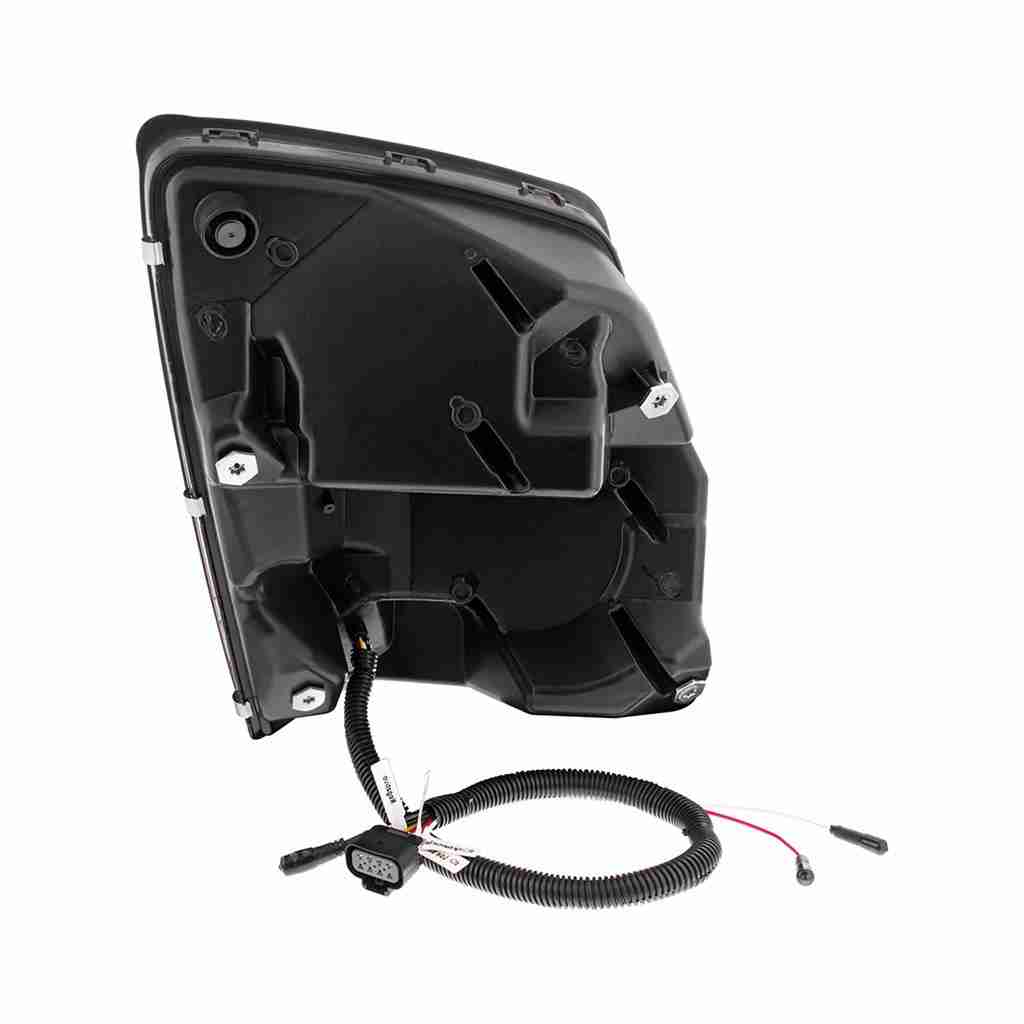

Retain the original wiring and mounting hardware until installation is complete. Match the connections, check all lighting functions and have the beam aim checked before road use. Confirm any required LCM reflash before starting. Do not discard the original factory headlight wiring harness. Mounting screws are not included.
Product questions
Before you order
Are mounting screws included?
No. United Pacific specifies OE-thread mounting inserts and says screws are not included. Retain the original hardware and factory harness.
Is the price for a pair?
No. Each selection supplies one assembly for the driver or passenger side. Order both sides separately if you need a pair.
Product support
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
