Diode Dynamics 9005 XP80 LED bulb pair

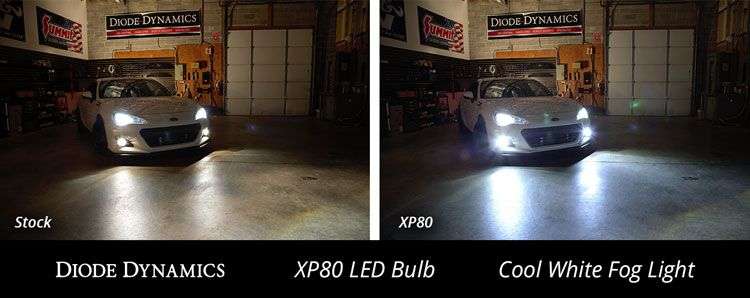

The 9005 XP80 pair provides 6000K cool white light for a compatible fog-lamp or daytime-running-light application. Twelve side-facing and four forward-facing LEDs sit in an aluminum casing designed to dissipate heat.
Manufacturer-listed specifications
- Manufacturer pair SKU: DD0134P
- Quantity: two bulbs
- Bulb designation: 9005

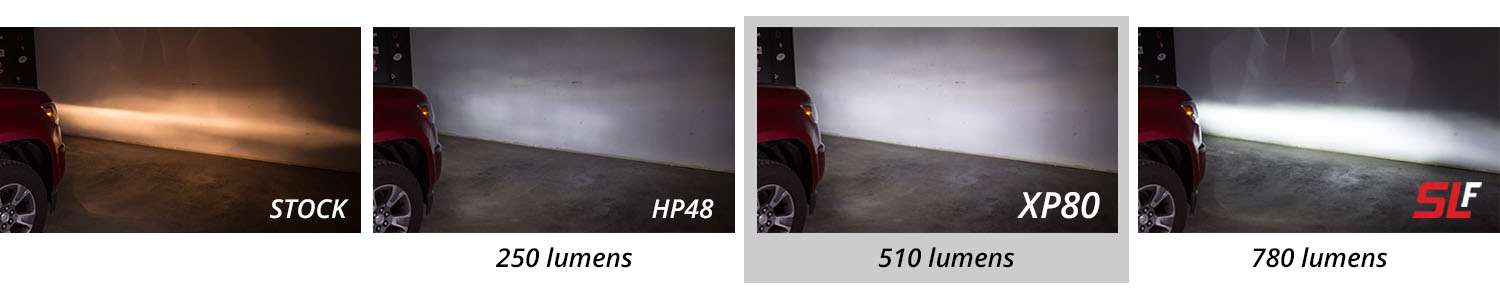

- Manufacturer-listed output: 510 lumens per bulb
- Light colour: 6000K Cool White
- Light distribution: omnidirectional, 270 degrees
- Power: 5.58W
- Input voltage: 9–16V
- Current: 0.43A at 13.2V
- Polarity: nonpolar
- Operating temperature: -40°C to 85°C (-40°F to 185°F)
- Connector: OEM-size plug-and-play type
- Manufacturer warranty: three-year replacement limited warranty, subject to its terms
- Manufacturer compatibility note: not CK-compatible
Match the actual lamp
As a documented example, Diode Dynamics lists this exact pair for the daytime running lights of the 1995–1998 Nissan 240SX. That example does not confirm every 9005 lamp position or aftermarket housing.
The manufacturer lists these bulb cross-references: 9005XS, 9005, 9011, 9005CB, 9005XSCB, 9005SU, 9005L+, 9005ST, 9005XV, 9005EB, 9005XSST. Compare the actual connector, holder and available clearance; the list does not guarantee suitability for every housing.
Confirm that the bulb seats correctly and any lamp cover closes. Check the finished operation and aim. Listed lumens describe bulb output, while the installed beam depends on the optics and bulb position.
Browse LED bulbs by listed base.
Can I use XP80 as a high-beam upgrade?
Diode Dynamics identifies fog-lamp and DRL use for this bulb and says its output is not sufficient for high-beam use. A matching 9005 base alone does not establish headlight suitability.
