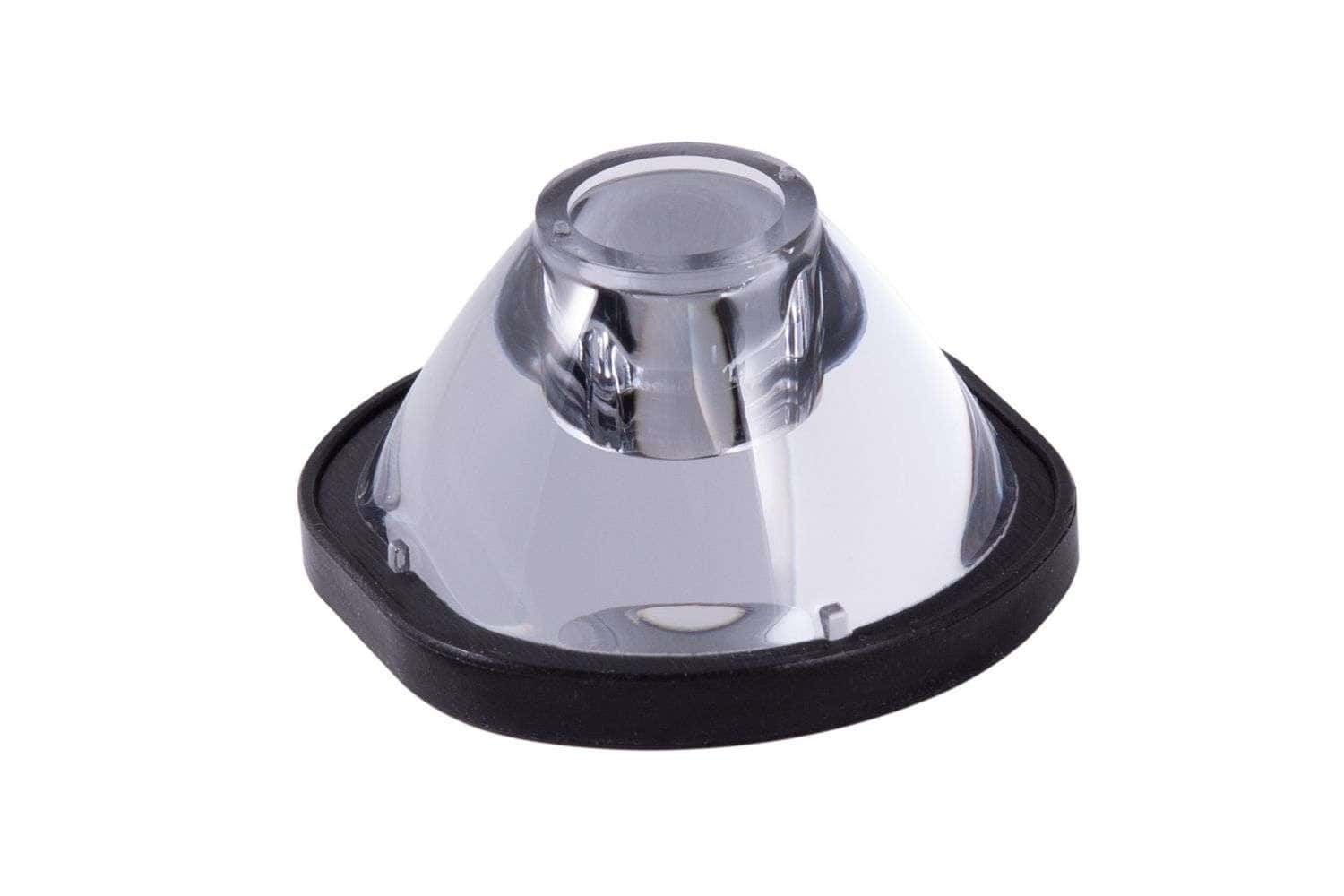

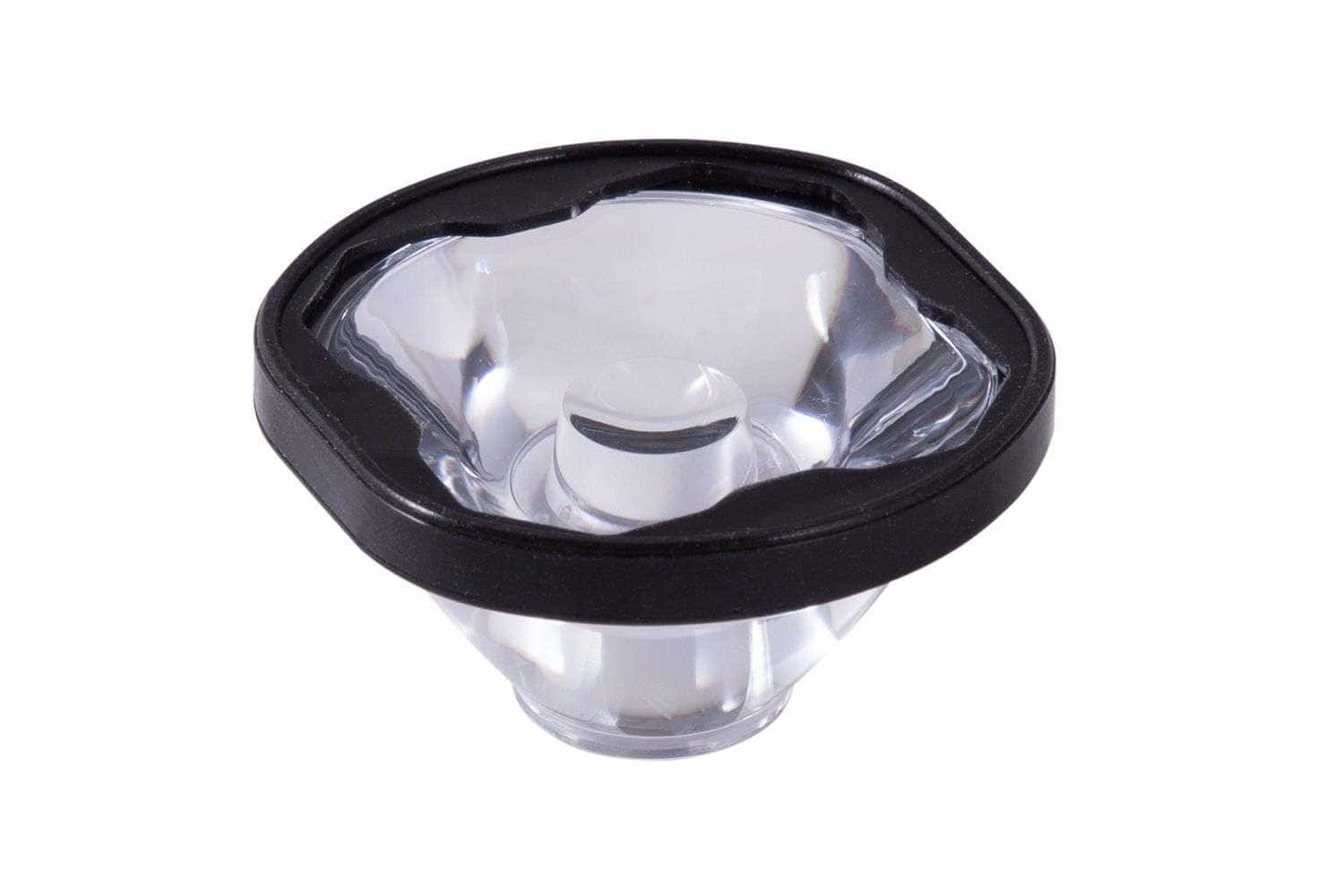

Diode Dynamics Clear Lens for SSC1 LED Pods (One)

Features

• Clear replacement lens for Stage Series C1 LED Pod

• Durable polycarbonate construction with preinstalled o-ring seal

• Advanced TIR optics for efficient, focused light

• Available in Flood, Wide, Spot, or SAE Fog beam patterns

Overview

This clear lens is a direct replacement for the original main lens in your Stage Series C1 LED Pod. It allows you to quickly change both the color and beam pattern with a simple swap. Each lens is made of optical-grade polycarbonate and includes an integrated o-ring to ensure a watertight seal.

Note: SAE Fog lens meets SAE/DOT compliance only when used with an SAE Fog SSC1 Pod.

Easy Swap

Swapping your SSC1 lens takes only a few seconds. Simply remove four torx-head screws, pull the old lens and o-ring, and install the new pre-sealed lens. Alignment pins ensure proper fit, and reinstalling the screws hand-tight completes the process.

Beam Pattern Options

• Flood: Wide 50×50° spread, ideal for backup lights, trailers, or work areas

• Wide: 50° horizontal spread with 20° vertical control, great for general use

• Spot: Tight 7° beam for maximum distance visibility

• SAE Fog: 80° wide fog pattern for on-road use (with SAE Fog Pod), available in white or yellow

Warranty

• 8-Year Limited Warranty

• 3-Year Replacement Warranty

• Backed by Diode Dynamics’ satisfaction guarantee

What’s Included

• Quantity: One (1) Clear Replacement Lens

• Warranty: 8-Year Limited / 3-Year Replacement

• Return Policy: 30-Day Return, No Restocking Fee

Fitment

⚠️ Only compatible with Stage Series C1 LED Pods. Not for use with other models.
