Diode Dynamics Elite Series Add-On Fog Lamp Kit for Ford Maverick (2022–2024)
Add true fog lighting performance to your Maverick with the Diode Dynamics Elite Series Add-On Fog Lamp Kit. Designed specifically for trucks that did not come equipped with factory fog lights, this kit integrates SAE-compliant fog lamps directly into the factory bumper with an OEM-style appearance.
Factory-Style Fog Lights for the Ford Maverick
The 2022–2024 Maverick does not include a factory fog light option on many trims. This Elite Series kit fills that gap by adding high-performance LED fog lights while maintaining a factory-quality appearance.
The included custom bumper bezel matches the factory plastics for a clean OEM+ look once installed.

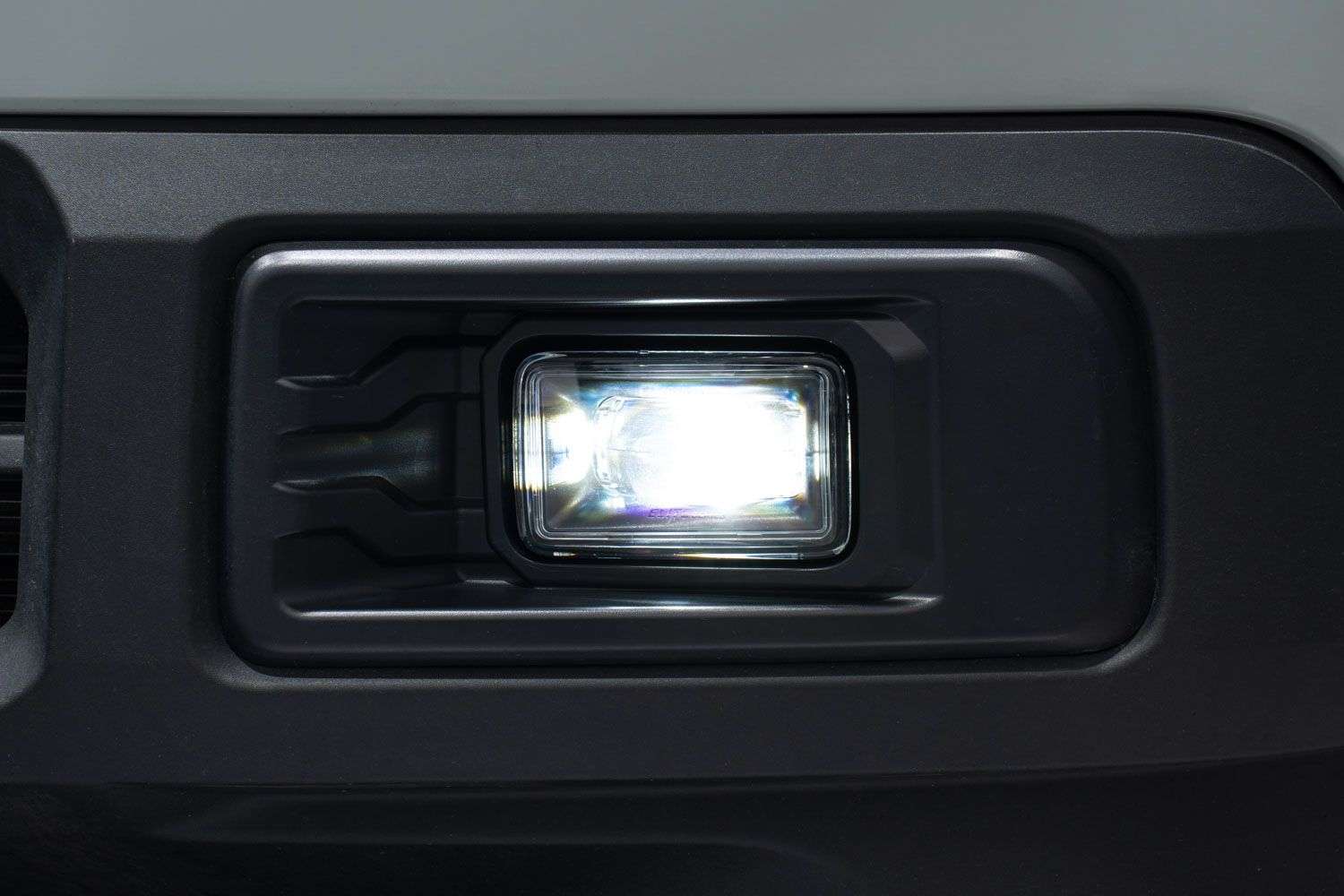

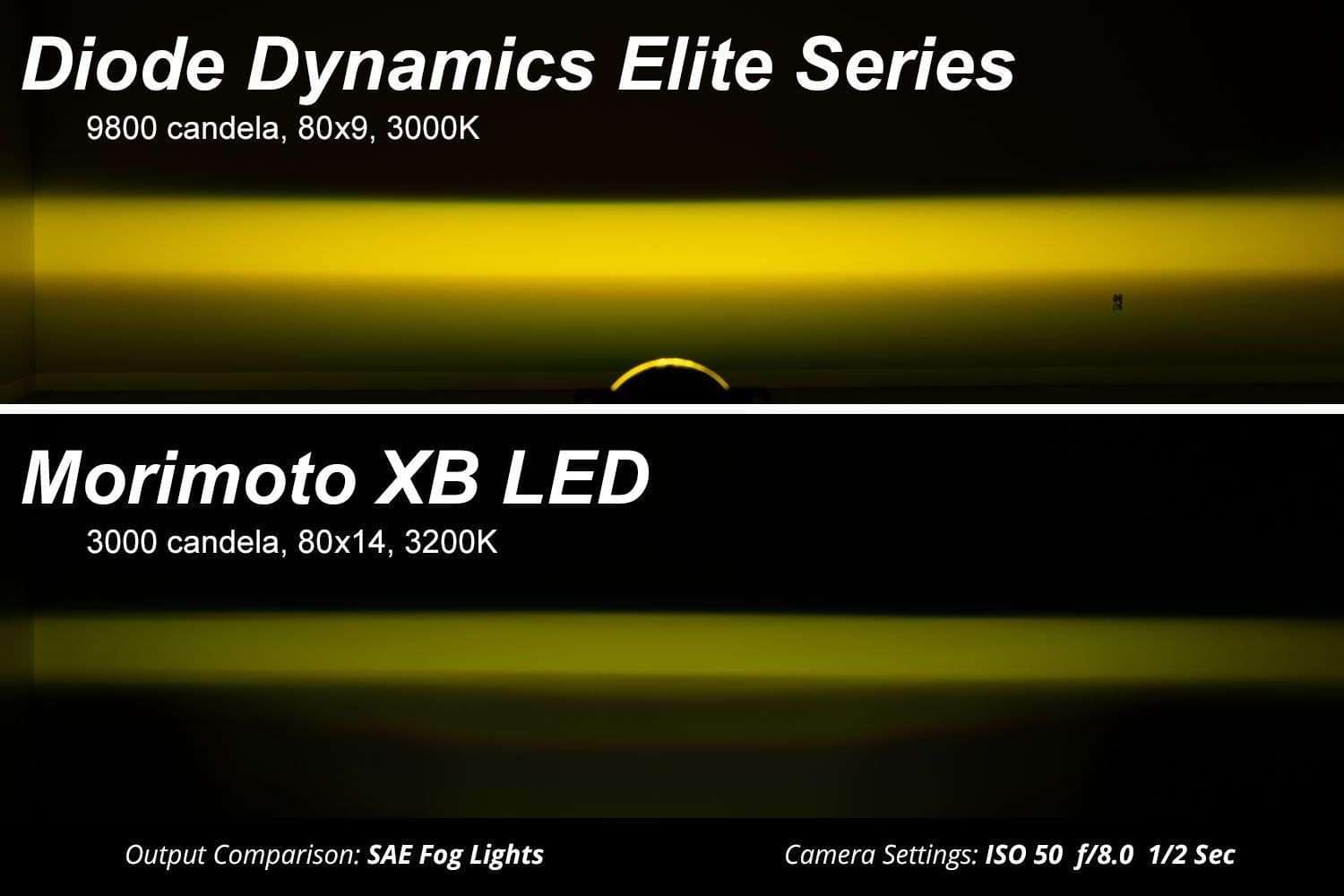

Maximum Visibility with Elite Series Fog Lamps
Advanced Toroidal Lens Optic
Each fog lamp uses a custom-engineered toroidal lens designed using advanced optical simulation software.
This produces:
-
100-degree total beam spread
-
Smooth light distribution
-
Sharp cutoff to prevent glare
-
BMW-style color flicker at beam edge
Despite its wide output, the beam pattern remains SAE F3 compliant for on-road use.

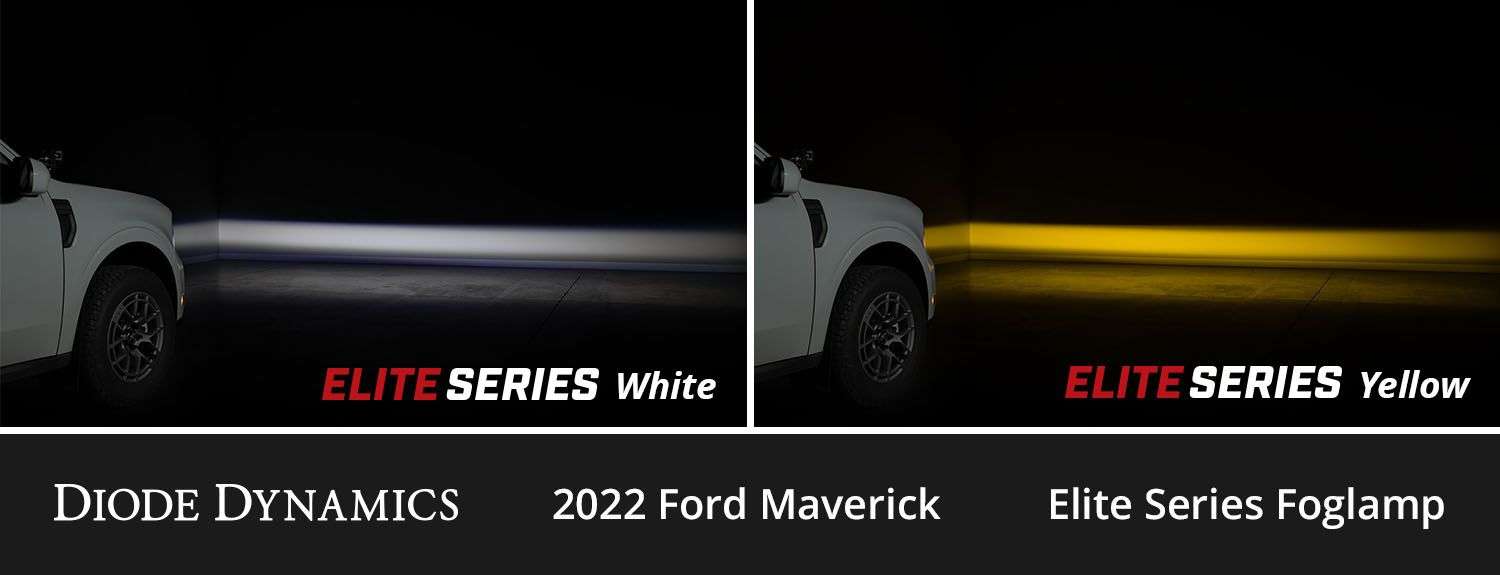

Choose Your Light Output
Cool White – 6000K
Produces a crisp white beam that matches most factory LED headlights and DRLs.
Selective Yellow – 3000K
Ideal for rain, fog, and snow conditions by increasing contrast and reducing glare.
The yellow version uses true yellow emitters paired with a yellow lens for maximum optical efficiency.

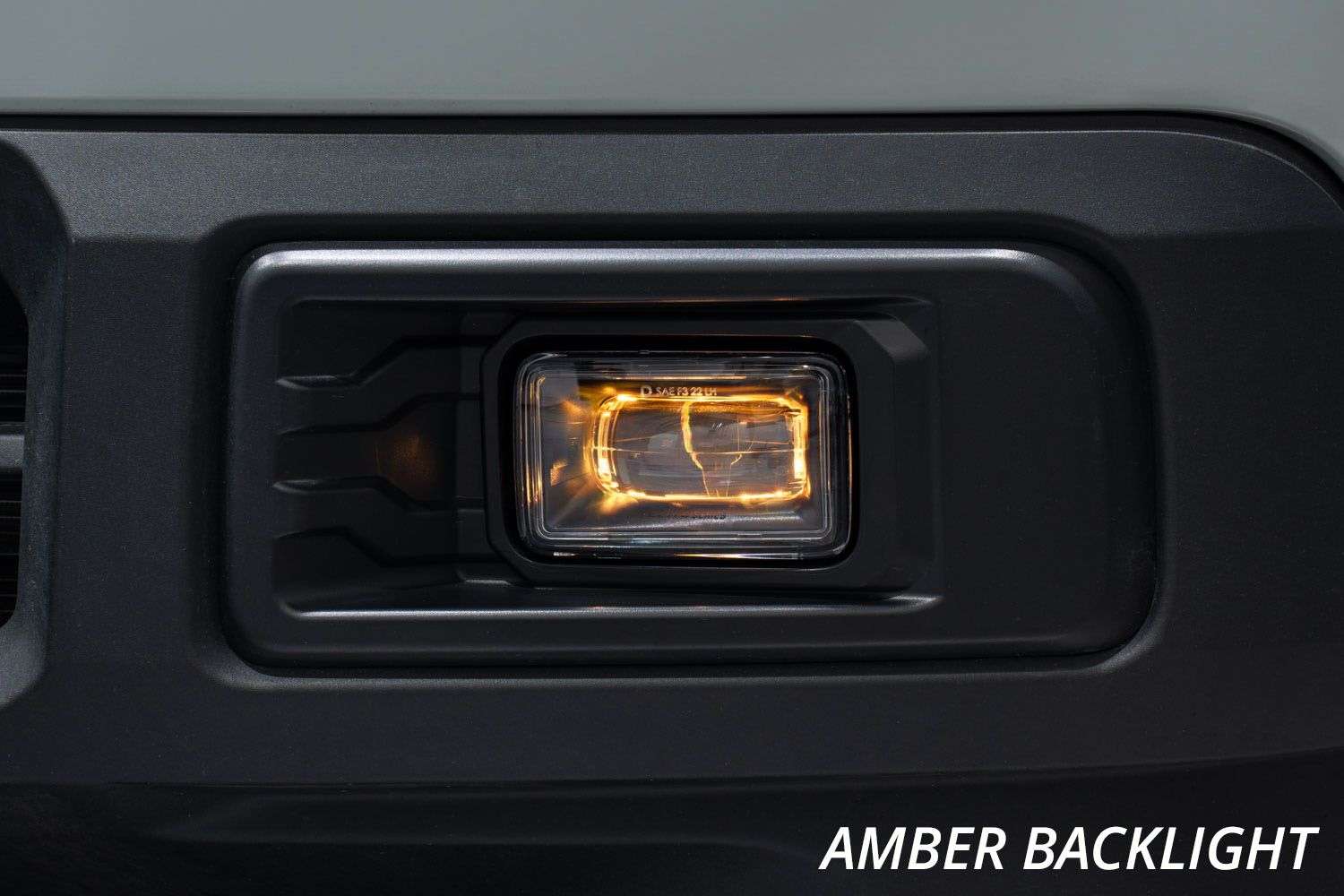

Integrated Amber Backlight
Each Elite Series fog lamp includes an amber accent backlight that illuminates the entire lens.
This feature can be wired to operate as:
-
parking light
-
sidemarker
-
accent lighting
Always check local regulations regarding accent lighting use.
Factory-Like Operation
The included Add-On Fog Harness allows the fog lights to behave similar to factory fog lights.
-
Automatically activates when headlights are on
-
Controlled by included toggle switch
-
Does not deactivate with high beams
This provides far more convenient operation than basic auxiliary light wiring.
Bolt-On Mounting System
The included brackets attach directly to factory mounting points behind the bumper.
Features:
-
Adjustable aiming system
-
Support rings for secure mounting
-
OEM-style installation hardware
Note: Installing this kit requires cutting the bumper opening, but the process is straightforward and results in a factory-style appearance.
Built to OEM Quality Standards
Elite Series fog lamps are assembled in the USA using premium materials:
-
Precision aluminum housing
-
UV-coated polycarbonate lens
-
Copper-core circuit boards
-
Automotive-grade LED emitters
Each lamp is robotically sealed with urethane epoxy and pressure tested for moisture protection.
Proven Reliability
Elite Series lamps are tested to automotive standards:
-
Operating temperature: -40°F to 185°F
-
Vibration testing
-
Moisture intrusion testing
-
Corrosion testing
-
Voltage spike protection
-
Reverse polarity protection
Integrated vents allow housings to equalize pressure without compromising sealing.
Fitment & Compatibility
Fits:
-
2022 Ford Maverick
-
2023 Ford Maverick
-
2024 Ford Maverick
Compatibility requirements:
-
Vehicle must NOT have tow hooks
-
Not compatible with Tremor trim
-
Not compatible with FX4 trim
-
Not compatible with 2025+ Maverick models
What’s Included
-
2 × Elite Series Type F2 Fog Lights
-
2 × Vehicle-Specific Fog Light Bezels
-
2 × Support Rings
-
Add-On Fog Light Wiring Harness
-
Speaker Relocation Bracket
-
Zip Ties
-
T-Taps
-
Mounting Hardware
Warranty & Guarantee
-
8-Year Limited Warranty
-
30-Day Return Policy (No Restocking Fee)
-
100% Satisfaction Guarantee
Frequently Asked Questions About the Maverick Fog Lamp Kit
Does the Maverick come with factory fog lights?
Many trims do not. This kit adds true fog lighting performance with OEM-style installation.
Does installation require cutting the bumper?
Yes. The bumper opening must be cut to install the fog light bezel.
Are these street legal?
Yes. The fog lights meet SAE F3 fog light standards for on-road use.
Can I choose white or yellow fog lights?
Yes. The kit is available with 6000K white or 3000K selective yellow fog lamps.
Will these work on Tremor or FX4 models?
No. This kit does not fit Tremor or FX4 trims.
What warranty is included?
The kit includes an 8-year limited warranty.
