Diode Dynamics H8 HP48 LED bulb pair

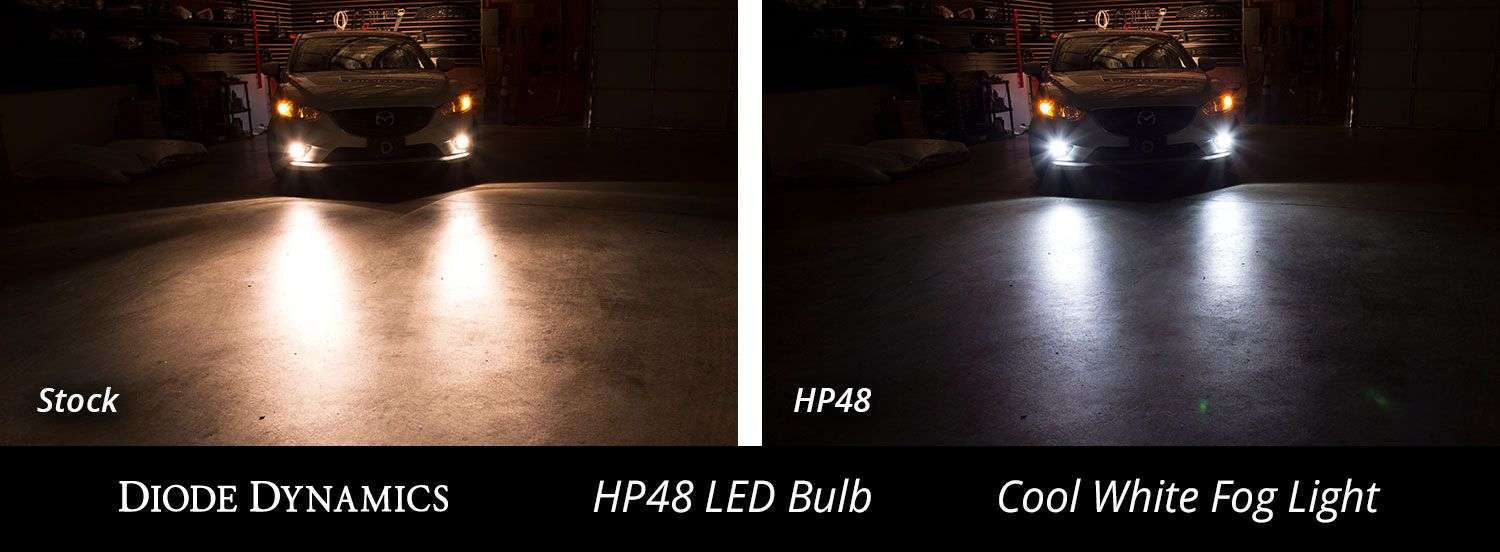

The H8 HP48 LED pair adds a 6000K cool white appearance to a compatible fog lamp. HP48 is the cosmetic option, with 48 Epistar 3014 LEDs and a reflector cap that distributes light within the housing.
Manufacturer-listed specifications
- Manufacturer pair SKU: DD0180P
- Quantity: two bulbs
- Bulb designation: H8

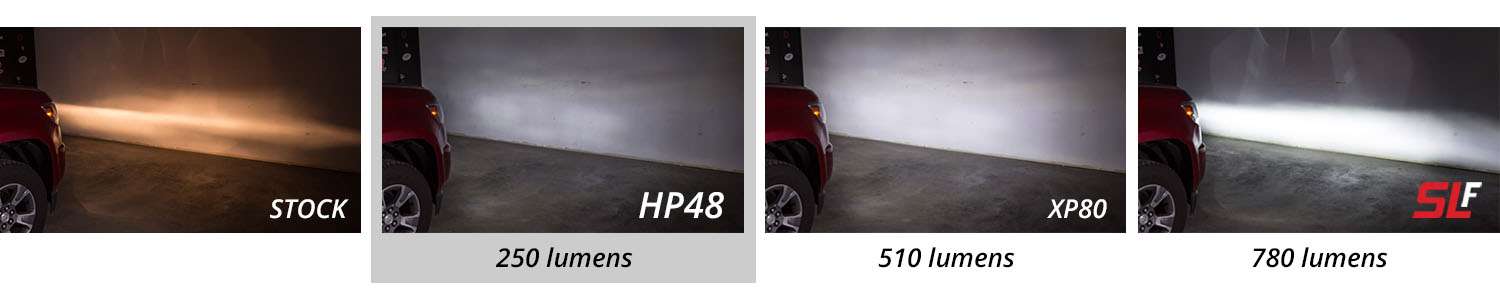

- Manufacturer-listed output: 250 lumens per bulb
- Light colour: 6000K Cool White
- Light distribution: omnidirectional, 270 degrees
- Power: 4.8W
- Input voltage: 9–16V
- Current: 0.37A at 13.2V
- Operating temperature: -40°C to 85°C (-40°F to 185°F)
- Connector: OEM-size plug-and-play type
- Manufacturer warranty: three-year replacement limited warranty, subject to its terms
Match the actual fog lamp
For example, Diode Dynamics lists this exact pair for the fog lights of the 2009–2013 BMW 3 Series Sedan. Verify the actual H8 fog-lamp equipment; this example does not confirm every trim, lamp position or aftermarket housing.

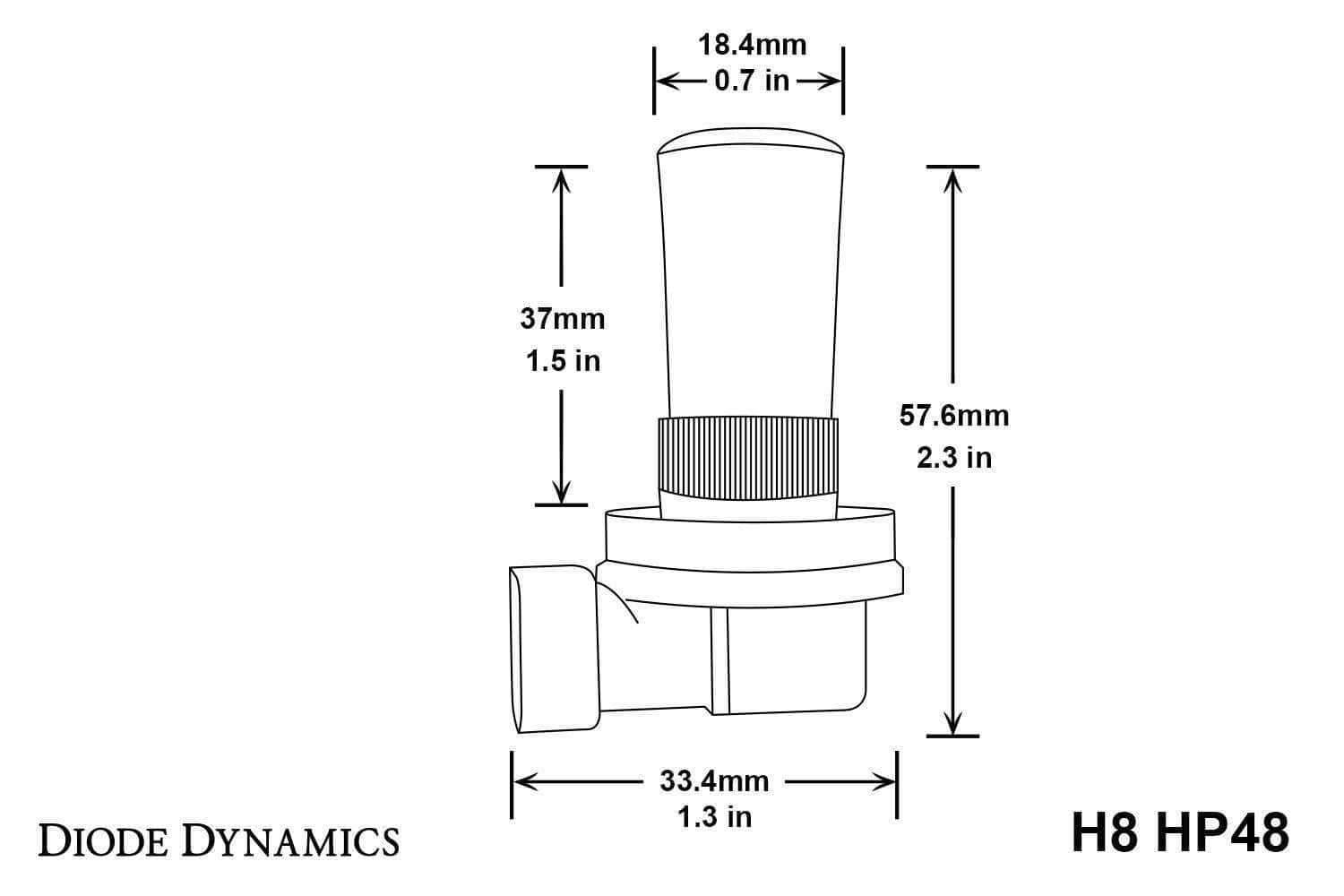

Match the installed H8 bulb marking, connector, retaining arrangement and rear clearance before choosing a replacement.
Confirm that the bulb seats correctly and any lamp cover closes. Check the finished operation and aim. Listed lumens describe bulb output; the installed beam also depends on the optics and bulb position.
Browse LED bulbs by listed base.
Can I use H8 HP48 in low- or high-beam headlights?
Diode Dynamics recommends HP48 for cosmetic fog-light or daytime-running-light use and advises against low- or high-beam headlight use. Confirm a separate application before using it in another lamp position.
