Diode Dynamics PH16W HP60 LED Bulbs – 510 Lumen LED Upgrade for Fog Lights & DRLs
Add a cool white appearance to your fog lights or DRLs with the Diode Dynamics PH16W HP60 LED Bulbs. The bulbs use six high-power CSP LEDs with emitters at the factory filament location. Diode Dynamics lists 510 lumens per bulb (stable output) and a 6000K cool white light, intended for daytime running lights (DRLs) or fog light applications.
🔧 Key Features:
-

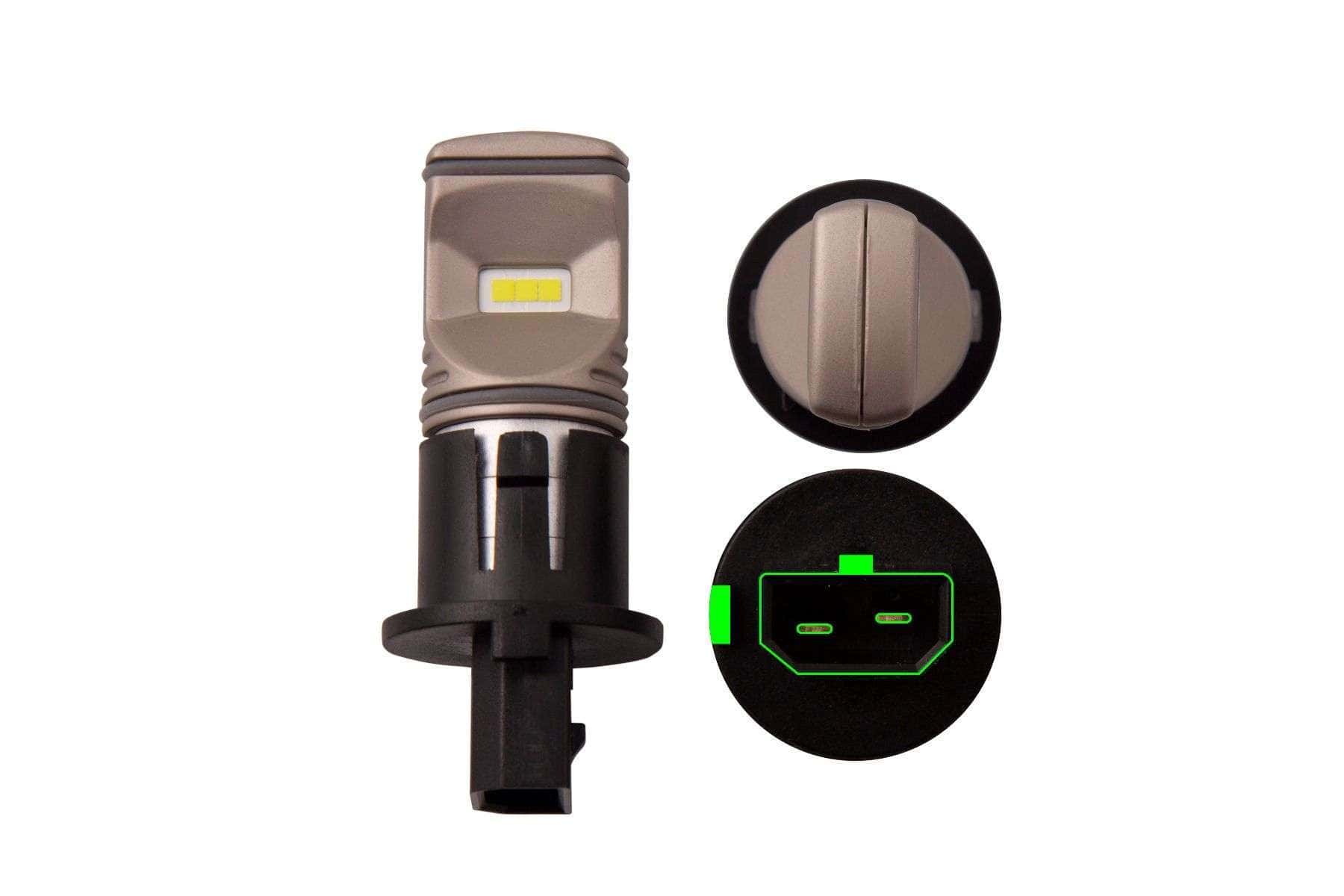

✔PH16W Connector – OEM-size connector for the PH16W base.
-
✔Emitter Position – LED emitters are positioned at the factory filament location.
-
✔Manufacturer-Rated Output – Diode Dynamics lists 510 lumens per bulb as stable output.
-
✔Modern Cool White Look – 6000K color temperature gives your vehicle a sleek, updated appearance.
-
✔Power Regulation – Constant-current circuitry and transient suppression regulate power to the LEDs.
-
✔Fit Check – Before installation, match the bulb base, connector, clearance and electrical requirements to your vehicle.
⚙️ Specifications:
-
Bulb Size: PH16W
-
Measured Lumens: 860 lumens (initial output; manufacturer-listed), 510 lumens per bulb (stable output)
-
Color Temperature: 6000K Cool White
-
Power Draw: 7W
-
Voltage Range: 9–16V
-
Current Draw (@13.2V): 0.560A
-
LED Type: High-Power CSP (Chip Scale Package)
-
Operating Temp: -40°F to 185°F (-40°C to 85°C)
-
Connector: OEM-Size Plug and Play
-
Durability: SAE J575 durability test; not a road-use approval
-
Warranty: Diode Dynamics 3-year limited replacement warranty; manufacturer terms apply
-
Quantity: Two (2) Bulbs
-
Application: DRL / Fog Light (not for low/high beam headlights)
💡 Manufacturer Information
These Diode Dynamics HP60 bulbs are supplied as a pair.
Questions about PH16W HP60 LED bulbs
Are these bulbs for headlights or fog lights?
Diode Dynamics recommends this HP60 bulb for compatible fog lights or daytime running lights, not low- or high-beam headlights.
Does the 510-lumen rating describe one bulb or the pair?
The manufacturer lists 510 lumens per bulb as stable output. Its separate 860-lumen figure is initial output; the two figures describe output at different stages of operation.
What should I match before ordering?
Match the PH16W marking on the installed bulb, its connector and the space around the retainer and rear cover. This listing is for PH16W; do not choose a different base because its name looks similar.
Can I run these bulbs on a 24V circuit?
The listed operating range is 9–16V. A 24V supply is outside that range; check the lighting circuit before installing.
