Diode Dynamics: Single Color Strips
Overview

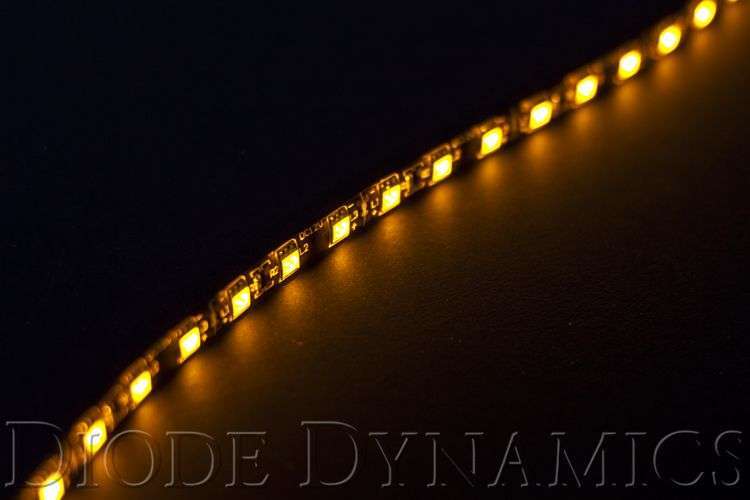

Custom look. Add a custom accent to your vehicle with our Single-Color Flexible 5050 SMD LED Strips! Available in cool white, blue, red, amber, and green, these LED strips can be installed nearly anywhere you’d like – the possibilities are endless!
Cut to size. These LED strips are flexible, IP67 weatherproof SMD-type LED strips, with 3 SMDs per 5 cm. They are cuttable every 3 chips, to size to your need, and come with 3M adhesive backing. Due to the weatherproofing, cut portions cannot be reattached without manual soldering, which removes the weatherproofing properties. Weatherproofing can be reapplied through waterproofing products.
Installation. All single-color strips have 100cm of 22 AWG wires attached, to be connected to 12V positive and negative ground.
- STRIPS: One (1) flexible 5050 SMD LED strip with positive and negative bare wire leads
- Warranty: 3 year warranty
- Adds accent lighting in the color of your choice
- Highly versatile, use them anywhere to add light
- IP67 weatherproof and heat-resistant
- Power (watts): 50CM: 8.9W; 100CM: 17.8W; 200CM: 35.6W
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): 50CM: 0.7; 100CM: 1.4; 200CM: 2.8
- Operating Temperature: -40C to 85C (-40F to 185F)
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP67 Weatherproof
Configurations and installation details
Diode Dynamics: Single Color Strips. Select the exact manufacturer configuration and check the mounting, connector and package details below.
- Highly versatile use them anywhere to add light
- Weatherproof and heat-resistant
Choose your configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD2198 | Red 50cm Strip SMD30 WP |
| DD2199 | Cool White 50cm Strip SMD30 WP |
| DD2200 | Blue 50cm Strip SMD30 WP |
| DD2201 | Green 50cm Strip SMD30 WP |
| DD2202 | Amber 50cm Strip SMD30 WP |
| DD2203 | Red 100cm Strip SMD100 WP |
| DD2204 | Blue 100cm Strip SMD100 WP |
| DD2205 | Cool White 100cm Strip SMD100 WP |
| DD2206 | Red 200cm Strip SMD120 WP |
| DD2207 | Blue 200cm Strip SMD120 WP |
| DD2208 | Cool White 200cm Strip SMD120 WP |
What is included?
- Included Quantity: One (1)
Questions and answers
Can I shorten these single-color strips?
Yes. The strip has cut points every three LEDs, approximately every 5 cm. A cut section needs its own soldered connection and resealing; cutting does not leave a ready-made waterproof connector.
Do I need an RGBW controller?
No RGBW color controller is used for this single-color strip. Choose the color and length first, then connect the strip to the appropriate power and ground supply. The listed operating range is 9–16V.
Are all colors offered in every length?
No. The SKU table identifies the available color and length combinations. Check that combination before ordering; the strip is supplied individually.
Manufacturer warranty
Diode Dynamics lists a 3-year limited warranty for this product range. Coverage is subject to the manufacturer’s terms and exclusions.
