Diode Dynamics SSC1 White SAE Fog Standard LED Pod (pair)

Diode Dynamics SSC1 White SAE Fog Standard LED Pod (Pair)
Compact Road-Legal Fog Lighting with Brilliant Output

The SSC1 White SAE Fog Standard LED Pod delivers road-legal fog lighting performance in the most compact form factor available. Designed for on-road use with SAE J583 compliance, this single-LED pod features a precision-engineered TIR optic and automotive-grade 20-watt Osram HX Boost LED. Whether you’re upgrading your daily driver or outfitting a custom build, the SSC1 Fog Pod provides a powerful, wide beam that enhances visibility in poor weather—without blinding other drivers.

Key Features

• Road-legal SAE J583 fog light output

• Ultra-compact design fits in tight or low-profile mounting areas

• High-output 20W Osram HX Boost LED chip

• Custom-engineered TIR optics for efficient and focused light

• 98-degree wide beam spread for maximum ground coverage

• Optional white or amber backlight for stylish accent lighting

• Weatherproof Deutsch-style connector

• Designed, tested, and assembled in the USA

• Lifetime warranty and 30-day satisfaction guarantee

SAE-Compliant Fog Beam Performance

The SSC1 SAE Fog is built for functionality and compliance. With its wide 98° beam spread, this pod is ideal for cutting through fog, rain, snow, or dust while maintaining safe, glare-free operation on public roads. Thanks to Diode Dynamics’ optical simulation modeling and Total Internal Reflection (TIR) lens design, the output is evenly distributed with no hotspots or wasted light.

Despite its small size, the SSC1 is one of the brightest road-legal fog lamps available, outperforming many larger units while maintaining a clean, factory-style fit.

Backlight Accent Functionality

In addition to its main beam, the SSC1 includes an integrated backlight feature available in white or amber. This secondary output provides a sleek accent light when your main fog beam is off—perfect for daytime running light (DRL) aesthetics or custom styling.

Color Temperature Options

• Cool White (6000K) – Crisp and clean, ideal for modern vehicle styling and factory LED match

• Selective Yellow (3000K) – Enhances contrast and visibility in fog, snow, or rain

Vehicle Compatibility

The compact size and versatile mounting brackets make the SSC1 SAE Fog Pod perfect for a variety of applications:

• Factory fog light replacement

• Low-mounted bumper fog upgrades

• Compact light placement on grilles or fairings

• Use on trucks, SUVs, crossovers, motorcycles, and UTVs

• Compatible with Diode Dynamics vehicle-specific brackets for bolt-on installation

Technical Specifications

• LED Chip: Osram HX Boost 20W

• Beam Pattern: SAE-compliant fog (wide 98° spread)

• Color Temperature: 6000K (White) / 3000K (Yellow)

• Backlight Colors: White or Amber

• Waterproof Rating: IP67

• Connector: Deutsch DT-style

• Construction: Aluminum housing with pin-fin heatsink

• Dimensions: 1.3″ x 1.3″ x 1.6″

• Operating Voltage: 9–16V

• Assembled in: USA

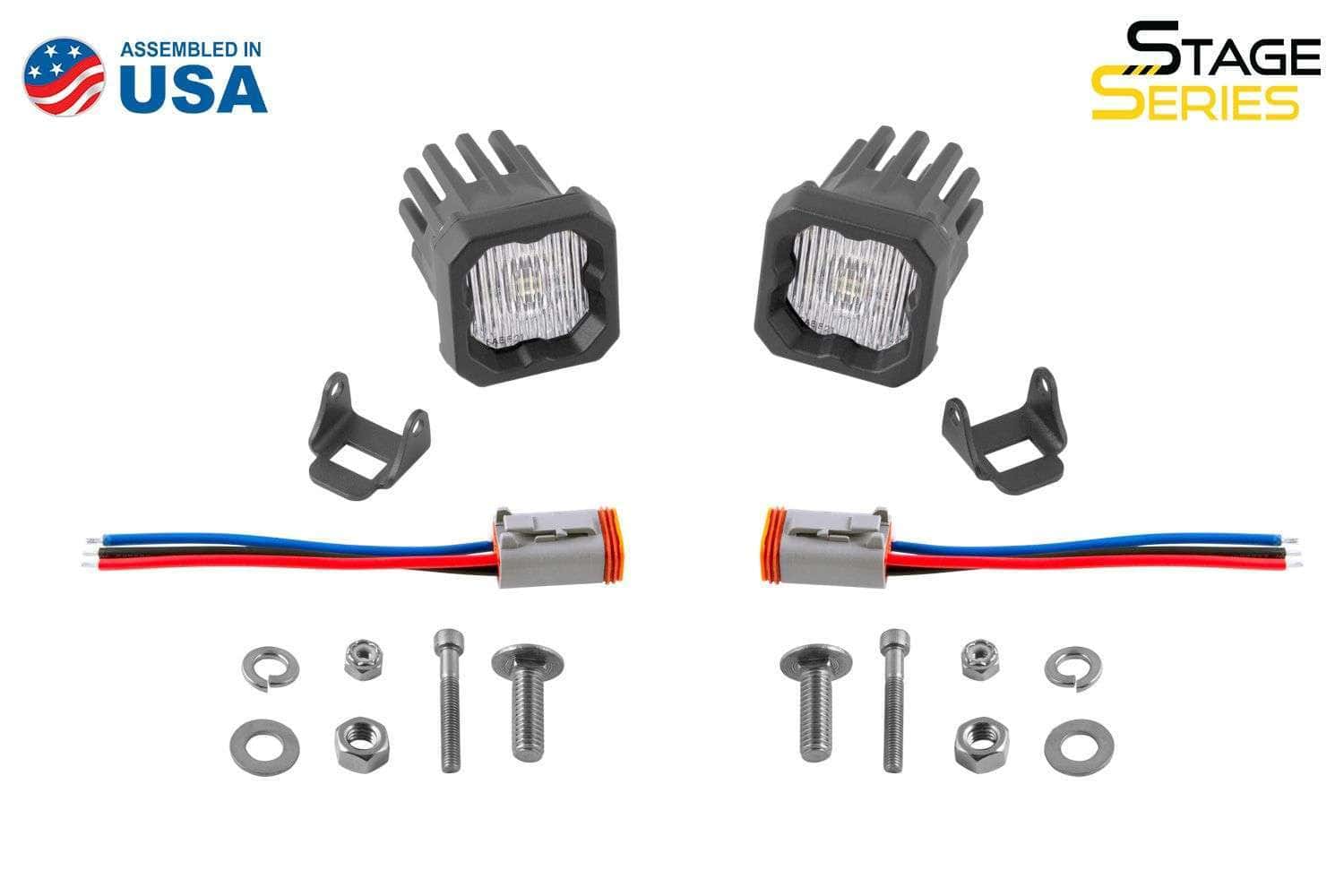

What’s Included

• Two (2) Stage Series C1 SAE Fog LED Pods

• Two (2) Deutsch-style wire pigtails

• Two (2) Mounting brackets and hardware

• Installation instructions

• Lifetime warranty

• 30-day return policy with no restocking fee

Upgrade to Legal and Powerful Fog Lighting with SSC1

When space is limited but reliable, road-legal lighting is a must, the Diode Dynamics SSC1 SAE Fog Standard LED Pod delivers unmatched performance. Compact, compliant, and packed with style thanks to the optional backlighting, it’s the ideal fog light solution for drivers who demand more from their lighting.
