The Diode Dynamics Stage Series Reverse Light Kit is built for 2025-2026 Toyota 4Runner owners who want more usable light when backing up at night. The kit mounts two LED pods underneath the rear bumper and connects through the factory trailer wiring for a clean plug-and-play installation.
Depending on the selected pod option, this kit can provide high-power white reverse lighting, a red accent running light, and optional 4th brake light functionality with SafetyStrobe braking. It is a strong upgrade for daily driving, trail use, campsite lighting, towing support, and low-light reverse visibility.
Key Features & Benefits
High-Power Reverse Lighting
This kit adds two rear-facing LED pods to improve visibility behind the 4Runner.
Features include:
- Two SSC1 or C2 2.0 LED pods
- High-power white reverse light output
- Automatic reverse activation
- Mounted underneath the rear bumper
- Designed to add significantly more backup light than factory reverse bulbs
This makes it easier to see behind the vehicle when reversing at night, backing into campsites, lining up trailers, or maneuvering in dark areas.
Plug-and-Play 7-Pin Wiring
The kit is designed to connect through the factory trailer wiring.
Features include:
- Plug-and-play trailer harness
- Uses factory 7-pin connector
- No custom wiring required for standard installation
- Automatic reverse light function
- Clean wiring integration
This keeps installation cleaner than universal backup light wiring that requires routing wires through the vehicle.
Red Accent Backlight
The included Stage Series LED pods feature a red backlight function.
Features include:
- Red accent backlight
- Works as an additional running light
- Fully illuminates the TIR optic
- Modern rear lighting appearance
- Separate from the main white reverse beam
This adds a clean rear-facing accent light when the reverse function is not active.

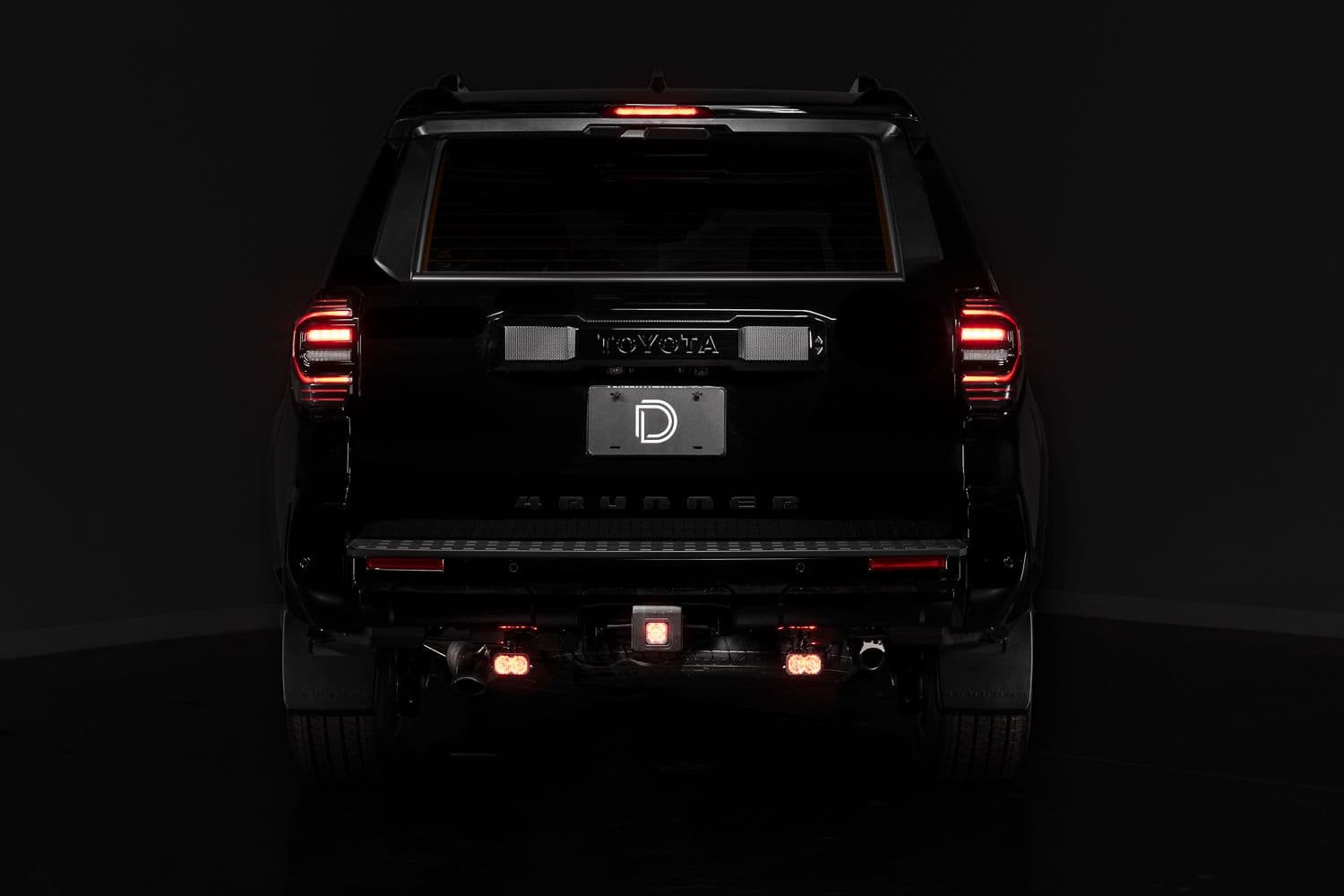

Optional 4th Brake Light Function
With the C1R or C2R option, this kit can also add high-power red brake light functionality.
Features include:
- Optional 4th brake light function
- High-power red brake output
- Activates when brakes are applied
- Low-power red running light function
- Available with select pod options
This is useful for drivers who want added rear visibility beyond standard tail light and reverse light functions.
SafetyStrobe Brake Light Option
The C1R and C2R options include optional SafetyStrobe brake light functionality.
Features include:
- Triple-flash brake light behavior by default
- Optional 15-second strobe intervals
- Can be disabled if desired
- Designed to improve brake visibility
Check local laws before using strobe or flashing brake light functions on public roads.
Performance, Compatibility & Use Case
Toyota 4Runner Compatibility
This Diode Dynamics Stage Series Reverse Light Kit fits Toyota 4Runner models from 2025-2026.
Always confirm your model year, trailer wiring setup, bumper configuration, and selected pod option before ordering.
Pod Options & Beam Pattern
This kit is available with SSC1 or C2 2.0 LED pod options.
Flood beam details:
- SSC1 flood pattern: 50 x 50 degree spread
- C2 2.0 flood pattern: 70 x 45 degree spread
- Designed for uniform rear illumination
- Uses optically engineered flood optics
- Built for backup lighting and close-range visibility
The C2 2.0 pod is also available in Max power level with 3,900 raw lumens.
Application & Use Case
Designed for:
- 2025-2026 Toyota 4Runner reverse light upgrades
- Backup lighting
- Trail visibility
- Campsite lighting
- Trailer hookup visibility
- Rear bumper lighting
- Red accent lighting
- Optional 4th brake light setups
- Overland and off-road builds
This is a strong option for 4Runner owners who want more rear visibility without building a custom reverse light system from scratch.
Installation & Technical Details
Installation Overview

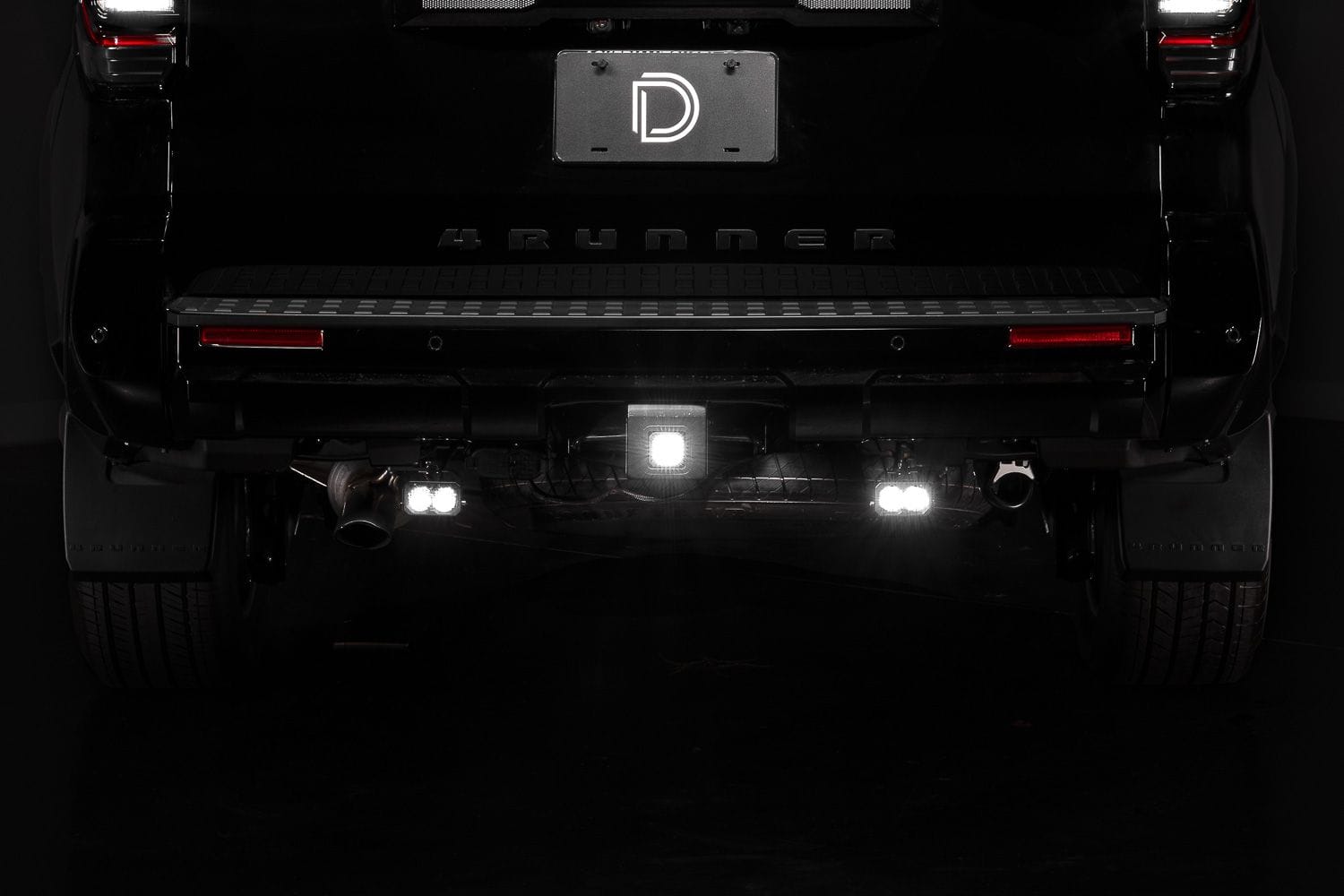

The Stage Series Reverse Light Kit mounts two LED pods underneath the rear bumper and connects through the factory trailer wiring.
Installation details:
- Vehicle: Toyota 4Runner
- Model years: 2025-2026
- Product type: Rear bumper reverse light kit
- Pod options: SSC1 or C2 2.0
- Quantity: Pair, left and right side
- Wiring: Plug-and-play trailer harness
- Connector style: 7-pin trailer connector
- Mounting location: Under rear bumper
- Backlight color: Red
- Warranty: Lifetime warranty
Professional installation is recommended for proper pod mounting, wiring, aiming, and final function checks.
Build Quality, Materials & Warranty
Proven Stage Series Construction
Diode Dynamics Stage Series lighting is engineered for long-term use in demanding environments.
Build and test details include:
- Custom-engineered TIR optics
- High-power LED emitters
- Optically designed flood beam patterns
- Tested from -40°F to 185°F
- Vibration testing
- Moisture intrusion testing
- Corrosion testing
- Testing completed to SAE standards
- Designed and assembled in the USA
The TIR optic design helps direct light where it is needed while improving efficiency and reducing wasted glare.
Warranty & Return Policy
This product includes:
- Lifetime warranty
- 30-day return policy with no restocking fee
- 100% satisfaction guarantee
Warranty and return coverage apply according to Diode Dynamics terms.
What’s Included
Included in the box:
- 2 × SSC1 or C2 2.0 Standard LED Pods
- 1 × Universal Reverse Light Wiring Harness
- 2 × Mounting Brackets
- 2 × DT Pigtails
- 6 × Zip Ties
- Mounting Hardware
Quantity:
- Pair, left and right side
Frequently Asked Questions About Diode Dynamics Toyota 4Runner Reverse Light Kits
Does this kit fit the 2025-2026 Toyota 4Runner?
Yes. This Diode Dynamics Stage Series Reverse Light Kit is designed for 2025 and 2026 Toyota 4Runner models.
Confirm your trailer wiring and rear bumper setup before ordering.
Where do the lights mount?
The LED pods mount underneath the rear bumper.
This placement helps add rear-facing light for backing up, trailer hookup visibility, and nighttime trail use.
Is this kit plug-and-play?
Yes. The kit uses a plug-and-play trailer harness with factory 7-pin connector integration.
No custom wiring is required for standard installation.
Do the reverse lights turn on automatically?
Yes. The reverse lights automatically activate when the vehicle is shifted into reverse.
This makes the kit easy to use for everyday backing and parking.
Does this kit include a red accent light?
Yes. The Stage Series LED pods include a distinctive red backlight.
The red backlight can function as an additional accent or running light while driving.
Can this work as a 4th brake light?
Yes, but only with the C1R or C2R option.
Those options include a high-power red function that can serve as an additional brake light.
What is SafetyStrobe?
SafetyStrobe is an optional brake light strobing feature available with C1R and C2R options.
By default, the high-power red brake light flashes three times when the brakes are initially applied. The feature can be disabled if desired.
What beam pattern does this kit use?
The kit uses a flood-style beam pattern for rear visibility.
The SSC1 pod has a 50 x 50 degree flood spread, while the C2 2.0 pod has a 70 x 45 degree flood spread.
What is the C2 2.0 Max option?
The C2 2.0 Max option is the highest-output C2 2.0 version listed in the supplied product information.
It uses Osram HX Boost LEDs and produces 3,900 raw lumens.
Is this kit useful for towing?
Yes. The added reverse lighting can help when lining up trailers or backing up in low-light conditions.
The kit must be removed or positioned appropriately only if it interferes with any towing equipment or vehicle setup.
What warranty is included?
This kit includes a lifetime warranty.
