Product Overview

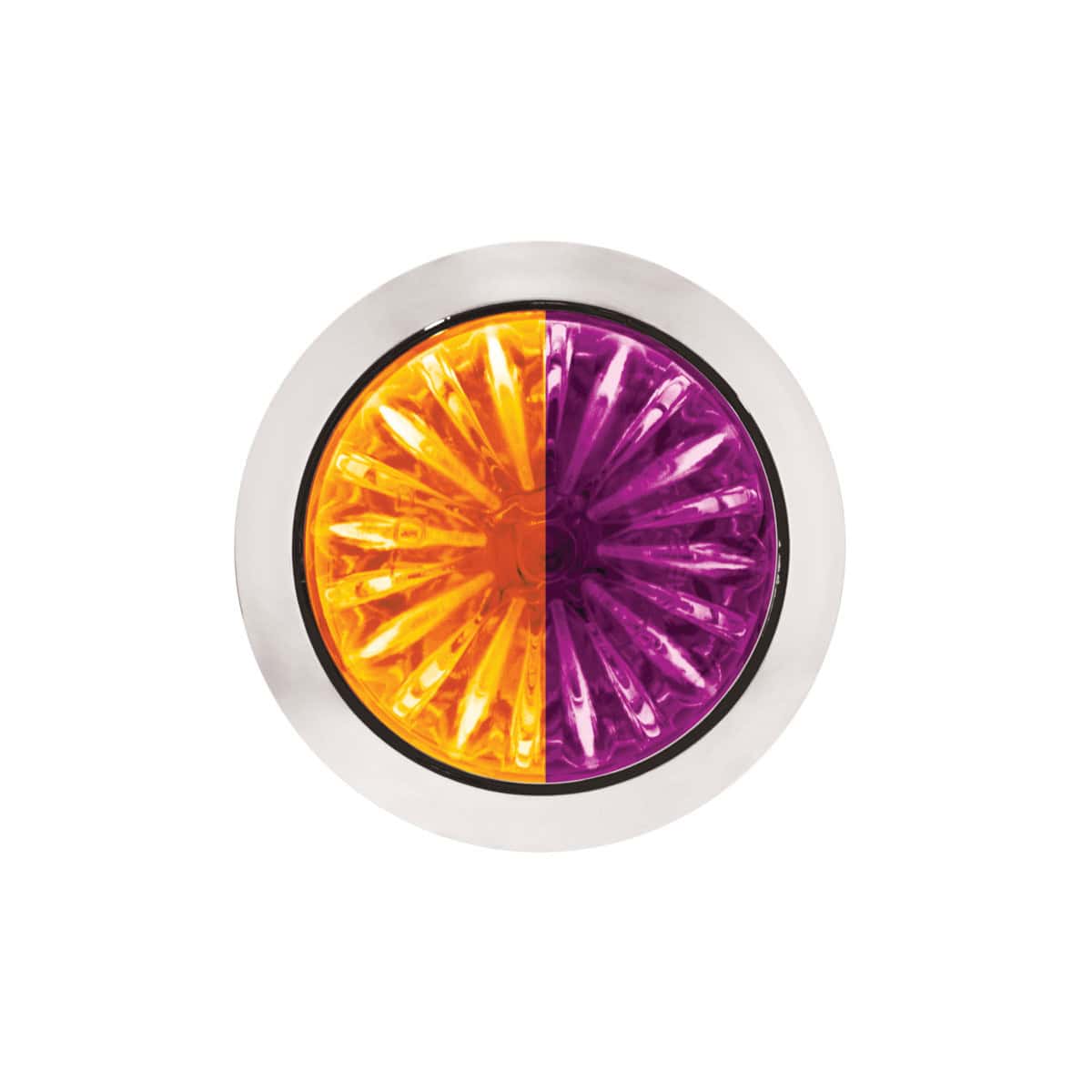

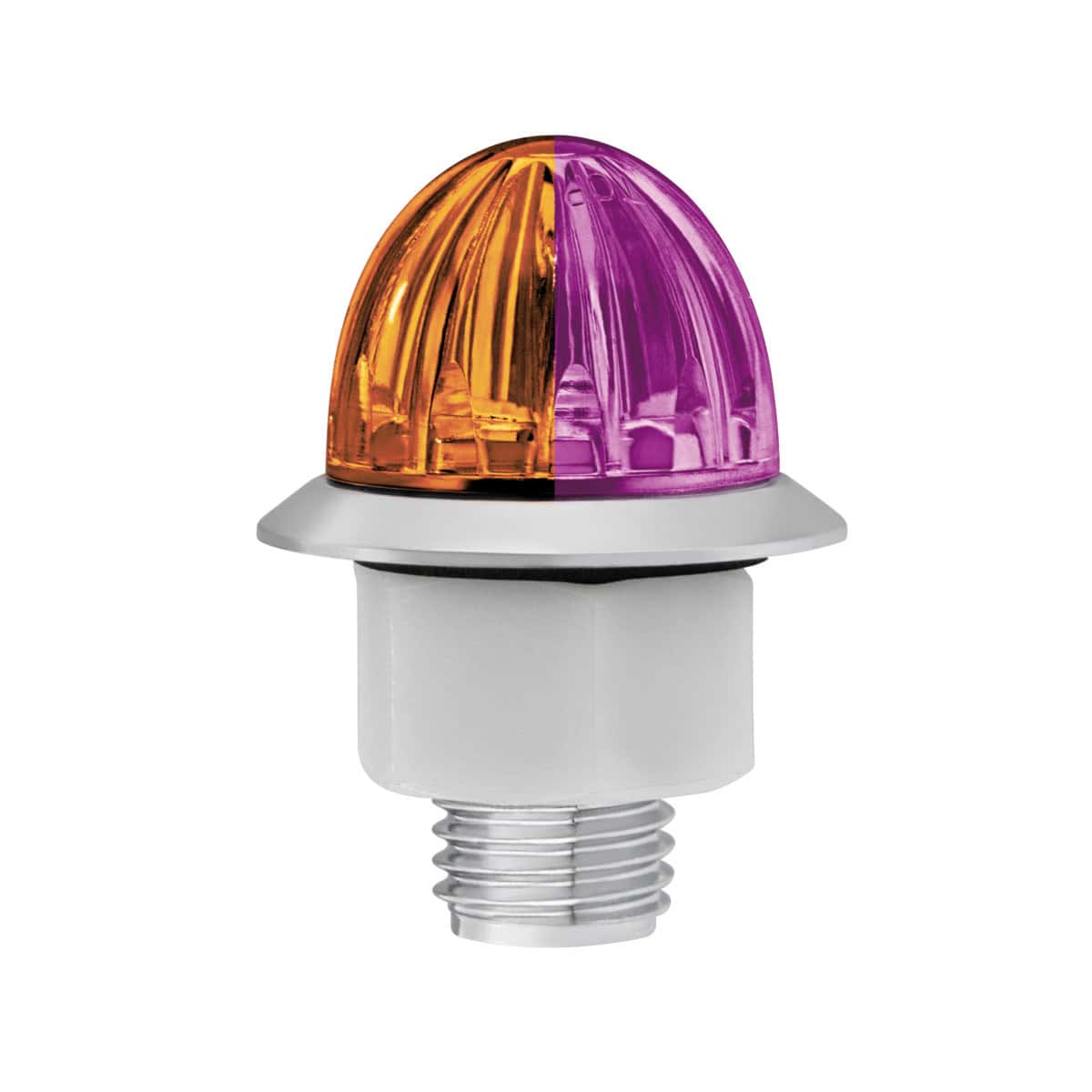

This Double Fury mini watermelon light features two independently controlled LED circuits:
-
Primary LED: Amber – DOT/SAE FMVSS 108 compliant for front or side clearance/marker use
-

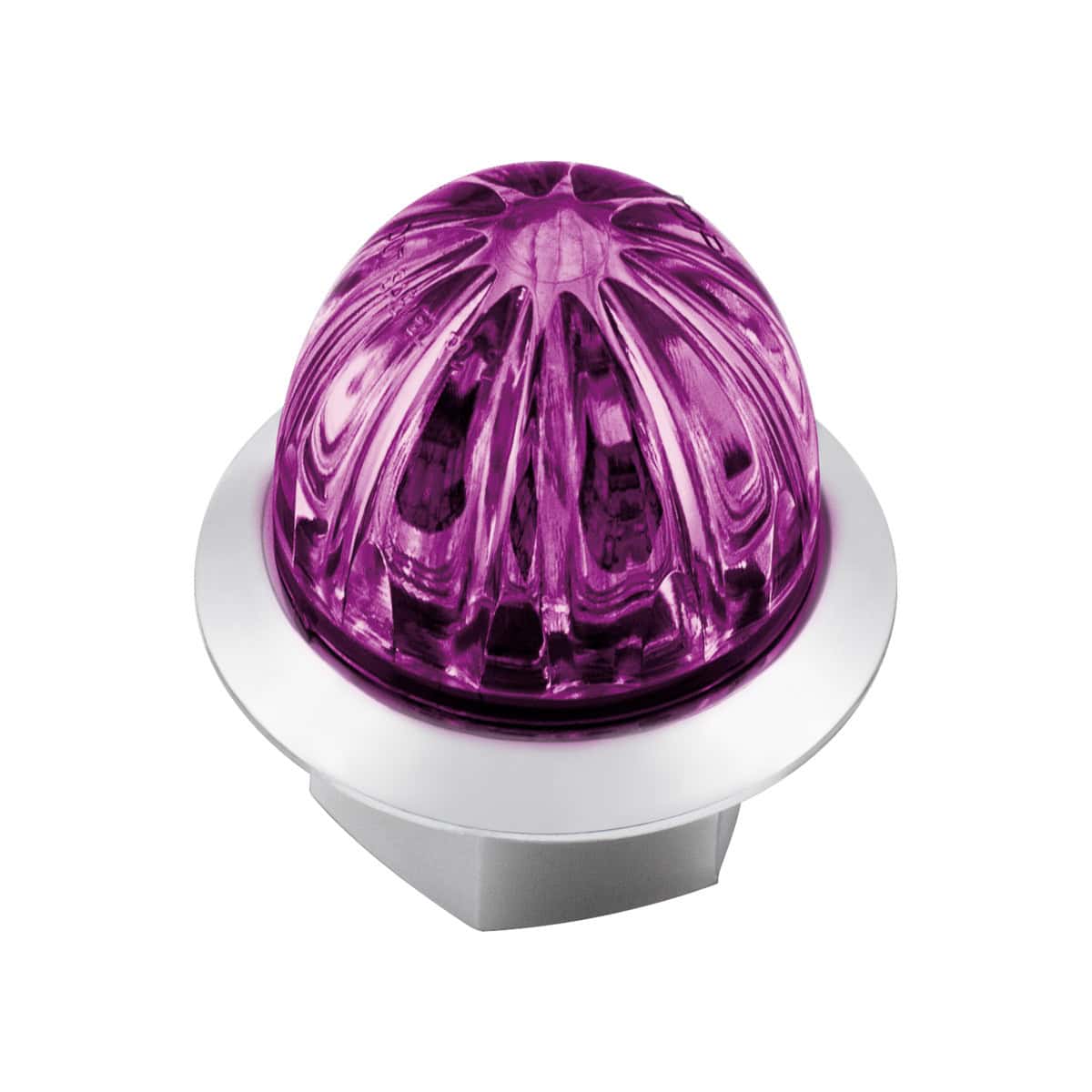

Secondary LED: Purple – Activates separately and overrides the primary when powered
When both circuits receive power, the purple LED overrides the amber LED, allowing flexible configurations for:
-
Auxiliary lighting
-
Accent lighting
-
Show truck setups
-
Switch-controlled custom installs
⚠️ The purple secondary LED is intended for auxiliary or off-road use only. Always confirm local regulations before installation on public-road vehicles.
Key Features & Benefits
Four High-Intensity Dual-Color LEDs
Delivers bright, energy-efficient illumination in both primary and secondary circuits.
Injection-Molded Polycarbonate Lens
High-quality lens built for durability, clarity, and impact resistance.
Chrome Plastic Bezel
Provides a stylish, finished appearance that complements stainless and chrome trim packages.
Epoxy-Sealed Electronics
Sealed housing helps prevent:
-
Moisture intrusion
-
Road salt corrosion
-
Dust contamination
-
Vibration damage
IP67 Water Resistant
Designed to withstand harsh weather and demanding commercial environments.
Independent Secondary Circuit
Yellow wire allows separate activation of the purple LED for flexible custom wiring.
Performance / Compatibility / Use-Case

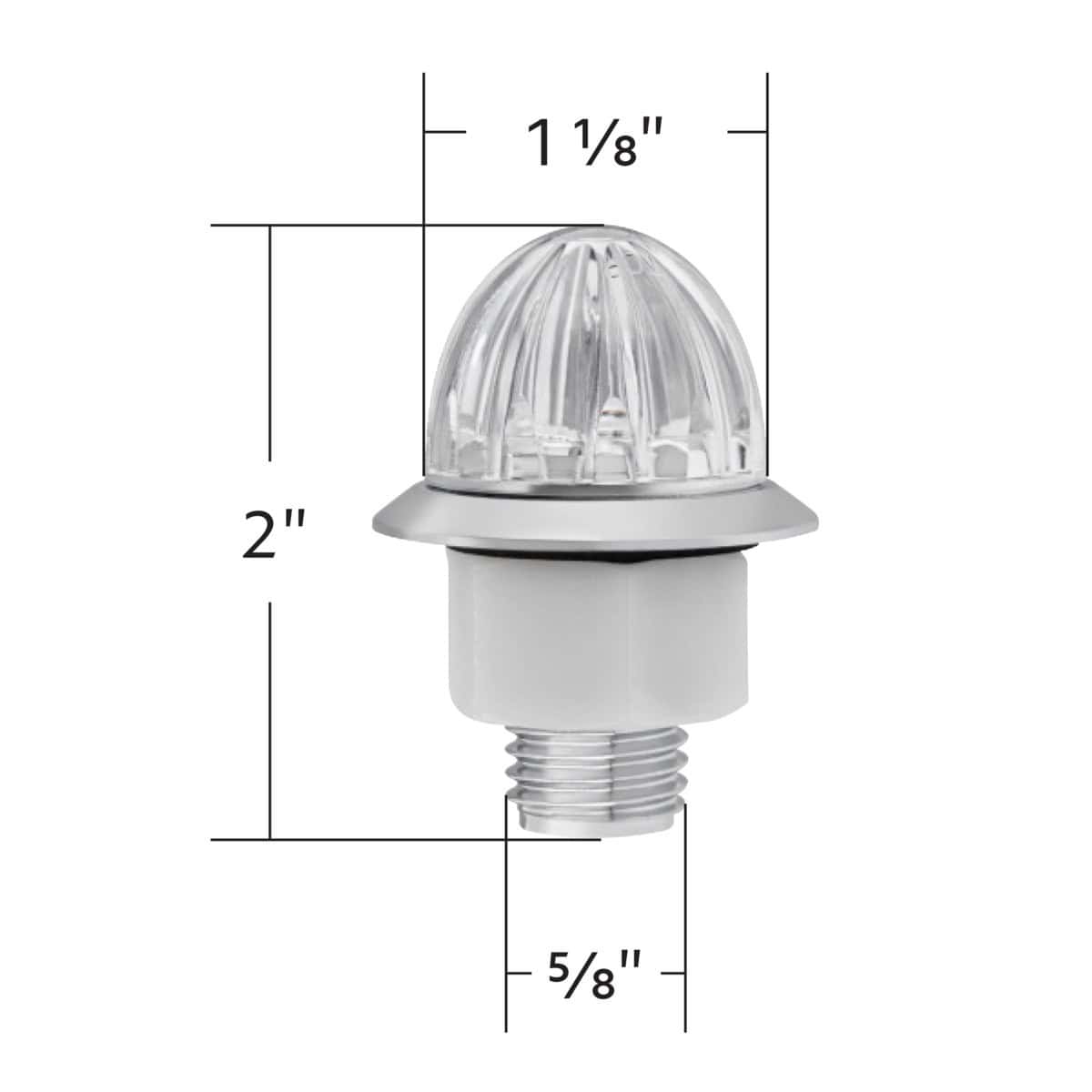

The 1-1/8″ lens diameter provides:
-
Stronger visual presence than smaller 3/4″ minis
-
Broader light dispersion
-
A bold, traditional watermelon dome profile
Perfect for:
-
Cab roof clearance rows
-
Sleeper panel lighting
-
Trailer perimeter lighting
-
Livestock and utility trailers
-
Custom and show builds

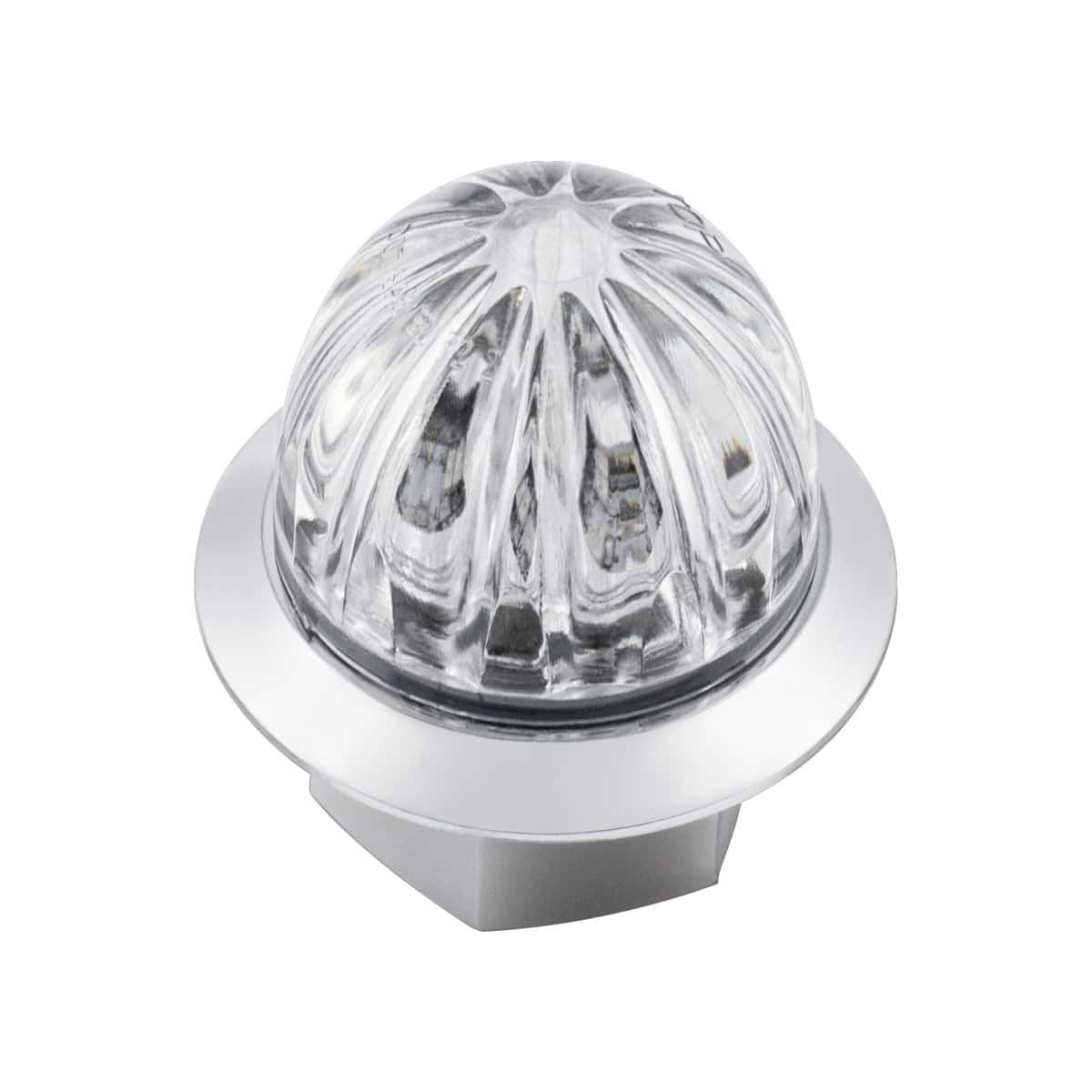

The clear polycarbonate lens maximizes LED brightness while maintaining a clean, polished look when unlit.
Ideal for:
-
Semi truck cab lighting
-
Trailer perimeter marker lights
-
Custom show trucks
-
Auxiliary accent lighting
-
Commercial heavy-duty vehicle applications
Primary amber LED supports compliant clearance use when installed properly. Secondary purple LED supports decorative or auxiliary setups.
Installation / Fitment / Technical Details
Mounting Requirements:
-
Requires 3/4″ diameter hole
-
Threaded stud with nylon mounting nut included
Electrical Specifications:
-
12V DC
-

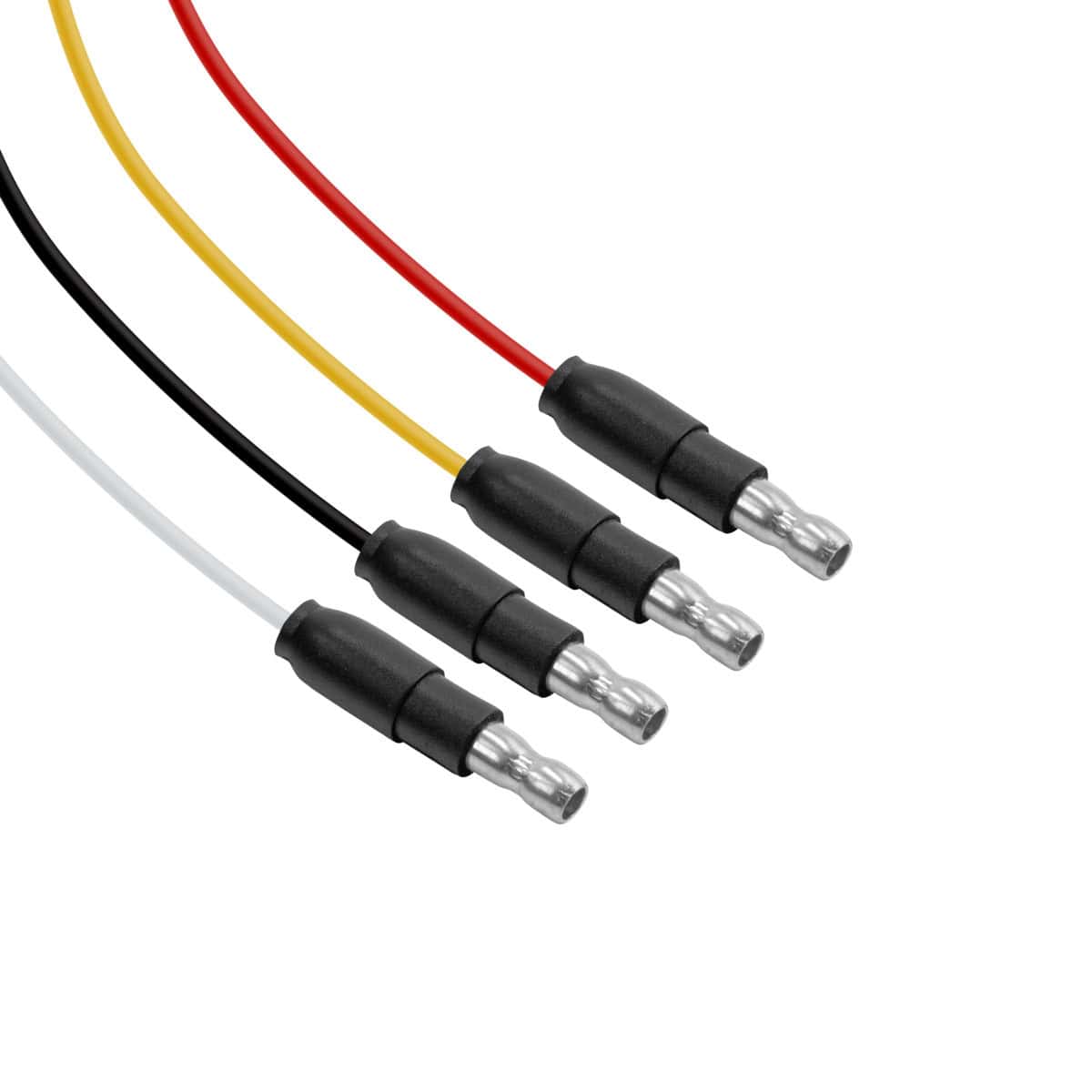

4-wire hookup with male bullet plugs
Wiring Color Code:
-
White = Ground (-)
-
Black = Primary Low (+)
-
Red = Primary High (+)
-
Yellow = Secondary (+)
This allows full control over both brightness levels and the purple override function.
Build Quality / Warranty
-
Injection-molded polycarbonate lens
-
Chrome plastic bezel
-
Epoxy-sealed internal electronics
-
Stud-mount installation system
-
Designed for vibration-heavy road use
This is a compact but professional-grade clearance light engineered for real-world trucking.
Warranty: 3-year manufacturer warranty.
What’s Included
-
(1) Double Fury 4 LED 1-1/8″ Mini Watermelon Light – Amber & Purple LED
-
Nylon mounting nut
-
Threaded mounting stud
Frequently Asked Questions
What does “Double Fury” mean?
Double Fury refers to the dual-color LED configuration with independent primary and secondary circuits. The secondary color overrides the primary when activated.
Is the purple LED street legal?
The purple LED is generally intended for auxiliary or off-road use only. The amber primary LED meets DOT/SAE FMVSS 108 standards for clearance lighting.
Does this require a 1-1/8″ mounting hole?
No. The lens measures 1-1/8″, but installation requires a 3/4″ mounting hole.
Is this light waterproof?
Yes. It is IP67 rated and features epoxy-sealed electronics for moisture protection.
Can I wire the purple LED to a separate switch?
Yes. The yellow wire allows independent control of the secondary LED.
Dual Color. Bold Presence. Built to Perform.
The Double Fury 4 LED 1-1/8″ Mini Watermelon Light – Amber & Purple delivers strong clearance visibility, flexible wiring control, and standout styling in one premium lighting solution. Ideal for drivers who want compliance, customization, and maximum visual impact.
