Product Overview

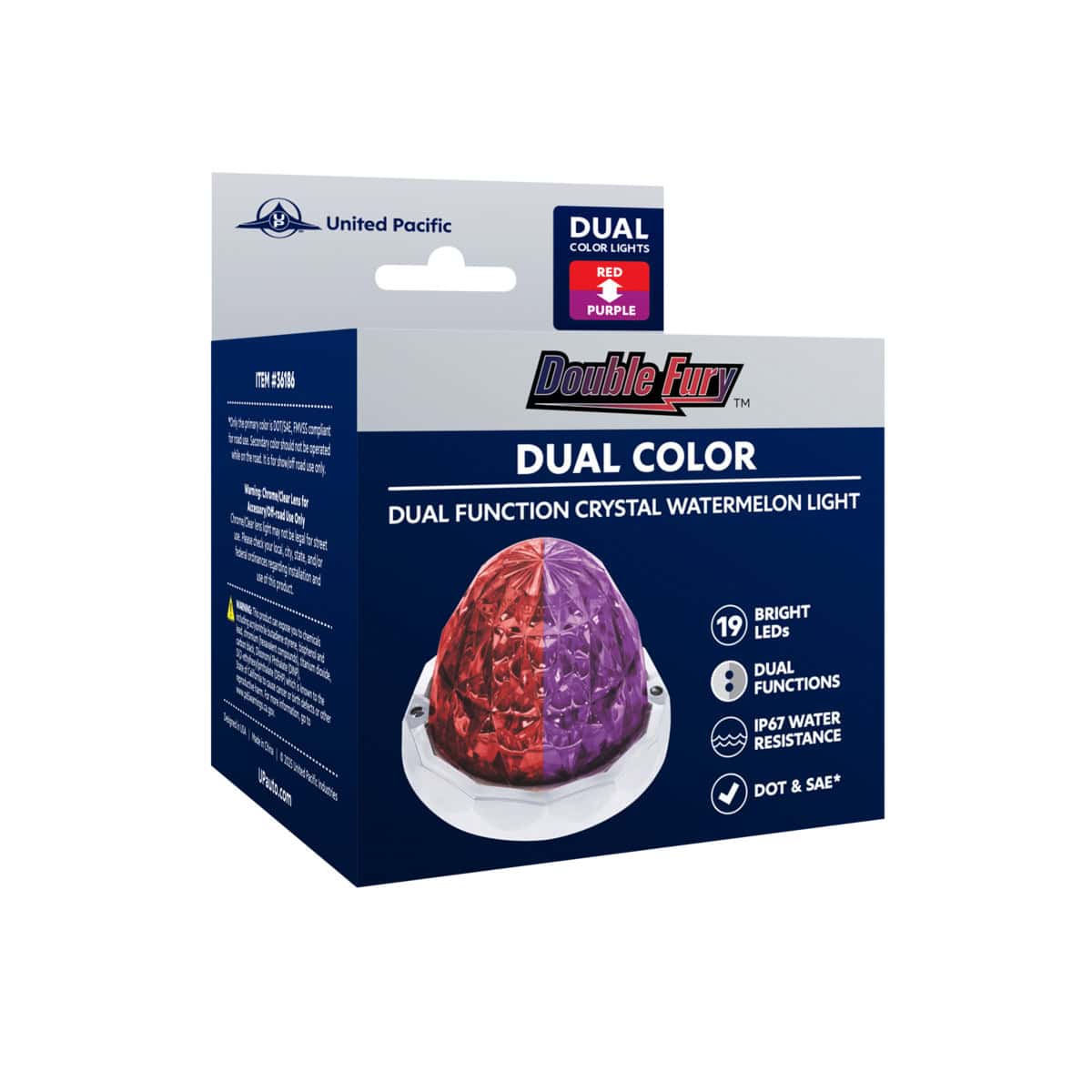

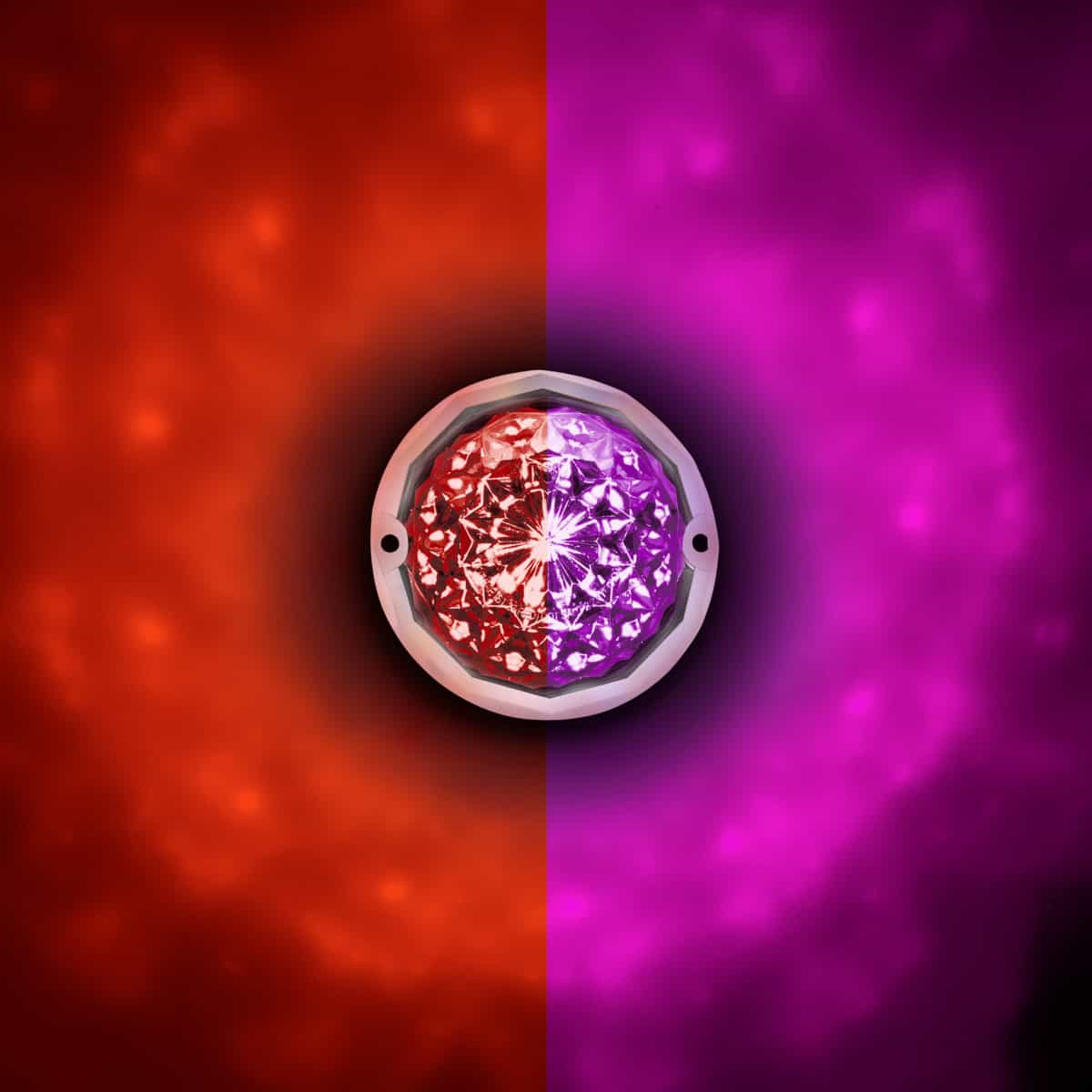

Watermelon lights bring classic truck styling to modern LED lighting systems. The Double Fury Crystal Watermelon Light Kit combines a clear crystal-style lens with 19 red and purple LEDs for distinctive dual-color illumination.
The primary red LEDs support low- and high-intensity operation, while the secondary purple LEDs provide an auxiliary lighting function. A faceted polycarbonate lens and chrome bezel complete the traditional watermelon-light appearance.
Ideal for:
- Semi trucks
- Trailers
- Tow trucks
- RVs
- Show trucks
- Custom vehicle builds
Key Features & Benefits
Red and Purple Dual-Color LEDs
The dual-color design combines primary red illumination with a secondary purple auxiliary function in one watermelon-style lamp.
Dual-Intensity Primary Function
Separate low- and high-intensity primary inputs allow the red LEDs to support multiple lighting functions when correctly wired.
19 Bright LEDs
Nineteen LEDs provide bright illumination through the clear crystal-style lens.
Crystal-Style Polycarbonate Lens
The faceted polycarbonate lens creates the recognizable crystal watermelon appearance while protecting the internal LEDs.
Fully Sealed Electronics
Epoxy-coated, fully sealed 12V electronics help resist moisture and corrosion in demanding vehicle environments.
IP67 Water Resistance
IP67-rated construction provides protection against dust and temporary water immersion under the conditions specified by the rating.
Complete Bezel Installation Kit
A chrome plastic bezel and foam gasket are included for a finished appearance and properly sealed installation.
Performance / Compatibility / Use-Case
- Voltage: 12V DC
- LED count: 19 LEDs
- Primary LED color: Red
- Secondary LED color: Purple
- Lens color: Clear
- Functions: Primary low, primary high, and secondary auxiliary
- Wiring: Four hardwired leads
- Connectors: 0.180-inch bullet connectors
- Water-resistance rating: IP67
- Compliance: DOT/SAE and FMVSS 108 for the applicable primary lighting function
- Secondary purple function: Auxiliary use only
Common uses include:
- Marker and clearance lighting
- Tail or signal functions, where permitted and correctly configured
- Auxiliary show-truck lighting
- Custom truck and trailer lighting
- RV and tow-truck lighting upgrades
Always confirm local lighting regulations before using the purple auxiliary function on public roads.
Installation / Fitment / Technical Details
This light uses four wire leads with 0.180-inch bullet connectors.
Wire Color Code
- White = Ground negative (-)
- Black = Primary low positive (+)
- Red = Primary high positive (+)
- Yellow = Secondary purple positive (+)
The included chrome bezel and foam gasket support secure mounting and help seal the installation surface. Confirm the mounting opening, available clearance, wiring configuration, and intended lighting function before installation.
Professional installation is recommended if you are unfamiliar with automotive electrical wiring.
Build Quality / Warranty
Constructed with:
- Clear polycarbonate crystal-style lens
- Chrome plastic bezel
- Foam mounting gasket
- Epoxy-coated electronics
- Fully sealed 12V electrical components
- Four pre-wired leads with bullet connectors
The sealed construction is designed to resist corrosion and moisture.
Warranty: 3-year manufacturer warranty.
What’s Included
- 1 × Double Fury Crystal Watermelon Light with red and purple LEDs
- 1 × Chrome Plastic Bezel
- 1 × Foam Gasket
- Pre-wired four-wire leads with 0.180-inch bullet connectors
Frequently Asked Questions About the Double Fury Watermelon Light
What colors does this watermelon light produce?
This light produces primary red illumination and secondary purple auxiliary illumination through a clear crystal-style lens.
What does the dual-function primary LED do?
The primary red LEDs have separate low- and high-intensity positive inputs. The exact vehicle function depends on how the lamp is wired and the application in which it is installed.
Can the red and purple functions be wired separately?
Yes. The black wire controls the primary low function, the red wire controls the primary high function, and the yellow wire powers the secondary purple function.
Is the purple lighting function approved for road use?
The purple LEDs are specified for auxiliary use only. Purple vehicle lighting may be restricted on public roads, so check the applicable provincial, state, and local regulations before use.
Is this watermelon light waterproof?
The light carries an IP67 water-resistance rating and features fully sealed, epoxy-coated electronics. Proper installation of the bezel and gasket is still important for protecting the mounting area and electrical connections.
What voltage does this light require?
This watermelon light is designed for 12V DC electrical systems.
Are the bezel and gasket included?
Yes. The kit includes a chrome plastic bezel and foam gasket.
