MORIMOTO XB LED GEN II · LF2-414
Modern optics. Made for your S550.
Three Bi-LED projectors sit behind a sculpted daytime signature that can run white or amber. The 2018–2023 Mustang Gen II pair includes turn-signal harnesses, selector extensions and keys to tailor the lighting modes.
- Left + rightOne complete headlight pair
- White or amberSelect with supplied keys
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics
Three Bi-LED projectors per housing supply low and high beams. The unchanged manufacturer beam comparison shows the pictured OEM and Gen II configurations.
Choose the signature
Use the included keys to select white or amber DRLs and sequential or fade-off amber turn signals. Selector extensions can be routed to an accessible location; switch modes with the vehicle and lights off.
Amber turn signals
The supplied turn-signal harness connects the factory headlight and turn-signal plugs. The signal pattern is selected with the same colour-coded key used for the DRL setting.

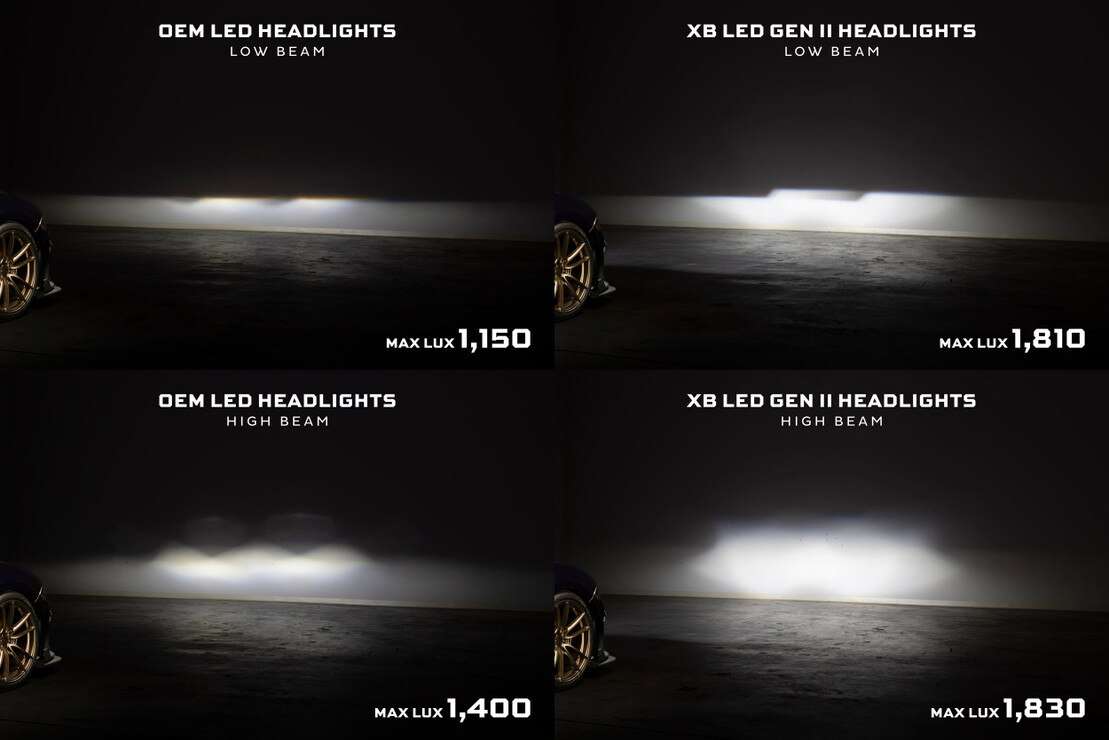

ORIGINAL MANUFACTURER IMAGERY
Compare the beam patterns
These unchanged supplier photographs show the pictured configurations in Morimoto’s test setup. Figures are manufacturer measurements, not independent BTS test results or guaranteed performance on every vehicle.

Final beam aim, ride height, vehicle load and test distance affect the result. These comparisons do not establish Supercharged-driver compatibility.

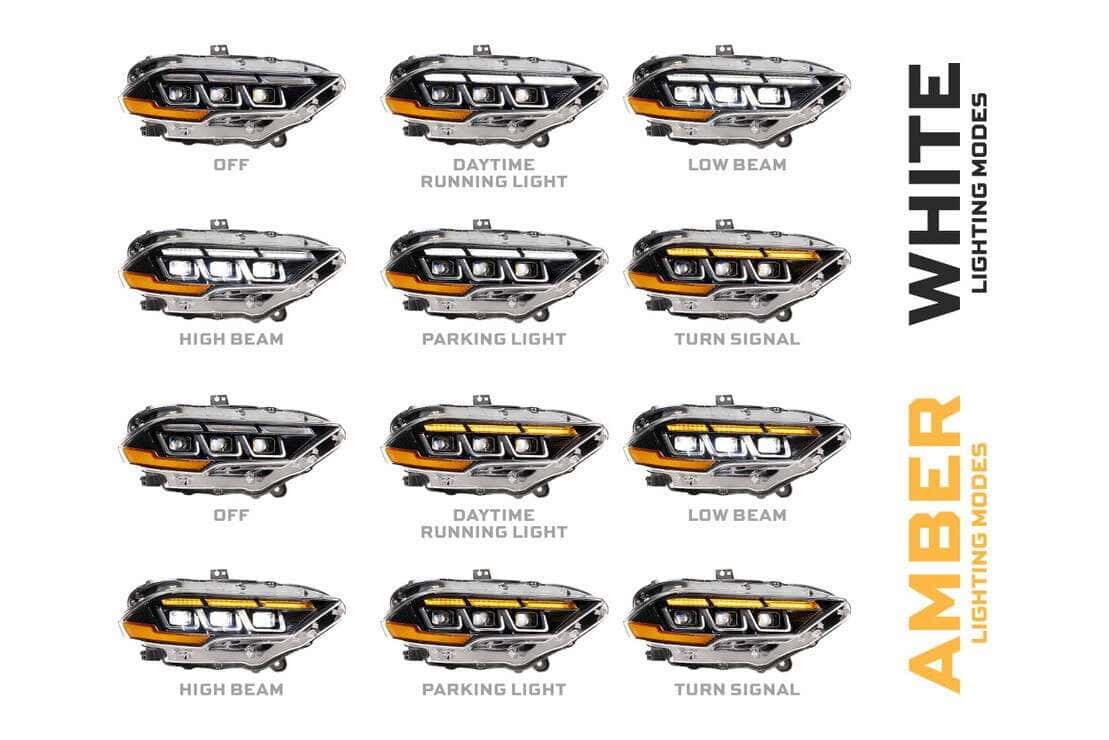

YOUR LIGHTING SIGNATURE
See the available lighting modes
Use the included keys to select white or amber DRLs and sequential or fade-off amber turn signals. Selector extensions can be routed to an accessible location; switch modes with the vehicle and lights off.


MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Vehicle | 2018–2023 Ford Mustang |
| Excluded trims | GT350, GT350R and GT500 |
| Market | US-model fitment; other-country compatibility can vary |
| Alternative Shelby fitment | Check LF2-410 only for its explicitly listed GT350/GT350R and GT500 model years |
| Traffic pattern | Left-hand-drive US application |
| Exact part | LF2-414 |
| Package | Complete driver- and passenger-side headlight assemblies |

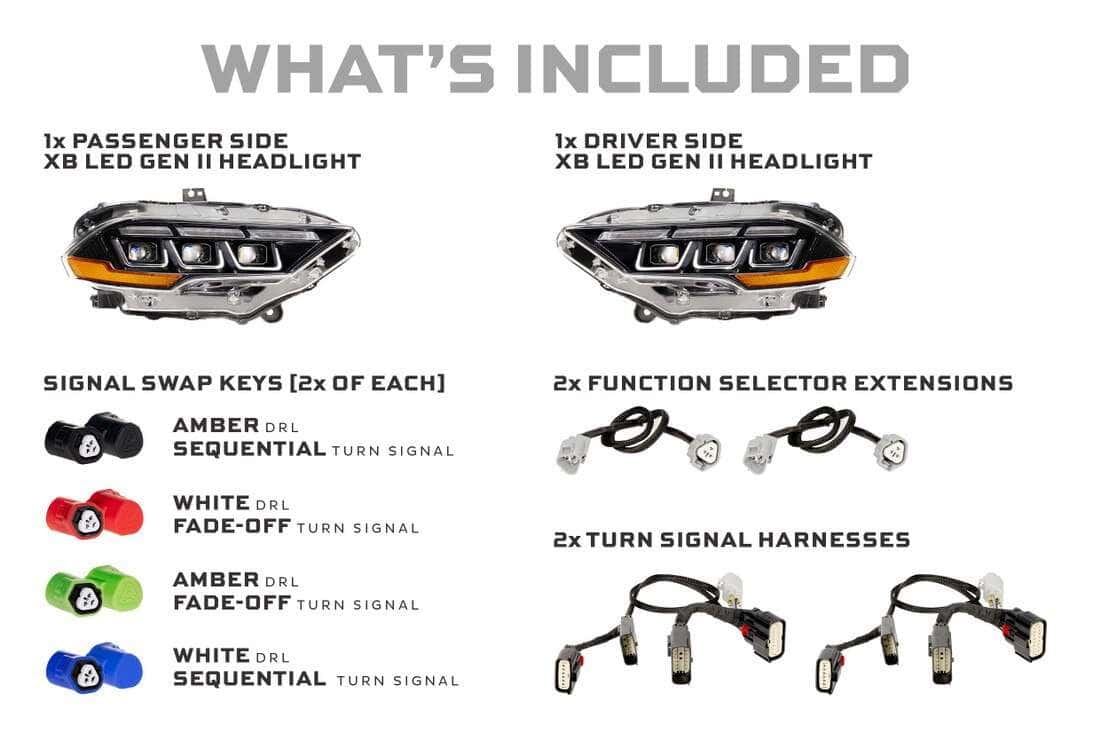

THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: One Pair 18-23 Ford Mustang XB LED Gen II (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)
- Accessories: 2x Turn Signal Harnesses, 2x Function Selector Extensions
- Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
Two turn-signal harnesses, two mode-selector extensions and four pairs of keys accompany the pair. Other vehicle modifications visible in the photographs are separate.
Other lighting, bodywork and accessories in the vehicle photographs are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The exact LF2-414 guide removes the bumper cover and uses the supplied turn-signal harnesses between the original plugs and new assemblies. Choose matching mode keys and route the two selector extensions to an accessible location. Reuse the factory mounting hardware, reconnect the front lighting, test all functions and finish the low-beam aim. The guide demonstrates a 2019 Mustang GT and does not expand fitment to excluded Shelby models.
Download the official LF2-414 installation guide
Follow the instructions supplied with the exact set and the actual vehicle’s wiring information. Other aftermarket exterior lighting can affect turn-signal behaviour. Test the complete system before final reassembly.

EXACT PART · LF2-414
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD |
| Input | Ford multi-pin |
| DRL | White or amber (Configurable) |
| Turn Signal | Sequential or fade-off, selected with supplied keys; exact installation guide |
| Functions | Low beam, high beam, parking light, DRL, turn signal |
| Interior Color | Gloss black and titanium |
| Material | ABS plastic (housing), UV-resistant polycarbonate (lens) |
| Optic | Triple Bi-LED projectors |
| Lens Coating | Hardened anti-UV protection |
Original-equipment replacement references
JR3Z13008B, JR3Z13008A, JR3Z13008C, JR3Z-13008-B, , JR3Z-13008-D, JR3Z-13008-F, JR3Z-13008-E
Use these references with the exact model-year and equipment checks above, not as a standalone compatibility decision.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
An official supplier-linked overview and installation video for this model. Use the current written part-specific fitment and package details above when the video shows earlier configurations.
Morimoto XB Gen II LED Headlights for 2018 – 2023 Ford Mustang S550 | Overview + Install

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB LED Gen II questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
2018–2023 Ford Mustang, excluding GT350 / GT350R / GT500. Check the original equipment and market notes above before ordering.
How do I choose the daytime lighting?
Use the included keys to select white or amber DRLs and sequential or fade-off amber turn signals. Selector extensions can be routed to an accessible location; switch modes with the vehicle and lights off.
How do the turn signals work?
The supplied turn-signal harness connects the factory headlight and turn-signal plugs. The signal pattern is selected with the same colour-coded key used for the DRL setting.
Can I add Supercharged drivers?
No exact Supercharged-driver compatibility is confirmed for this LF2-414 selection. Do not fit a driver intended for a different Evo or XB assembly. This page describes the standard supplied headlight package.
Should the headlights be aimed after installation?
Yes. Check all functions and adjust the low-beam cutoff on the actual vehicle. Suspension changes, load and ride height can affect the aim.
What warranty applies?
The exact supplier record lists a 5-year limited manufacturer warranty. Coverage and exclusions follow the manufacturer’s terms; retain proof of purchase and contact BTS for assistance.
Will these fit a GT350, GT350R or GT500?
No. Those trims are excluded from LF2-414. Check the separate LF2-410 listing only for its specified Shelby years; the two housings are not a universal interchange.
What are the extension harnesses for?
They let you place the mode-selector connection somewhere accessible. Switch keys only with the vehicle and headlights off.

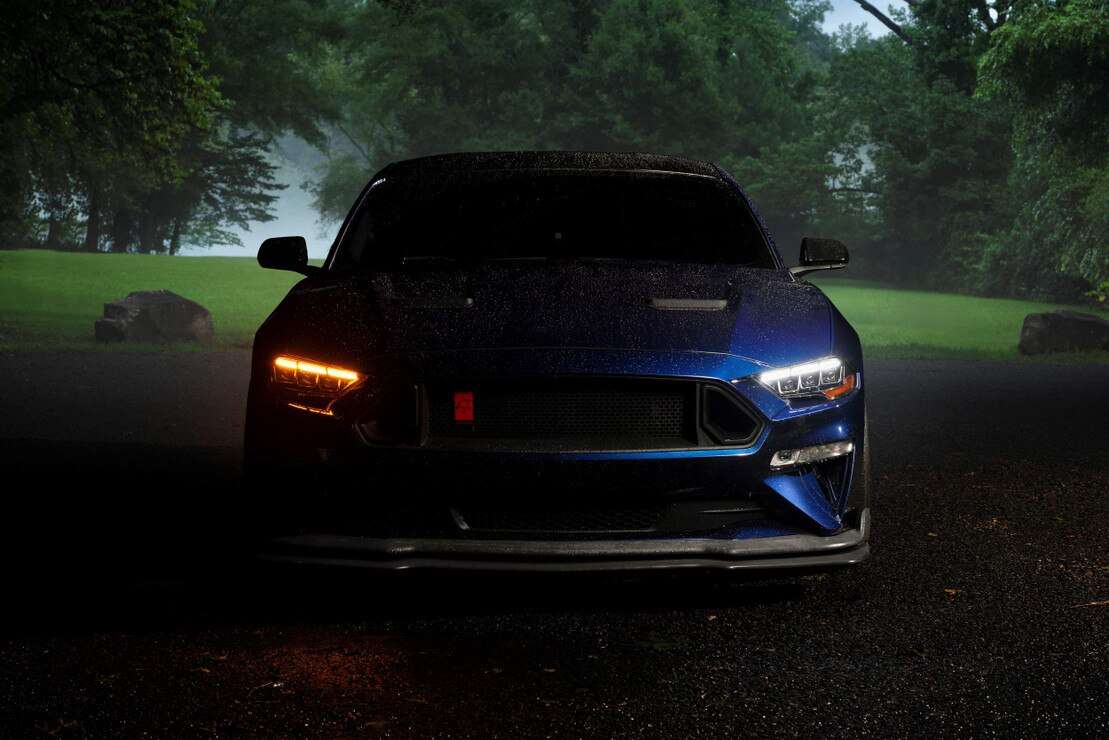

THE FINISHED LOOK
See the design on the vehicle
Original supplier photography; other vehicle equipment is separate.
