United Pacific · 31205 / 31206
Halogen beams with LED signal and position lighting

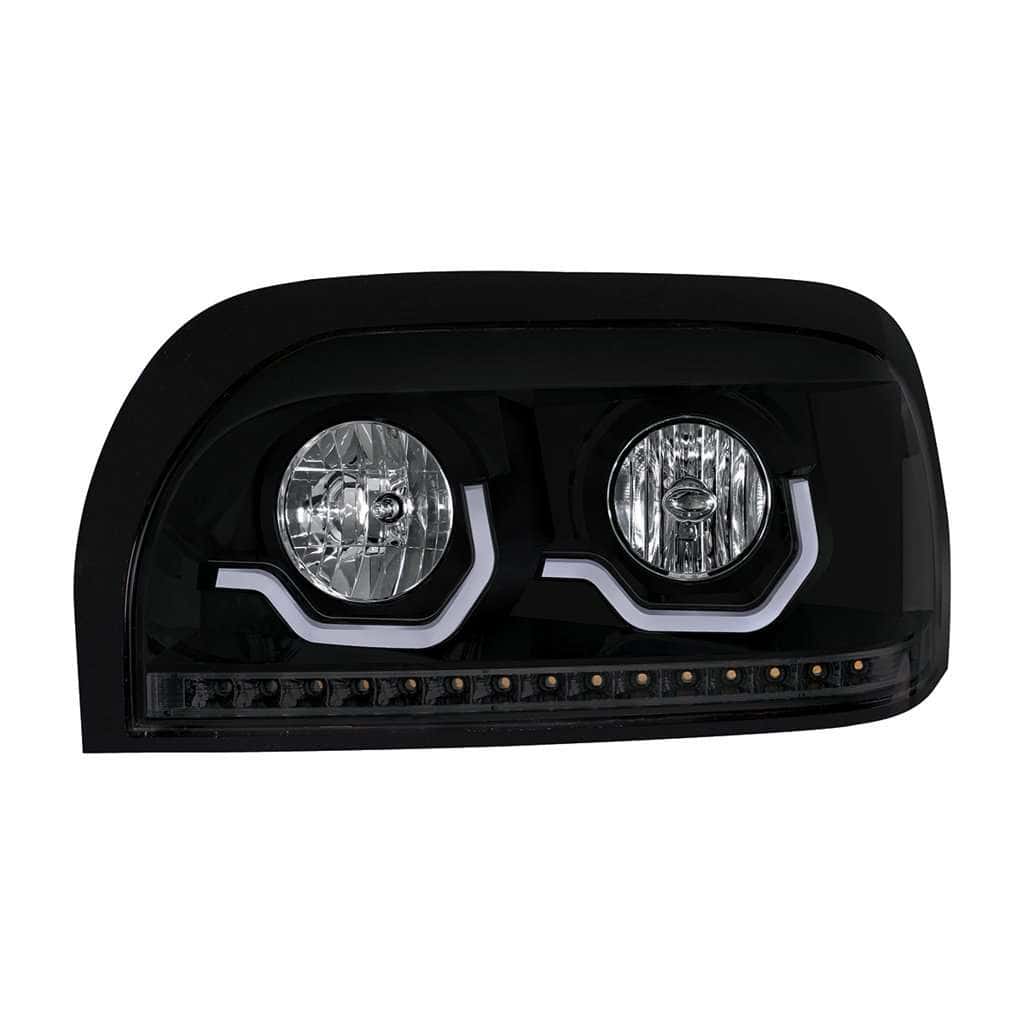

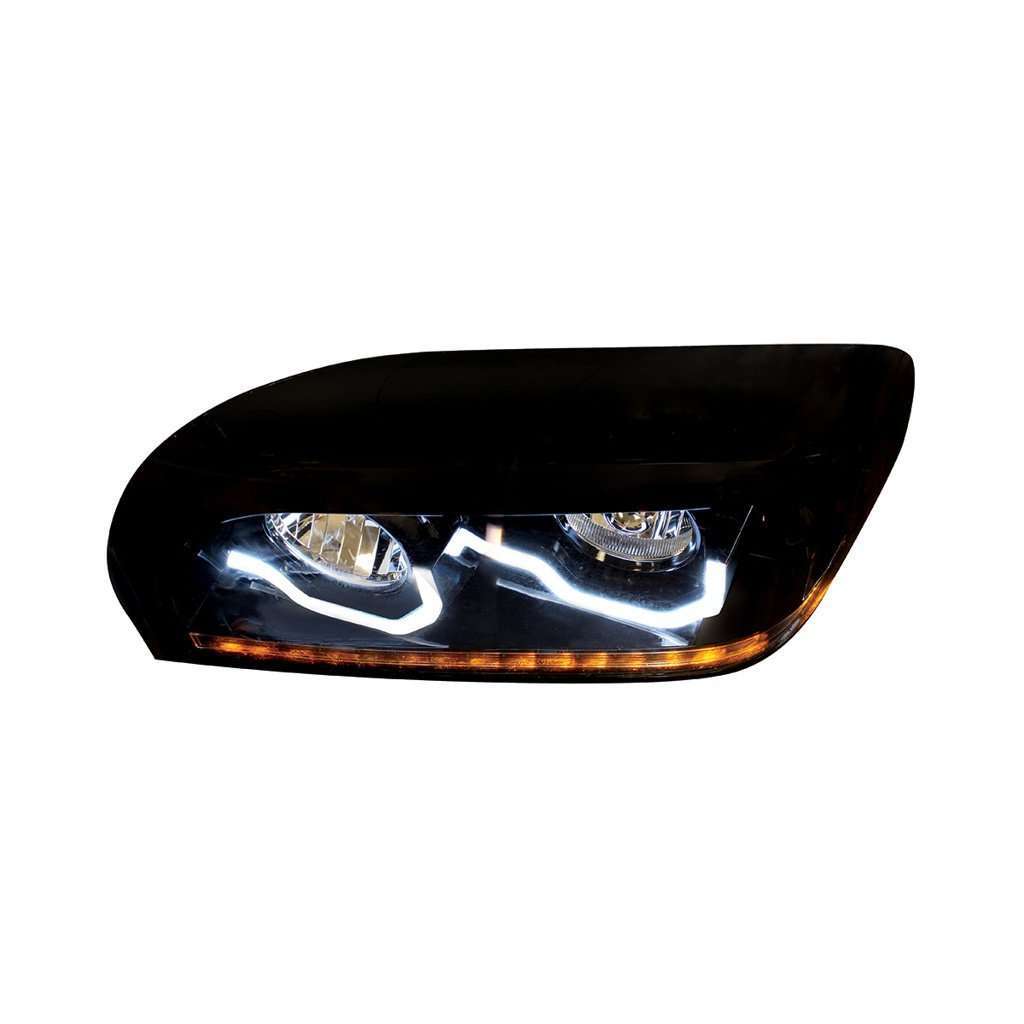

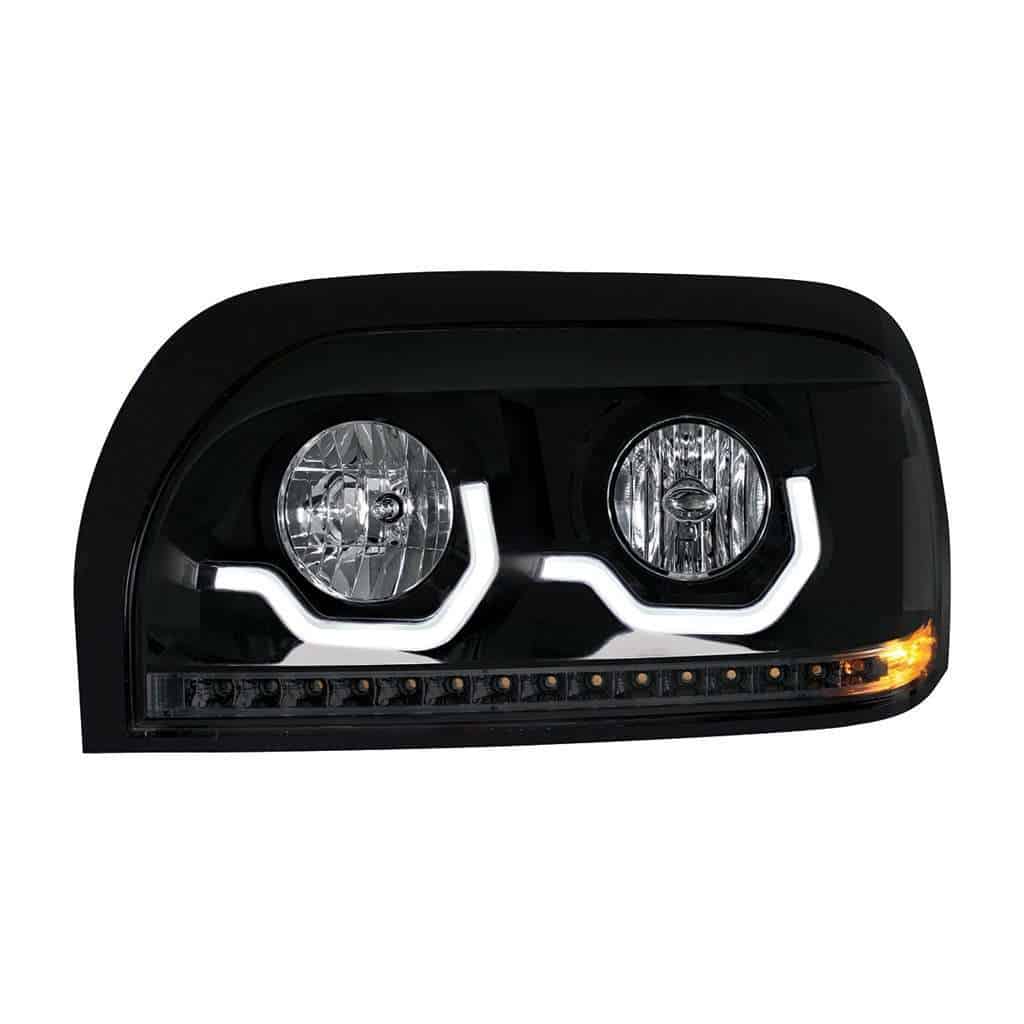

This black Century assembly combines replaceable halogen main beams with an amber LED turn signal and white LED position-light bar. It replaces one complete front headlight assembly.
Halogen main beams
H7 low beam and 9005 high beam are separate from the LED accent functions.
LED accents
An amber LED turn signal and white position bar update the lamp appearance.
Keep the factory harness
Retain the original headlight wiring harness for installation.

Fitment & selection
Match the original headlight
- Freightliner Century: 1996–2010
Match the original assembly and connector, and retain the factory harness.
| Driver | 31205 · one headlight assembly |
|---|---|
| Passenger | 31206 · one headlight assembly |
Installation & aiming
Do not discard the factory headlight harness. Use the OE connection and the separate low/high beam adjusters shown in the exact-family guide, then check installed aim.
Lighting details
Specifications
| Low beam | H7 · 55W · 12V DC |
|---|---|
| High beam | 9005 · 60W · 12V DC |
| Accent lighting | Amber LED turn signal · white LED position bar |
| Finish | Black Inner Housing |
| Package | One headlight assembly for the selected side |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Are the main beams LED?
No. The main beams use the bulb types listed above. Any LED bars or signal lights are separate functions.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for this headlight design. Keep your purchase information and contact BTS Lighting for product support.
