MORIMOTO XB LED · LF545
Stacked optics. A sharper Yukon signature.
A complete headlight pair for the 2015–2020 GMC Yukon / Yukon XL. Full LED low and high beams, white daytime running lights and amber turn signals replace the original headlight assemblies as a matched left/right set.
- Left + rightOne complete headlight pair
- White DRLsAmber sequential or standard signals
- Kuria Bi-LEDIntegrated low/high-beam optics

DESIGNED AS A COMPLETE SYSTEM
Optics, signature and fitment in one pair
Purpose-built optics

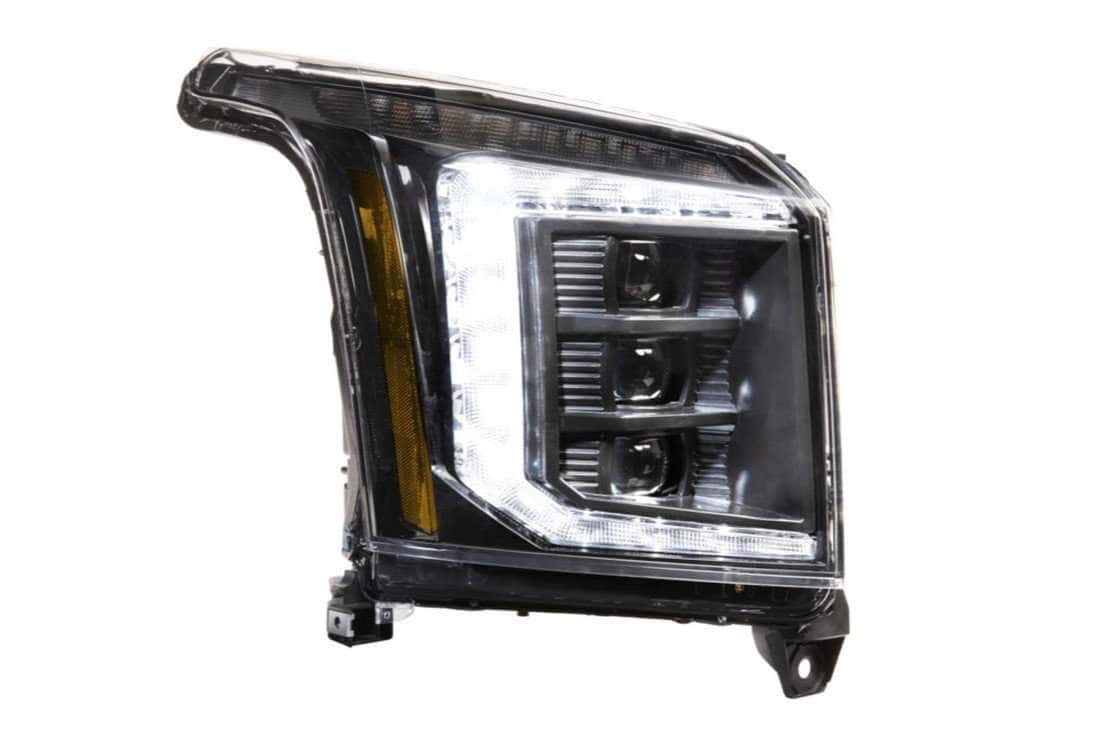

Three stacked Kuria Bi-LED projectors in each housing provide the full LED low- and high-beam design. Integrated adjusters let the installer set the beam aim for the vehicle.
A clear daytime signature
The white DRL outlines the housing, while an amber turn signal adds the signalling function. Sequential and standard flashing modes are available; follow the exact wiring instructions.
Aim completes the installation
Verify beam alignment after fitting the lights. A suspension lift, heavy load or incorrect adjustment can change where light lands, even when the housings use original mounting points.

LIGHTING THAT CHANGES WITH ITS FUNCTION
White DRLs. Amber signals.
White DRLs give the headlight its daytime outline. Amber turn signals can run sequentially or in standard flashing mode.
The white DRL dims when the parking lights or low beams are switched on. The projectors add a dual-intensity startup sequence when the DRL activates.
The lamps shown with amber strips are demonstrating turn signals; this is a fixed white-DRL version.

BEFORE YOU ORDER
Match the year, model and original lights
| Check | This exact application |
|---|---|
| Vehicle | 2015–2020 GMC Yukon / Yukon XL |
| Traffic pattern | Left-hand-drive vehicles, for right-hand traffic |
| Original equipment | Match the listed original lamps and connectors |
Morimoto developed and tested these housings on US-spec vehicles. Canadian-market equipment can differ; send BTS your year, model, original lamp type and connector photos if you are unsure. A matching connector alone does not establish fitment.
THE COMPLETE LEFT/RIGHT SET
What is supplied

- Headlights: 2x (One Pair) 15-20 Yukon XB LED Headlights
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
Confirm the original lamp equipment, connectors and included harness before installation. Route and secure the DRL fuse tap according to the instructions supplied with the exact kit, verify all lighting functions and adjust aim.
Factory mounting points and compatible connectors do not remove the need for access work, careful wiring and a final aim check. Secure the harness away from heat, sharp edges and moving parts.
Need the exact LF545 instructions before ordering? Ask BTS for the current Yukon guide. Use the Yukon overview below for product context; a Tahoe manual is not a substitute.

EXACT PART · LF545
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | GM Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Bezel Color | Gloss Black |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
84155709, 23342009, 23387147, 23445461, 23342010, 23387148, 23445462, 23217058, 23240253, 23244333, 23288541, 23342010, 23355857, 23387148, 23445462, 23490012
Use these as a cross-check alongside the vehicle and original-equipment requirements above.
Morimoto identifies the supplied headlight configuration as meeting the stated DOT/SAE requirements when installed and aimed correctly. This does not establish approval for unverified drivers, altered wiring or a different vehicle application.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Supplier-linked TheRetrofitSource overview for this headlight family. The exact LF545 fitment and package notes on this page govern your selection.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB headlight questions
Is the price for one light or both sides?
One order supplies the complete left/right headlight pair with the listed installation wiring.
Which vehicle does this exact part fit?
2015–2020 GMC Yukon / Yukon XL. Verify original equipment and market specification before ordering.
What colour are the daytime running lights?
This exact LF545 version uses white DRLs. The amber turn signal is a separate lighting function.
Can the turn signals flash normally?
Yes. Morimoto identifies sequential and standard flashing modes. Configure both sides consistently using the exact instructions.
Why do the white DRLs dim with the main lights?
The manufacturer specifies reduced DRL intensity when parking lights or low beams are on. This is part of the intended lighting behaviour.
Does this replace bulbs or the whole headlight?
These are complete assemblies, with integrated LED optics. They replace the original left and right headlight housings, rather than fitting as bulbs inside them.
Are Supercharged drivers or heated lenses included?
No. Neither a heated-lens feature nor a compatible Supercharged add-on has been established for this exact XB part. Do not assume newer Evo accessories or features apply.
What does LHD mean?
LHD means left-hand-drive traffic-pattern specification for vehicles used on the right-hand side of the road. It does not mean that the set includes only the left headlight.
What should be checked after installation?
Test low beam, high beam, daytime running lights and both turn signals. Secure the wiring and verify beam aim. A lift or changed vehicle load can require further adjustment.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply; retain proof of purchase and contact BTS for a suspected warranty issue.
THE FINISHED LOOK

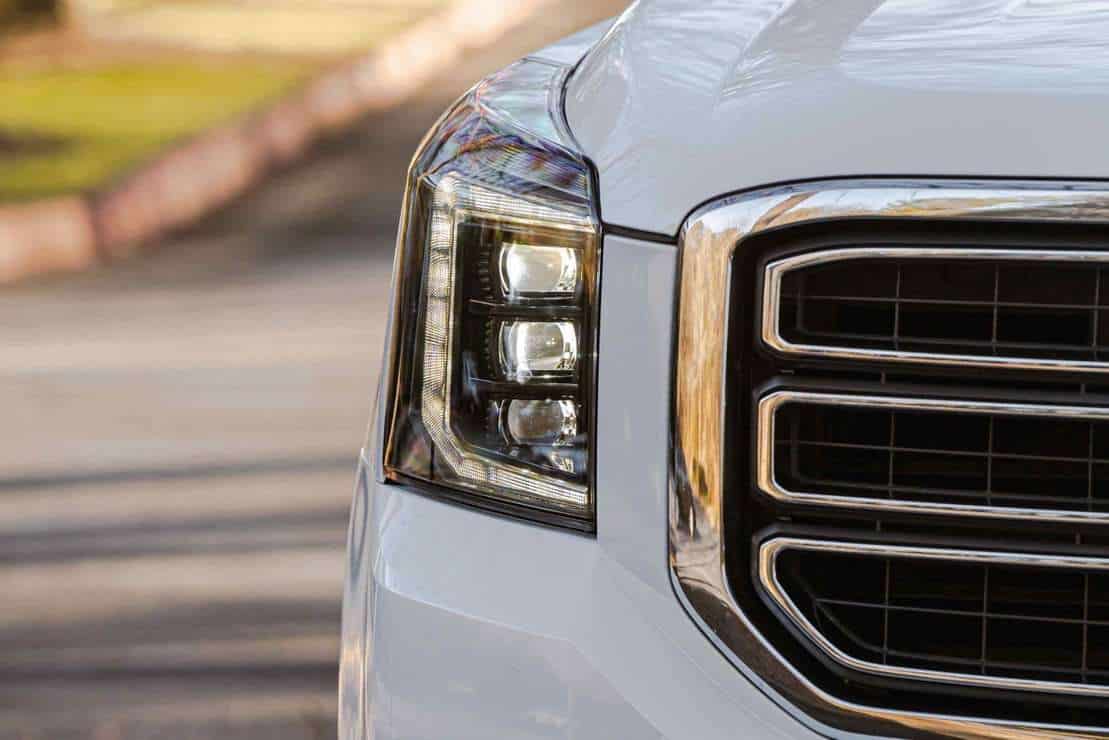

See it on the vehicle
Other lights, grilles, wheels and vehicle accessories shown in manufacturer photography are not included with this headlight pair.
