JW Speaker Model 234 Heated LED Tail Light — 4″ Round Stop/Tail/Turn Built for Every Season
Stay visible and compliant no matter the weather with the JW Speaker Model 234 Heated LED Tail Light — the industry’s first 4″ round LED tail light equipped with SmartHeat® lens technology. Designed to handle everything from sub-zero conditions to power wash abuse, this rugged red stop/tail/turn light delivers unmatched visibility, durability, and compliance for heavy-duty trucks, industrial vehicles, and municipal fleets.
With its drop-in design, multi-voltage capability, and sealed IP69K construction, the Model 234 is a street-legal lighting upgrade that works as hard as your crew — all year long.
🔧 Features & Benefits
SmartHeat® Heated Lens for Year-Round Visibility

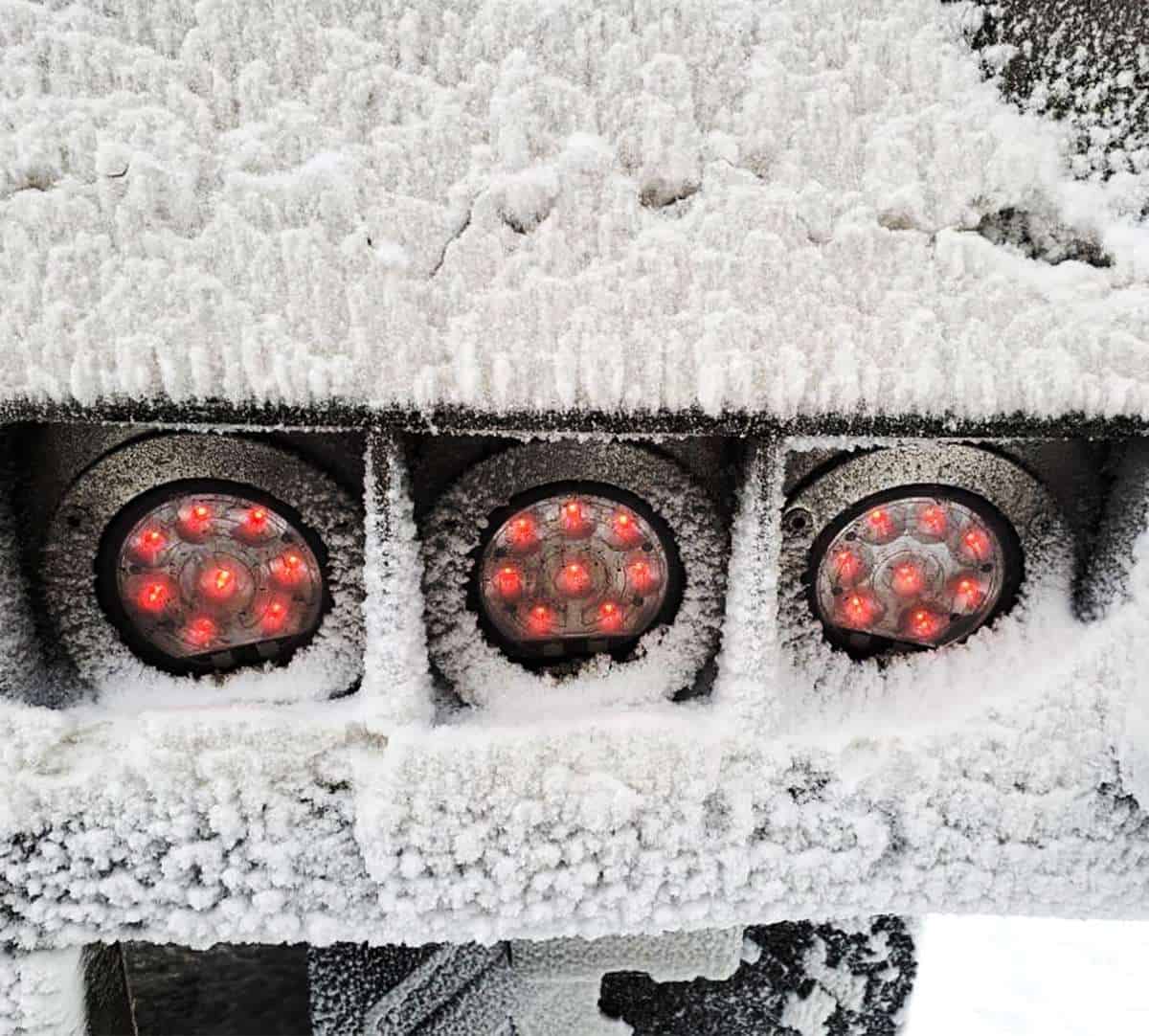

When temperatures drop, SmartHeat® activates to melt away ice and snow automatically — keeping your tail light lens clear for safe signaling and reduced maintenance.
Street Legal Across North America
Fully DOT, Transport Canada, and Military compliant, the Model 234 meets FMVSS 108 regulations for legal road use. Compliance is laser-etched directly onto the lens for proof of legitimacy.
Drop-In Replacement for 4″ Round Tail Lights

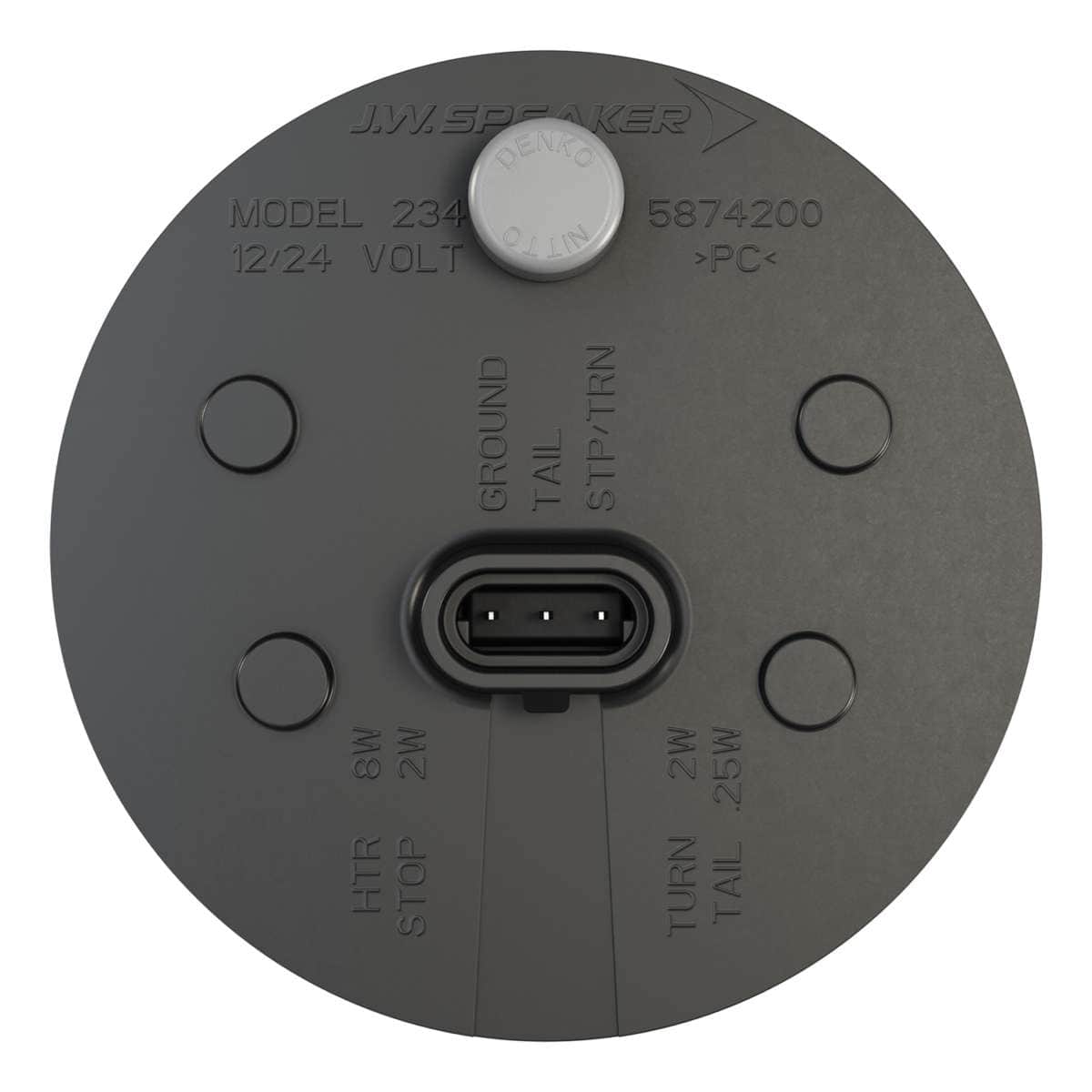

Designed to fit standard rubber mounting grommets with 3-pin Packard connectors. Easily replaces outdated halogen lights with no custom modification required.
Built to Withstand 10g of Vibration
Ideal for rough roads, off-road fleets, and construction zones. The polycarbonate housing and lens resist shock, cracking, and corrosion from environmental wear.
Available in Heated & Non-Heated Versions
Choose the heated model for winter-heavy climates, or go non-heated for general-duty use. Strobe and color models available separately (require 6-pin harness).
Optional Flash/Strobe Patterns in Other Versions
Other Model 234 variants offer programmable 2, 4, and 6-flash strobe patterns and are available in Amber, Blue, Green, Red, and Clear lens options — ideal for visibility-critical fleets.
🚛 Applications & Compatibility
A universal fit for fleets and vehicles across multiple industries:
-
Heavy-Duty & Vocational Trucks
-
Municipal Snow & Ice Fleets
-
Industrial & Construction Equipment
-
Agricultural Machinery
-
Utility & Specialty Vehicles
Whether you’re navigating winter roads or job sites, the Model 234 ensures your signals are seen loud and clear.
⚙️ Technical Specifications
-
Shape: Round
-
Lens Material: Clear Polycarbonate
-
Lens Color: Red (with Red Bezel)
-
Housing Material: Polycarbonate (Black)
-
Mounting Type: Grommet
-
Connector Type: Bare Leads (Optional Packard 3-pin available)
-
Input Voltage: 12–24V DC
-
Operating Voltage: 9–32V DC
-
Heater Activation: Black wire must be connected for SmartHeat® to function
-
IP Rating: IP69K – sealed against water, dust, and high-pressure washing
-
Shock Resistance: Rated to withstand up to 10g of vibration
-
Compliance: DOT, Transport Canada, Military Standards
-
Flash/Strobe Functionality: Not available in standard red version (requires flash/color variant and 6-pin harness)
🔦 Why Choose the JW Speaker Model 234 Heated Tail Light?
-
Industry-first heated LED tail light for 4″ round applications
-
Street legal in U.S. and Canada, FMVSS 108 compliant
-
Drop-in ready with minimal installation time
-
Durable enough for off-road, industrial, and municipal use
-
Available in multiple color, strobe, and connector configurations
Don’t let ice, snow, or grime compromise your signal safety. The JW Speaker Model 234 Heated Red LED Tail Light gives you year-round performance in a compact, easy-to-install form — built for fleets that demand dependability.
Signal with confidence. Stay seen. Choose JW Speaker.
