JW Speaker Model 529 Big Stripe Red LED Warning Light — Define Boundaries, Enhance Safety
When safety boundaries need to be seen — and respected — the JW Speaker Model 529 Big Stripe Red LED Warning Light makes sure there’s no guessing. This 19″ long, heavy-duty light projects a bold, highly visible red safety stripe that helps define no-go zones around machinery, vehicles, and hazardous areas. Designed specifically for the extreme demands of mining, construction, agriculture, and industrial job sites, the Model 529 sets a new standard in perimeter safety.
With a rugged aluminum housing, IP69K durability, and optional flashing mode, this is your go-to solution for improving awareness and reducing risk around moving equipment and operational zones.
🔧 Features & Benefits

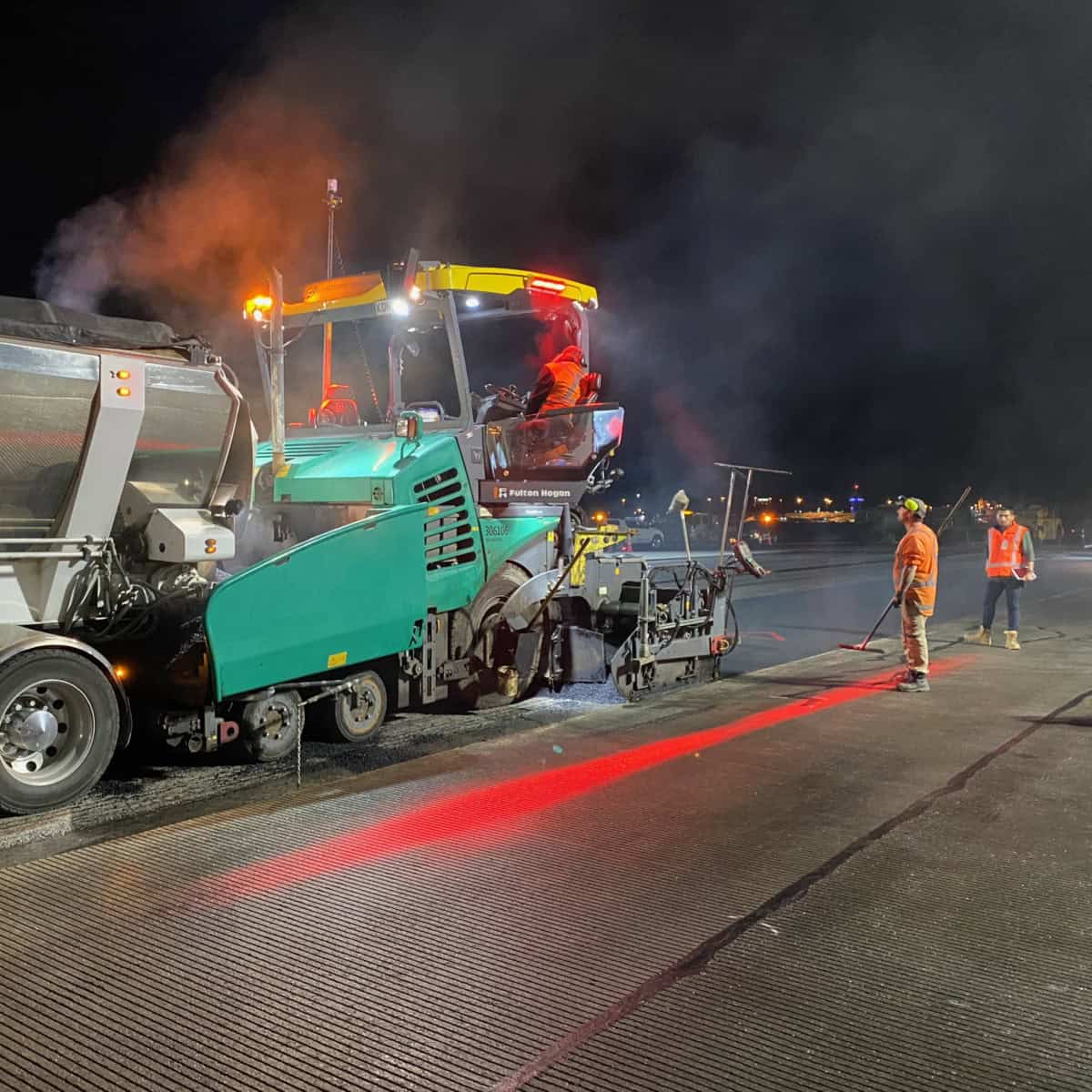

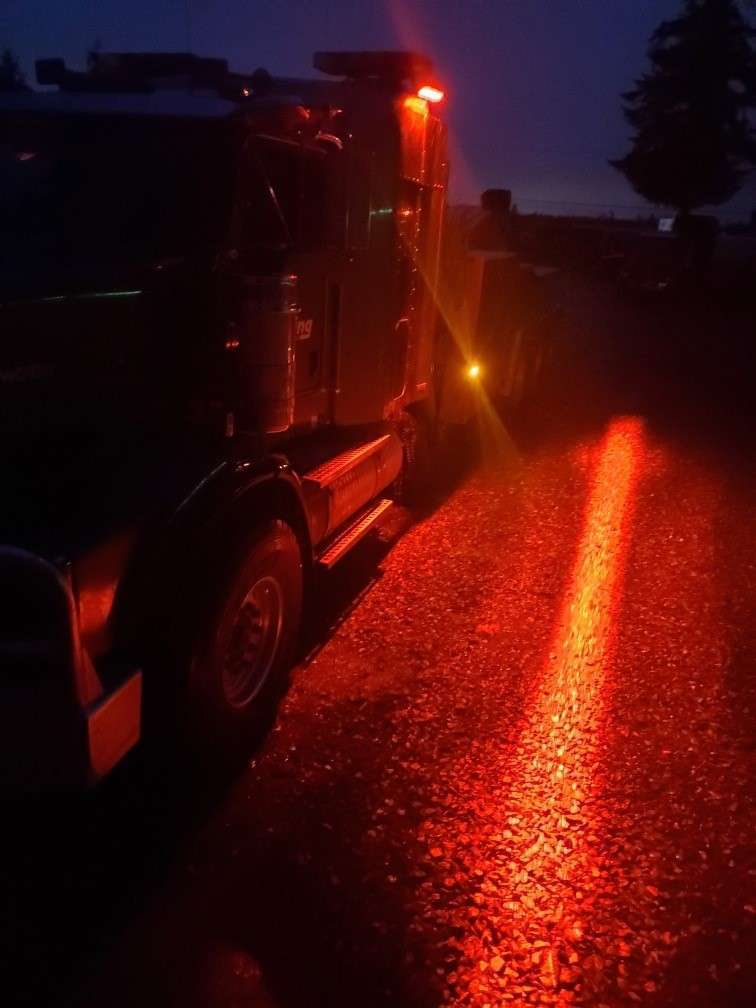

Large Red Stripe Beam Creates a Visible “No-Go” Zone
Projects a bright, wide red stripe on the ground to visually indicate hazardous zones around vehicles or work equipment — helping prevent accidents and improve site awareness.
Flashing or Constant Beam Operation
Choose between a constant beam or an optional flashing mode (1Hz, 50% duty cycle) for added visual impact in noisy or visually cluttered environments — no synchronization required.
Durable Construction for Extreme Conditions
Engineered with a die-cast aluminum housing, polycarbonate lens, and stainless-steel mounting bracket, the Model 529 thrives in high-vibration, weather-exposed job sites.
Wide Voltage Range & Flexible Mounting
Operates on 12–24V DC (9–33V range) and mounts easily to vehicles or stationary structures using the included pedestal bracket and M8-1.25 bolt.
Rated for Harsh Environments
Meets IP67, IP69K, and ECE Reg. 10 standards — fully sealed against dust, water ingress, and high-pressure washdowns.
Solid-State LED Optics for Longevity
No moving parts. Reliable performance. Designed for long service life in the most demanding applications.

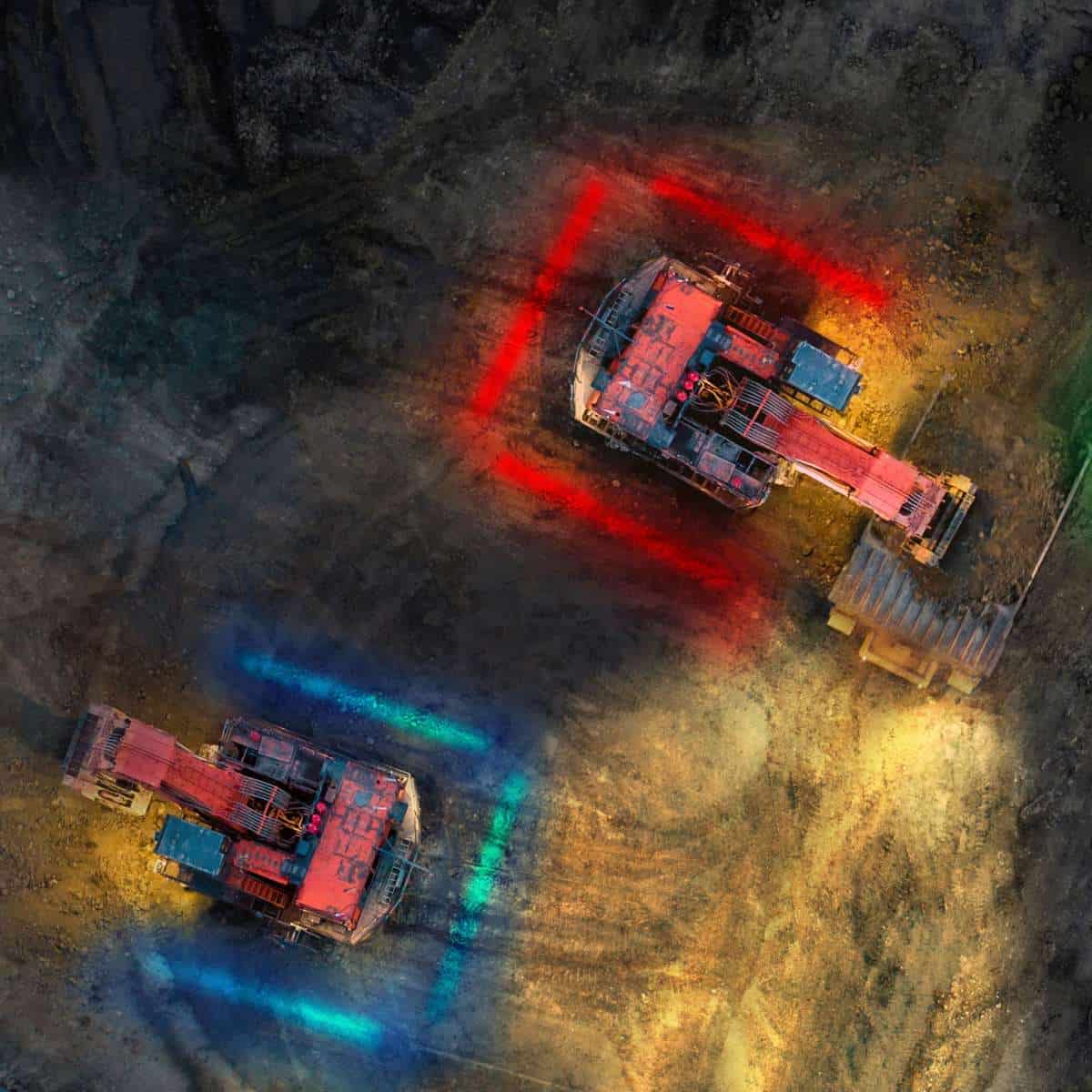

Available in Red, Blue, or Green Beam Colors
Choose the stripe color that best fits your workplace safety standards and visibility needs.
🏗️ Applications & Vehicle Compatibility
The Model 529 Big Stripe Red is ideal for:
-
Construction Equipment – Loaders, excavators, graders
-
Mining Operations – Haul trucks, drills, cranes
-
Industrial Vehicles & Material Handling – Forklifts, utility vehicles, factory floor boundaries
-
Agricultural Equipment – Tractors, sprayers, harvesters
-
Railroad & Transit Fleets – Maintenance and service zones
-
Truck & Bus Safety Perimeters – Prevent unauthorized approach
Mount it on equipment, fleet vehicles, or fixed infrastructure to establish safe working distances for pedestrians and operators alike.
⚙️ Technical Specifications
-

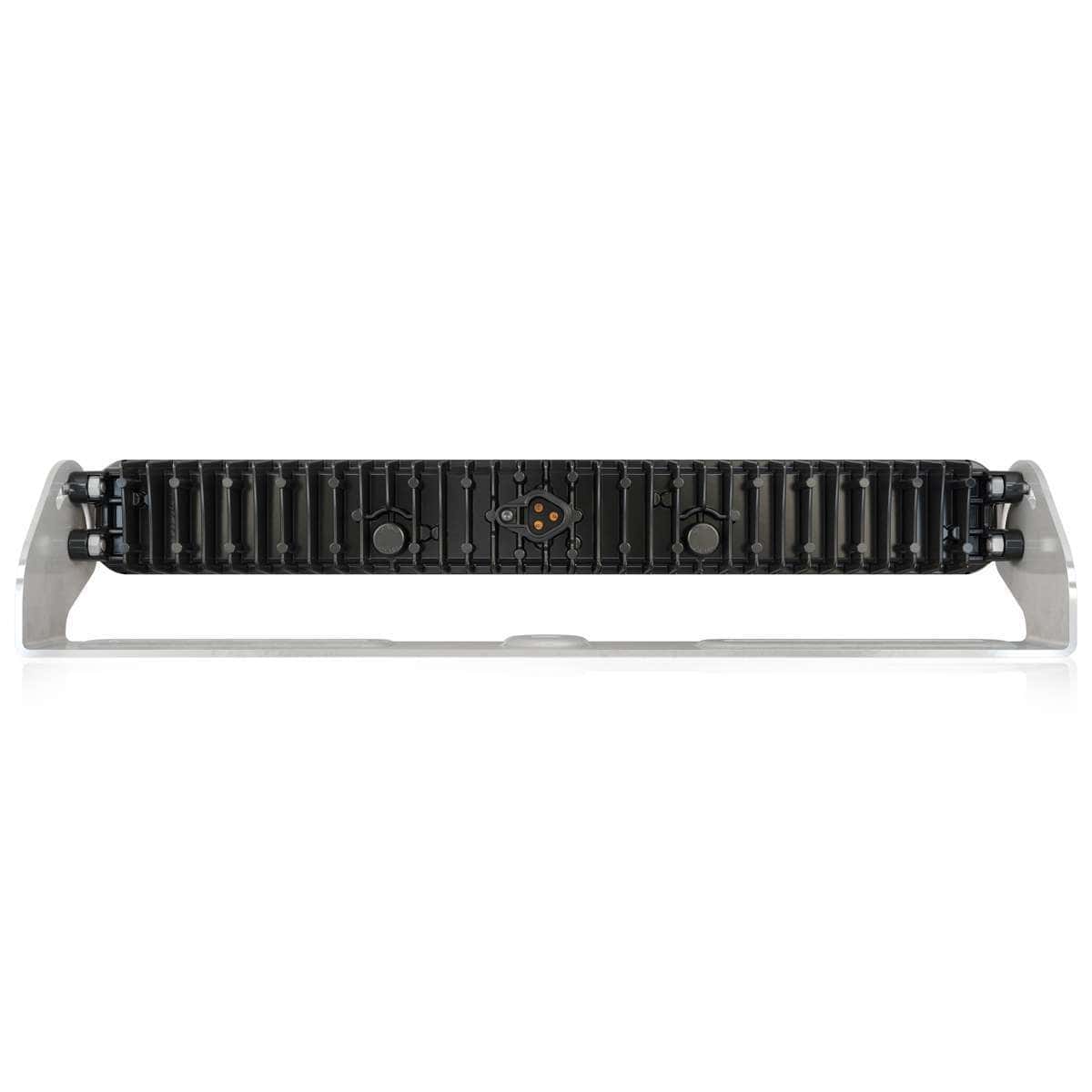

Shape: Rectangular
-
Dimensions: 2.34″ H × 18.64″ W × 2.15″ D
-
Lens Material: Clear Polycarbonate
-
Housing: Aluminum (Black Finish)
-
Mount Type: Pedestal
-
Mounting Hardware: (1x) M8-1.25 × 25mm SS Carriage Bolt
-
Input Voltage: 12–24V DC
-
Operating Voltage: 9–33V DC
-
Connector: 3-pin Deutsch
-
Effective Lumens: 886
-
Raw Lumens: 3,350
-
Candela Output: 8,530
-
Beam Pattern:
-
Constant Stripe (Keep-Out Zone)
-
Optional Flashing (1Hz Flash Rate)
-
-
Operating Temp Range: -40°C to 65°C / -40°F to 149°F
-
Certifications: IP67, IP69K, ECE Reg. 10
-
Warranty: 2 Years
🔦 Why Choose the JW Speaker Model 529 Big Stripe?
-
Creates clearly visible red safety zones for heavy machinery
-
Optional flashing mode boosts awareness in busy work zones
-
IP-rated and built to withstand dust, mud, water, and pressure washing
-
Versatile for mounting on vehicles or permanent safety installations
-
Available in multiple colors to meet site-specific safety protocols
When workplace safety is mission-critical, the JW Speaker Model 529 Big Stripe Red provides a bold, unmistakable visual warning that helps protect teams, equipment, and operations.
Mark it. Flash it. Control it — with JW Speaker.
