JW Speaker Model 777 GEN 2 Red Arc Warning Light — Compact Safety, Amplified Awareness
Upgrade your workplace safety with the JW Speaker 777 GEN 2 Red Arc Warning Light — a sleek, high-powered LED visual alert system that helps create visible “keep-away zones” around moving forklifts, industrial equipment, and service vehicles. Engineered with a brighter, tighter beam than its predecessor, the GEN 2 version delivers a sharper safety boundary in a smaller, more efficient design.
Ideal for material handling and construction environments, this pedestal-mounted red arc light enhances pedestrian awareness and operator confidence — day or night, indoors or out.
🔧 Features & Benefits
Bright Red Arc for Visual Safety Zones

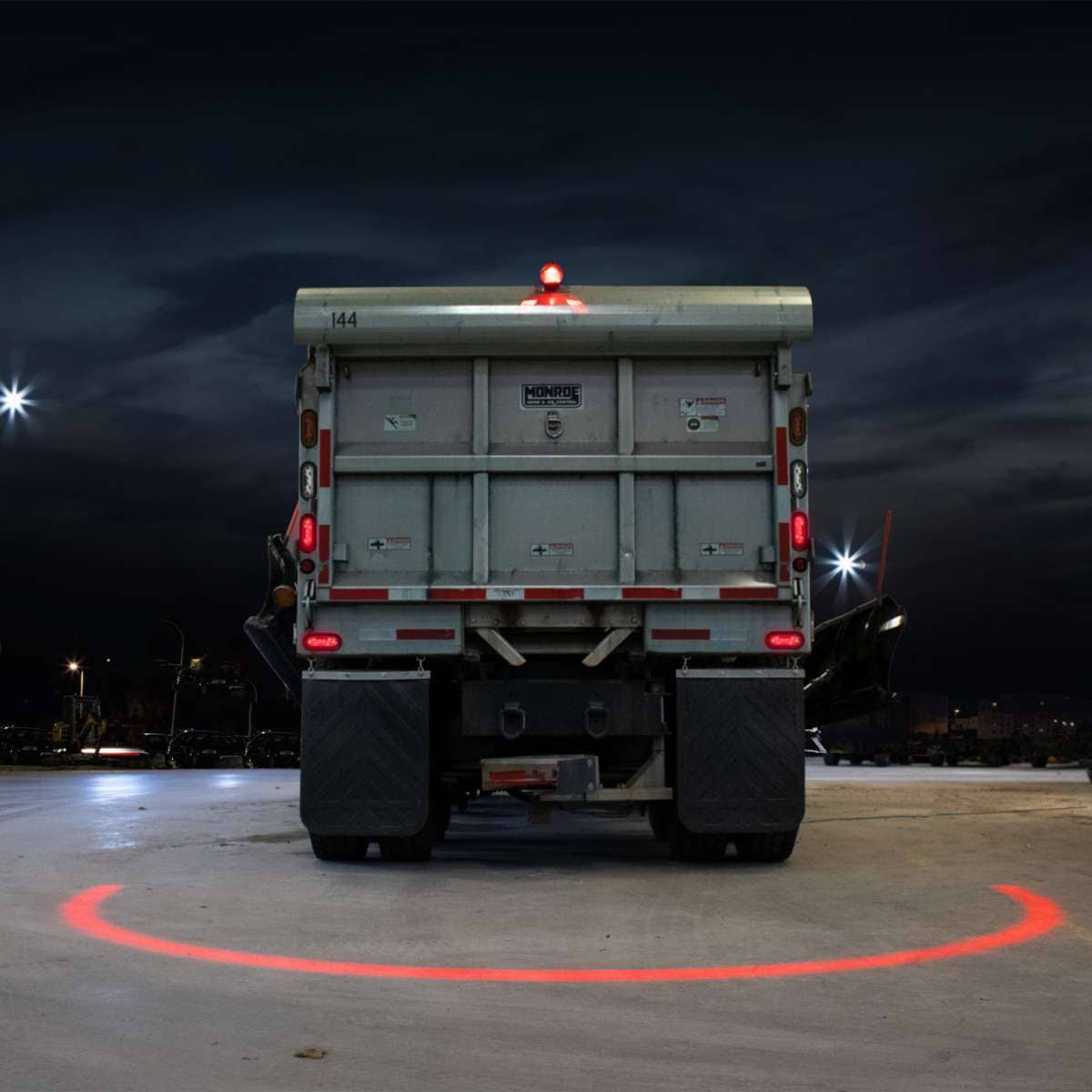

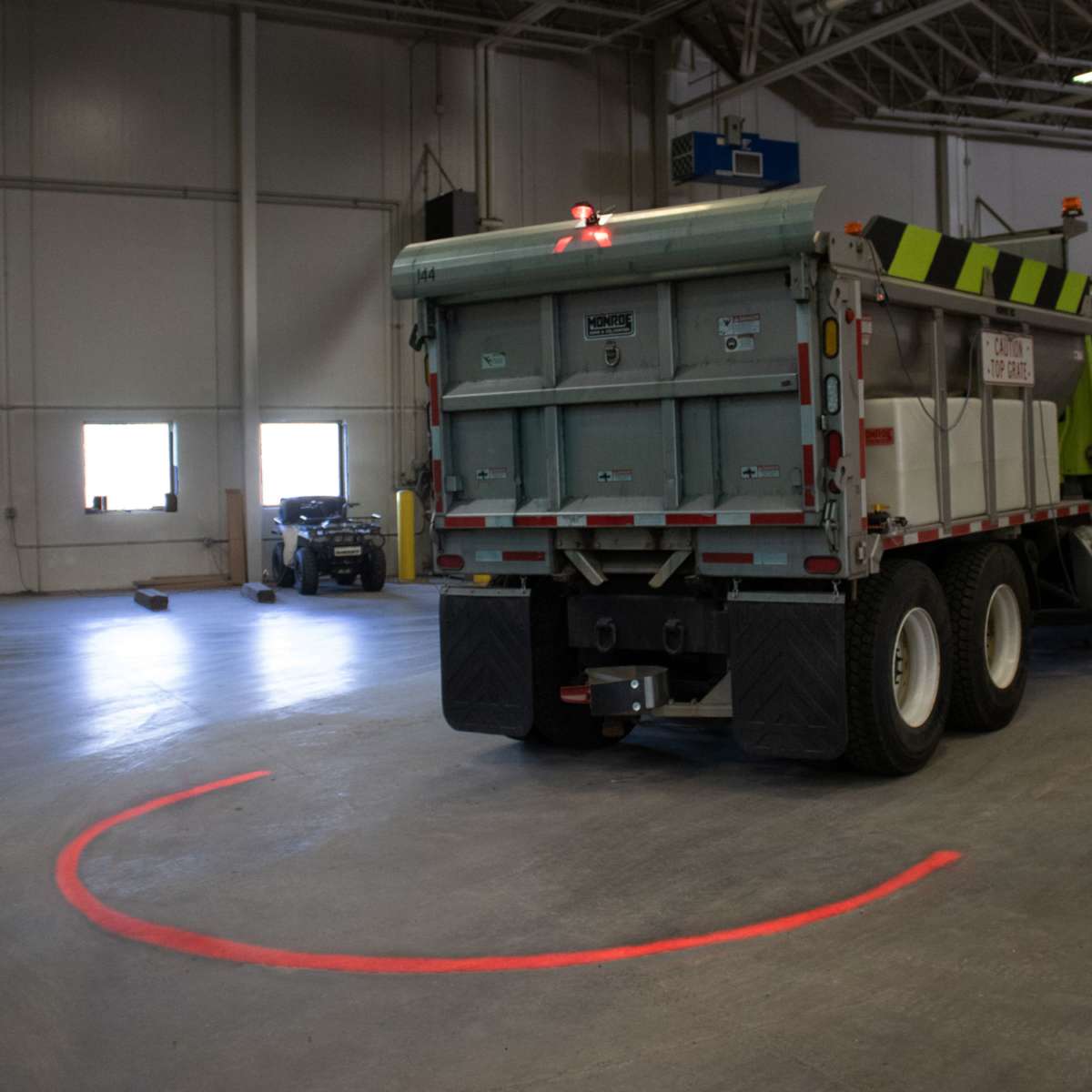

Projects a crisp red arc beam onto the ground to alert pedestrians of nearby moving vehicles. Highly visible even in well-lit or noisy environments, reducing accident risks.
50% Brighter with a More Compact Beam
The GEN 2 version offers a 50% brightness increase over GEN 1, with a more focused projection pattern — for higher visibility and more precise zone marking.
Compact Design, Same Impact
Smaller than the previous generation, this updated design provides more mounting flexibility while retaining all the rugged durability JW Speaker is known for.
Wide Voltage Range: 10–80V DC
Engineered for compatibility with virtually all forklift, industrial, and construction equipment electrical systems. Perfect for battery-powered and combustion vehicles alike.
Fully Encapsulated for Harsh Environments
Die-cast aluminum housing and polycarbonate lens offer protection against moisture, vibration, and impact. Complies with IP67 (submersion), IP69K (power washing), and UL Recognized standards for reliability in any work zone.
Pedestal Mount with Durable Hardware
Includes an M10-30 mounting bolt for secure installation on a variety of vehicle surfaces.
Available in Multiple Colors
Also offered in Blue and Green beam options to suit industry-specific visual safety protocols.
🏭 Applications & Equipment Compatibility
Perfect for any job site where pedestrian and vehicle interaction must be managed safely. Common applications include:
-
Forklifts & Material Handling Vehicles
-
Construction Equipment
-
Industrial Machinery & Utility Vehicles
-
Warehouse & Manufacturing Environments
-
Mobile Service Fleets in High-Traffic Areas
For full 360° coverage, install a unit on both the front and rear of your vehicle or combine with linear warning lights for comprehensive safety.
⚙️ Technical Specifications
-
Shape: Compact Round
-
Dimensions: 5.00″ H × 4.34″ W × 3.02″ D
-
Lens Material: Clear Polycarbonate
-
Housing: Die-Cast Aluminum (Black Finish)
-
Mounting: Pedestal with M10-30 Bolt
-
Wiring: 19.5″ Bare Leads (Tinned)
-
Input Voltage: 12–72V DC
-
Operating Voltage: 10–80V DC
-
Effective Lumens: 100
-
Candela Output: 3,200
-
Beam Pattern: Warning – Keep-Out Arc
-
Certifications:
-
UL Recognized
-
IP67 (submersion)
-
IP69K (high-pressure washdown)
-
ECE Reg. 10 Compliant
-
-
Operating Temp Range: -40°C to 65°C / -40°F to 149°F
🔦 Why Choose the JW Speaker 777 GEN 2 Red Arc Light?
-
Creates clearly defined pedestrian safety zones
-
Brighter, more compact, and more efficient than GEN 1
-
Versatile mounting and wide voltage compatibility
-
Rugged enough for warehouses, yards, and outdoor sites
-
A trusted choice for modern forklift and fleet safety programs
Don’t leave workplace safety to chance — the JW Speaker 777 GEN 2 Red Arc Warning Light helps ensure visual alerts are seen, understood, and respected. Keep your team safe with lighting that works as hard as you do.
Project the boundary. Prevent the risk. Choose JW Speaker.
