JW Speaker Model 793 Red Stripe Zone Light — Define Safety with Precision

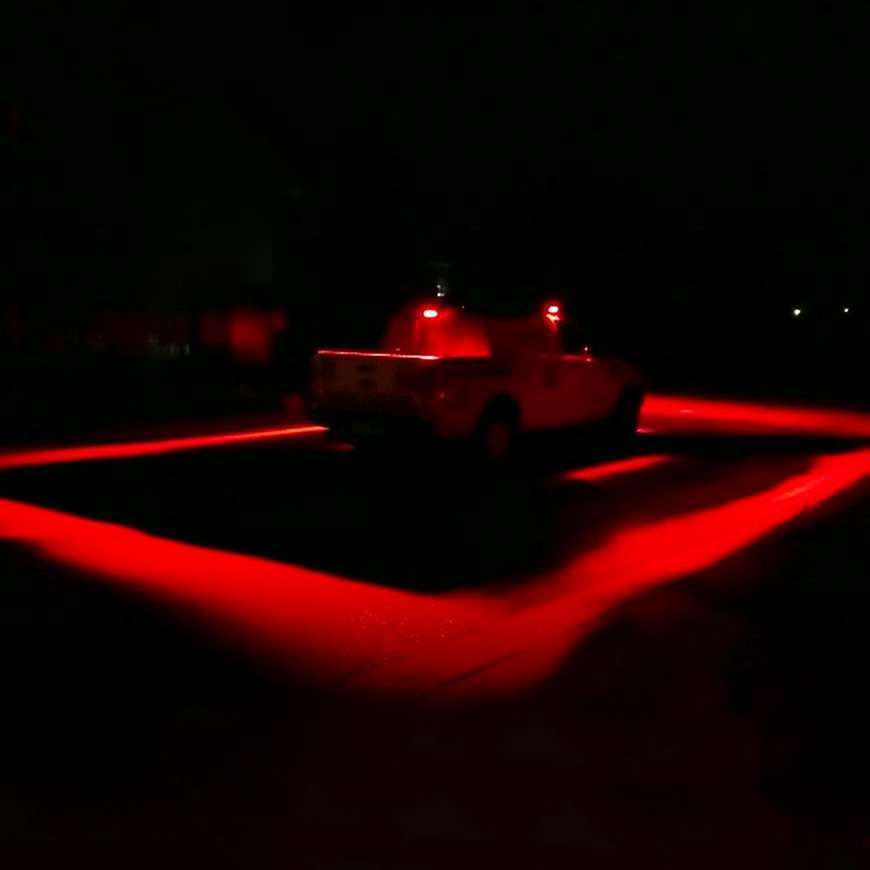

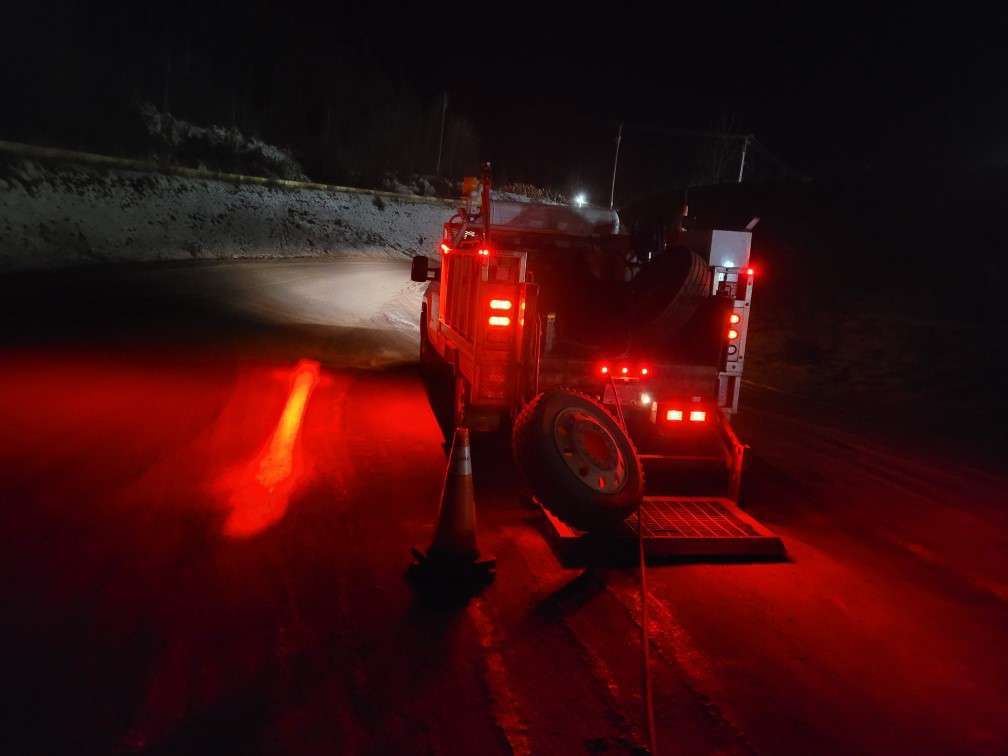

Upgrade your site’s safety standards with the JW Speaker Model 793 — a high-powered red stripe zone light purpose-built to create visible “keep-out” zones around vehicles and equipment. Compact, weather-resistant, and UL Recognized, this innovative LED warning light projects a highly concentrated red beam on the ground, alerting pedestrians and improving hazard awareness in real time.
Whether you’re outfitting a forklift fleet, installing perimeter safety for heavy equipment, or enhancing warehouse visibility, the Model 793 brings intensity, control, and reliability to your safety strategy.
🔧 Features & Benefits
Highly Visible Red Stripe Beam Pattern
Projects a crisp, high-contrast red line on the ground to mark safety boundaries, warn foot traffic, and clearly define moving or hazardous zones.
Industry-Leading UL Recognition
Complies with UL safety standards — a requirement for many regulated industries. This model meets both IP67 (submersion) and IP69K (pressure washing) standards for all-weather reliability.
Adjustable Aiming for Precise Placement
Easily fine-tune the beam’s position to suit different mounting heights and working environments. Use it on mobile vehicles or fixed structures to mark zones and guide foot traffic.

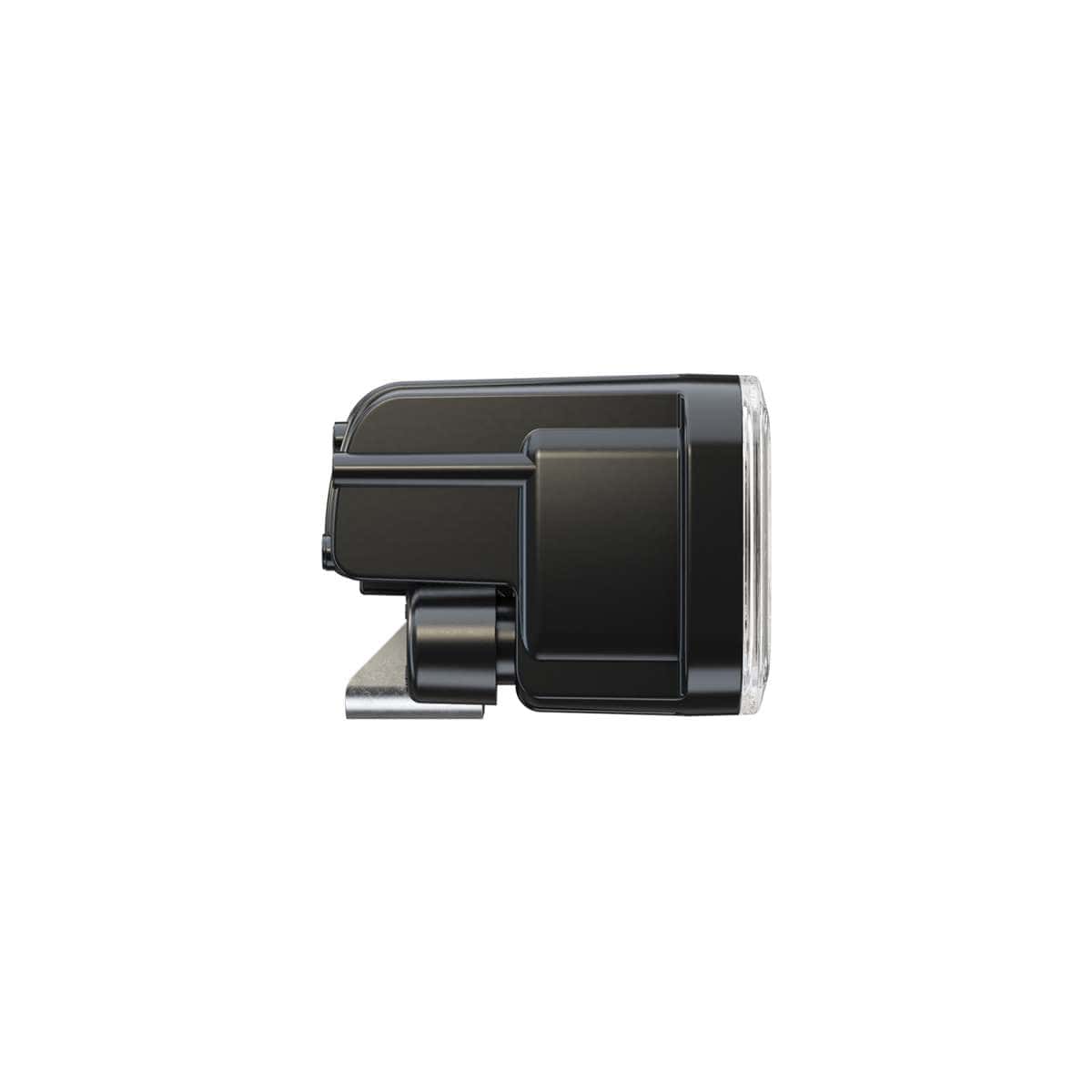

Compact, Low-Profile Housing
At under 2″ high, the 793 is designed for tight installs without sacrificing performance. Fits seamlessly onto forklifts, overhead beams, warehouse racking, and more.
Built Rugged for Industrial Abuse
Polycarbonate lens and aluminum housing protect against vibration, impacts, and thermal extremes. Works reliably in manufacturing, construction, and warehouse conditions.

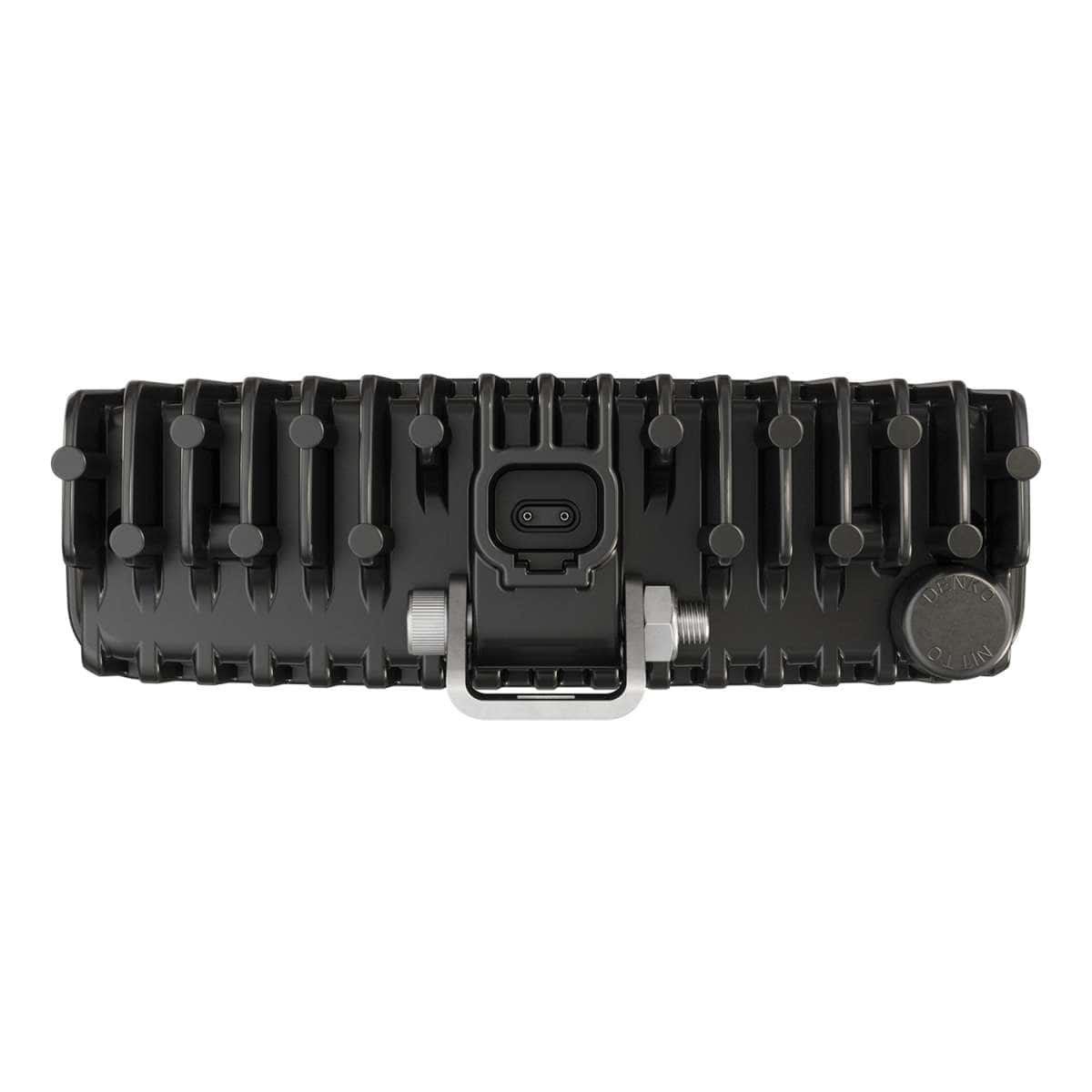

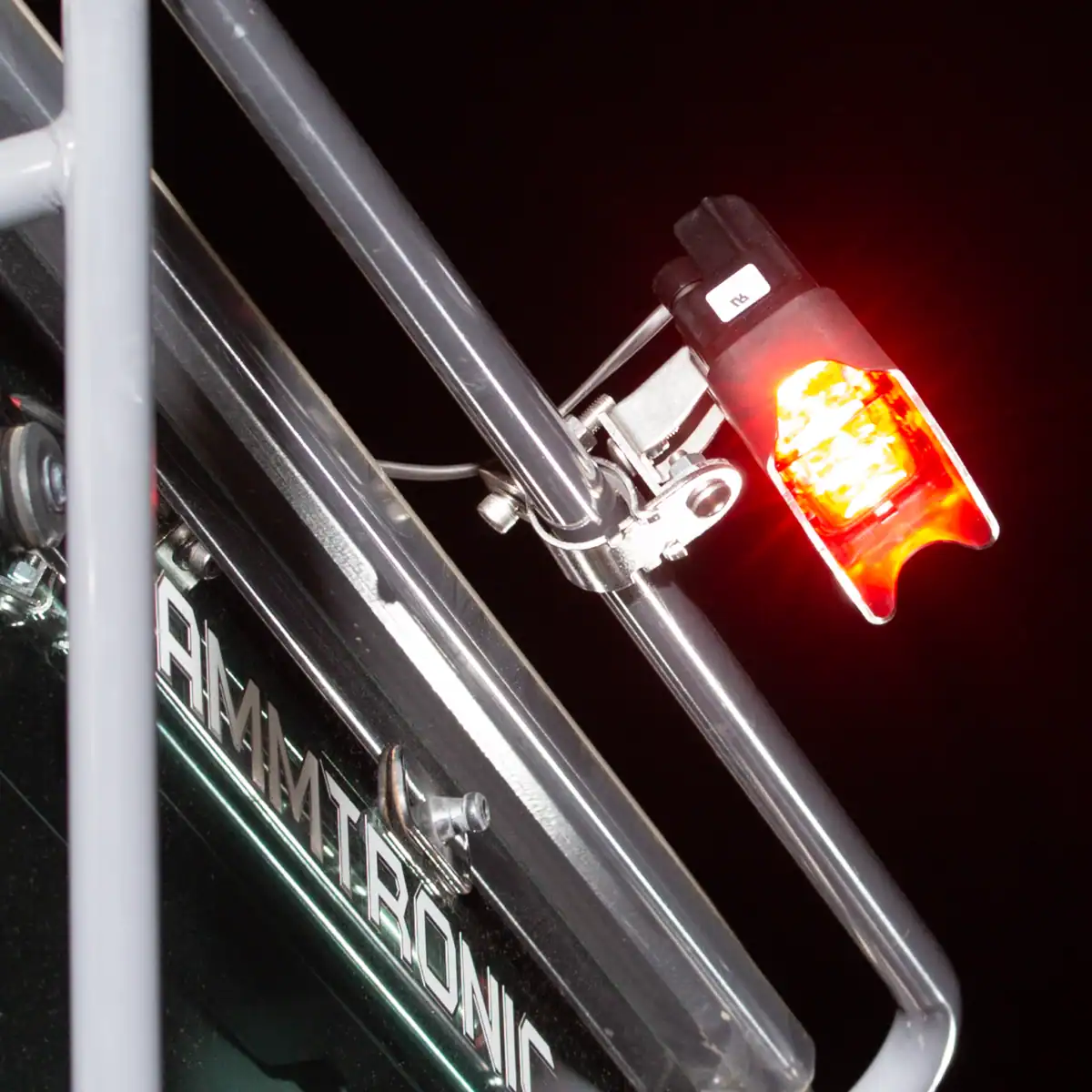

Universal Pedestal Mount & Deutsch Connector
Comes with a robust pedestal bracket and 5/16″-18 mounting bolt. Includes Deutsch DT06-2S harness with flying leads for easy electrical integration.
Color-Coded Safety Options Available
Also available in Blue and Amber stripe versions. Choose the best configuration for your industry’s safety color standards.
🏭 Applications & Use Cases
Ideal for environments where visual safety cues can prevent accidents and injuries. Common uses include:
-
Forklifts & Material Handling Equipment
-

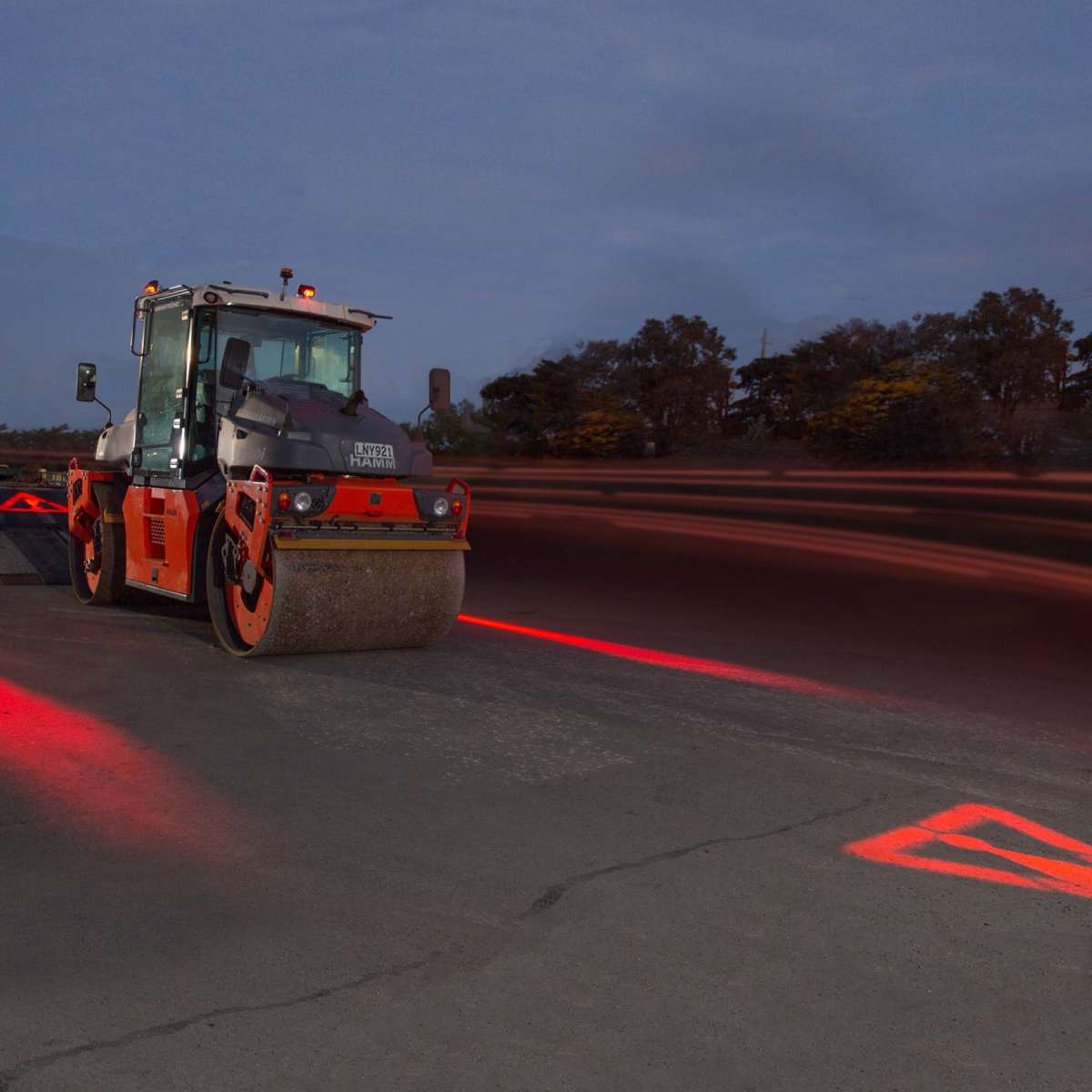

Construction & Industrial Machinery
-
Warehouses & Distribution Centers
-
Mining & Marine Vehicles
-
Railroad & Specialty Vehicles
-
Agricultural & Bus Fleets

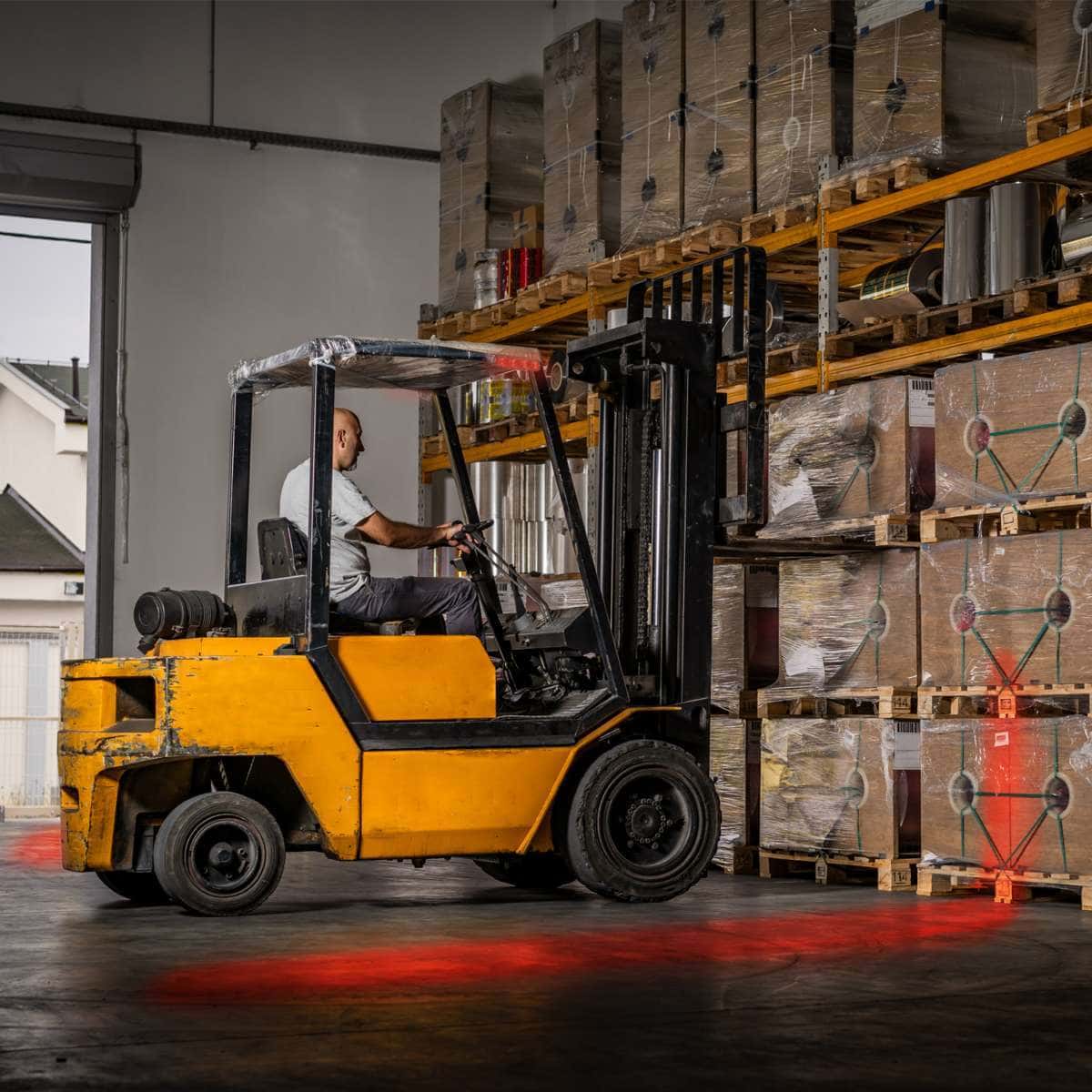

Use as part of a Forklift Safety Lighting Package to enhance visibility for both operators and floor personnel.
⚙️ Technical Specifications
-
Shape: Rectangular
-

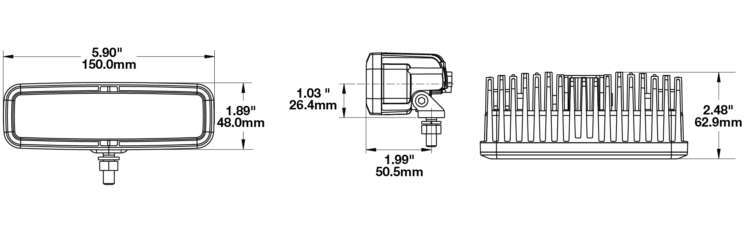

Dimensions: 1.89″ H × 5.91″ W × 2.48″ D
-
Lens Material: Clear Polycarbonate
-
Housing: Aluminum (Black)
-
Bezel Color: Black
-
Mount Type: Pedestal
-
Mounting Hardware: (1x) 5/16″-18 × 1.00″ Bolt + Bracket
-
Connector: Deutsch DT04-2P
-
Mating Connector: DT06-2S (included with harness and flying leads)
-
Input Voltage: 12–36V DC
-
Operating Voltage: 10–45V DC
-
Transient Spike Protection: 330V Peak @ 1Hz (100 Pulses)
-
Current Draw:
-
1.60A @ 12V DC
-
0.60A @ 24V DC
-
0.57A @ 36V DC
-
-
Beam Pattern: Warning – Keep-Out Zone (Stripe Beam)
-
Raw Lumens: 1,130
-
Effective Lumens: 317
-
Candela Output: 3,150
-
Operating Temp: -40°C to 65°C / -40°F to 149°F
-
Certifications: UL Recognized, IP67, IP69K
🔦 Why Choose the JW Speaker Model 793 Red Zone Light?
-
Establishes clear visual safety zones to prevent pedestrian-vehicle collisions
-
UL Recognized and sealed against moisture, dust, and high-pressure washdowns
-
Adjustable, compact, and powerful — fits almost anywhere
-
Available in Red, Blue, and Amber beam configurations
-
Trusted in logistics, industrial, and construction environments worldwide
When your team’s safety is on the line, you need a warning light you can trust. The JW Speaker 793 delivers performance, durability, and peace of mind — no compromises.
Mark the zone. Protect your crew. Choose JW Speaker.
