MORIMOTO XB LED · LF541
A fresh face for your Silverado HD.
Two Bi-LED projectors in each housing bring a four-projector setup to the Silverado HD. White daytime running lights and selectable amber signals complete the design, with a choice of trim finish to suit the truck.
- Left + rightOne complete headlight pair
- White DRLsA fixed daytime signature
- LED opticsLow- and high-beam functions

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics

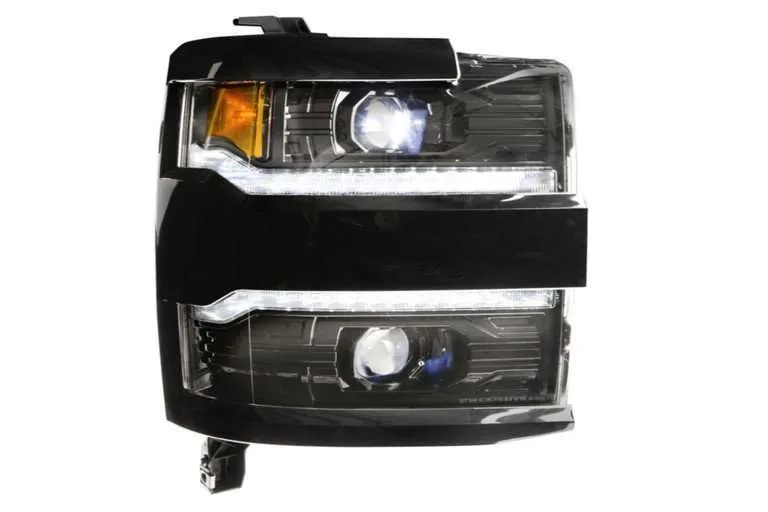

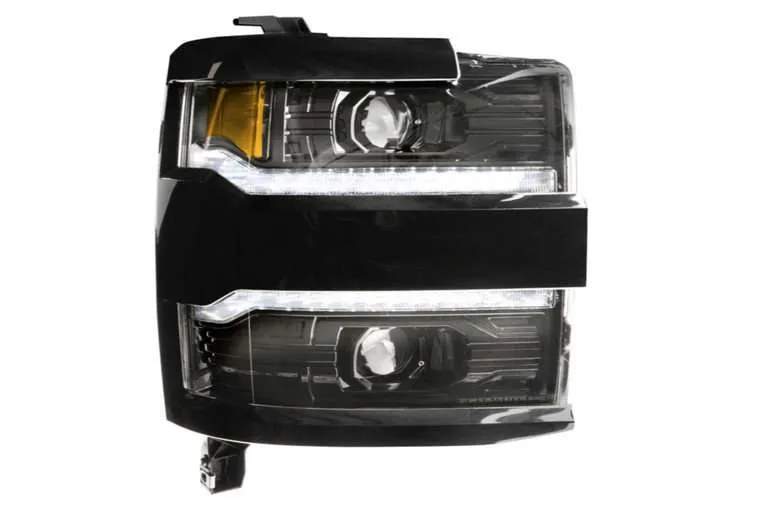

Two Bi-LED projectors per housing deliver four low-beam and four high-beam projectors across the pair.
Fixed white signature
This exact part has fixed white daytime running lights. An amber turn signal does not make the DRL colour selectable.

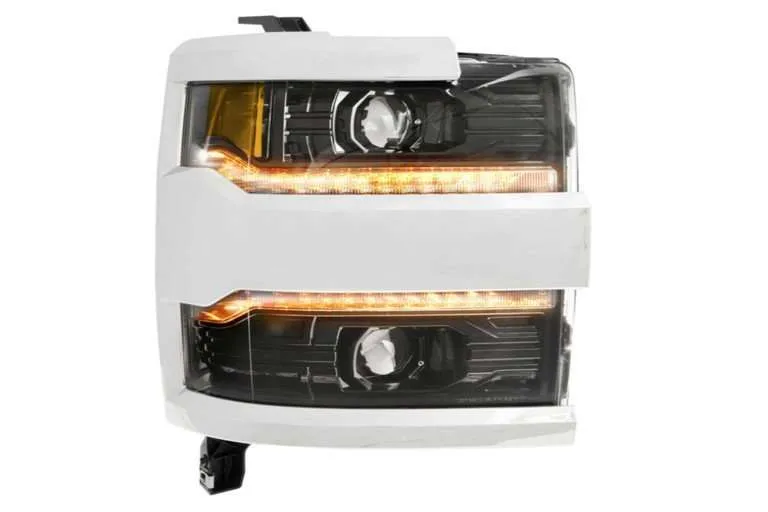

Selectable amber signals
Choose standard flashing or sequential amber LED signals using the connections shown in the exact installation guide. Set both sides consistently.

MATCH THE YEAR, TRIM AND ORIGINAL LAMPS
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2015–2019 Chevrolet Silverado HD |
| Exact headlight part | LF541 |
| Package | Complete left and right headlight assemblies |
| Original lighting | Match the original lamps, connectors and DRL equipment |
| Turn signals | Integrated amber LED |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Finish selection | Unfinished or Chrome trim, selected above |
| Custom paint | Illustrative painted examples; custom paint matching is separate |
The supplier developed this application on US-spec vehicles. Canadian and other-market DRL equipment can differ: confirm the actual lamps and connectors before ordering.
FINISH THE FRONT END YOUR WAY
Unfinished or Chrome?
Unfinished trim
Choose this option when planning a custom finish. Painting and colour matching are not included.
Chrome trim
Choose the chrome bezel option to coordinate with the truck’s chrome front-end details.

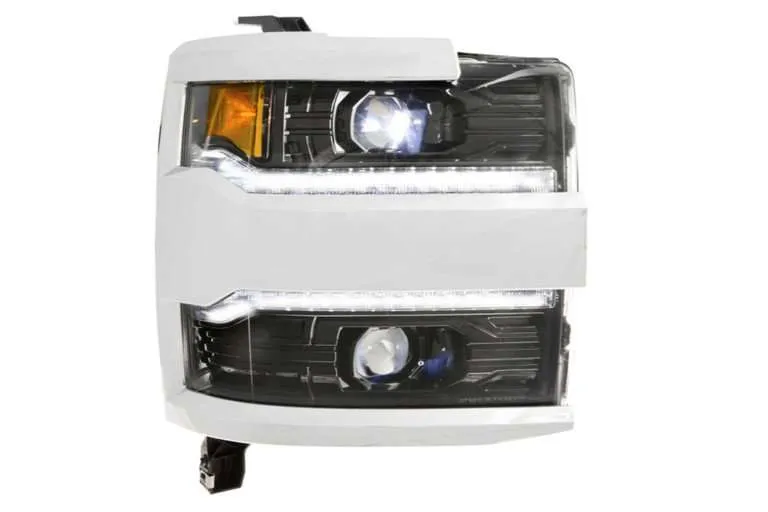

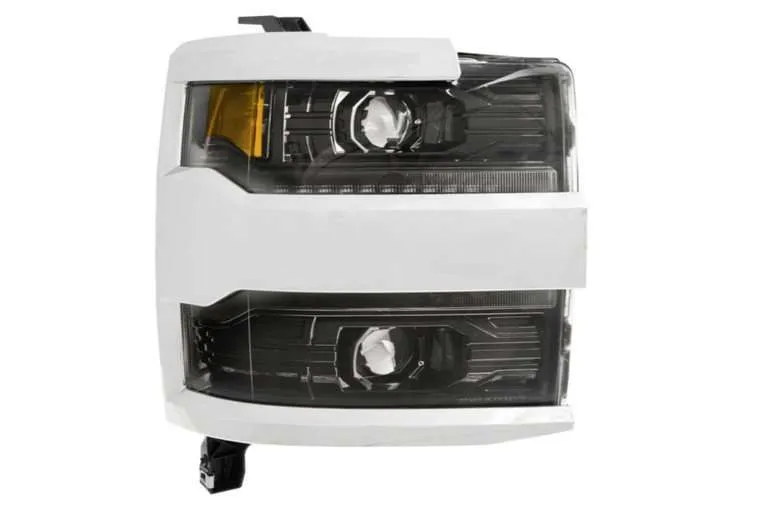

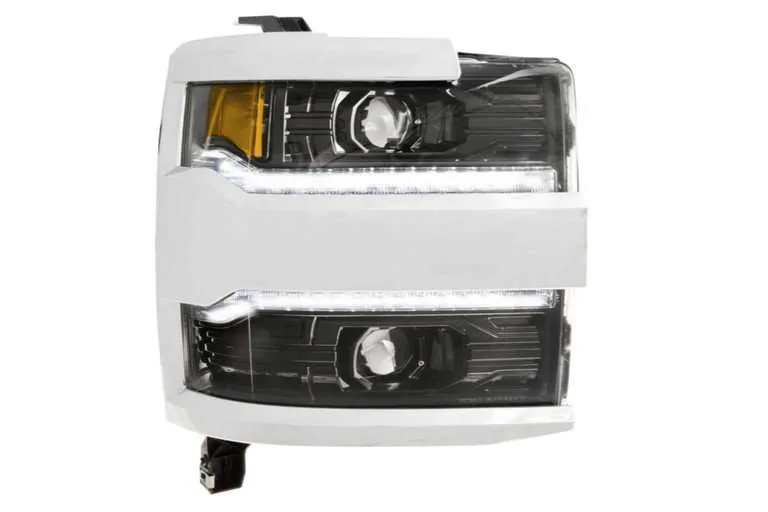

The photographs show finished examples. Your selected option determines the trim supplied; the images do not mean one black and one white headlight will be shipped.
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) 15-19 Silverado HD XB LED Headlights
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
Tail lights, fog lights, bumpers, wheels and other accessories shown on the vehicles are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The supplier-linked guide shows removal of the grille and inner-fender fasteners, fitting the chosen trim bezels with their tabs and adhesive, and transfer of the original lower mounting brackets. It routes the separate DRL feed to the illustrated 10A fuse position 30 and shows standard versus sequential signal connections. The older guide cover says 2016–2018; the current exact LF541 listing covers 2015–2019. Use the actual vehicle fuse chart and supplied instructions, then adjust both projectors before final reassembly.
Download the official LF541 installation guide
Aftermarket turn signals or LED bulb conversions elsewhere on the vehicle can affect signalling. Test the whole lighting system before final reassembly and follow the vehicle’s actual fuse information.

EXACT PART · LF541
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Intensity (Low Beam) | +344% (XB @ 1,110lux, stock @ 250lux) |
| Intensity (High Beam) | +115% (XB @ 1,460lux, stock @ 680lux) |
| Traffic Pattern | LHD Only |
| Input | GM Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | UV-resistant polycarbonate lens; housing resin not specified here |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Numeric intensity comparisons are manufacturer test results, not independent BTS measurements. Distance, aim and test setup matter.
Morimoto lists the supplied standard configuration against its stated DOT / SAE requirements when installed and aimed correctly. That does not establish fitment or compliance for unverified replacement drivers or modified applications.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
Officially linked model-family videos. Some show an earlier revision or another DRL colour; the exact part, revision and colour described above govern this selection.
2016-2019 Chevy Silverado HD 2500 Morimoto XB LED Headlights

2015-2019 Chevy Silverado 2500 HD MORIMOTO XB LED Headlights By Morimoto

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB LED questions
Is this one headlight or a pair?
One order supplies complete left and right headlight housings and the listed standard wiring.
Which vehicle does this exact part fit?
2015–2019 Chevrolet Silverado HD. Match the original lamp equipment and detailed fitment table before ordering.
Are these replacement bulbs?
No. They are complete replacement assemblies with integrated LED optics.
Do I keep the original turn-signal bulbs?
Choose standard flashing or sequential amber LED signals using the connections shown in the exact installation guide. Set both sides consistently.
Can I change the daytime running-light colour?
This exact part has fixed white daytime running lights. An amber turn signal does not make the DRL colour selectable.
Do I need to adjust the aim?
Yes. Finish alignment after mounting and testing. Lift, load and ride height can change where the beam lands.
Can I add Supercharged drivers?
Compatibility is not established for this exact LF541 assembly. Do not assume drivers sold for newer Evo headlights fit this model.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply; retain proof of purchase and contact BTS if an issue occurs.
What does LHD mean?
The beam pattern is for left-hand-drive vehicles used on the right-hand side of the road. It does not mean only the driver-side lamp is supplied.
Are the illustrated painted bezels included?
Only the Unfinished or Chrome trim option selected above is supplied. Painted examples illustrate custom finishing; paint matching is separate.
THE FINISHED LOOK
See the design on the vehicle

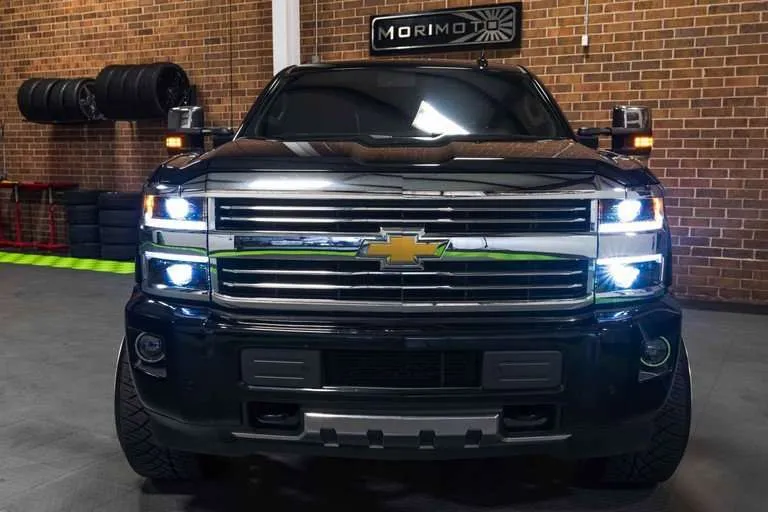

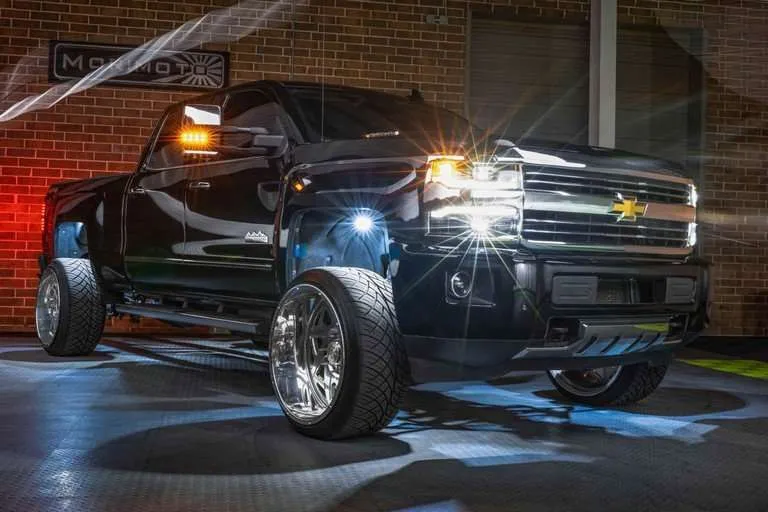

Original supplier photography. Other lighting and vehicle accessories are separate.
