MORIMOTO XRGB LED · LF494
Colour that makes your Charger yours.
Bluetooth RGB daytime lighting pairs with integrated Kuria Bi-LED optics in a complete Charger headlight set. Use the Morimoto XBT app for show colours, then see the optical detail and original beam comparisons below.
- Left + rightOne complete headlight pair
- Bluetooth RGBShow-colour control
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics
A Kuria Bi-LED projector in each housing handles low and high beams. The manufacturer comparison shows output against the pictured OEM HID setup; it is not a road-approval claim.
Bluetooth colour
Use the Morimoto XBT Bluetooth app to choose RGB show colours or the dedicated white setting. The controller remembers the last colour; all settings remain subject to the complete assembly’s non-road-use limitation.
Amber turn signals
Integrated amber LED turn signals are separate from the RGB show-colour settings. The XRGB control system is not the Evo selector-key system.

ORIGINAL MANUFACTURER IMAGERY
Compare the beam patterns
These unchanged supplier photographs show the pictured configurations in Morimoto’s test setup. Figures are manufacturer measurements, not independent BTS test results or guaranteed performance on every vehicle.

Final beam aim, ride height, vehicle load and test distance affect the result. These comparisons do not establish Supercharged-driver compatibility.
The complete XRGB assembly remains a show/off-road product regardless of its beam pattern or selected DRL colour.
YOUR LIGHTING SIGNATURE
See the available lighting modes
Use the Morimoto XBT Bluetooth app to choose RGB show colours or the dedicated white setting. The controller remembers the last colour; all settings remain subject to the complete assembly’s non-road-use limitation.


BLUETOOTH SHOW CONTROL
Set up the Morimoto XBT app

With vehicle power and DRLs on, pair the phone close to the driver-side light. The exact guide uses Output 1 and the tone slider to reach the dedicated white setting. Avoid the app’s on/off toggle unless you intend to shut down the controller; the guide calls for cycling ignition to restart it. The last chosen colour is remembered.
MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Vehicle | 2015–2023 Dodge Charger |
| Listed trims | SXT, GT, R/T, Scat Pack, SRT Hellcat, SRT Hellcat Redeye Widebody and SRT Jailbreak |
| Original lighting | Factory halogen or HID; two halogen adapters supplied |
| Halogen configuration | Some vehicles require AlfaOBD to change the vehicle configuration to HID |
| Market | US-spec application; other-market compatibility is not guaranteed |
| Use | Custom show / off-road only; RGB assembly not street legal |
| Exact part | LF494 |
| Package | Complete driver- and passenger-side headlight assemblies |

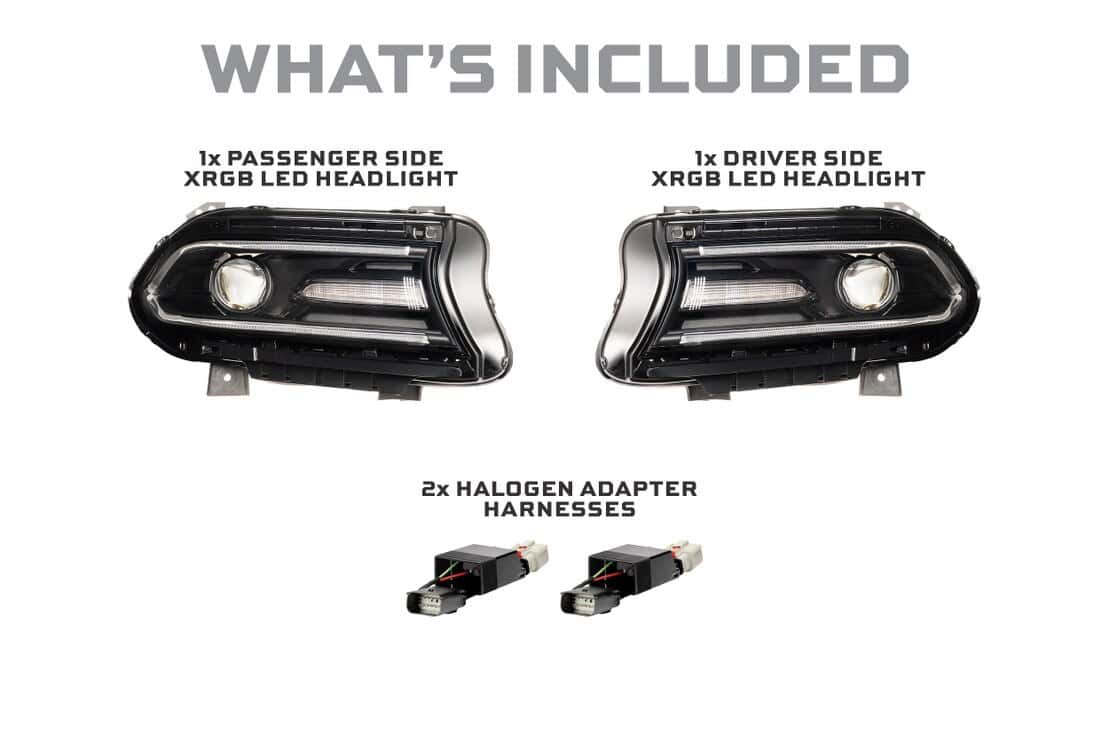

THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 1x Driver Side / LH XRGB LED Headlight and 1x Passenger Side / RH XRGB LED Headlight
- Wiring: 2x OEM Halogen Adapter Harnesses
- Morimoto XBT Bluetooth App: Free download from Appstore
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
The two halogen adapter harnesses are supplied with LF494. No separate colour-selector keys or Supercharged drivers are established for this selection.
Other lighting, bodywork and accessories in the vehicle photographs are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
The exact LF494 guide removes the bumper cover and connects the new assemblies to the factory plugs. Use the included adapters on factory-halogen vehicles. Join and secure the RGB crossover harness along the upper radiator support, pair the XBT app near the driver-side light, test all functions and set the beam aim. Some halogen vehicles also require the source-specified AlfaOBD HID configuration; the simple connector layout does not remove that requirement.
Download the official LF494 installation guide
Follow the instructions supplied with the exact set and the actual vehicle’s wiring information. Other aftermarket exterior lighting can affect turn-signal behaviour. Test the complete system before final reassembly.

EXACT PART · LF494
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Low Beam Intensity | 293.2% Brighter than OEM HID (1730lux vs 440lux) |
| High Beam Intensity | 156.6% Brighter than OEM HID (1950lux vs 760lux) |
| Light Output Pattern | LHD Only |
| Input Connector | Mopar Multi-Pin OEM |
| Functions | DRL (RGB), Turn, Parking, Low, High |
| Turn Signal Color | Amber |
| Interior Bezel Color | Gloss Black |
| Housing Materials | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optical Technology | Kuria Optic Bi-LED |
| UV Lens Coating | Momentive UVHC3000 |
Original-equipment replacement references
68541681AA, 68546773AC, 68546770AC, 68214398AI, 68541680AA, 68410313AD, 68214396AB, 68294430AF, 68410312AD, 68214397AB, 68294431AF
Use these references with the exact model-year and equipment checks above, not as a standalone compatibility decision.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
An official supplier-linked overview and installation video for this model. Use the current written part-specific fitment and package details above when the video shows earlier configurations.
Transform Your 2015–2023 Dodge Charger with Morimoto XRGB LED Headlights | Install + RGB Overview

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XRGB LED questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
2015–2023 Dodge Charger. Check the original equipment and market notes above before ordering.
How do I choose the daytime lighting?
Use the Morimoto XBT Bluetooth app to choose RGB show colours or the dedicated white setting. The controller remembers the last colour; all settings remain subject to the complete assembly’s non-road-use limitation.
How do the turn signals work?
Integrated amber LED turn signals are separate from the RGB show-colour settings. The XRGB control system is not the Evo selector-key system.
Can I add Supercharged drivers?
No exact Supercharged-driver compatibility is confirmed for this LF494 selection. Do not fit a driver intended for a different Evo or XB assembly. This page describes the standard supplied headlight package.
Should the headlights be aimed after installation?
Yes. Check all functions and adjust the low-beam cutoff on the actual vehicle. Suspension changes, load and ride height can affect the aim.
What warranty applies?
The exact supplier record lists a 5-year limited manufacturer warranty. Coverage and exclusions follow the manufacturer’s terms; retain proof of purchase and contact BTS for assistance.
Is the XRGB assembly road legal with white DRLs?
Morimoto identifies the RGB assembly as not street legal. A white setting does not establish compliance; this is offered as a custom show/off-road product.
Will a halogen Charger need programming?
Some do. The exact supplier compatibility notes call for AlfaOBD configuration to HID for proper function on certain halogen cars. Confirm the original equipment before installation.
THE FINISHED LOOK
See the design on the vehicle
Original supplier photography; other vehicle equipment is separate.
