Morimoto 4Banger LED Pods – NCS Wide Beam (Set)
Maximize your near-field visibility with Morimoto 4Banger NCS Wide Beam LED Pods. Designed to deliver an ultra-wide beam pattern with controlled output, these pods are ideal for fog light applications and low-speed driving where side-to-side visibility matters most.
Off-Road Reinvented Performance
Morimoto’s 4Banger NCS series is engineered to deliver advanced lighting performance with precision optics and compact design.
Perfect for:
- Fog light upgrades
- Low-speed off-road driving
- Urban and highway driving in poor visibility
Designed, engineered, and tested in the USA, these pods bring next-level performance to modern truck builds.

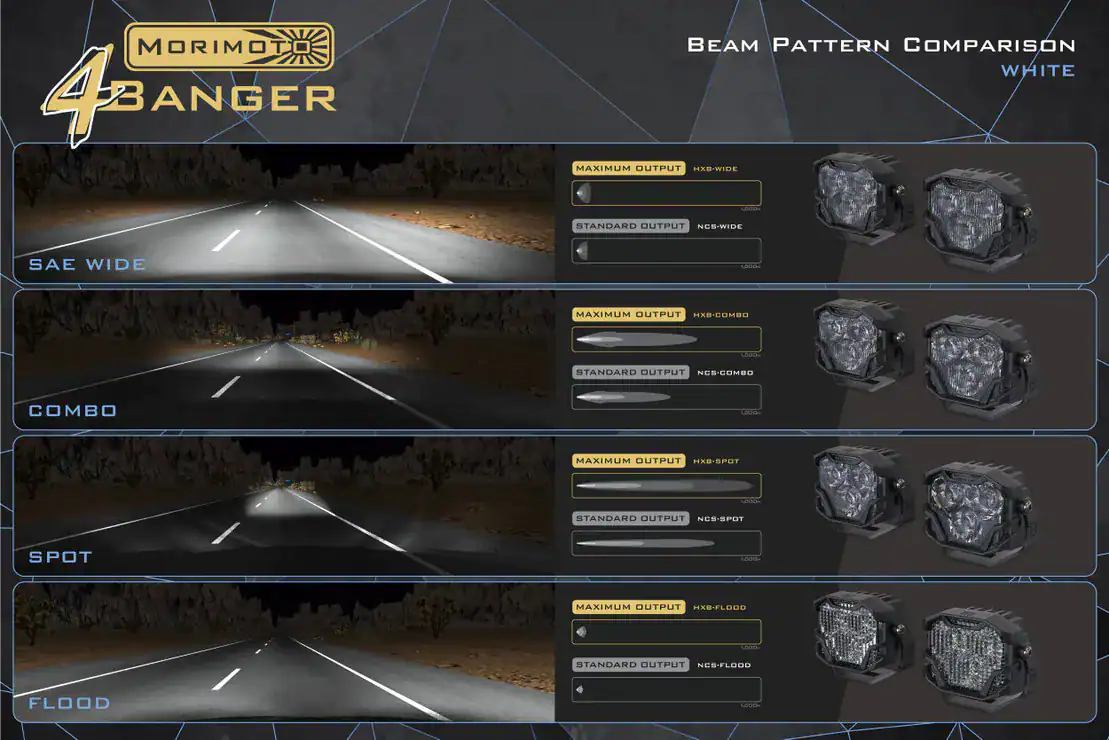

NCS Wide Beam – Maximum Side-to-Side Visibility
The Wide Beam pattern is specifically designed to illuminate the ground directly in front of your vehicle while maximizing lateral coverage.
Features include:
- Extremely wide beam spread for side visibility
- Controlled vertical output to reduce glare
- Optimized for fog light positioning
This makes it an ideal complement to high-performance headlights by filling in the foreground and shoulder areas.
High Performance Nichia LED Technology
Built around advanced Nichia NCS LEDs, these pods provide strong output with efficient performance.
Benefits include:
- High-quality LED output with consistent performance
- Efficient power consumption compared to competing options
- Designed for real-world driving and visibility needs
Every component is purpose-built for performance—not off-the-shelf.
Compact Design with OEM+ Fitment
The 4Banger NCS features a compact footprint—approximately 30% smaller than comparable lights.
Ideal mounting locations:
- Factory fog light positions
- A-pillars
- Bumpers
- Custom installations
Perfect for clean installs without bulky or protruding pod lights.
Built for All Weather Conditions
Available in both white and yellow output options for different driving environments.
White Output:
- Ideal for general visibility
- Bright, clean illumination
Yellow Output:
- Improved visibility in rain, fog, and snow
- Reduced glare in harsh conditions
The yellow version uses phosphor-converted LEDs to produce true yellow light at the source.
Engineered for Durability & Heat Management
Designed to withstand harsh environments with advanced materials and thermal control.
Construction features include:
- Copper DTP (Direct Thermal Path) circuit board
- Cast aluminum housing with electroplated and powder-coated finish
- Potted internals and sealed wiring
- IP69K-rated weather resistance
Built to handle heat, vibration, water, dust, and real-world abuse.
Flexible Mounting Options
Each set includes pedestal mounts for universal installation.
Additional mounting options available:
- Flush mounts
- Tube mounts
- Hanging mounts
Compatible with Morimoto application-specific brackets for true bolt-on installs.
Plug-and-Play Ready (Optional Wiring)
Optional wiring solutions are available for a complete installation setup.
Available options:
- Switched relay harness
- DT pigtail connectors
Designed for secure, weather-resistant connections.
Street Legality
The NCS Wide Beam has been third-party verified to meet SAE F photometric standards for use as a fog light when properly aimed.
Always verify local regulations and ensure correct installation.
What’s Included
- 2 × Morimoto 4Banger NCS Wide Beam LED Pods (White or Yellow)
Hardware:
- 2 × M10x1.5 stainless steel carriage bolts
- 2 × M10 stainless steel washers
- 2 × M10 stainless steel lock nuts
- 8 × M6x1.0 stainless steel screws
Optional:
- Mounting brackets (top, bottom, or flush)
- Wiring harness or pigtails
- Rubber blackout covers
Warranty Coverage
Backed by Morimoto’s Lifetime Limited Warranty.
Frequently Asked Questions About 4Banger NCS Wide Beam Pods
What is a wide beam used for?
Wide beams are designed to illuminate the area directly in front of your vehicle and provide strong side-to-side visibility, ideal for fog lights and low-speed driving.
Are these suitable for fog light use?
Yes, when properly aimed, they are designed to meet SAE fog light standards for on-road use.
What LED technology is used?
These pods use high-performance Nichia NCS LEDs for reliable and efficient output.
What color options are available?
Available in white or yellow output depending on your driving conditions.
Are these lights waterproof?
Yes, they are rated IP69K for protection against water, dust, and harsh environments.
Where can these lights be mounted?
They can be mounted in fog light housings, bumpers, A-pillars, and other custom locations.
