United Pacific 39236 · Double Fury 4 LED Mini watermelon light
Red primary, blue secondary and a clear lens
UPI 39236 pairs red primary lighting with a separately controlled blue secondary colour. Four dual-colour LEDs, a clear polycarbonate lens and a chrome plastic bezel give it the classic Mini watermelon look.
Two colours, separate controls
Black powers the red primary colour. Yellow powers the blue secondary colour.
Secondary colour takes priority
When the blue secondary circuit is powered, it overrides the red primary circuit. Secondary colour is for auxiliary/off-road use only.
Threaded-stud mounting
Requires a 3/4-inch installation hole. The light mounts with a threaded stud and nylon nut.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Installation and colour control
Wiring, mounting and what comes with the light
Three-wire colour control
- 12V operation
- White: ground (−)
- Black: red primary positive (+)
- Yellow: blue secondary positive (+)

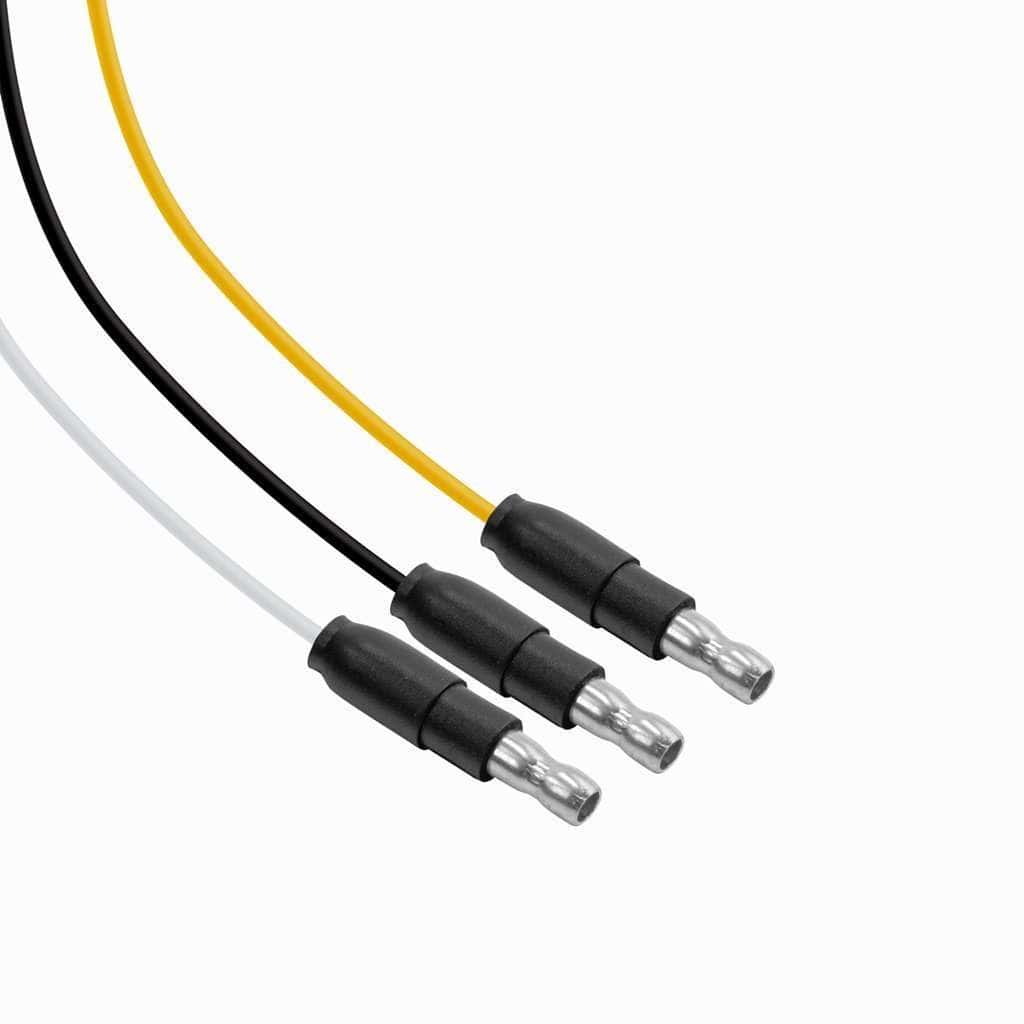

- Three-wire connection with male bullet plugs
What’s included
- (1) 4 LED 1-1/8" Watermelon Double Fury Light – Red & Blue LED
- Chrome plastic bezel
- Nylon mounting nut
- Threaded mounting stud
The clear lens is polycarbonate, with epoxy-sealed construction and manufacturer-specified IP67 water resistance.
United Pacific lists DOT/SAE and FMVSS 108 for this family. Confirm the primary colour, function and mounting position for the intended application. The blue secondary colour is for auxiliary/off-road use only.
Compare Mini watermelon lights by LED colour and function to find the LED colours and controls for your build.
If you need separate low and high inputs for the primary colour, compare the UPI 36216 red/blue Double Fury with primary low/high functions. Check that product’s wiring and mounting details before choosing.
Before you choose
United Pacific 39236 questions
What does “Double Fury” mean?
Double Fury refers to the dual-color LED configuration with independent primary and secondary circuits. The secondary LED overrides the primary when activated.
Is the blue LED street legal?
United Pacific limits the blue secondary colour to auxiliary/off-road use only. The manufacturer lists DOT/SAE and FMVSS 108 for the family; confirm the primary colour, function and mounting position for the intended application.
Does this require a 1-1/8" mounting hole?
No. United Pacific specifies a 3/4-inch installation hole for the threaded-stud mount. The 1-1/8-inch wording is the product-name size, not the required hole size.
Is this light waterproof?
United Pacific specifies IP67 water resistance and epoxy-sealed construction to prevent moisture intrusion.
Can I wire the blue LED to a separate switch?
Yes. The yellow wire allows independent control of the secondary LED for custom switch setups.
Warranty
Warranty: 3-year manufacturer warranty.
