STARR · HR4656
Serviceable halogen high and low beams
A 4×6 halogen reflector headlamp with a glass lens, 9007 bulb and heavy-duty 14-gauge wiring adapter. One headlamp is supplied for a matching H4656 replacement application.
Halogen reflector design
Uses a serviceable 9007 halogen bulb, not an integrated LED light source.
Bulb and adapter included
One headlamp, one 9007 bulb and one heavy-duty 14-gauge wiring adapter.
Check the mounting bucket
The manufacturer notes that it may not fit some factory headlamp buckets.

Fitment & installation
Match H4656 and the actual bucket

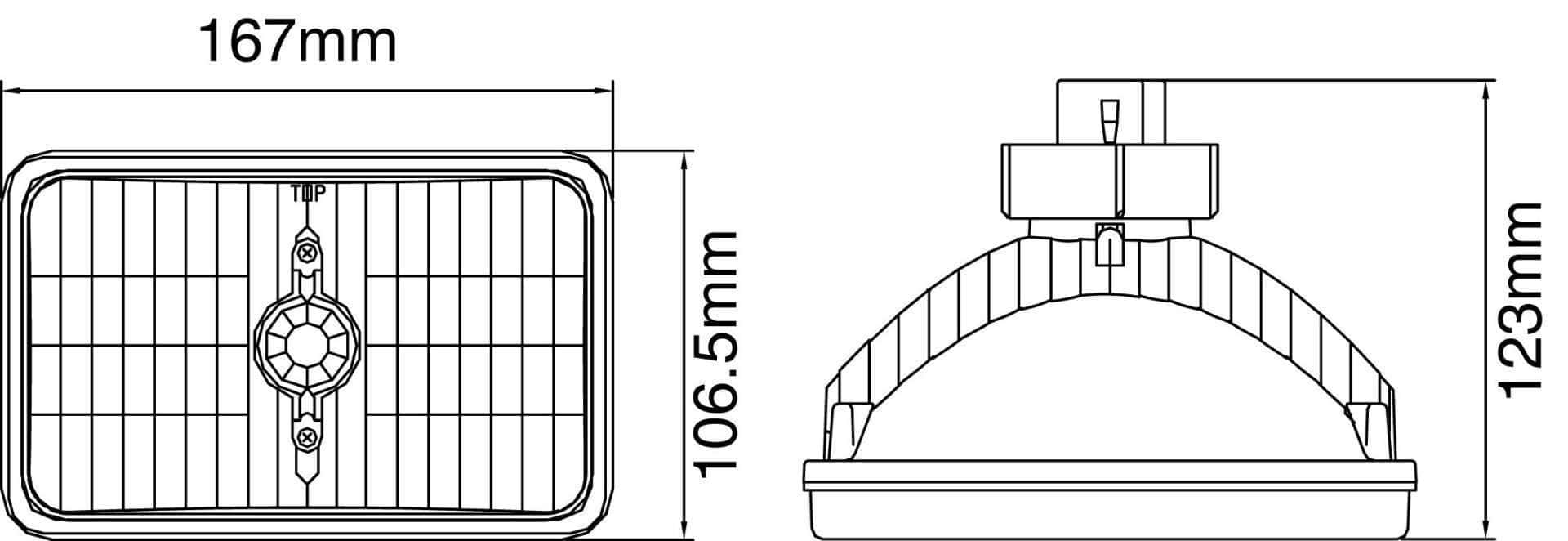

Replaces the matching H4656 sealed-beam lamp. Confirm depth, retaining hardware and rear clearance as well as the lamp reference; some factory headlamp buckets may not fit.
Match the included adapter to the original connector and beam circuit. Secure the lamp, check each required lighting function and adjust final headlight aim.
Lamp details
Halogen reflector specifications
| Part number | STARR-HR4656 |
|---|---|
| Beam function | High and low |
| Bulb included | 9007 halogen |
| Electrical system | 12V DC |

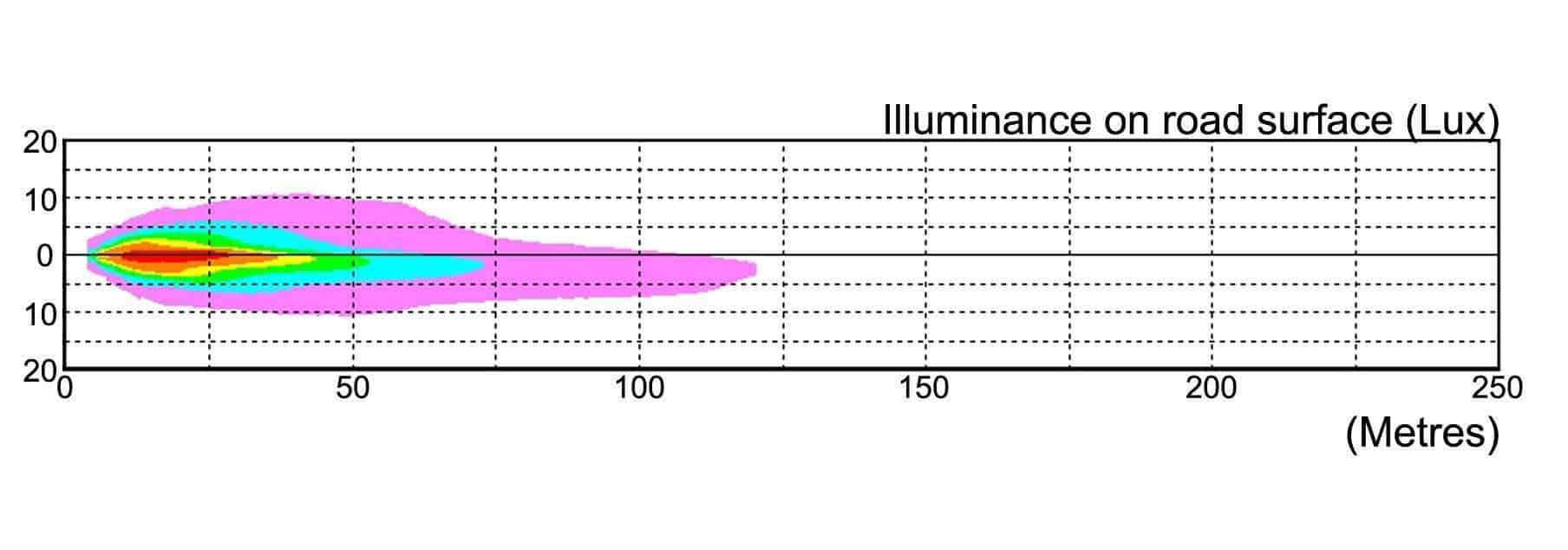

| Low-beam output | 1,000 raw / 835 effective lumens |
| High-beam output | 1,300 raw / 1,130 effective lumens |
| Current at 12V | 4.4A low / 5.3A high |
| Lens | Glass |
| Adapter included | Heavy-duty 14-gauge |
| Manufacturer compliance listing | SAE / DOT |
Product questions
Before you order
Is this an LED headlight?
No. It is a halogen reflector headlamp with the listed serviceable bulb.
Is the bulb included?
Yes. One 9007 halogen bulb and the heavy-duty 14-gauge adapter are included.
Does a 4×6 opening guarantee fit?
No. The manufacturer explicitly notes that some factory headlamp buckets may not fit. Confirm depth, retention and clearance.
Warranty & alternatives
One-year manufacturer warranty
The STARR catalogue lists a one-year warranty for this headlamp. Keep your purchase information and contact BTS for help with a product issue.
