United Pacific | 31200
ULTRALIT with a white position-light bar

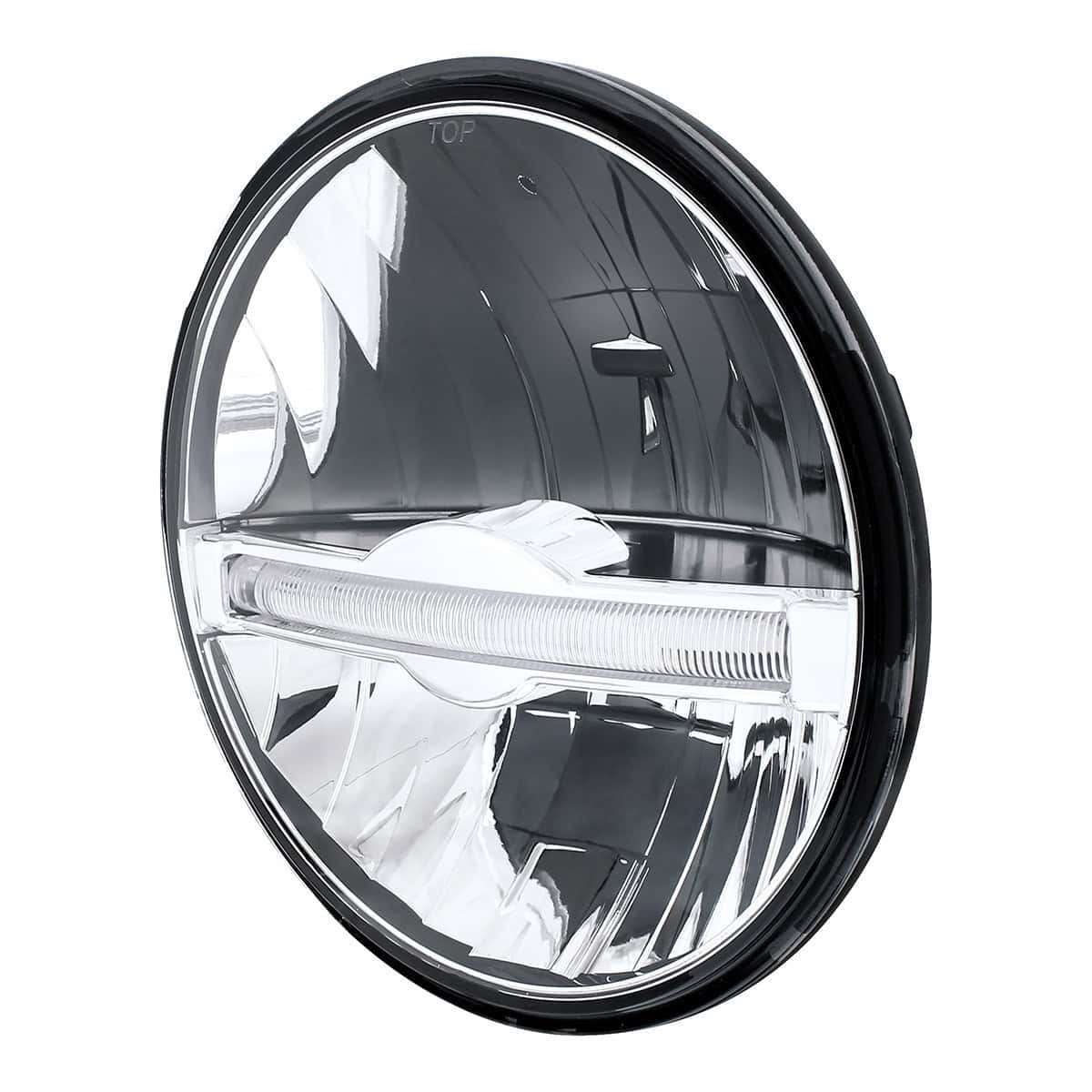

United Pacific 31200 combines LED low and high beams with a separate white position-light bar in a 7-inch aluminium housing.
White position bar
The position light is separate from the main beam and requires additional wiring.
Match the installation
This is a 12V lamp. Check the original 7-inch opening, retaining system, main connector and rear clearance; connect the position bar only to its intended circuit.
What is supplied
One headlight.

Product details
Specifications
| Part number | 31200 |
|---|---|
| Supply | 12V |
| Main lighting | LED low and high beam |
| Listed high-beam output | 2,000 lm |
| Housing | Aluminium |
| Ingress rating | IP66 |
| Package | One headlight |
Installation resources
Plan the mounting and wiring
Compare the main headlight connection before fitting the lamp. Route and protect the additional position-light wiring, then check all functions and beam aim.
Product questions
Before you order
Does the position bar work from the main plug alone?
It requires an additional connection.
Is this a 24V lamp?
The exact part is listed for 12V. Do not assume the voltage range of another ULTRALIT model applies.
