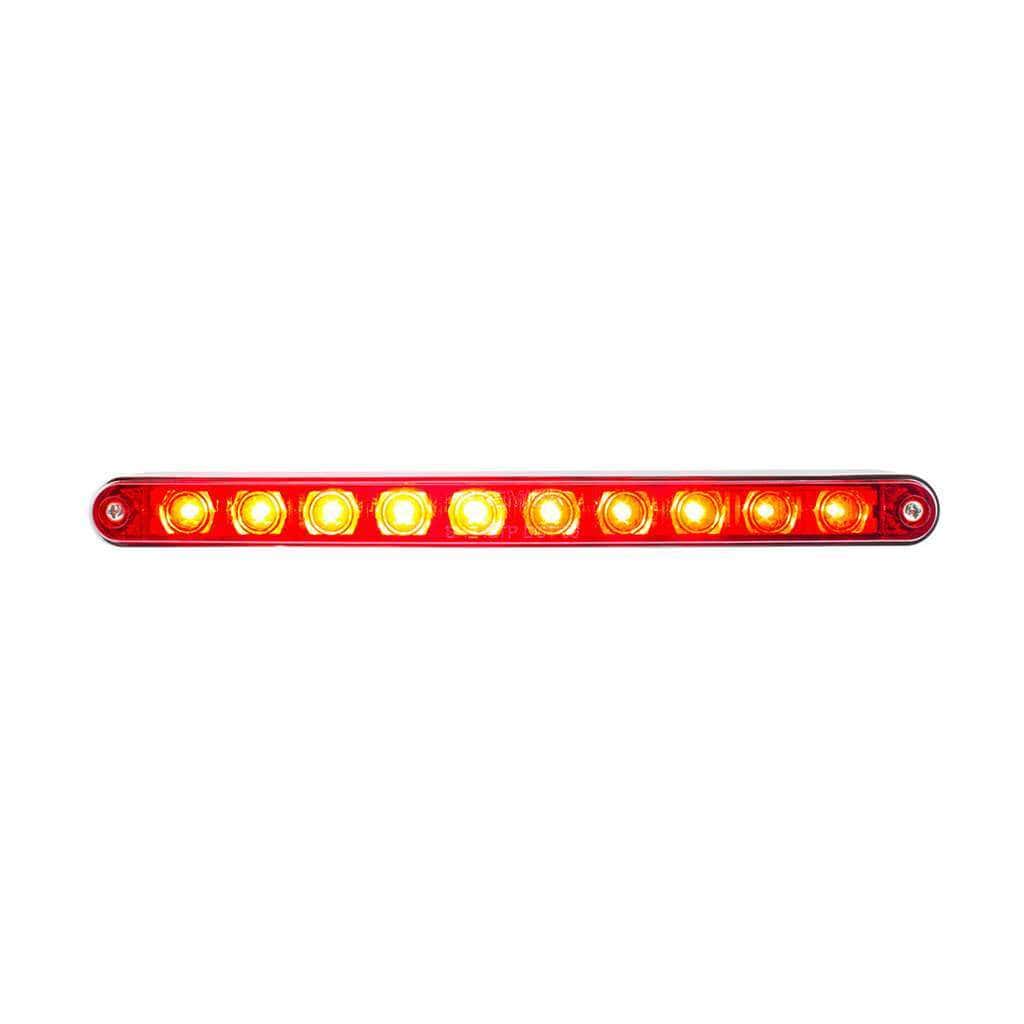

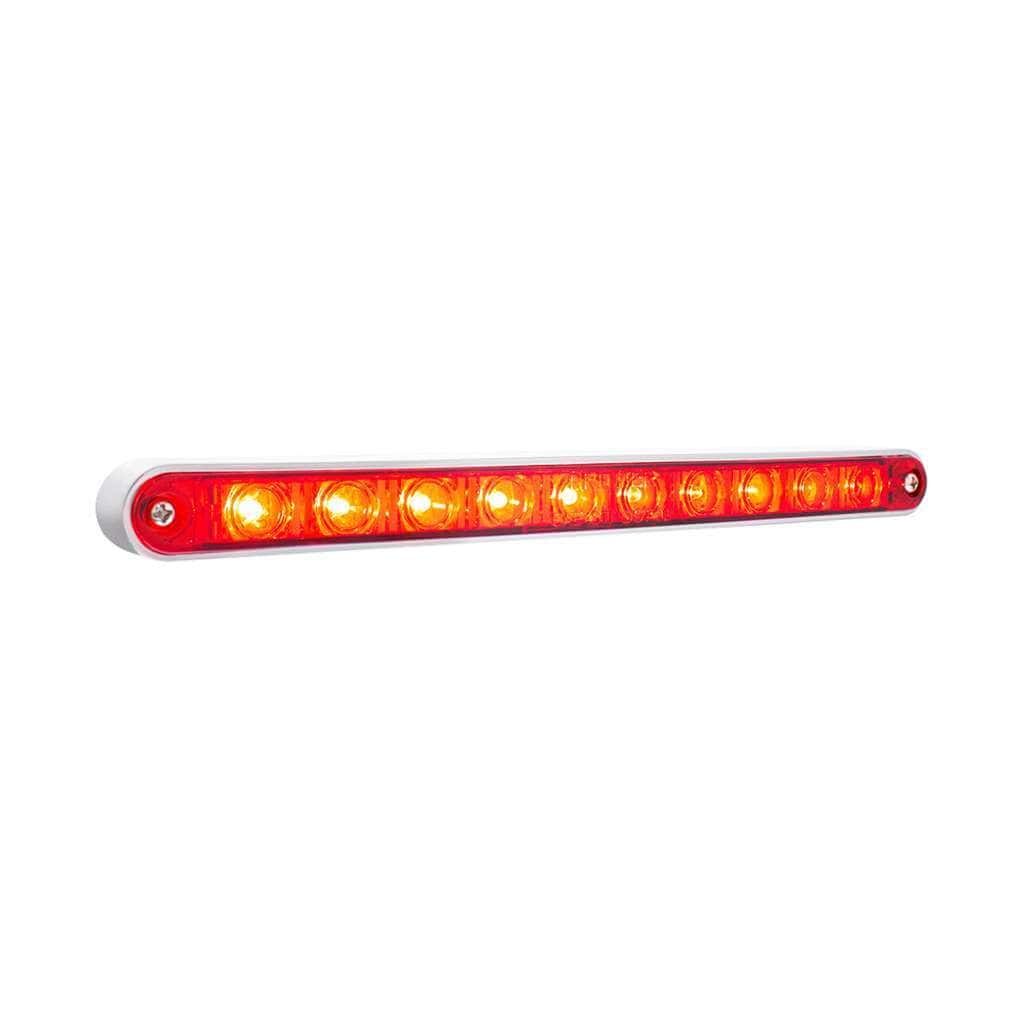

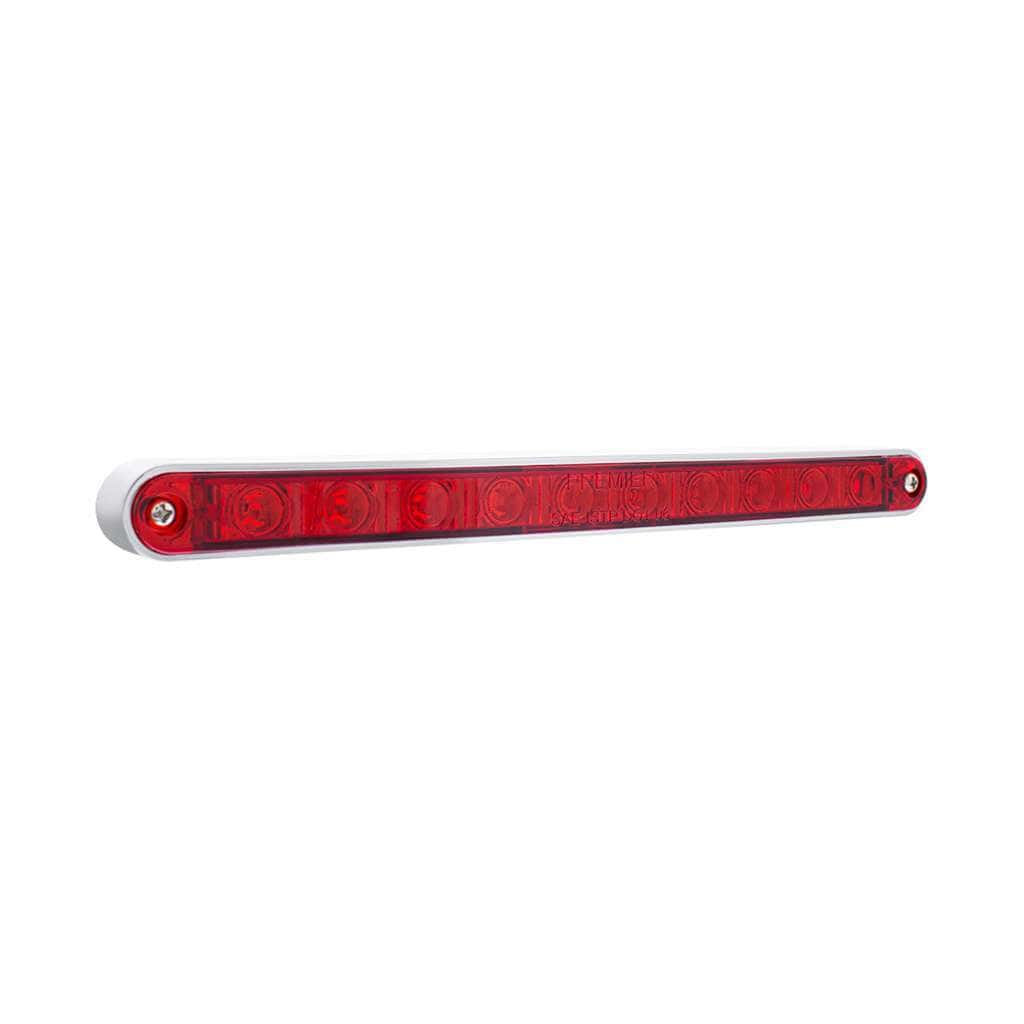

10 LED 9″ Split Turn Function Light Bar With Bezel – Red LED/Red Lens
Dual-Side Signaling. Streamlined Style. Road-Ready Performance.
Upgrade your rig’s visibility with the 9″ Split Turn Function LED Light Bar, engineered to deliver sharp left/right directional signals with a clean, integrated look. Featuring 10 bright red LEDs, a durable red lens, and a sleek chrome bezel, this bar-style turn signal light enhances both safety and style. Designed with a flexible mounting system and easy wiring, it’s the perfect addition to custom builds, big rigs, or show trucks.
Key Features & Benefits
Split Turn Signal Functionality:
Designed for clear and distinct left and right turn signaling using a single bar—ideal for trucks that require compact, directional lighting.
High-Visibility LEDs:
Features 10 bright red LEDs on an epoxy-coated circuit board for reliable, long-lasting illumination.

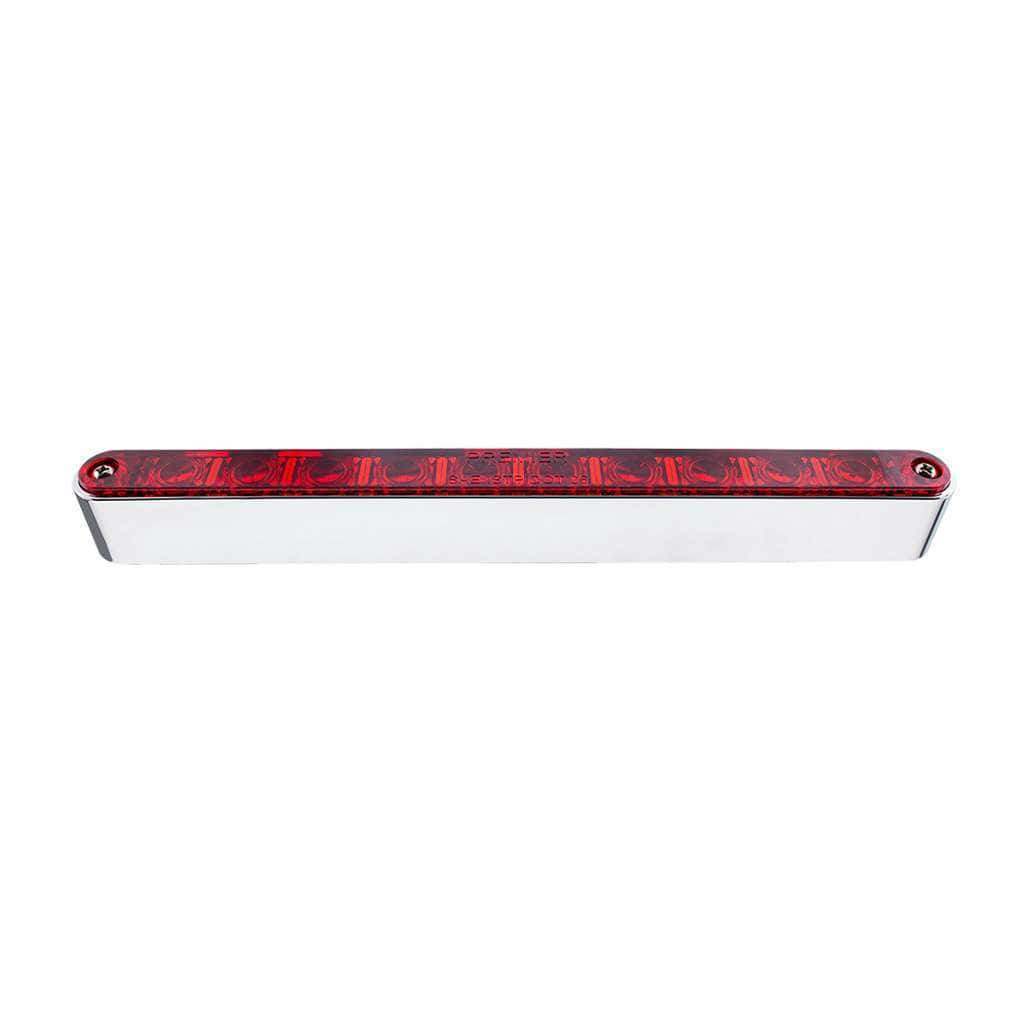

Premium Chrome Bezel:
Includes a quality chrome-plated plastic bezel that adds a polished, show-ready appearance to your truck.
Adjustable Mounting Width:
Mounting screws are adjustable to fit between 4-1/2″ to 7-3/8″, providing flexibility across different vehicle types. Stainless steel mounting hardware included.
Easy 4-Wire Hookup:
Straightforward installation with clearly labeled wires:
-
White = Ground (-)
-
Black = Tail (+)
-
Yellow = Left Turn High (+)
-
Green = Right Turn High (+)
Expandable Option:
Compatible with optional 9″ chrome plastic bezel, item #30932B, for added customization.
Technical Specifications
-
LED Count: 10 Red LEDs
-
Lens Type: Red
-
Housing Finish: Chrome Plated Plastic Bezel
-
Mounting Range: 4-1/2″ to 7-3/8″ Adjustable
-
Wiring: 4-Wire System
-
Functions: Tail Light + Split Turn Signal (Left/Right High)
-
Circuit Board: Epoxy-Coated for Moisture Resistance
-
Compatibility: Universal Fit for Custom and Semi-Truck Applications
-
Warranty: 6 Months
What’s Included
-
1x 9″ Split Turn LED Light Bar (Red Lens, Red LEDs)
-
1x Chrome Bezel
-
Stainless Steel Mounting Hardware
Split the Signals. Double the Impact.
Ideal for custom truck builds, restorations, or safety upgrades, this 9″ LED light bar blends precision signaling with a premium chrome finish for a look that commands the road.
