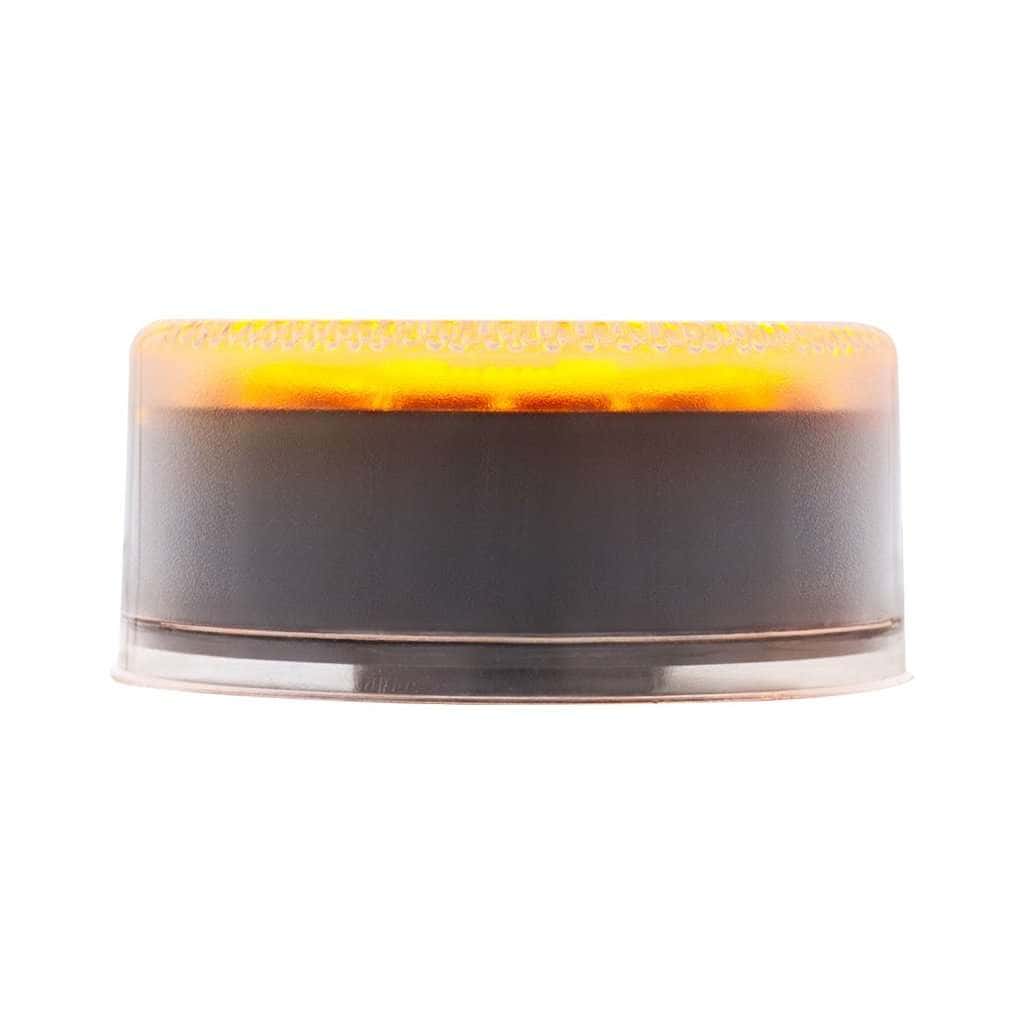

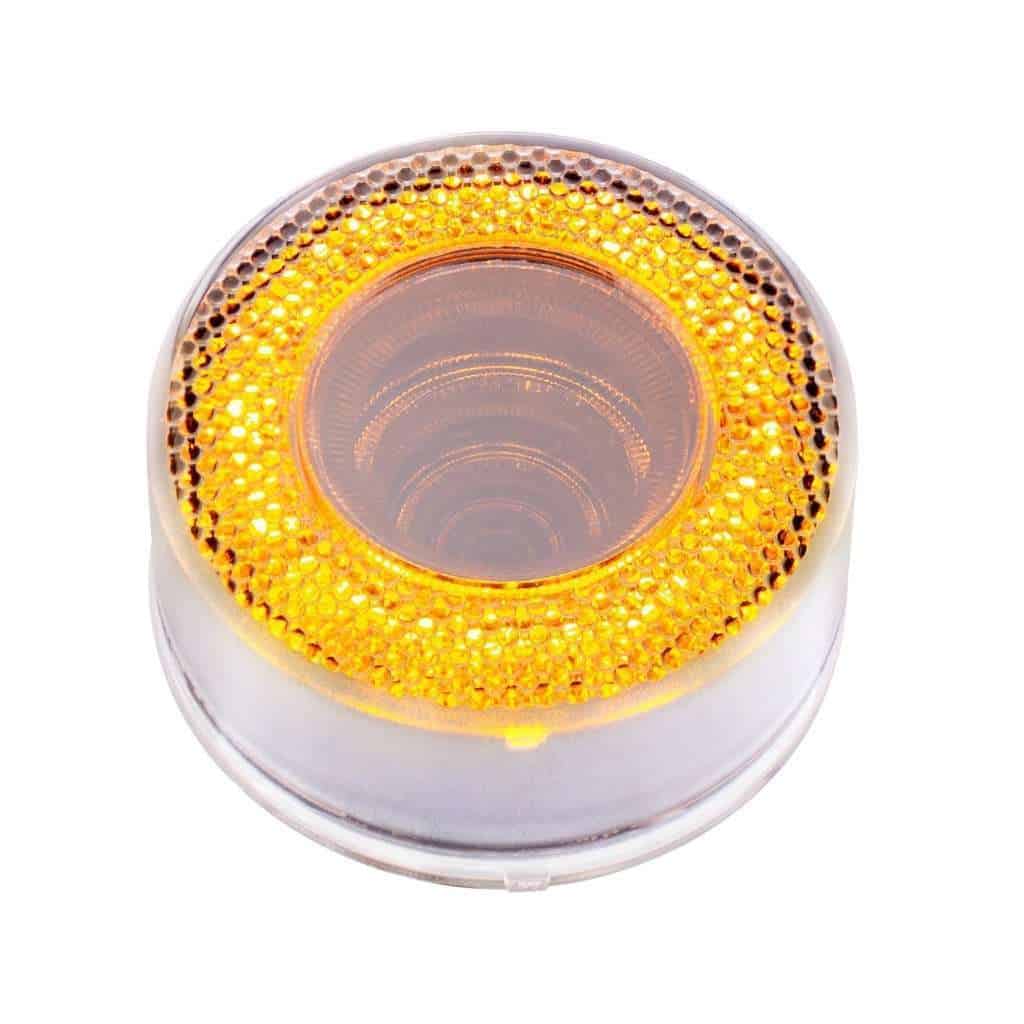

Twelve amber LEDs in a clear-lens Mirage marker
Choose United Pacific 36562 for amber output, a clear lens and the nominal 2.5-inch Mirage format. The mirror-effect design gives the lamp its distinctive appearance while the exact connector and mounting arrangement guide part selection.
Product details

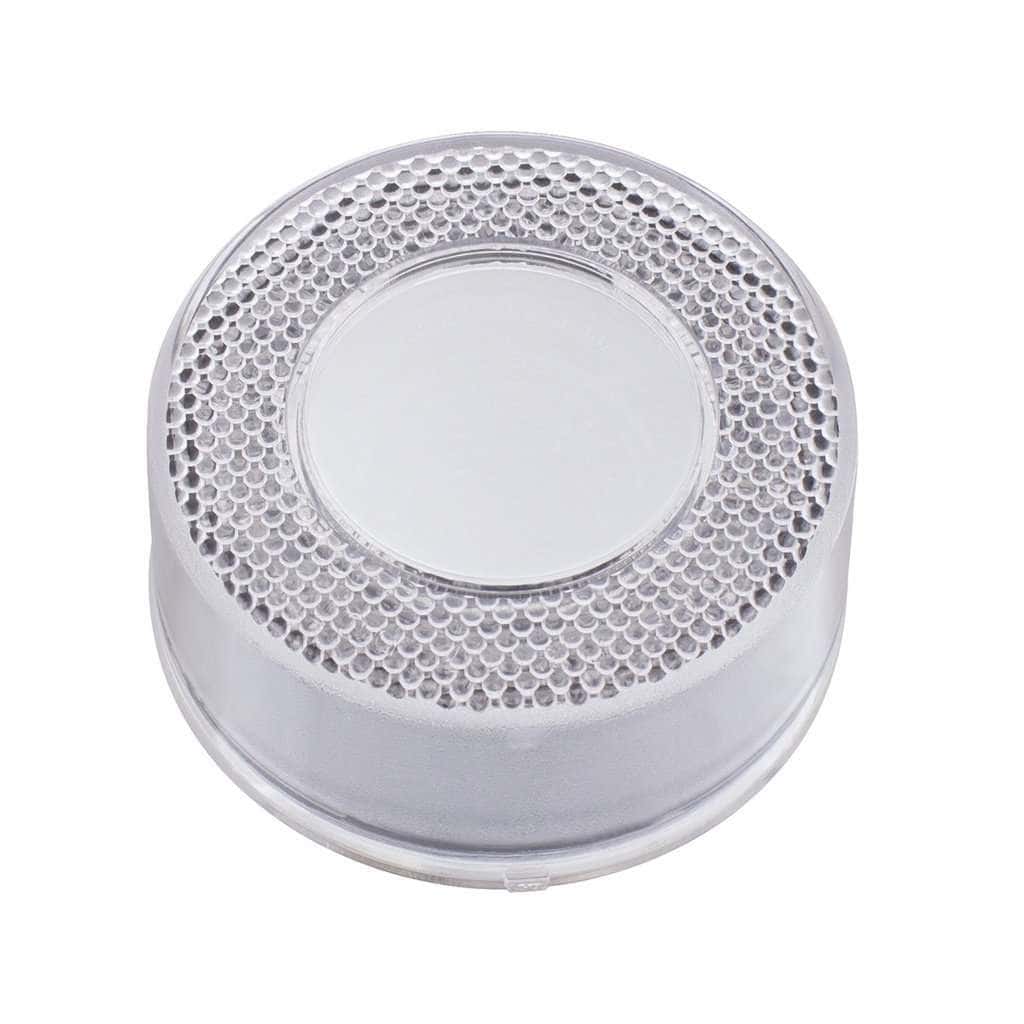

- 12 amber LEDs behind a clear lens.
- Single-function round clearance/marker format, nominally 2.5 inches.
- Durable plastic housing with a two-contact female connector.
- 12V operating specification and one piece per card.
- Recommended male plug 34210P is explicitly not included.
Account for the separate plug
Plan for the matching male connection and compare the installed retainer, opening and rear clearance. Select mounting hardware for this exact light format; a shared nominal diameter does not establish the panel cutout or accessory fit.
Compare the red-output alternative
The 36562 emits amber light through its clear lens. Part 36563 is the red-LED, clear-lens counterpart. Match the required output colour and clearance/marker function to the intended position.
🔧 Backed by a LIFETIME WARRANTY for ultimate peace of mind!
Frequently Asked Questions
Which LED colour does 36562 use?
It uses twelve amber LEDs behind a clear lens. The red-output counterpart is part 36563.
Is this the smaller two-inch Mirage light?
No. This is the nominal 2.5-inch, twelve-LED version. Compare the complete light format and mounting arrangement when replacing a smaller lamp.
Does it come with the male connector?
No. United Pacific recommends male plug 34210P and explicitly lists it as not included.

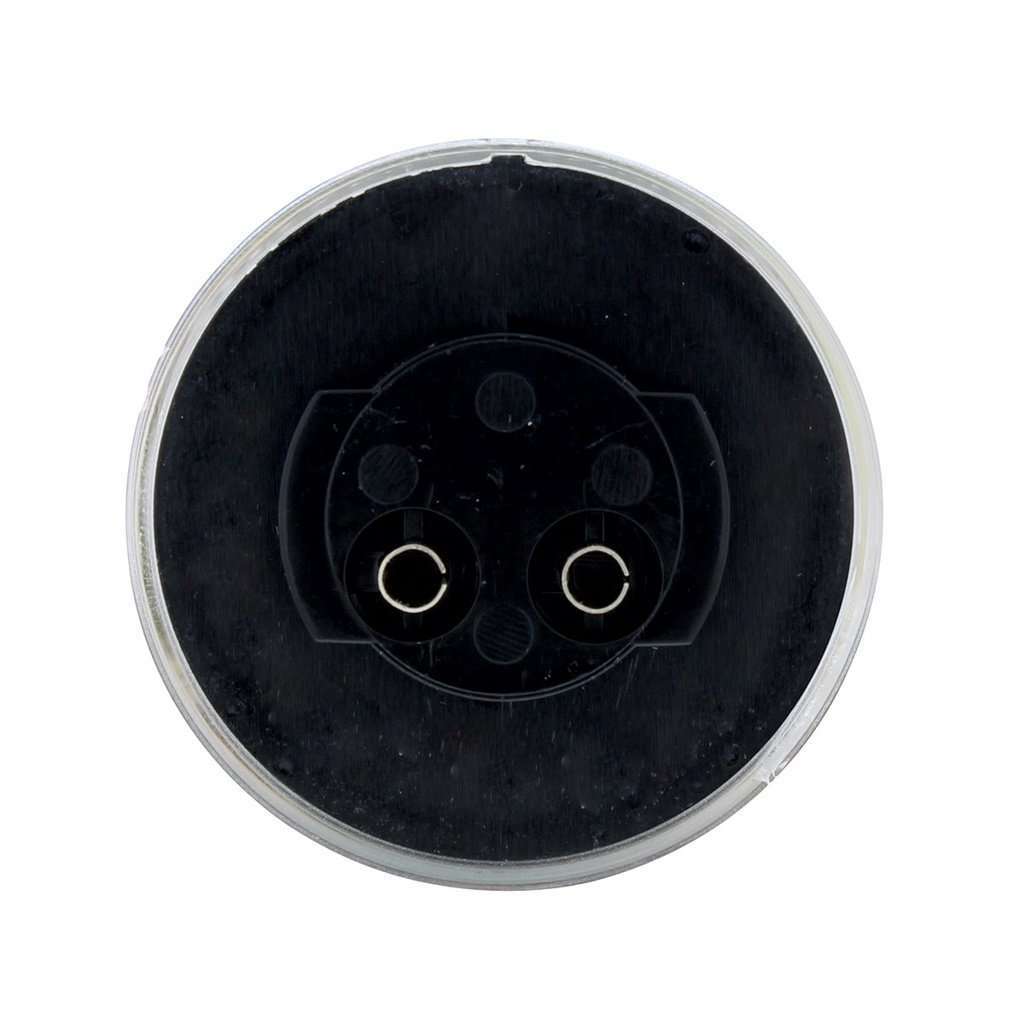

What connector and voltage does the light require?
The housing has a two-contact female connector, and the light is listed for 12V operation. Match the recommended male plug and the supply circuit.

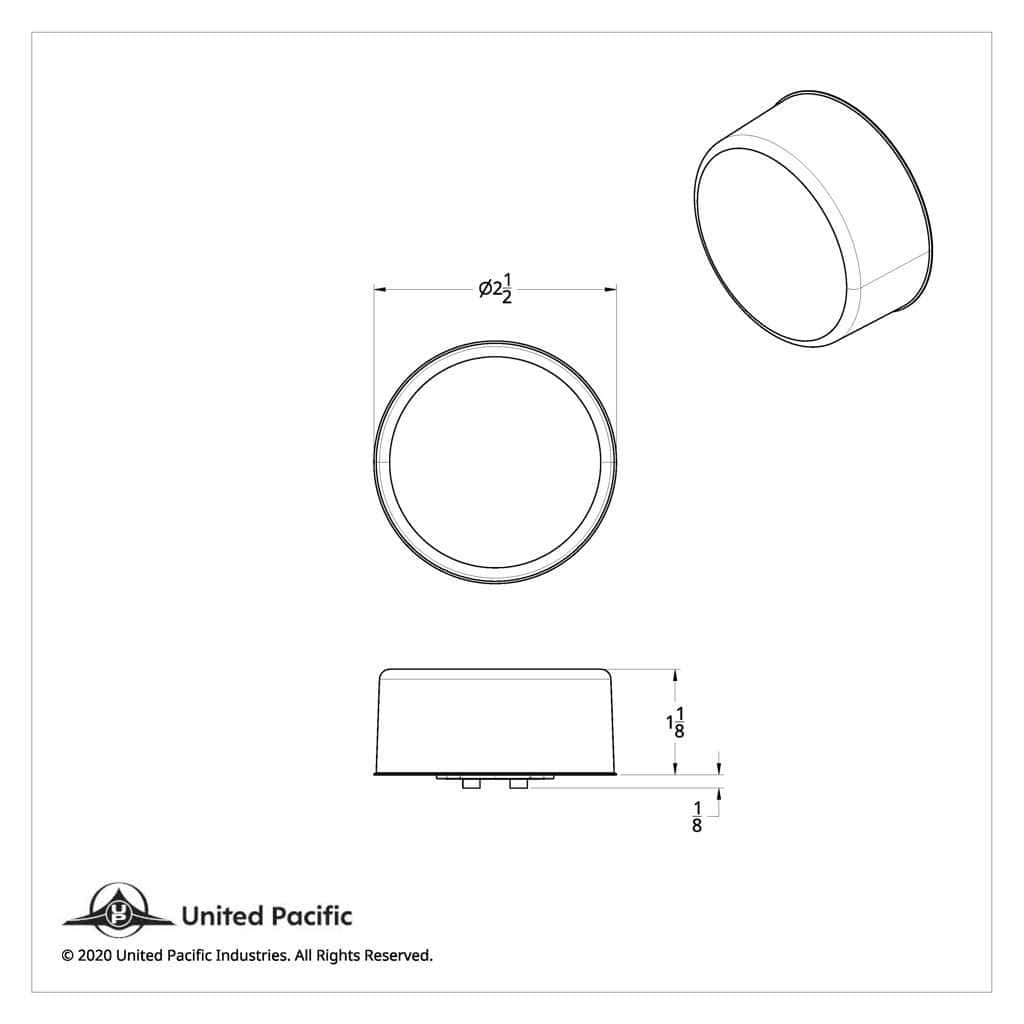

How do I choose the mounting opening?
Match the exact retainer or grommet to the light and use that component’s mounting dimensions. Do not cut the panel from the nominal 2.5-inch lamp size alone.
