Red Mirage marker lighting through a clear lens
United Pacific 36527 puts nine red LEDs behind a clear lens with the Mirage mirror-effect design. Its nominal 2-inch round format is intended for a matching clearance/marker-light installation.
Product details
- 9 red LEDs, clear lens and single-function marker/clearance use.
- Sonically sealed polycarbonate lens and durable plastic housing.

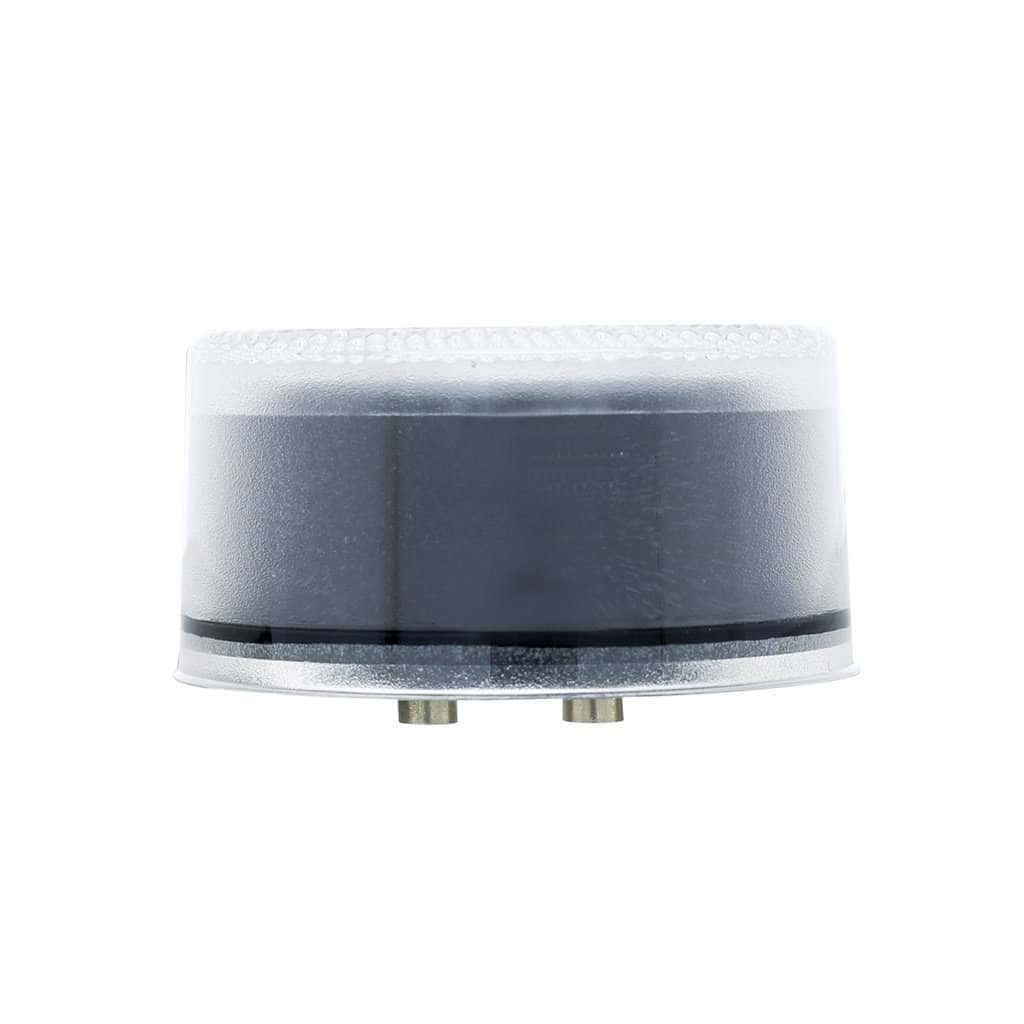

- 12V DC operation and a two-contact female plug.
- Manufacturer names two-pin connector 34210 and push-in grommets 31505/31507.
- One piece per card; bezel 10501 is explicitly incompatible.
Choose the grommet and bezel carefully

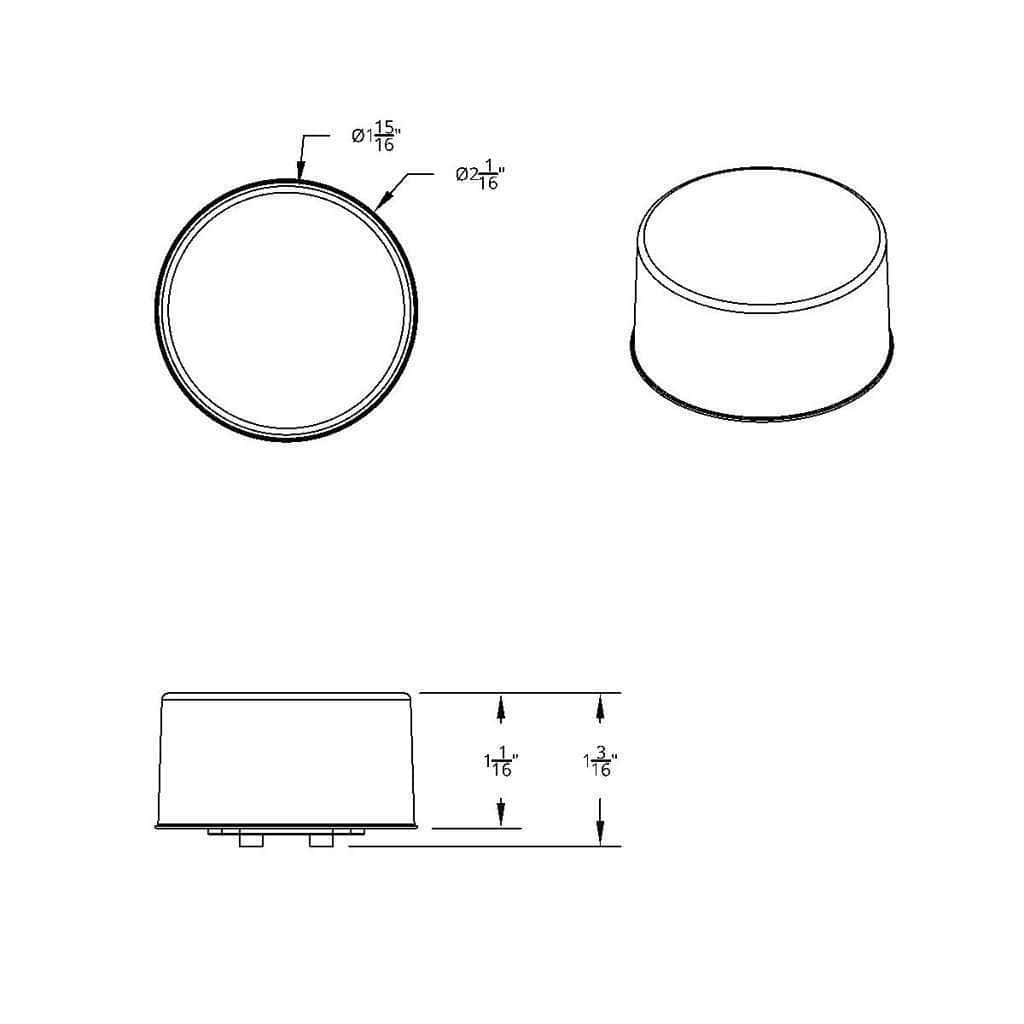

Use the manufacturer’s named grommet options as the starting point, then compare the mounting panel and rear clearance. The lamp’s nominal 2-inch size is not a panel-cutout measurement. Follow the selected grommet’s mounting requirements and keep bezel 10501 out of this combination.
Match LED colour as well as lens colour
The clear lens on 36527 emits red light. Part 36526 uses amber LEDs behind a clear lens. Select the required colour and lamp function for the actual mounting position.
🔧 LIFETIME WARRANTY – Built for long-lasting durability and reliability!
Frequently Asked Questions
Does the clear lens make 36527 a white light?
No. This part has nine red LEDs behind a clear lens, so its LED output is red.
Which rubber grommets are named for this lamp?
United Pacific names standard 2-inch round push-in grommets 31505 and 31507. Compare the selected grommet’s mounting requirements with your panel and available clearance.
Which electrical connector does it use?

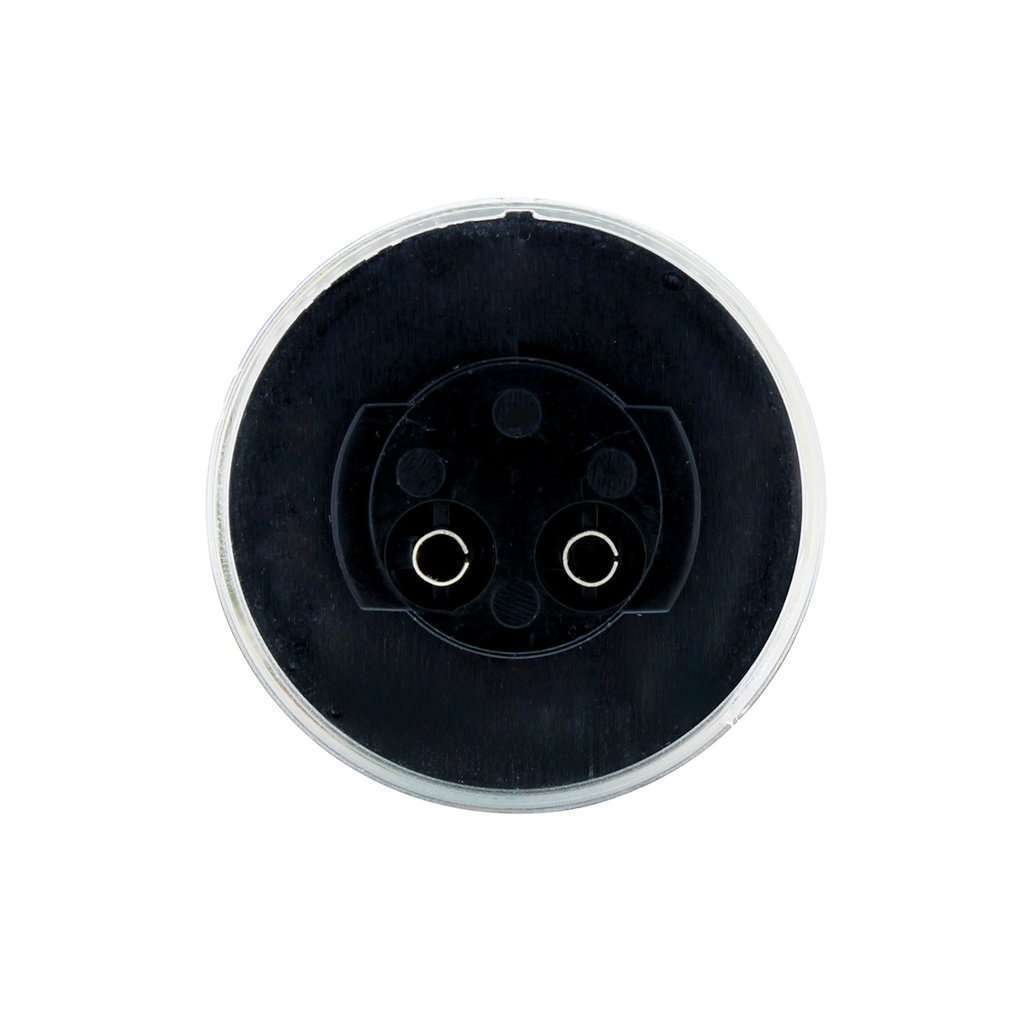

The lamp has a two-contact female plug. United Pacific names two-pin connector 34210 for the matching electrical connection.
Can I use bezel 10501?
No. The manufacturer explicitly lists bezel 10501 as incompatible with this Mirage light.
Should I cut a 2-inch hole for the lamp?
Choose the matching grommet first and follow its specified panel opening. Two inches is the lamp’s nominal format, not an instruction to cut a hole of that diameter.
