Amber marker output with a clear Mirage lens

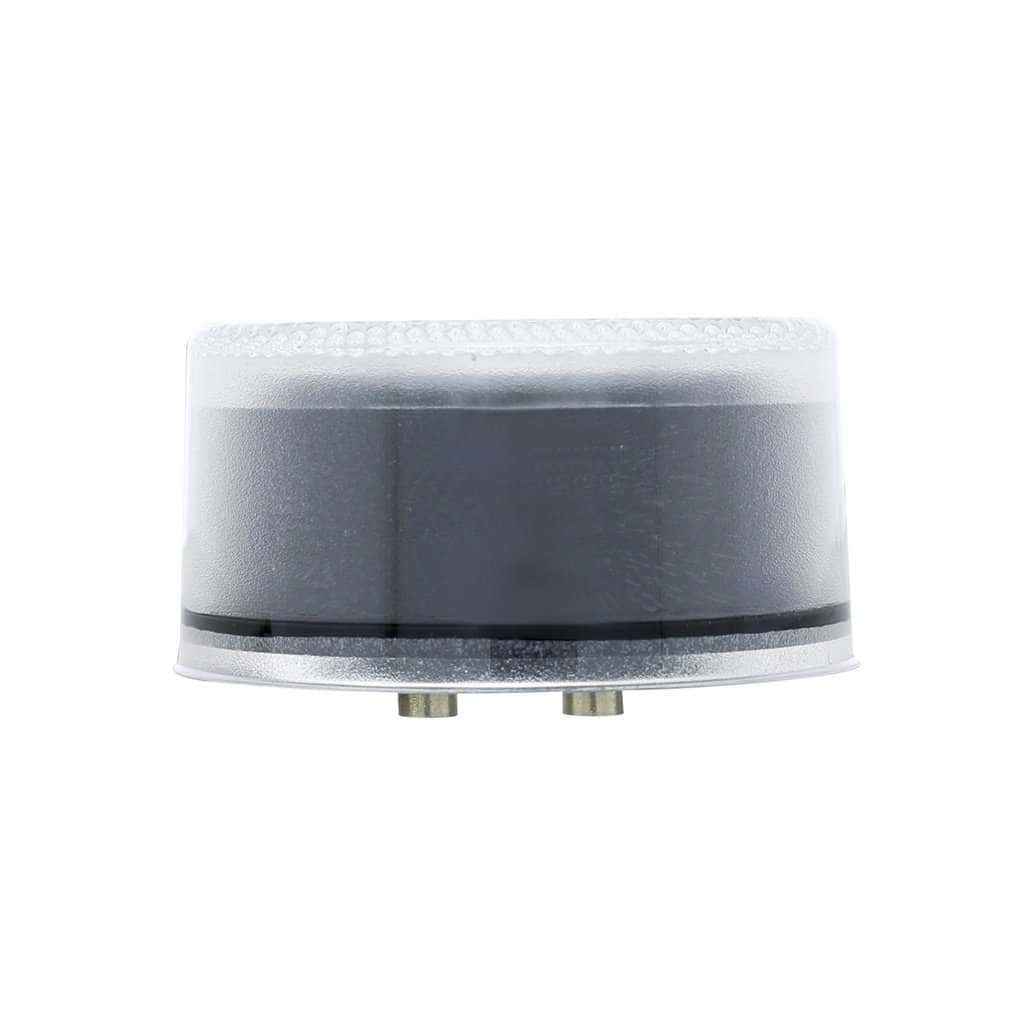

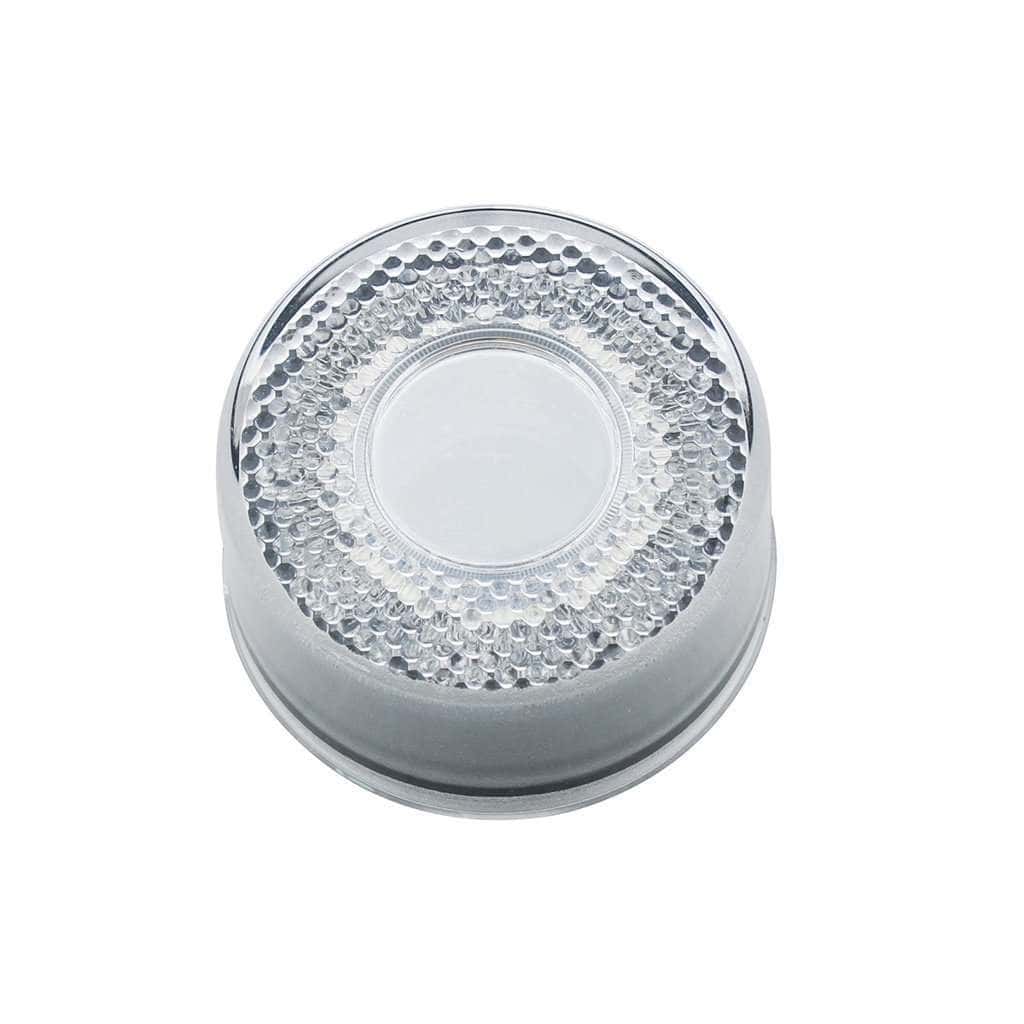

United Pacific 36526 gives a matching clearance/marker position amber LED output through a clear lens. Nine LEDs sit inside the nominal 2-inch round housing with the Mirage mirror-effect lens design.
Product details
- 9 amber LEDs and a clear polycarbonate lens.
- Lens sonically sealed to the durable plastic housing.

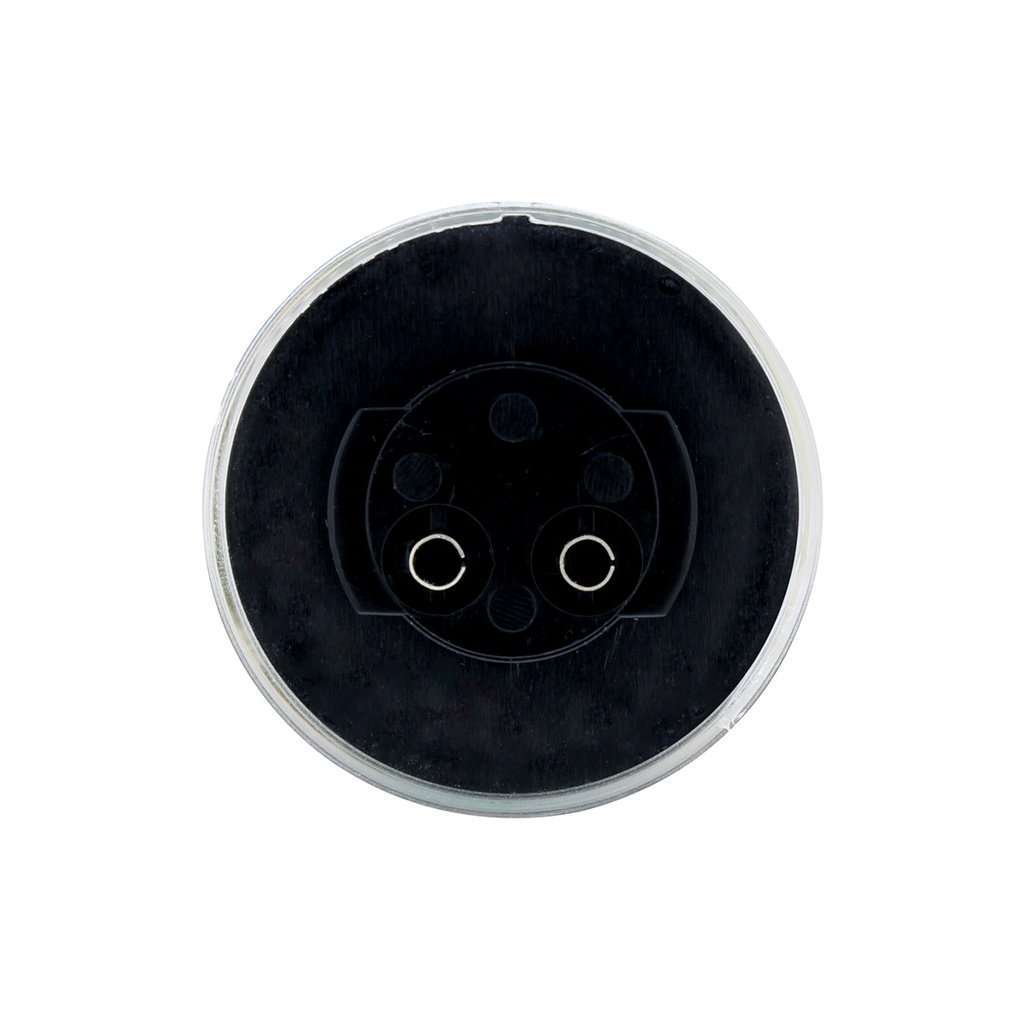

- 12V DC operation with a two-contact female plug.
- Manufacturer names two-pin connector 34210 and push-in grommets 31505/31507.
- One piece per card; not compatible with bezel 10501.
Fit the lamp to the mounting system
Compare the grommet, panel opening and rear clearance before fitting the lamp. Use the chosen mounting component’s cutout dimensions rather than the nominal 2-inch lamp size. The manufacturer’s explicit bezel 10501 exclusion remains part of the selection.
Choose by the required output colour
Part 36526 is amber-output/clear-lens. The red-output/clear-lens alternative is 36527. Match colour and clearance/marker function to the position where the light will be used.
🔧 LIFETIME WARRANTY – Built for long-lasting durability and reliability!
Frequently Asked Questions
Is the light amber even though the lens is clear?
Yes. Part 36526 uses nine amber LEDs behind the clear lens. It is not the white-output version of this light.
What is the difference between 36526 and 36527?
Both have clear lenses and the nominal 2-inch Mirage format. Part 36526 emits amber light; 36527 emits red light.
Which plug and grommets does United Pacific name?
The manufacturer names two-pin plug 34210 and standard 2-inch round push-in grommets 31505/31507. Compare the actual mounting and wiring arrangement before ordering the accessories.
Will bezel 10501 work with this lamp?
No. United Pacific explicitly lists bezel 10501 as incompatible.
What should I measure before installation?
Check the panel opening, selected grommet and rear clearance. Follow the grommet’s cutout requirement; the lamp’s nominal 2-inch designation is not a drilling dimension.
