United Pacific 36165 · Single-colour Crystal Mini light
Red LEDs, a clear Crystal lens and low/high operation
Choose UPI 36165 for two red LEDs behind a clear polycarbonate Crystal lens. Low and high use the same red LED colour, while the Crystal lens and chrome plastic bezel give the compact light its finished appearance.

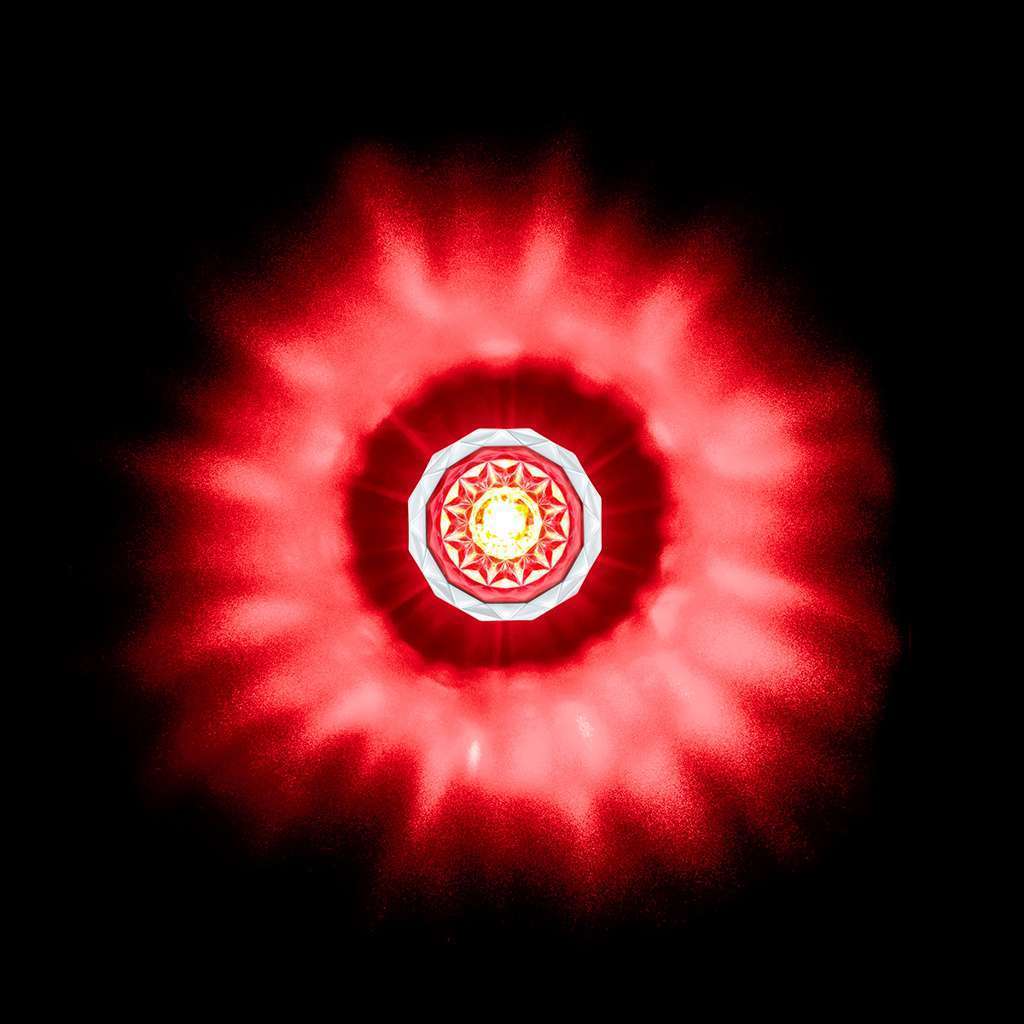

Red LED / clear lens
The LEDs emit red light. The clear lens describes the lens appearance, including when the light is off.
Single colour, two functions
Separate low and high positive leads control two brightness functions without changing the emitted colour.

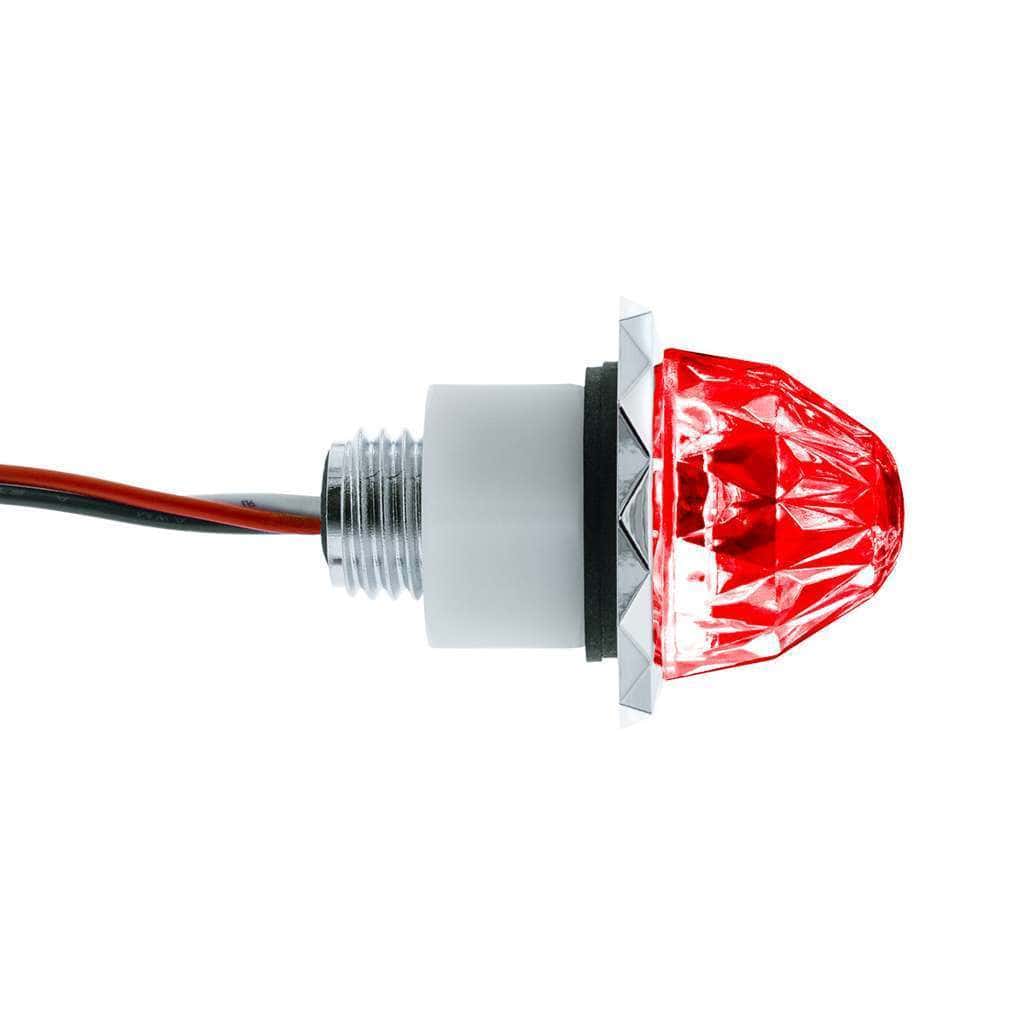

5/8-inch threaded-stud mount
United Pacific currently specifies a 5/8-inch installation hole. Measure the actual mounting shank and check rear space before drilling.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Mounting, power and package details
Match the 12V supply and three-wire connection
12V low/high wiring
- White: ground
- Black: low-function positive
- Red: high-function positive

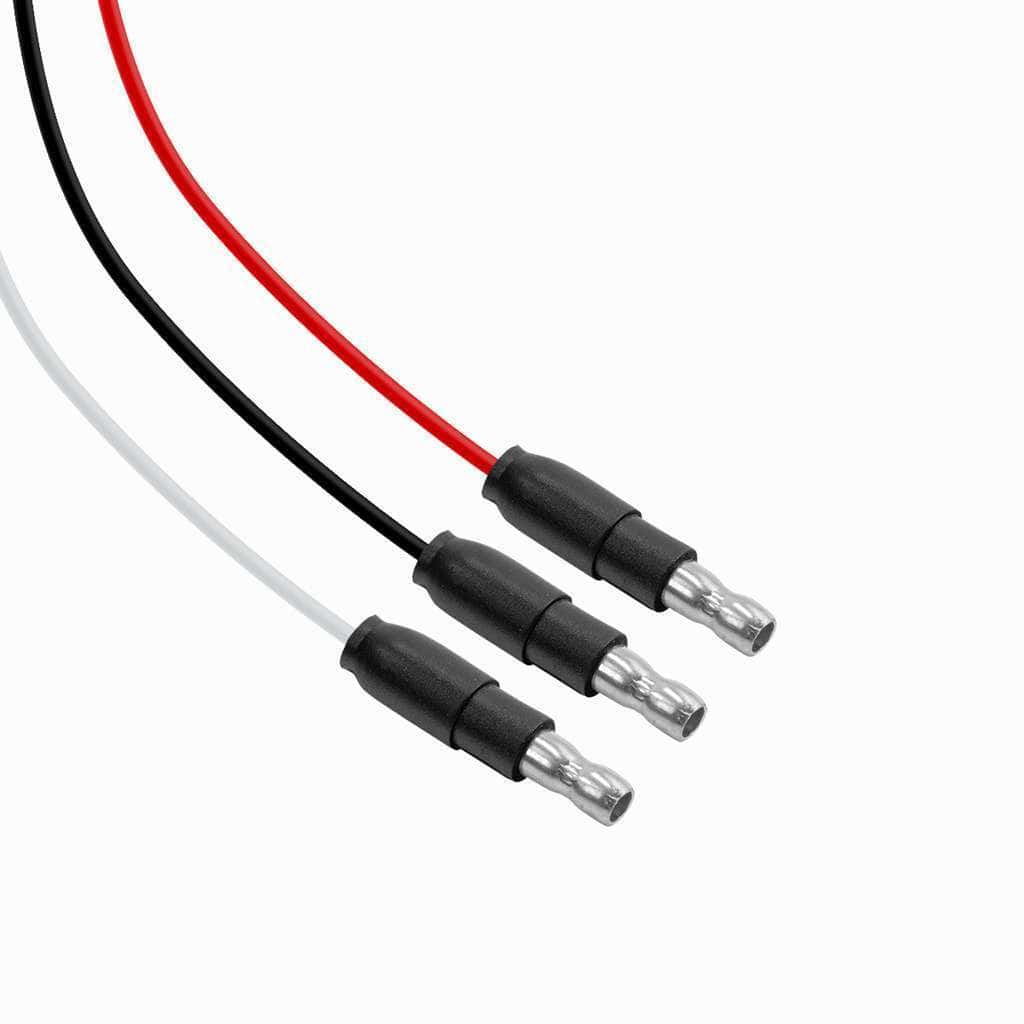

The three-wire hookup uses male bullet plugs. Match the supply and intended circuits before connecting the light.
Mounting hardware and connection
- Chrome plastic bezel
- Threaded-stud mounting with included nylon nut
- Three-wire hookup with male bullet plugs
The 5/8-inch figure is an installation-hole requirement. It does not establish universal vehicle, bracket or road-position fitment. This two-LED, three-wire single-colour family is distinct from the four-wire, two-colour Crystal 36166 family.
United Pacific describes a polycarbonate Crystal lens, epoxy-sealed construction and an IP67 water-resistant rating. The family page also lists DOT/SAE and FMVSS 108; confirm the required colour, function, mounting position and installation for your application.
Choosing a different colour or function? Compare Mini watermelon lights by LED colour, lens colour and function, then check the exact product’s mounting and package details.
Prefer the same red LED colour with a matching-colour lens? Compare the UPI 36163 red LED/red lens Crystal Mini light. Check that listing’s own availability, package and warranty details.
Before you choose
United Pacific 36165 questions
What’s the difference between clear and matching red lenses?
Both exact options use red LEDs. A clear lens looks clear when the light is off, while a matching red lens keeps a red appearance.
Is this light dual function?
Yes. UPI 36165 uses the same red LED colour for separate low and high functions through its three-wire hookup. The clear lens is not a second emitted colour.
What size hole is required?
United Pacific currently specifies a 5/8-inch installation hole and threaded-stud mounting. Check the supplied instructions and measure the actual mounting shank before drilling.
Is this light waterproof?
United Pacific lists an IP67 water-resistant rating and epoxy-sealed construction for this family.
Is this light DOT compliant?
The manufacturer family page lists DOT/SAE and FMVSS 108. Confirm that the colour, function, mounting position and installation meet the rules for your exact application.
How are the three wires assigned?
White is ground, black is the low-function positive lead and red is the high-function positive lead. United Pacific specifies 12V operation and male bullet plugs.
Warranty
Warranty: 3-year manufacturer warranty.
