BTS LIGHTING · 2017–2019 Super Duty facelift
A newer Super Duty front end. Matched from support to signature.
Give your 2017–2019 truck the coordinated 2020–2022-style grille and lighting arrangement, with the support kit that makes the chosen components work together.

THE DESIGN
The details that define this setup

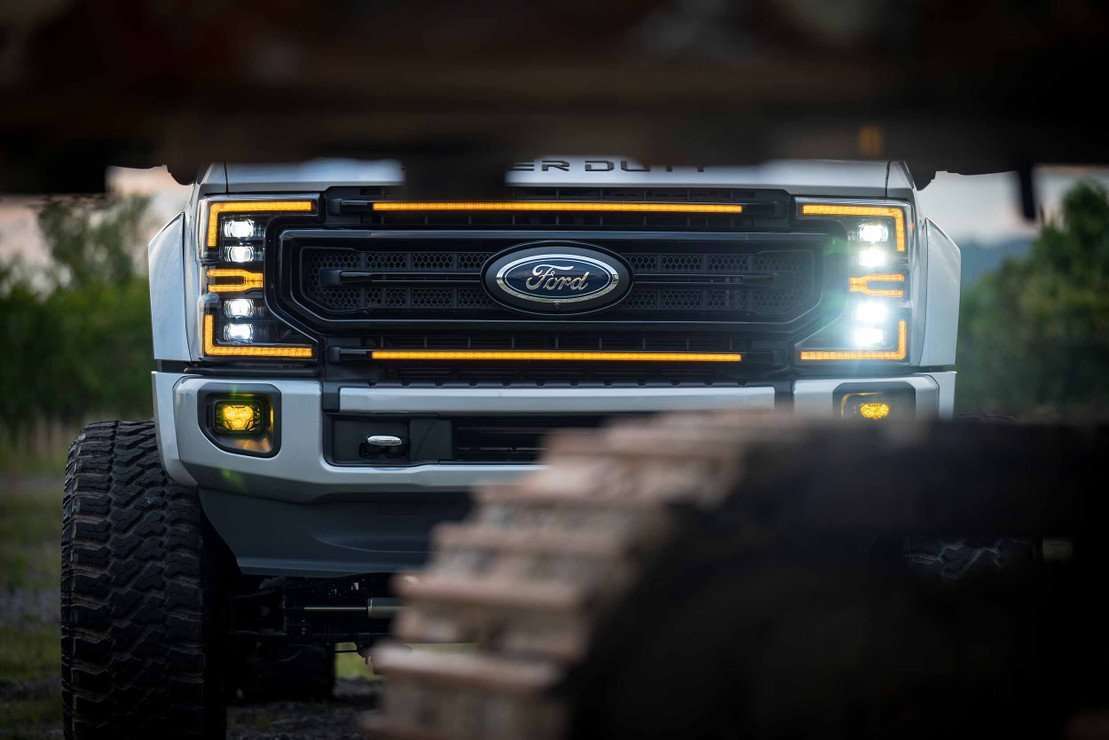

A matched lighting signature

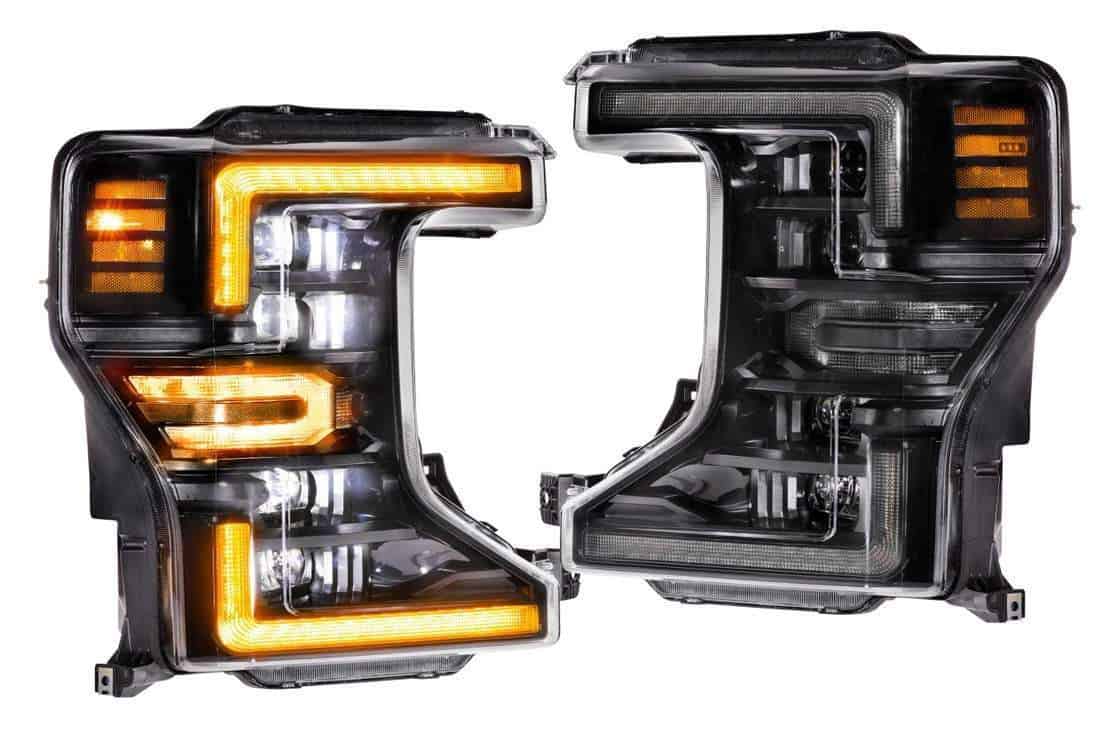

The selected grille bars and LF508-series headlights share a white or amber daytime signature. Low and high beams come from the headlight projectors.
Choose the finish
Black and chrome grille options are paired with the corresponding white or amber lighting choice. Select the complete combination above before ordering.
The conversion hardware belongs in the box
This BTS package combines the XBG3 support kit with the grille and headlight pair. The support kit alone is a different package.


MATCH THE EXACT APPLICATION
Fitment before you order
| Check | This product |
|---|---|
| Vehicle | 2017–2019 Ford Super Duty |
| Conversion | 2020–2022-style Morimoto grille and LF508-series headlights |
| Original headlights | Follow the XBG3 branch for the original halogen or LED equipment |
| Not supported | 2020–2022 Ford OEM LED headlight conversion |
| Traffic pattern | LHD headlight beam; confirm market-specific wiring |
- Not a conversion using 2020–2022 Ford OEM LED headlights.
- Use the 2017–2019 XBG3 installation branches; do not substitute the 2020–2022 factory-LED adapter instructions.
- Transfer applicable original emblem/camera/washer and hardware; test and aim after installation.
THE PACKAGE AND YOUR OPTIONS
Know what is included

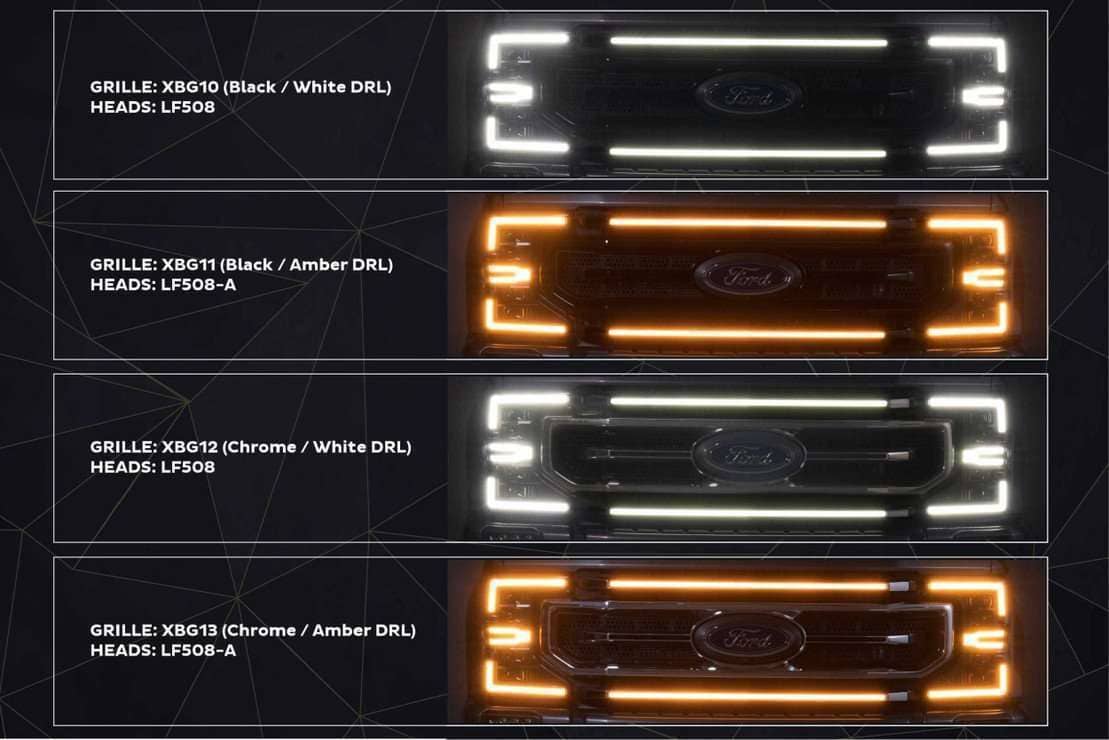

| Finish / daytime signature | BTS selection | Matched components |
|---|---|---|
| Black / White | 45244 | XBG3 + XBG10 + LF508 |
| Black / Amber | 45245 | XBG3 + XBG11 + LF508-A |
| Chrome / White | 45246 | XBG3 + XBG12 + LF508 |
| Chrome / Amber | 45247 | XBG3 + XBG13 + LF508-A |

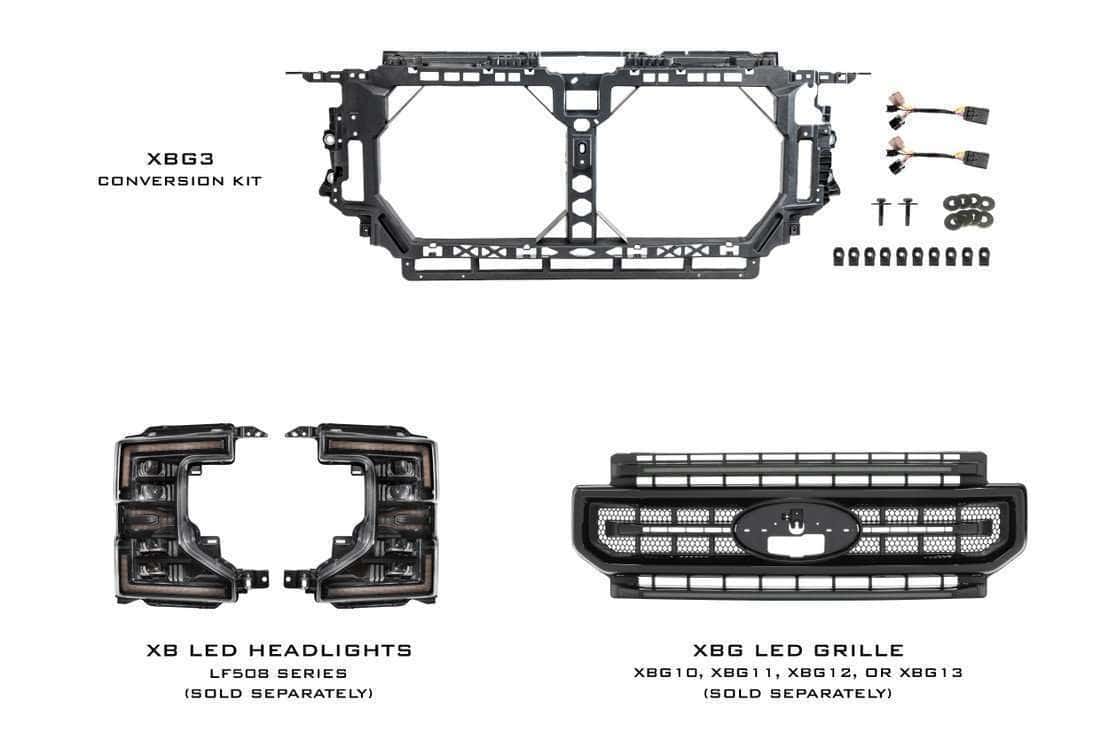

Standard package
- XBG3 support, conversion adapters and hardware
- Black or chrome XBG grille with the selected white or amber DRL bars
- Matched LF508 white-DRL or LF508-A amber-DRL headlight pair
Decorative equipment and other lighting on example vehicles are separate unless listed above.
PLAN THE WORK
Installation notes

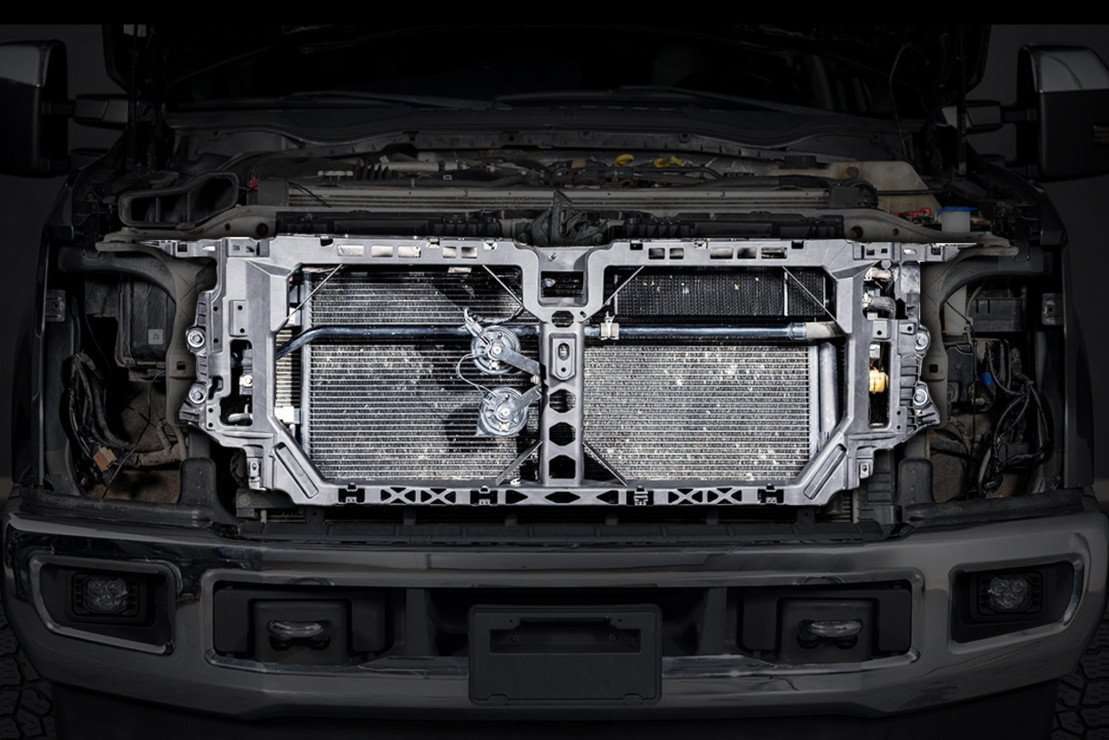

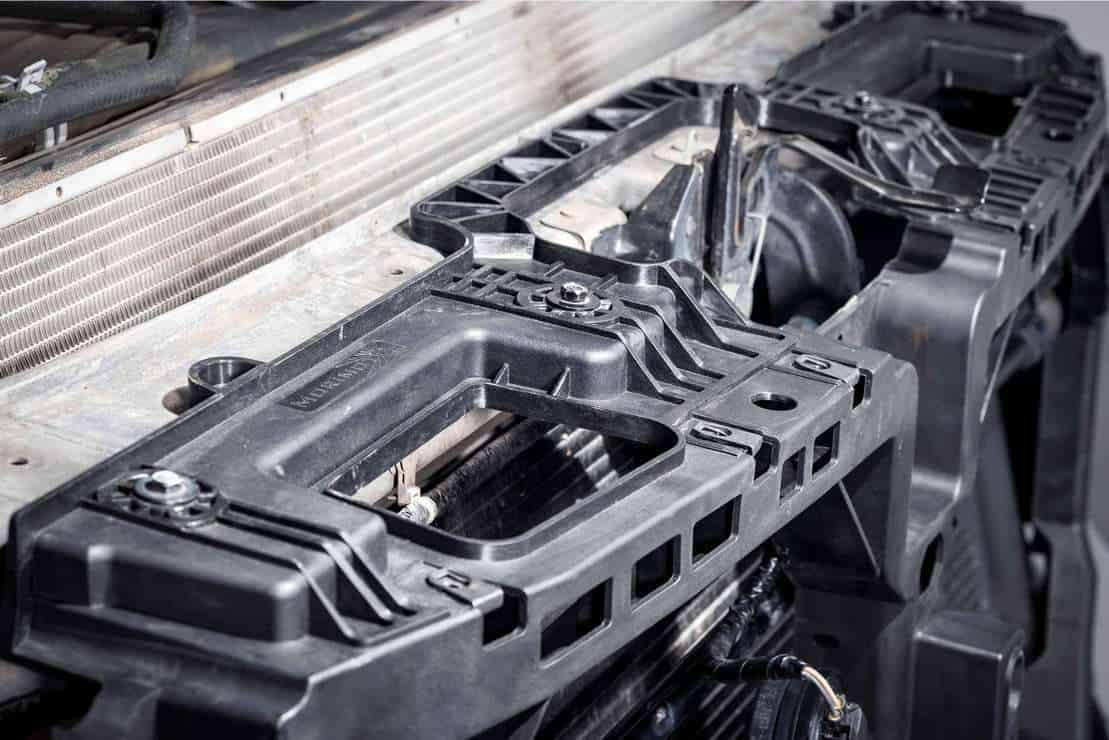

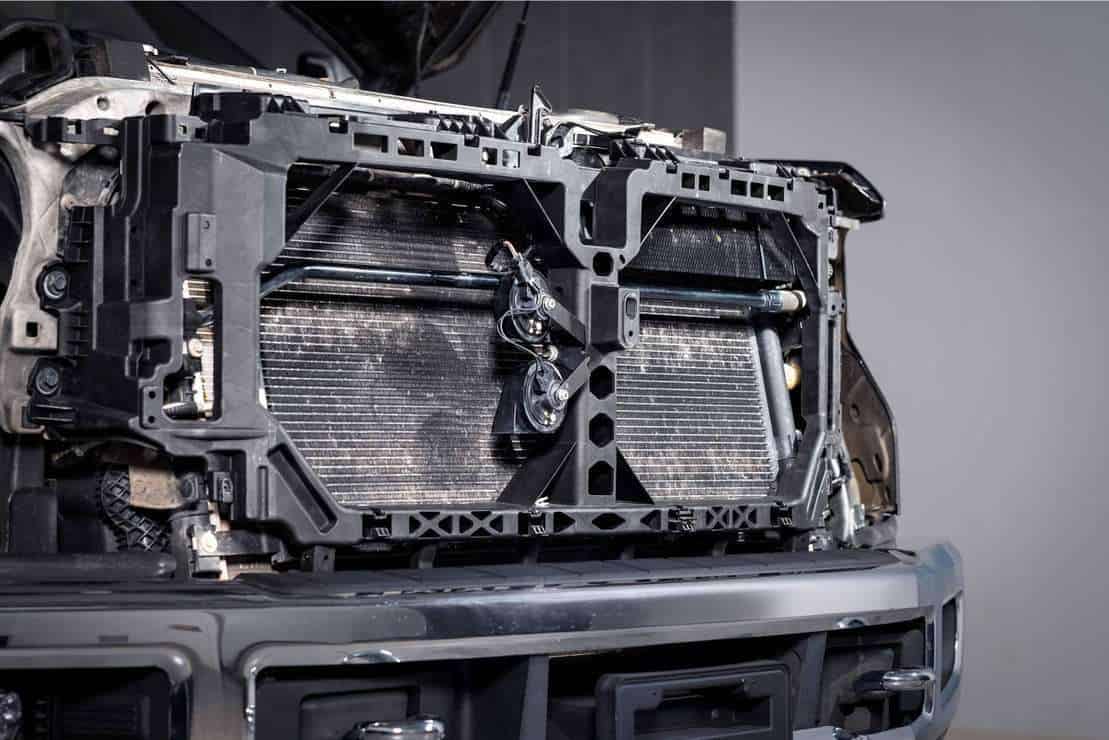

Remove the original grille, headlights and support as directed by the XBG3 guide. Transfer the applicable horn, emblem, camera/washer and hardware, fit the conversion support and connect the appropriate original-lighting adapters. The guide includes a specific headlight/grille fuse-tap arrangement. Check clearances, test every function and aim both headlights after assembly.
- Read the official XBG11 / XBG12 / XBG13 / XBG10 installation guide
- Read the official XBG3 installation guide
- Read the official LF508 / LF508-A installation guide
Use the instructions supplied with your exact parts. Secure wiring and test the functions relevant to your original equipment before use.
ORIGINAL PRODUCT MEDIA
A closer look
Manufacturer photographs and diagrams show the specified components. Supplier output comparisons are the manufacturer’s pictured setup, not independent BTS measurements.



EXACT COMPONENTS
Technical specifications
| Detail | Specification |
|---|---|

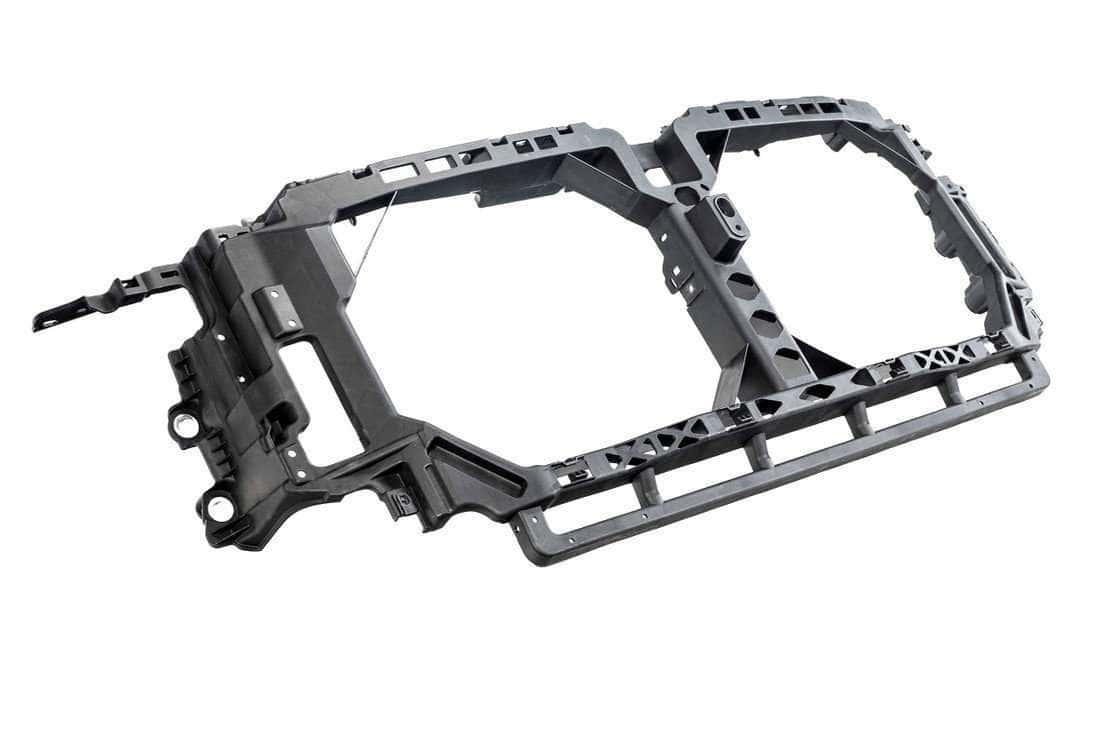

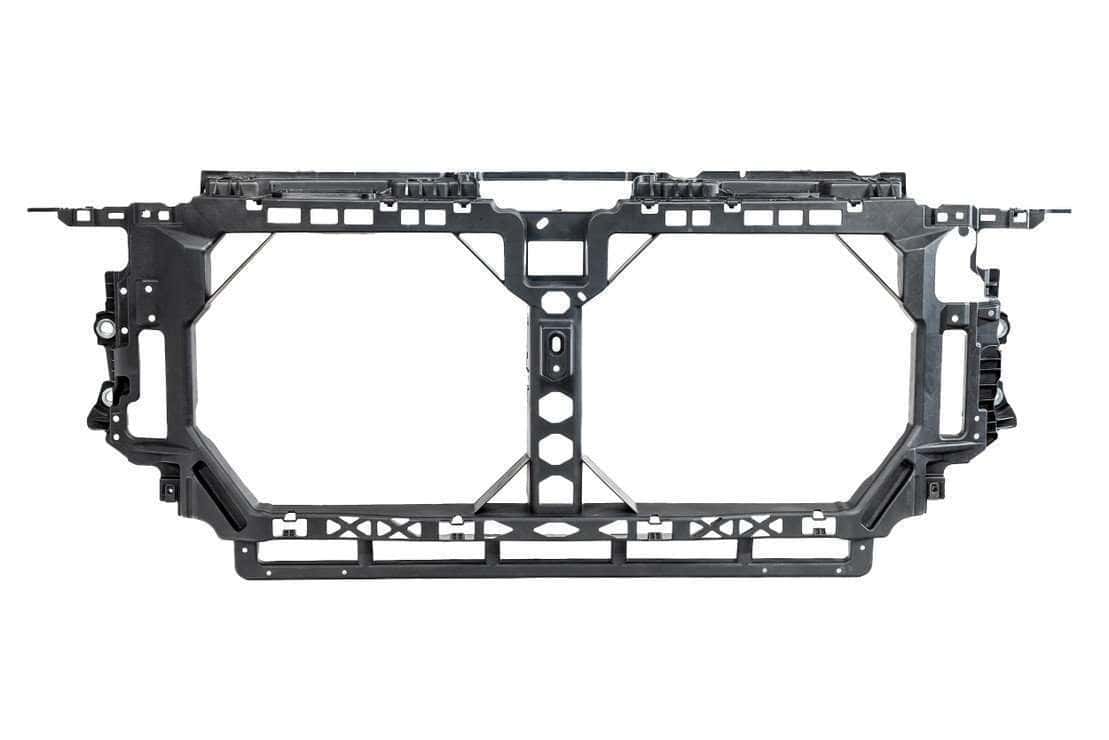

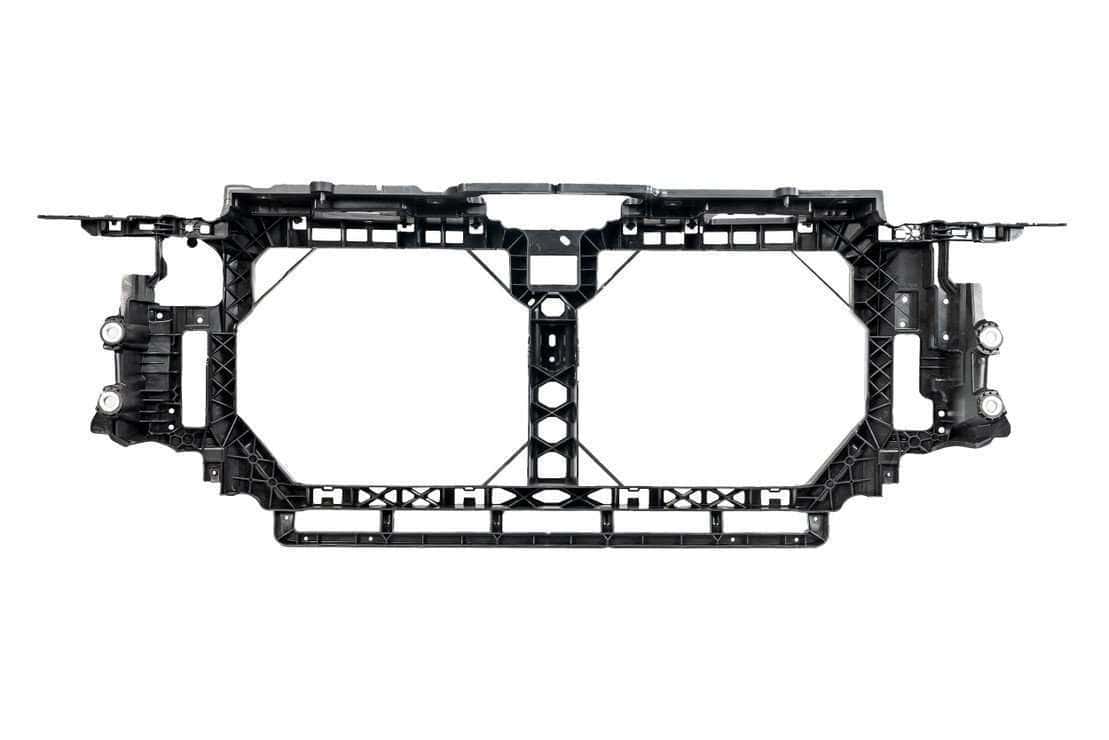

| Support | XBG3 fibre-reinforced polypropylene conversion support |
| Grille | One XBG grille with two preinstalled LED DRL bars |

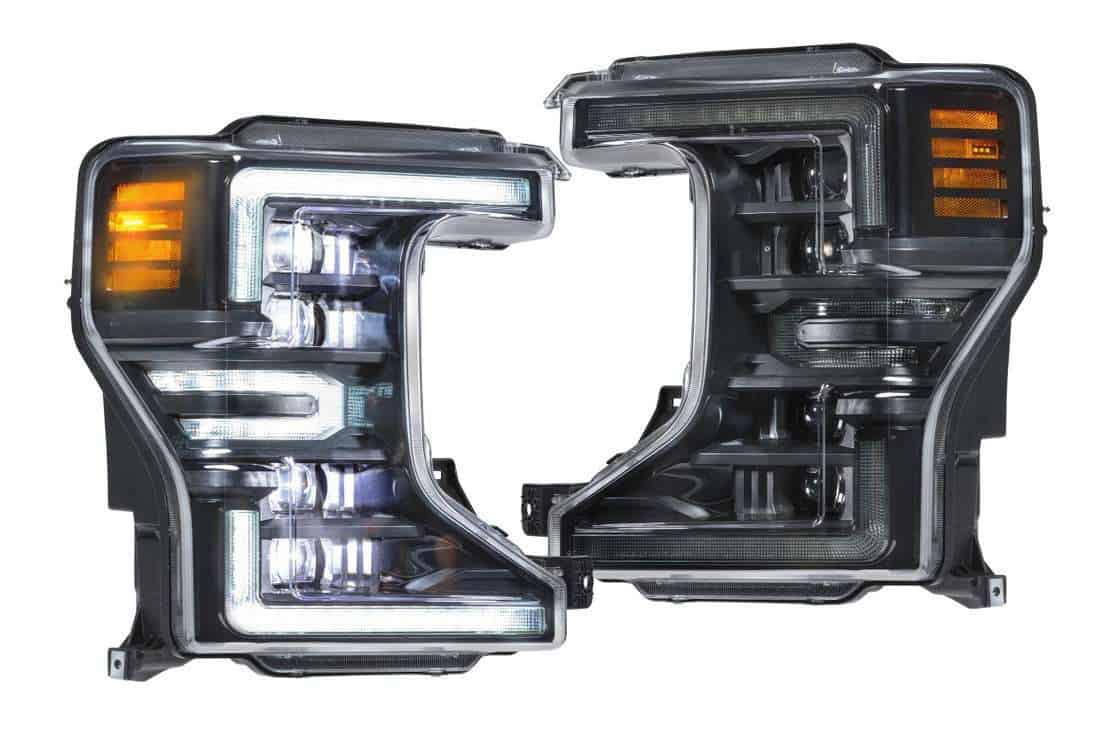

| Headlights | One LF508 or LF508-A low/high-beam bi-LED pair |
| Grille finish | Black or chrome, selected above |
| Daytime signature | White or amber, selected above |
Warranty
Five-year limited manufacturer warranty on the headlights and grille; XBG3 support kit has its separate lifetime-limited terms.
OFFICIAL COMPONENT OVERVIEWS
Watch the product videos
These videos cover the listed components. The exact package, current written fitment and option notes on this page govern your order.
Super Duty Transformation | From 17-19 to 20-22 in Minutes with Morimoto's Facelift Kit!
Manufacturer conversion overview; marketing title is not an installation-time guarantee.

Introducing The Morimoto XB LED Grille For The 20-22 Super Dutys | Installation And Overview
20–22 grille component overview, not instructions replacing the 17–19 XBG3 conversion guide.

2020+ Super Duty XB LED Projector Headlights from Morimoto
Official supplier-linked exact component/model-family overview; written exact configuration and included parts govern.

2020+ Ford Super Duty – Amber DRL – Morimoto XB LED Headlights | Install and Review
Official supplier-linked exact component/model-family overview; written exact configuration and included parts govern.

Videos load only when selected. No autoplay.
BEFORE CHECKOUT
Common questions
Is this just the conversion bracket?
No. Each listed BTS variant includes XBG3, one matched grille and the headlight pair. The supplier’s standalone XBG3 package excludes the grille and lights, which is why its package graphic must not be used to describe this complete kit.
Can I fit Ford factory LED headlights instead?
No. Morimoto specifically excludes 2020–2022 OEM LED headlights from this XBG3 conversion. Use the specified LF508-series combination.
Is this the same installation as a 2020–2022 truck?
No. The starting vehicle is a 2017–2019 truck. Use the conversion-specific XBG3 guide and the branch matching its original lights.
