MORIMOTO XB HYBRID · LF556.2
A modern signature for your Super Duty.

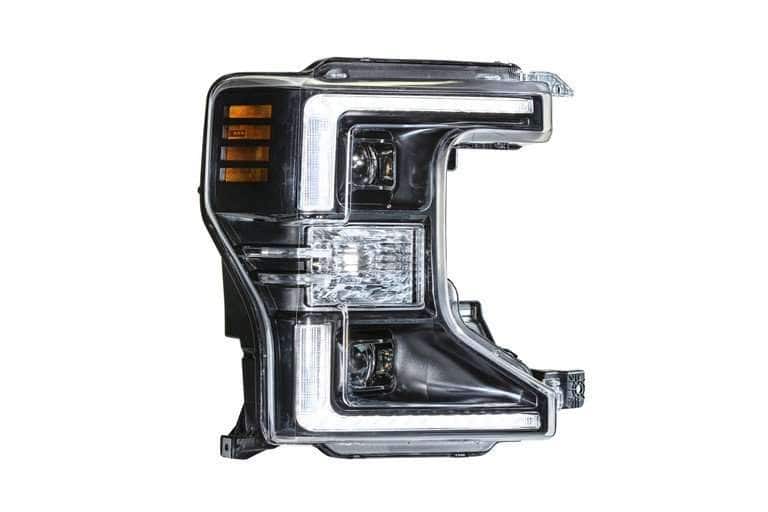

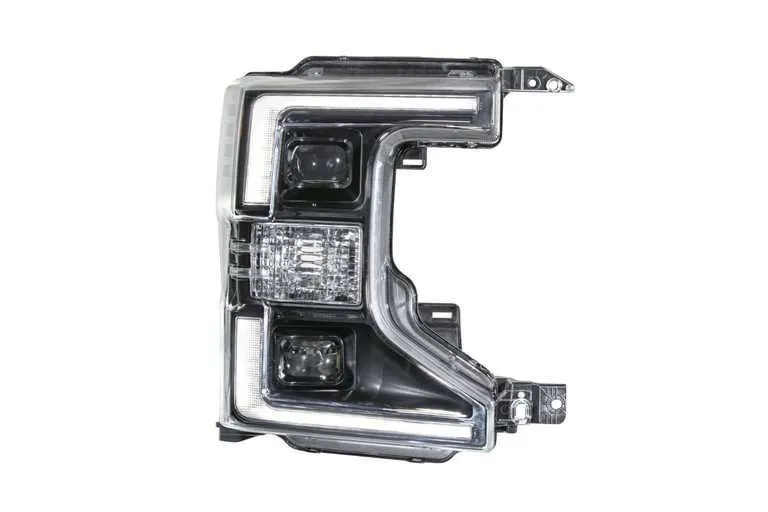

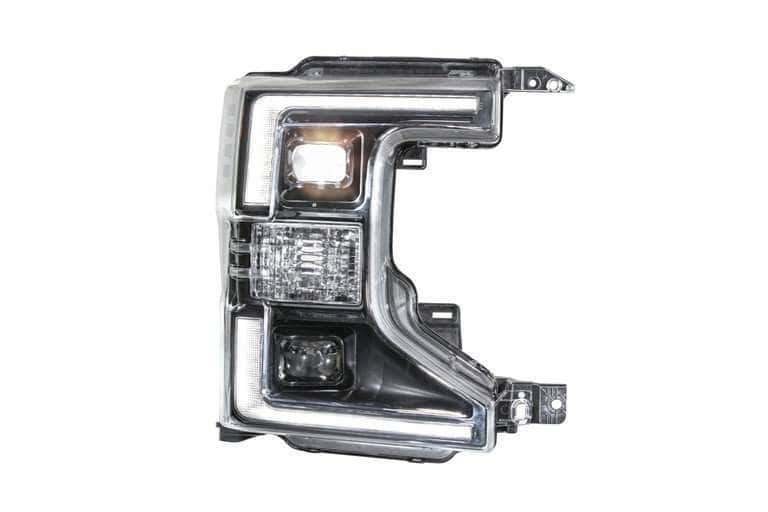

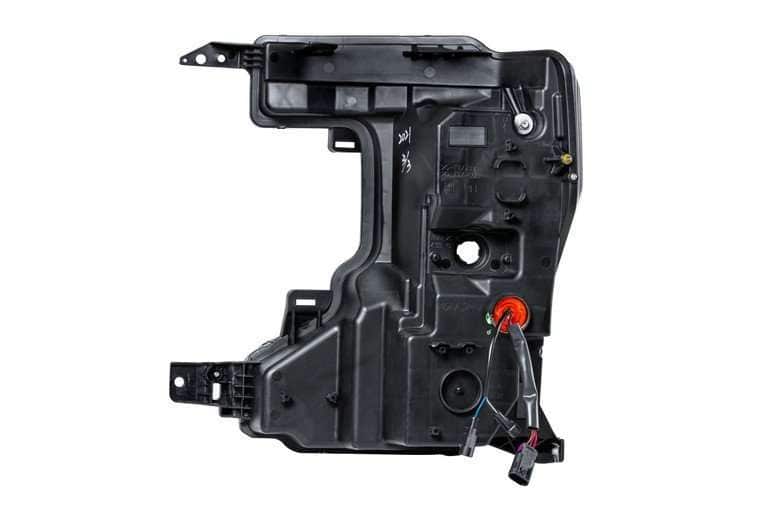

A complete headlight pair for the 2020–2022 Ford F-250 / F-350 / F-450. Morimoto’s LF556.2 combines integrated LED projector road lighting and white daytime running lights with integrated amber LED turn signals.
- Left + rightOne complete headlight pair
- White DRLsA distinct daytime signature
- LED projectorsLow- and high-beam functions

A COMPLETE HOUSING UPGRADE
Designed around the way your truck lights the road

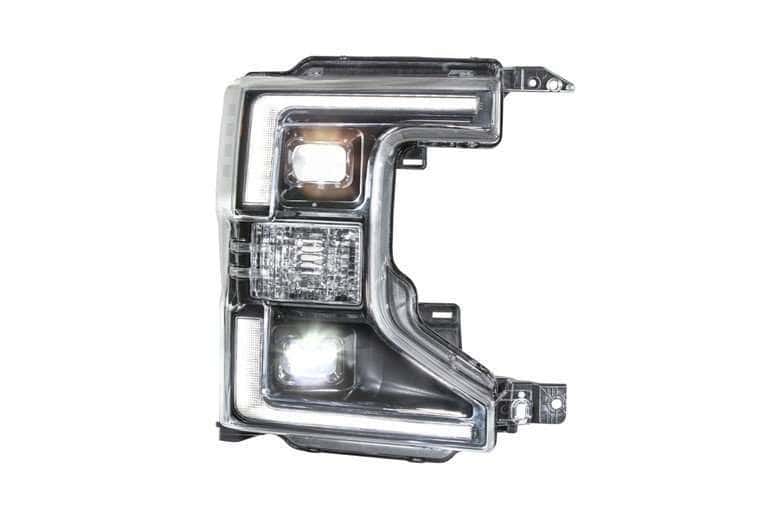

Integrated LED optics
Projector road lighting comes built into the replacement housings. You are changing the complete optical assembly, not fitting LED bulbs into the original headlight.
White daytime running lights
A white LED signature frames the housing, with amber turn-signal operation kept distinct from the daytime lighting.

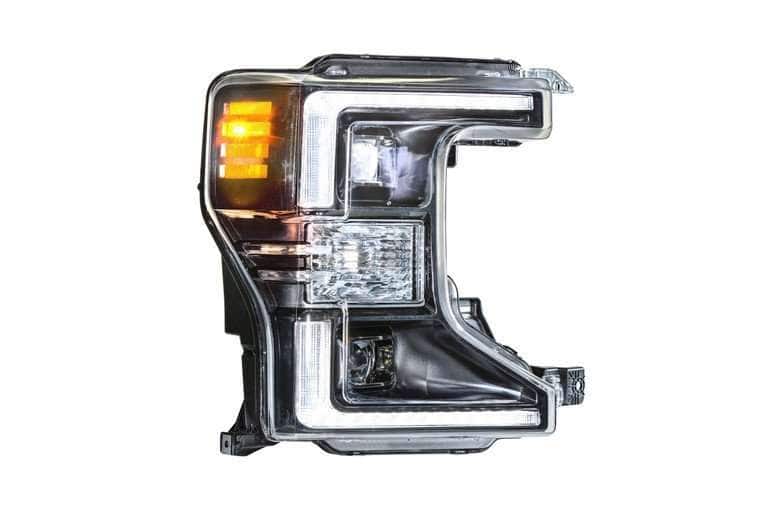

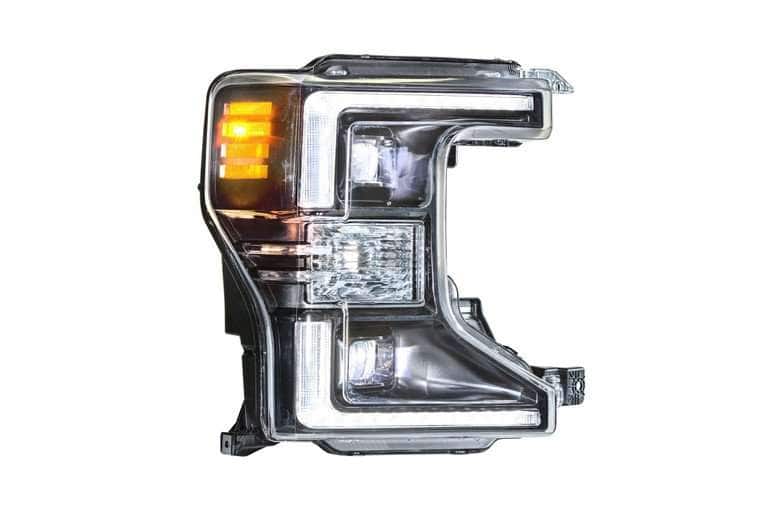

Current LED turn-signal design
This exact LF556.2 uses integrated LED turn signals. Older photographs or videos may show the previous incandescent revision; the current product photographs on this page show the supplied design.

ORIGINAL MANUFACTURER PHOTOGRAPHY
See the beam on the target
These are Morimoto’s original demonstrations. They show the pictured test setup, not independent BTS measurements or a guarantee for every truck.


Mounting height, ride height, vehicle load and beam aim affect the light reaching the road. Check aim after installation.
MATCH THE TRUCK. THEN CHOOSE THE LOOK.
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2020–2022 Ford F-250 / F-350 / F-450 |
| Exact manufacturer part | LF556.2 |
| Original headlights | OEM halogen; OEM LED requires separately purchased LF508H-LED harnesses |
| Turn-signal source | Integrated LED turn signals |
| Daytime running lights | Fixed white |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Package | Left and right complete headlight assemblies |
Match the model year, body and original headlight equipment before ordering. If you are unsure about a Canadian-market or imported truck, send BTS the year, trim and clear photographs of its headlights and connectors so we can check the exact application.
IMPORTANT FOR FACTORY LED TRUCKS
Arrange the OEM LED adapters before checkout
Morimoto lists LF508H-LED harnesses, sold separately, for factory-LED 2020–2022 Super Duty trucks. The standard package below does not include them. Contact BTS to arrange the matching adapter set; do not assume the optional fog-light or tail-light choices supply it.
BOTH SIDES. THE CORRECT STANDARD PARTS.
What is supplied

- Headlights: 2x (One Pair) 20-22 Ford Super Duty XB Hybrid LED Headlights
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
LF508H-LED OEM LED adapters are separate. They are not supplied with this standard pair.
Any optional tail-light or fog-light selections are separate additions. Other lighting, custom grilles, wheels and accessories shown on the trucks are not included with the headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
The guide covers grille and trim removal, headlight access and the original-halogen connection. It identifies fuse 16 for the illustrated DRL-harness route and shows the standard/sequential signal selector. An OEM-LED truck also needs the separately supplied LF508H-LED harnesses and their instructions. Test all functions and aim both lights before finishing.
Confirm the fuse assignment against your truck’s fuse chart and the supplied instructions. Secure the harness away from heat and moving parts. Other aftermarket turn-signal equipment can affect electrical load and signal behaviour, so test the complete system before reassembly.
Download the official LF556.2 installation guide

EXACT PART · LF556.2
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Ford Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Morimoto identifies the supplied configuration as meeting its stated DOT/SAE requirements when installed and aimed correctly. That is not a compatibility or compliance claim for unverified drivers or altered applications.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Official supplier-linked model-family overview. Earlier videos may show a previous product revision; the current LF556.2 photographs and written specifications on this page govern the supplied headlight. Historical preorder, price or availability statements are not current BTS stock information.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Hybrid questions
Is this one headlight or a pair?
One order supplies the complete headlight pair: left and right housings, plus the listed standard wiring.
What vehicle does this exact part fit?
2020–2022 Ford F-250 / F-350 / F-450. Check the original headlights and detailed equipment requirements before ordering.
What else do I need with factory LED headlights?
Morimoto specifies separately purchased LF508H-LED harnesses. Contact BTS to arrange the correct set; they are not included with this standard pair.
Does this replace the complete original headlight?
Yes. The housings and integrated LED road-lighting optics replace the complete original lamps. This is not a replacement-bulb kit.
Are the turn signals LED?
Yes. The current LF556.2 has integrated LED turn signals. Some older Hybrid manuals and videos show an earlier incandescent version; use the current part-specific details.
Can I change the DRL colour?
This exact set has fixed white daytime running lights. Its amber turn-signal function does not make it an amber-DRL version.
Can the turn signals flash normally?
Yes. The exact installation guide shows standard and sequential settings. Configure both headlights consistently and check operation with the truck’s other signal equipment.
Are these XB Evo Hybrid headlights?
No. This is the XB Hybrid LF556.2. XB Evo Hybrid is a separate product family. Do not assume its optics, drivers or other features apply to this part.
Can I add Supercharged drivers or heated lenses?
Neither Supercharged-driver compatibility nor a heated-lens feature has been established for this exact XB Hybrid part. Do not fit newer Evo accessories by assumption.
Is this a no-disassembly installation?
No. Access involves trim, grille or bumper work as described in the exact guide. Connect the correct wiring, test every lighting function and adjust beam aim before finishing.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep your proof of purchase and contact BTS if you suspect a warranty issue.
What does LHD mean?
This is the beam pattern for left-hand-drive vehicles used on the right-hand side of the road. It does not mean the package includes only the driver-side lamp.

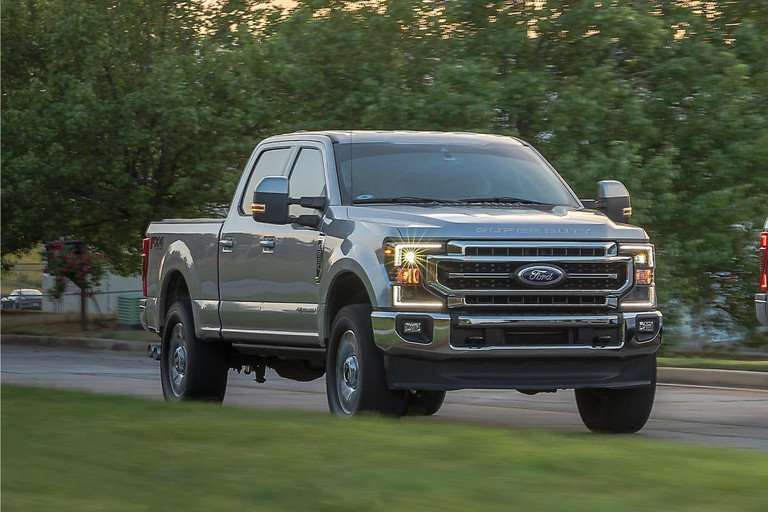

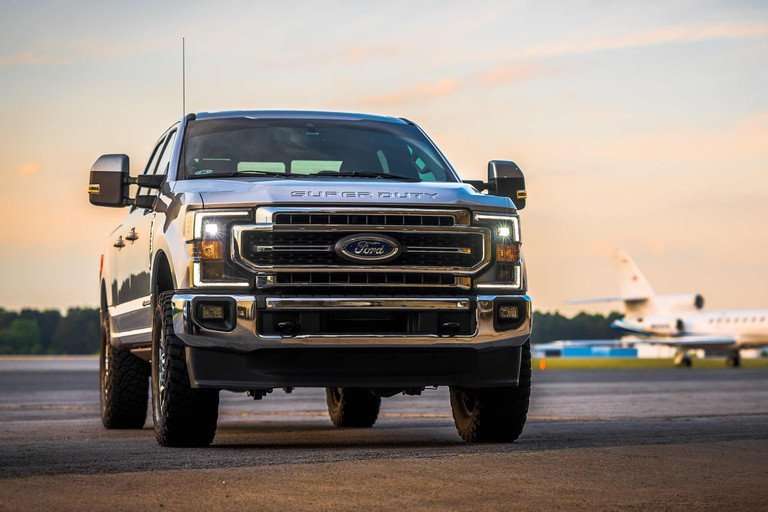

THE FINISHED LOOK

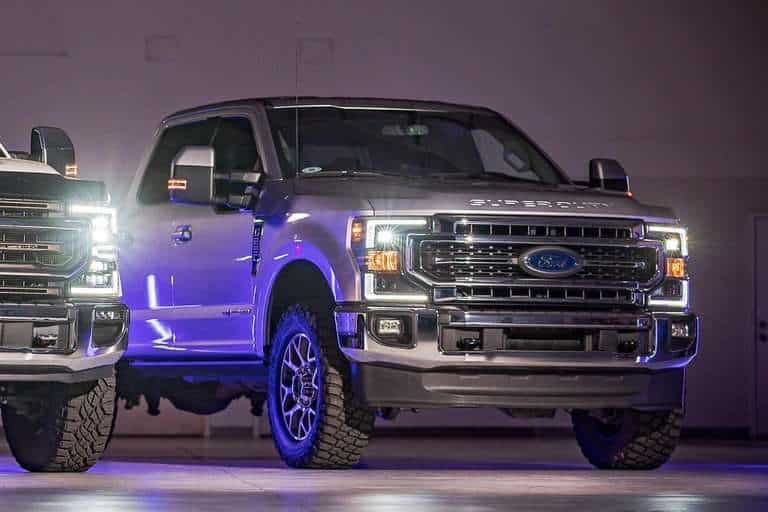

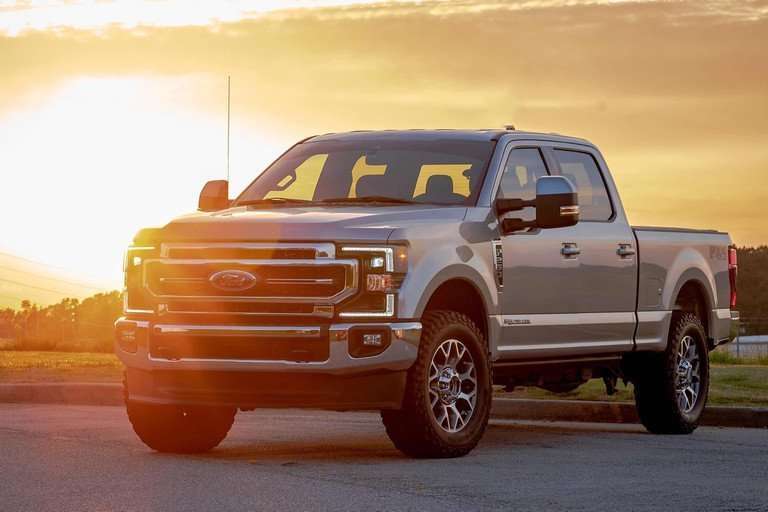

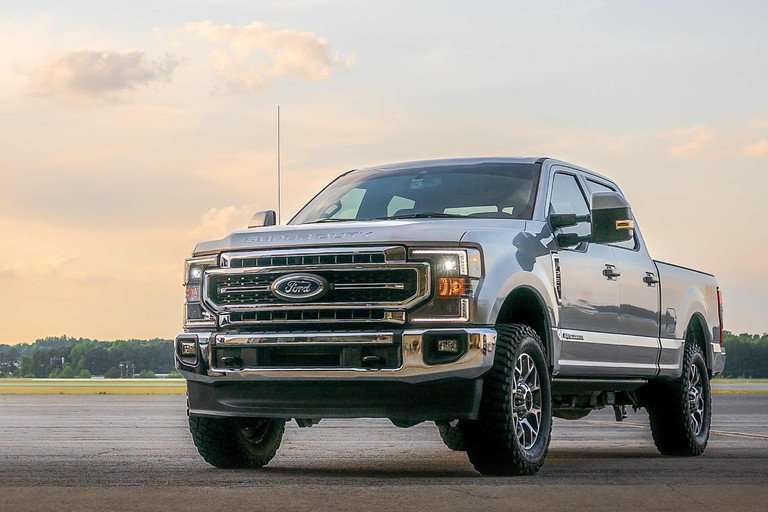

See the current design on the truck
Exact supplier photography. Other lighting and vehicle accessories are separate products.
