MORIMOTO XB LED · LF505-A-ASM
A bold Super Duty signature. Your choice of DRL colour.
A complete headlight pair for the 2011–2016 Ford F-250 / F-350 Super Duty. This exact LF505-A-ASM version has amber daytime running lights, amber turn signals and Kuria Bi-LED optics.
- Left + rightOne complete headlight pair
- Amber DRLsAmber sequential or standard signals
- Kuria Bi-LEDIntegrated low/high-beam optics

DESIGNED AS A COMPLETE SYSTEM
Optics, signature and fitment in one pair
Purpose-built optics

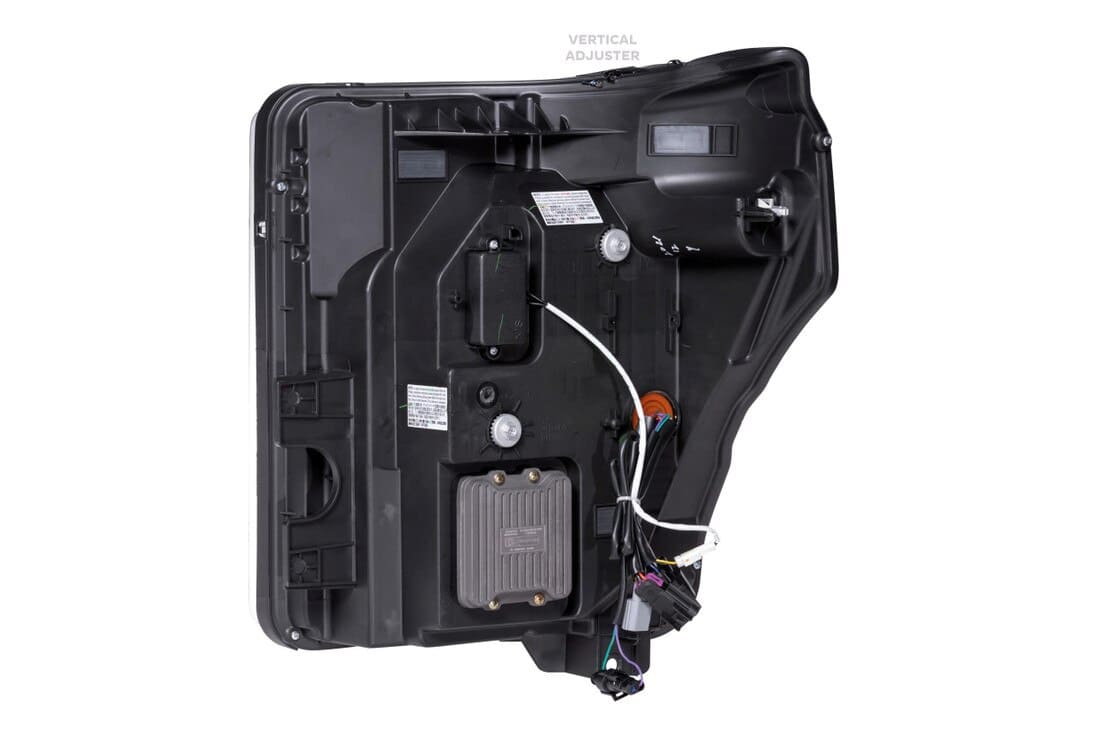

Kuria Bi-LED projectors produce the low- and high-beam patterns within the complete replacement housings. Integrated adjusters let the installer set the beam aim for the vehicle.
A clear daytime signature
The amber DRL outlines the housing, while an amber turn signal adds the signalling function. Sequential and standard flashing modes are available; follow the exact wiring instructions.
Aim completes the installation
Verify beam alignment after fitting the lights. A suspension lift, heavy load or incorrect adjustment can change where light lands, even when the housings use original mounting points.

TWO DISTINCT DAYTIME SIGNATURES
Amber or white. Choose the pair you want.
| Detail | LF505-A-ASM | LF505-ASM |
|---|---|---|
| Daytime running lights | Amber | White |
| Turn signal | Amber; sequential or standard | Amber; sequential or standard |
| Application | 2011–2016 Super Duty | 2011–2016 Super Duty |
| Package | Left/right headlight pair | Left/right headlight pair |
This page is the amber-DRL LF505-A-ASM. DRL colour is a choice between separate products, not a colour-change setting on this headlight.
BEFORE YOU ORDER
Match the year, model and original lights
| Check | This exact application |
|---|---|
| Vehicle | 2011–2016 Ford F-250 / F-350 Super Duty |
| Traffic pattern | Left-hand-drive vehicles, for right-hand traffic |
| Original equipment | Match the listed original lamps and connectors |
Morimoto developed and tested these housings on US-spec vehicles. Canadian-market equipment can differ; send BTS your year, model, original lamp type and connector photos if you are unsure. A matching connector alone does not establish fitment.
THE COMPLETE LEFT/RIGHT SET
What is supplied

- Headlights: 2x (One Pair) 11-16 Super Duty XB LED Headlights
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
Remove the grille and original lamps as directed, route the supplied DRL fuse-tap harness, select the turn-signal mode and set the beam aim.
Factory mounting points and compatible connectors do not remove the need for access work, careful wiring and a final aim check. Secure the harness away from heat, sharp edges and moving parts.
Download the official LF505-A-ASM installation guide
Open Morimoto’s Super Duty turn-signal fix bulletin

EXACT PART · LF505-A-ASM
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Ford Multi-Pin OEM |
| Functions | DRL (Amber), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
FO2503290, FO2502290, BC3Z13008E, BC3Z13008F
Use these as a cross-check alongside the vehicle and original-equipment requirements above.
Morimoto identifies the supplied headlight configuration as meeting the stated DOT/SAE requirements when installed and aimed correctly. This does not establish approval for unverified drivers, altered wiring or a different vehicle application.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Supplier-linked Morimoto Lighting overview for this headlight family. The exact LF505-A-ASM fitment and package notes on this page govern your selection.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB headlight questions
Is the price for one light or both sides?
One order supplies the complete left/right headlight pair with the listed installation wiring.
Which vehicle does this exact part fit?
2011–2016 Ford F-250 / F-350 Super Duty. Verify original equipment and market specification before ordering.
What colour are the daytime running lights?
This exact LF505-A-ASM version uses amber DRLs. The amber turn signal is a separate lighting function.
Can the turn signals flash normally?
Yes. Morimoto identifies sequential and standard flashing modes. Configure both sides consistently using the exact instructions.
Why is there a Super Duty BCM note?
Morimoto documents a possible passenger-side turn-signal lockup related to the body control module. Read the technical bulletin linked above. Its fix requires a separately purchased OHP ELMconfig OBD2 scanner; other aftermarket signal lamps can also affect operation.
Does this replace bulbs or the whole headlight?
These are complete assemblies, with integrated LED optics. They replace the original left and right headlight housings, rather than fitting as bulbs inside them.
Are Supercharged drivers or heated lenses included?
No. Neither a heated-lens feature nor a compatible Supercharged add-on has been established for this exact XB part. Do not assume newer Evo accessories or features apply.
What does LHD mean?
LHD means left-hand-drive traffic-pattern specification for vehicles used on the right-hand side of the road. It does not mean that the set includes only the left headlight.
What should be checked after installation?
Test low beam, high beam, daytime running lights and both turn signals. Secure the wiring and verify beam aim. A lift or changed vehicle load can require further adjustment.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply; retain proof of purchase and contact BTS for a suspected warranty issue.

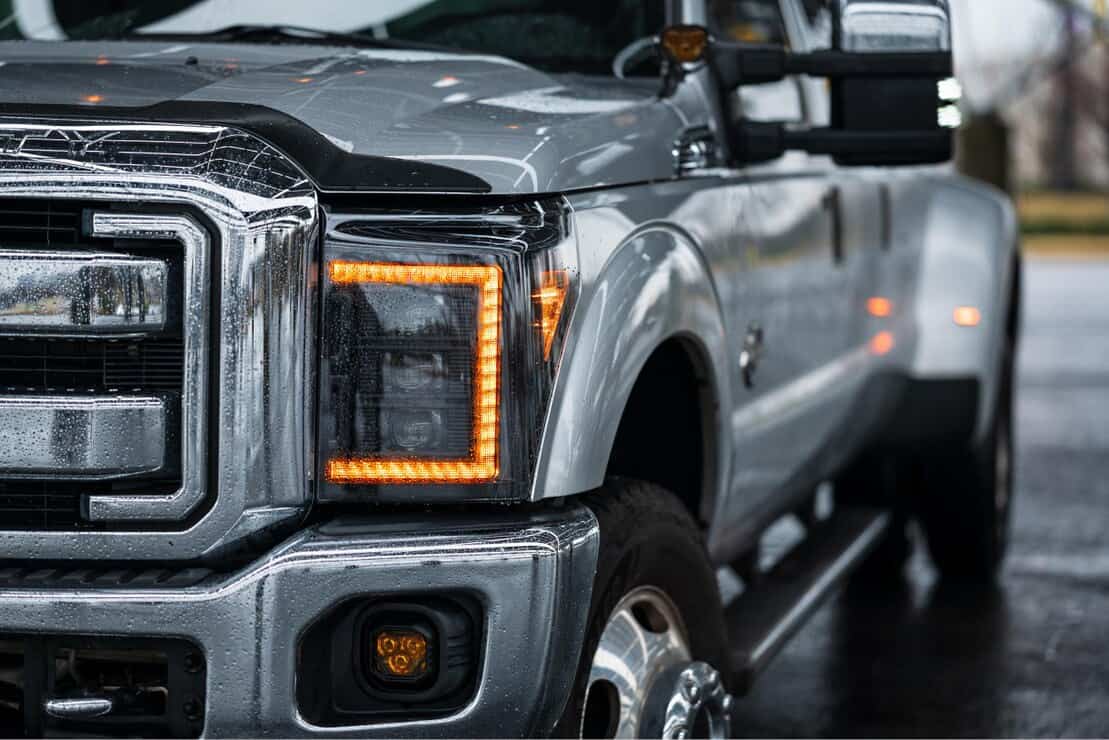

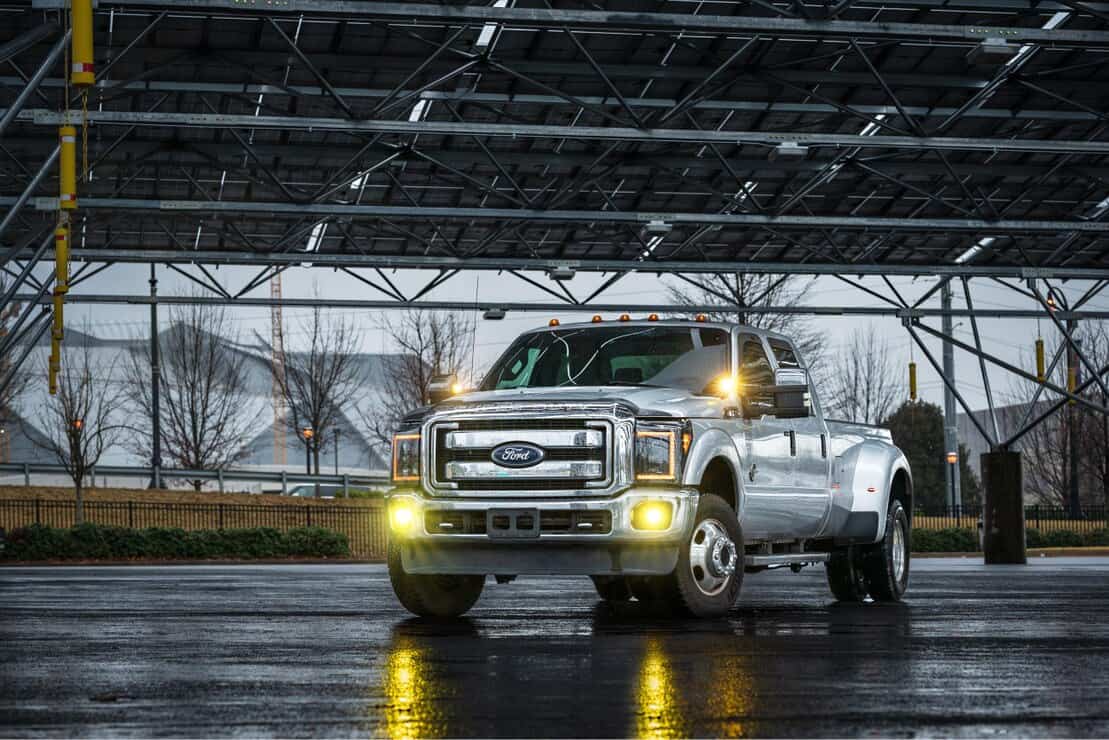

THE FINISHED LOOK
See it on the vehicle
Other lights, grilles, wheels and vehicle accessories shown in manufacturer photography are not included with this headlight pair.
